Port: | Shanghai; | Horsepower: | 251 - 350hp; |
Sweep Width: | 2.6m~3.2m; | Key word: | Concrete Floor Sweeper; |
Condition: | New; | Delivery Detail: | Shipped in 0 days after payment; |
Applicable Industries: | Machinery Repair Shops,Construction works ; | Chassis brand: | Choice; |
Warranty: | 1 YEAR; | warranty: | 12months; |
Dimension(L*W*H): | 5950*1995*2380mm; | Certification: | ccc; |
Emission Standard: | Euro 1/2/3/4/5; | Application: | Sweeping; |
Working Speed: | 0-30km/h; | Brand Name: | dongfeng; |
Supply Ability: | 500 Set/Sets per Month; | Product name: | Road Sweeper Truck; |
After-sales Service Provided: | Field installation, commissioning and training; | COLOR: | Customer Requirements; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Place of Origin: | Hubei China; |
Packaging Detail: | nude packing; | Weight: | 7300; |

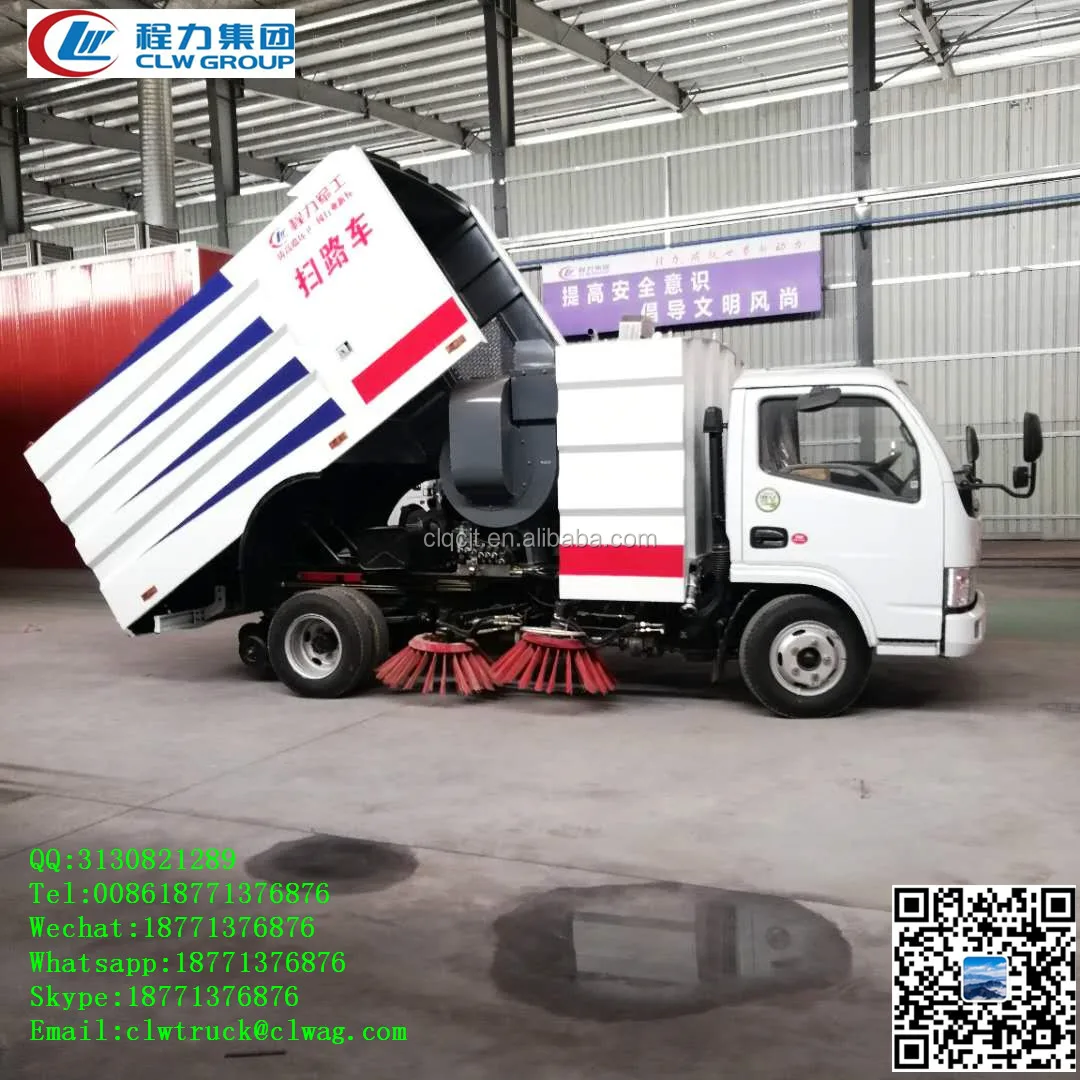

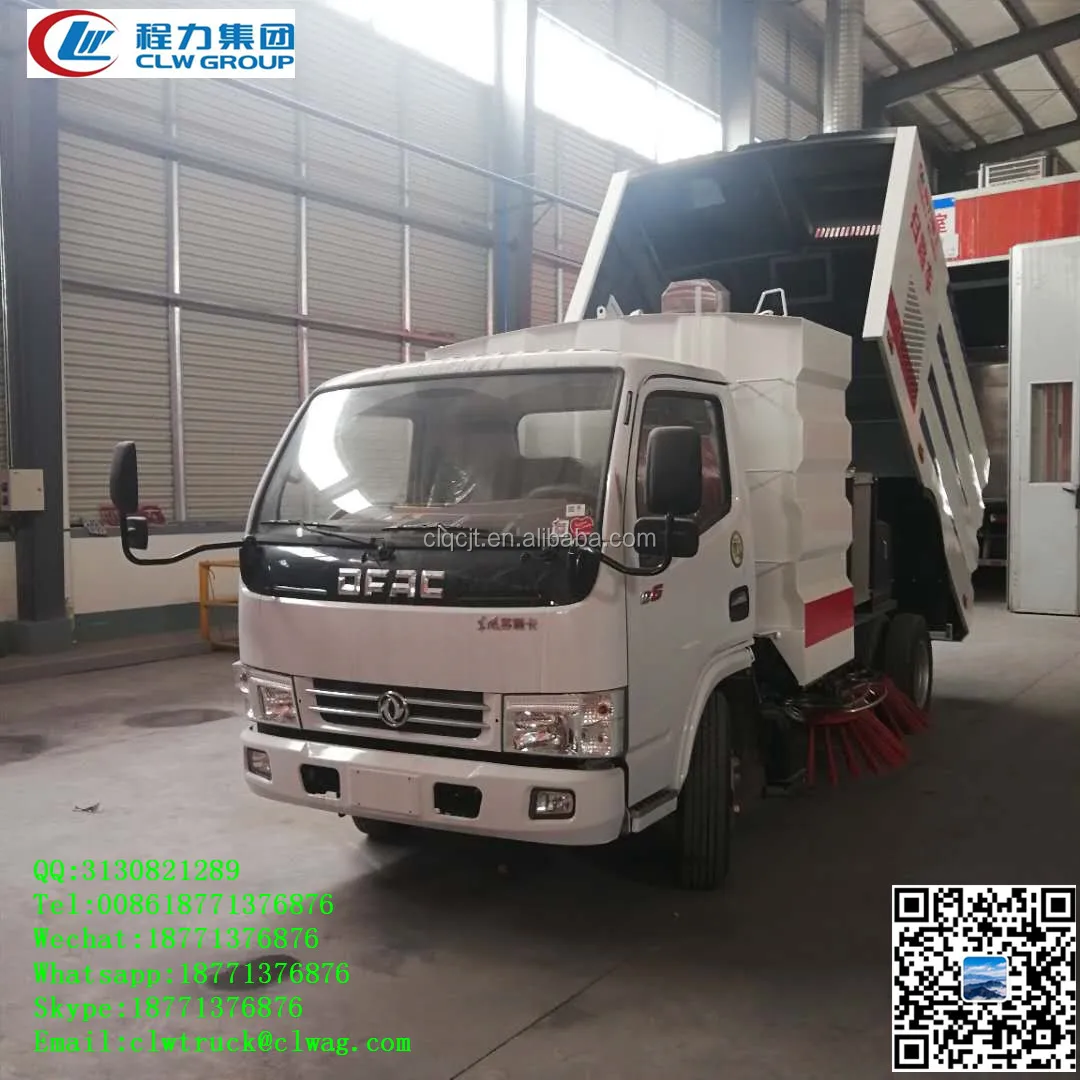

Vehicle description:
1. The way of collecting and cleaning rubbish, wet dedusting, electro hydraulic control and hydraulic tipping and unloading is adopted to clean the road surface.

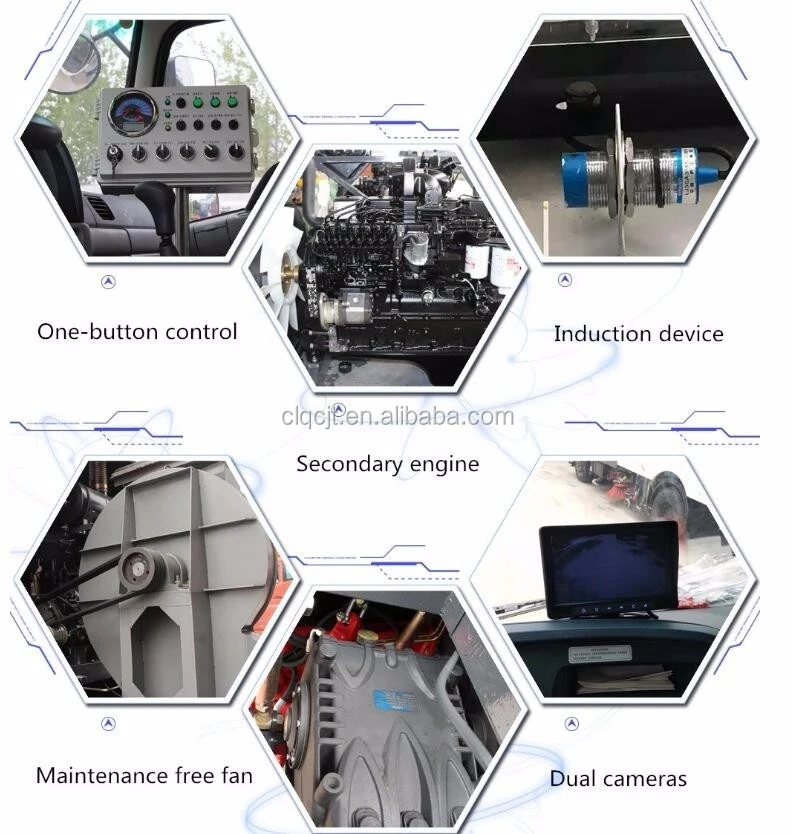

2. The auxiliary engine is used to drive the fan and hydraulic system to ensure that the driving process can continue to work and ensure the continuity of the cleaning process.

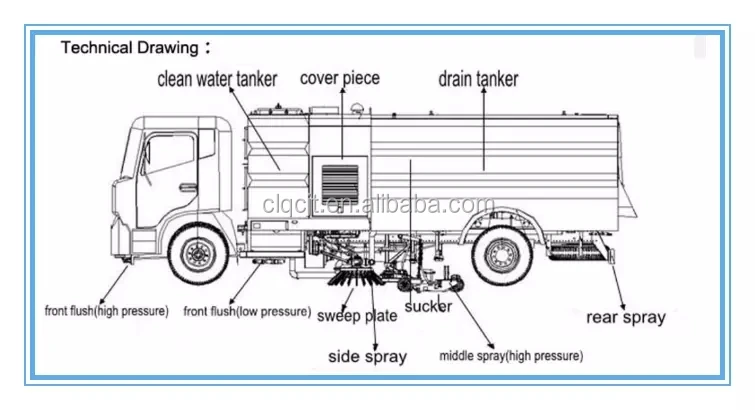

3. The structure of "four sweep disk + spray dust drop device + center baffle + Post suction nozzle" is used to make the sand and stone not splash and dust during the cleaning process. This layout is convenient for the adjustment and maintenance of the cleaning device and suction plate, and the whole vehicle passes well during the transfer operation.
4. The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which ensures the automatic departure of the auxiliary engine from the fan when it starts and stops, reduces the impact on the auxiliary engine, and improves the working reliability and service life of the auxiliary engine.
5. It has automatic collision avoidance function and automatic reset function. It can automatically retract and recover automatically through obstacles.
6. The speed of sweeping disk can be adjusted according to various cleaning conditions. It can ensure good cleaning effect under various pollution conditions.
7. The advanced and highly efficient dedicated fan and full floating suction nozzle that can be automatically leveled along the road will have good cleaning effect and long service life.
Futian 4*2 Road Sweeper | |||
Technical Parameters | |||
The total mass(kg) | 3600 | Curb Weight(kg) | 2370 |
Rated the quality of(kg) | 1100 | Chassis Model | BJ1020 |
Approach / departure Angle(°) | 22/15 | Front Overhang / Rear Overhang (mm) | 1010/1450 |
Dimensions(mm) | 4760×1678×2100 | Drive model | 4*2 |
Number of axes | 3 | Maximum speed(km/h) | 85 |
Tire Specifications | 6.00-13 | Number of tires | 6 |
Front track(mm) | 1300 | Rear track(mm) | 1240 |
Wheelbase(mm) | 2300 | No. of Spring | 8/6+3 |
Emission Standards | Euro Ⅲ | Type of fuel | Diesel |
Engine Parameter | |||
Engine Model | 4A1-68C40 | Horse power | 70 |
Engine Displacement (ml) | 1809 | Engine power(kw) | 50 |
Chassis Description | the chassis Futian, Anhui quanchai diesel engine, 6 nylon tyre. |
