Manufacturers Street Cleaning Vehicles Street Sweeper Road Sweeper

Product details
Marketing Type:2020 New Productspayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance
Core component warranty:3 yearsDimensions (L*W*H):6225*2050*2550MM
Origin:Hubei, ChinaShowroom location:Environment and Greening
Applicable industries:Environment and Greeningport:Shanghai port or other major ports in China
Video outbound inspection:ifWheelbase:3815 mm
Maximum speed (km/h):5-25km/hHealth status:new
Truck Model:cleaning road sweeperweight:5400 kg
brand:dfCore components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Mechanical test report:ifcabin:KV100
Warranty:2 yearsfetal:7.50R16LT 14PR
Chassis model:QL1080 BukashiSupply capacity:520 street wash vehicles per month
Curb weight(Kg):6750 kgEmission Standards:Euro IV
Packaging Details:naked; ro-roDimensions (mm):6920*2200*2750mm
brand:Isuzu
Product Description
Company Profile

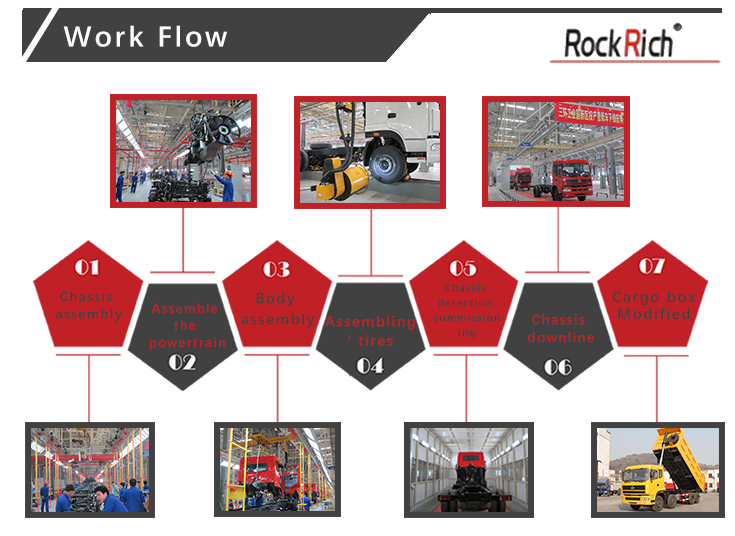

work process
Customer visit
Product packaging
FAQ
1. What is the warranty?
You can always enjoy technical support by phone or email. We will provide timely solutions. We also provide the most convenient and efficient spare parts support at competitive prices.
2. What's the delivery time?
The delivery time is usually within 35 working days after we receive your advance payment.
3. Do you provide customized service?
Yes, we offer customization based on your performance needs, including special requests.
4. What is the payment method?
TT 30% as deposit, balance payment by TT or L/C at sight before shipment.
5. Why us?
We guarantee professional one-stop service, competitive price and high performance.
Overall parameters
truck model
cleaning road sweeper
Dimensions (length x width x height)
6920×2200×2750mm
Gross Vehicle Mass (GVM)
8280 kg
curb weight
6750 kg
chassis
brand
Isuzu
cabin
KV100
Chassis model
QL1080 Bukashi
wheelbase
3815mm
engine
Isuzu 88kw
fetal
7.50R16LT 14PR
Performance
Water tank volume (cubic meter)
5 cubic meters
Dustbin volume (m³)
5 cubic meters
Auxiliary engine
Cummins 140HP / Yuchai 140HP
sweeping work
Maximum Sweeping Width (Including Curb Sweeping Width)
3.2m
Maximum sweeping width (excluding curb sweeping width)
3.0m
cleaning speed
≤5-25km/h
Washing water pressure
12 MPa
Washing water flow
115 l/min
cleaning job
cleaning width
3.2m
cleaning speed
≤5-25km/h
cleaning capacity
75000 square meters / hour
The maximum discharge angle of the dustbin
≥48°
Low pressure flushing width
24m
Elective
Snow shovels, snow rolls, etc. can be added
