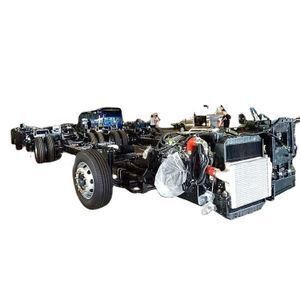

7.6M Dongfeng bus chassis EQ6760KS3GD

Click here to contact

Product details

dimension:	7650X860 mm;	Quality:	Superior;
Packaging Detail:	neutral packing,one 40" container can hold 3 such bus chassises .;	Place of Origin:	Hubei, China (Mainland);
Type:	Inter cicty bus;	Applicable vehicle:	Bus Coach Train Boat;
Engine:	160HP;	PAYMENT TERM:	T / T30% Deposit;
Size:	7650X860 mm;	Voltage:	24V;
Supply Ability:	120000 Unit/Units per Year;	Warranty:	1 Year;
Material:	steel plate;	Model Number:	EQ6760KS3GD;
Port:	shanghai;	Payment Terms:	L/C,T/T;
Bus Model:	Dongfeng;

Specification
Dimensions(mm)		7650×860
Track(mm)		Front 1860
		Rear 1700
Wheel base(mm)		4000
Front/Rear Suspension		1500/2150
Dry mass(Kg)		2800
Authorized total mass(Kg)		9,800
Front/rear axle load(Kg)		3800/6000
Max.speed (Km/h)		90 ,105
Discharge standard		Euro III
Fuel grade (diesel / petrol)		Summer 0#,Winter-10#
Fuel box		145L
Equipment
Engine	Model	YC4E160-30(Front location)
	Type	upright, Inline,Water cooling,4 strake cycle,Air cooled
	Rated power(Kw/r/min)	118/2500
	Max.torque(N.m/r/min)	600/1600
	Alternator	28V,90A
	A/C system	Optional
Gearbox	Model&Operation way	DF6S650
	Files bit rate ratio	5.606/3.627/2.313/1.487/1.00/0.789/R5.05
Clutch
Front axle pattern		Fist type & I axle
Rear axle	Pattern	Overall cast rear axle case
	Differential Ratio	4.875
Frame	Overall,Stringer cross-section for the trough
Steering Gear	Mechanical power steering
Suspension system	Front and rear suspension are used longitudinal-mounted multi-leaf spring suspension, leaf spring front 12 rear 12 , The front and rear suspension are equipped with a shock absorber, front suspension mounted stabilizer bar.
Braking system	Double Route Brake, Drum Brake
Braking system	Spring Brake
ABS system	Optional
Tire specification	7.50-20,7.50R20
Optional system	1,ISDe160-30,EQH160-30;2,7.50R20,8.25-20,8.25R20;3,Dryer;4,ABS;5,70A alternator;6,DF6S750 gear box for EQH160-30 engine;7,Lake bridge
