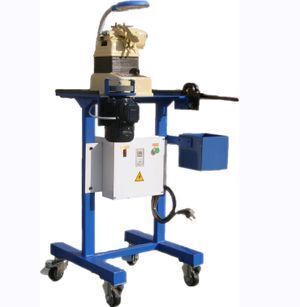

Super fine wire butt welding machine

Supplier: Beijing Ron-En Machinery & Integration Co., Ltd.
Region: Beijing, China
Contact: Ms Laura Zhang
Price: $400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Ronen;	Packaging Detail:	wooden case or pallet;
Payment Terms:	L/C,T/T,Western Union;	voltage:	380v;
key words:	Super fine wire butt welding machine;	weld power:	1 kva;
application:	steel cord etc.;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;
Condition:	New;	Place of Origin:	Hebei China;
Port:	Tianjin;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support,Engineers available to service machinery overseas;
Dimensions:	3502501200;	Power:	100kva;
Current:	AC;	normal frequency:	50hz;
diameter for high steel:	0.5-28 mm;	adjustable degree:	6;
phase:	1;	Supply Ability:	50 Set/Sets per Month;
Usage:	butt welder;	Warranty:	1 YEAR;
diameter for copper & aluminium:	0.5-28 mm;

Welcome to visit Ron-En company! (Super fine wire butt welding machine)

Please refer to our mainly products:

1) Welding machine: diameter range 0.15-28mm.

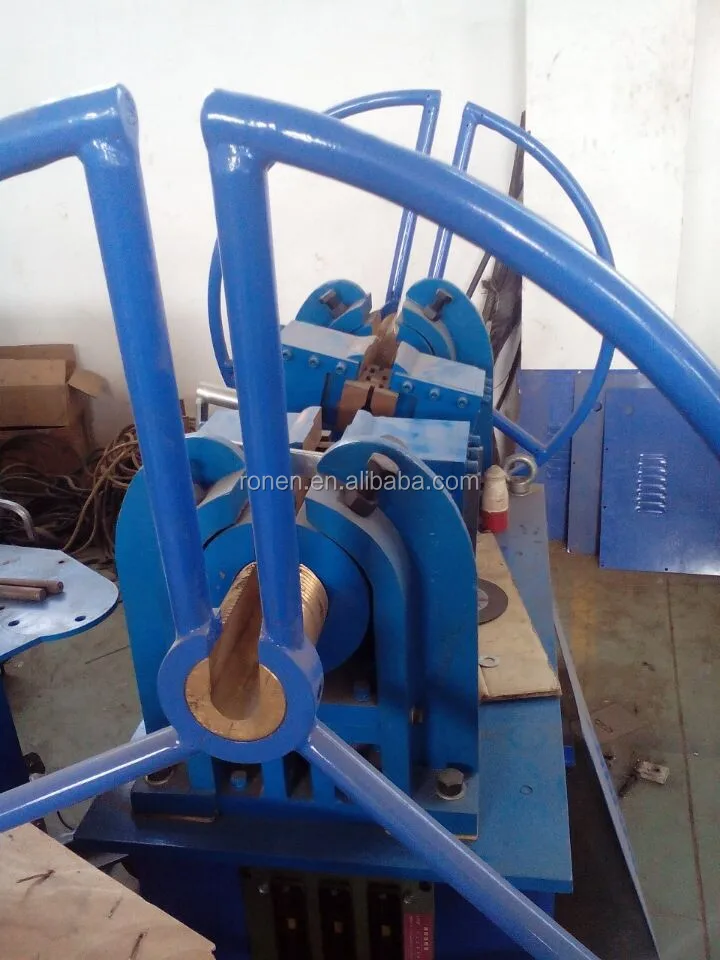

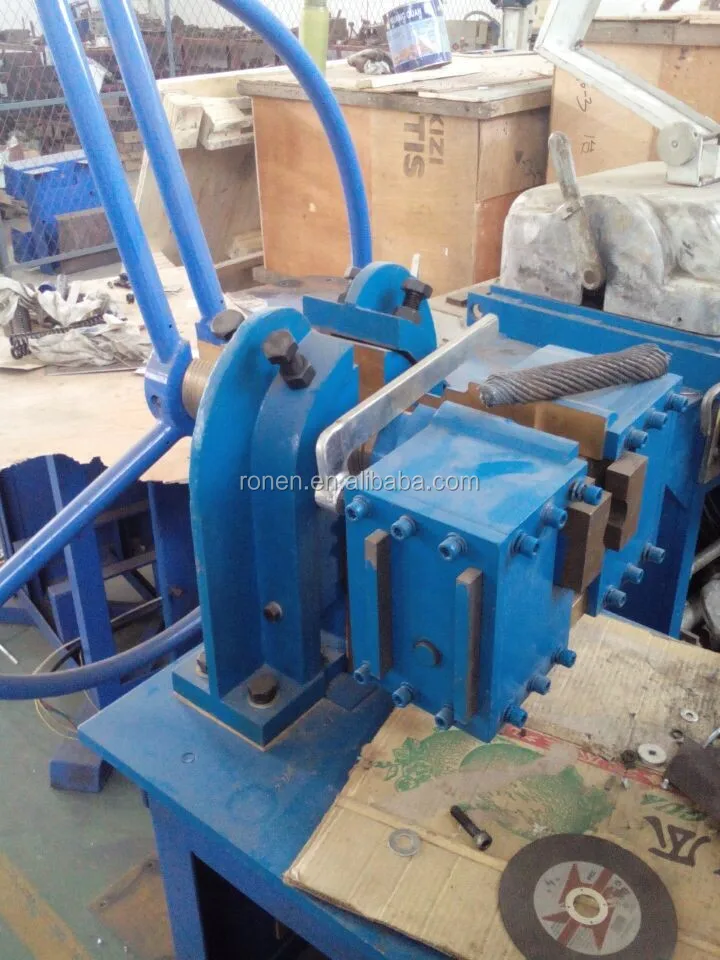

2) Steel ropes fusing machine: diameter range 6-45mm

3) Slings press machine

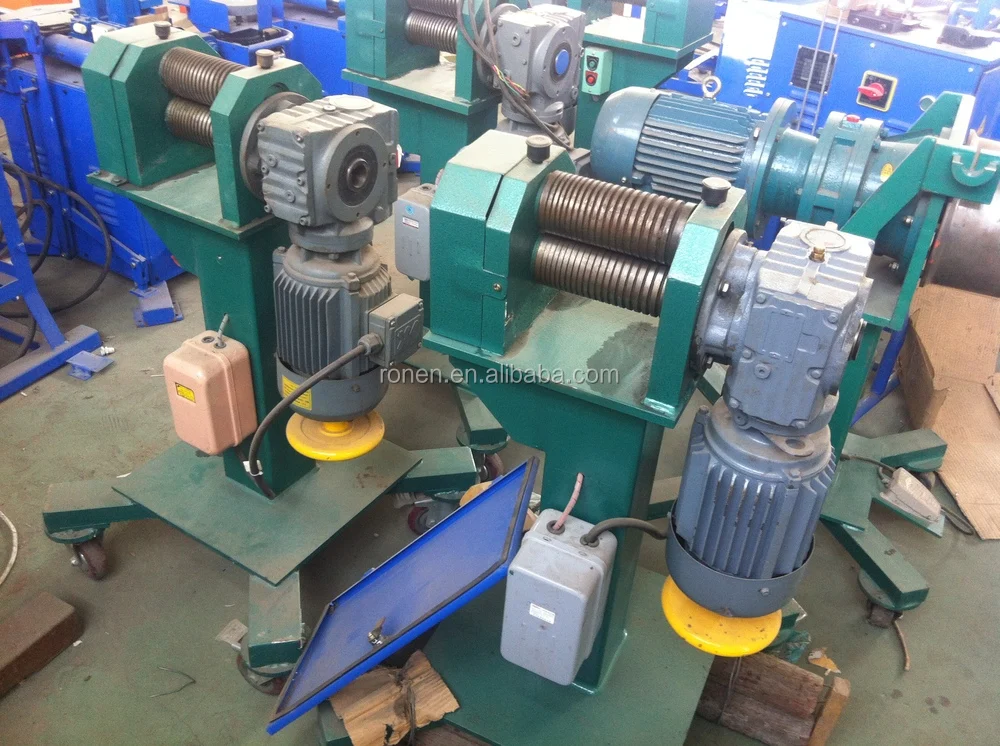

4) Pointing machine

Products specification:

Butt Welding machine (following data is one part, more information, please feel free to contact us)

model	unit	RN01	RN02	RN03	RN04	RN05	RN06	RN10	DS25
voltage	v	220/380	220/380	380	380	380	380	380	380
welding power	kva	0.4	2	2	3	5	10	10	25
secondary voltage	v	0.8-2.5	0.8-2.84	1.3-2.86	1.2-3.0	1.6-3.46	2.0-4.6	2.0-4.9	2.6-6.0
welding diameter	mm	0.3-2.5	0.4-3.5	1.5-6.0	1.5-6.5	2.0-7.0	2.0-8.0	3.0-9.0	4.0-14.0
frequency	hz	50	50	50	50	50	50	50	50
adjustable grade	level	6	6	6	6	6	6	6	6
phase		1	1	1	1	1	1	1	1
annealing range	mm	22-152	22-152	65-160	65-160	65-160	65-160	60-210	98-260

Application:

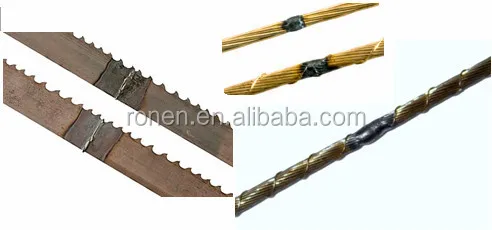

For welding the high, medium and low-carbon steel, stainless steel, alloy steel and non-ferrous metals, copper alloy wire, aluminum alloy wire, nickel alloy wire etc..

Performance and characteristics:

1. gripping wire operation in the form of eccentric cam pressed and pressed force under the wire diameter of the pressure to adjust the size of the adjustment easier, compress large force.

2. sliding bearings in a straight line as part of the operation, flexibility, high wear resistance.

3. configuration second annealing device, 4-12mm welding wire between the best

4. configuration cutter device, easy to cut off the coarse wire

5. configuration grinding machine device, easy to use

6. using low-voltage 24v operation, the high-securit

7. mobile convenience of using four-wheel universal mobile, mobile and fexible, easy to operate.

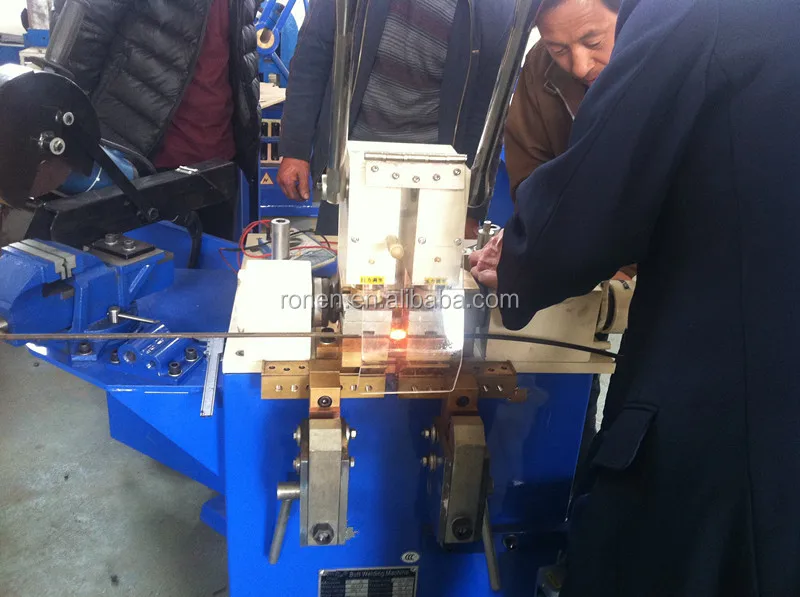

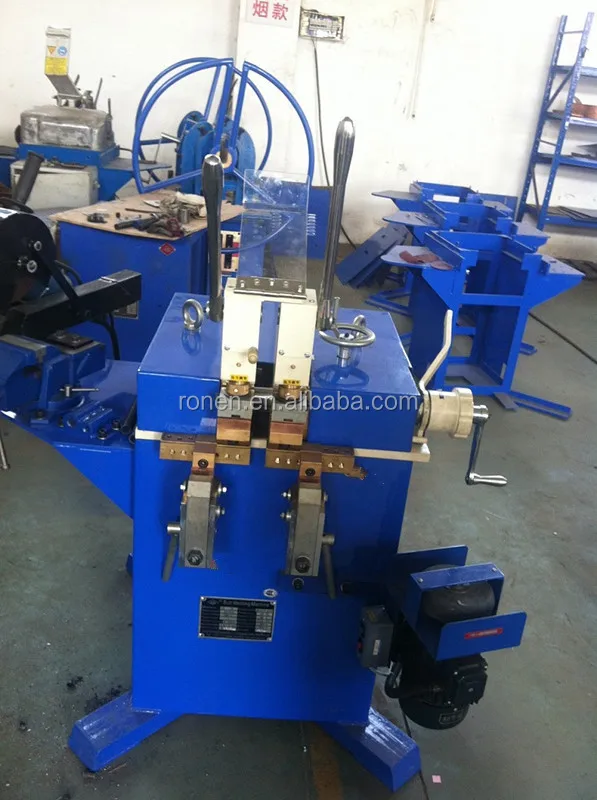

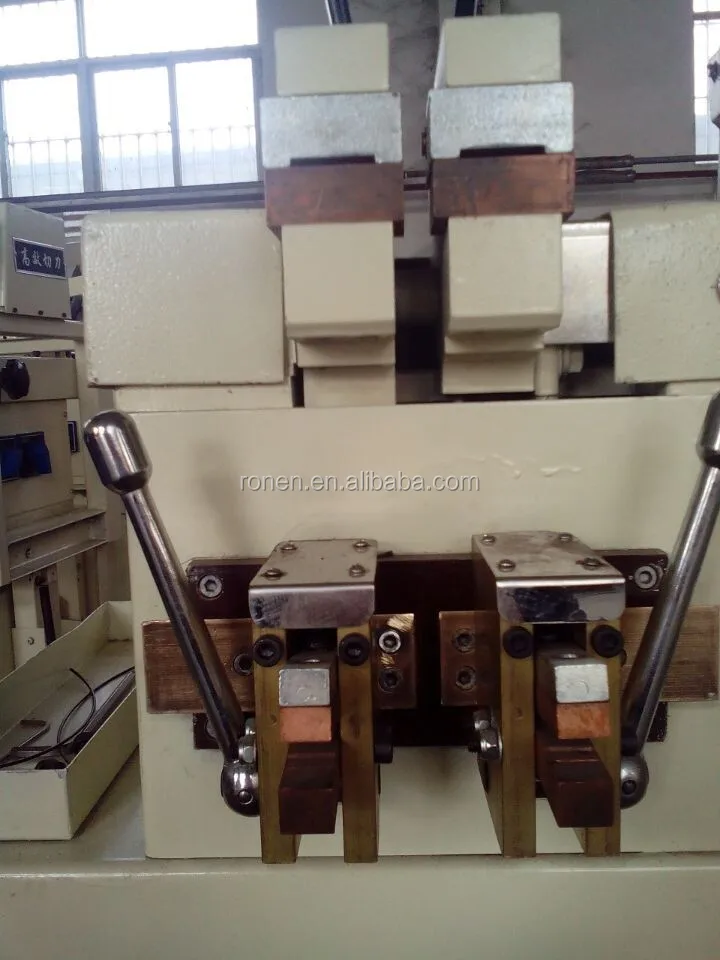

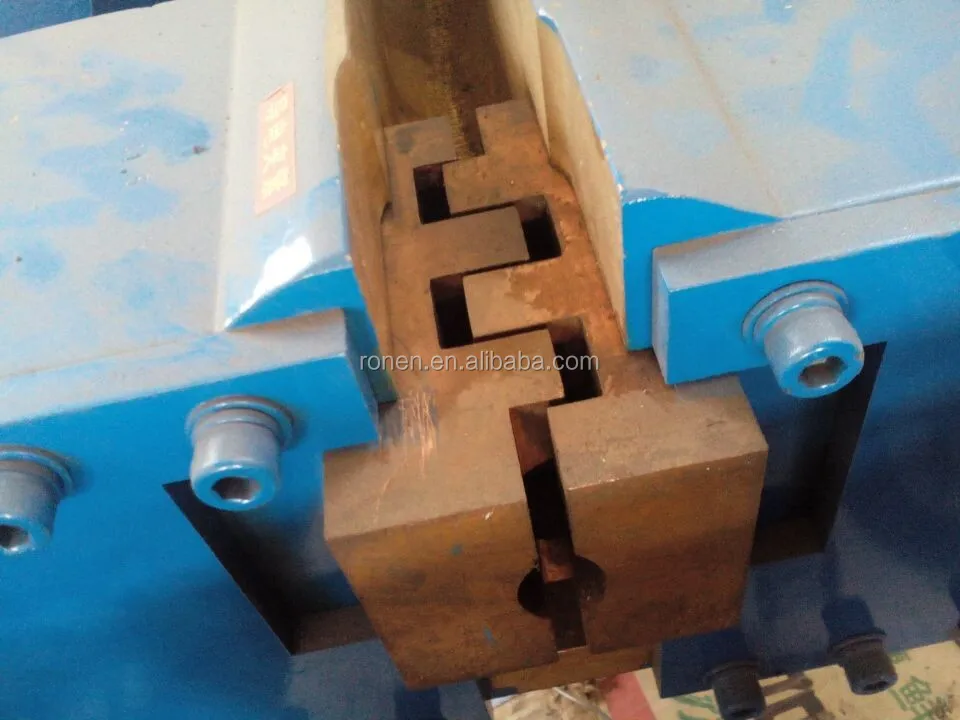

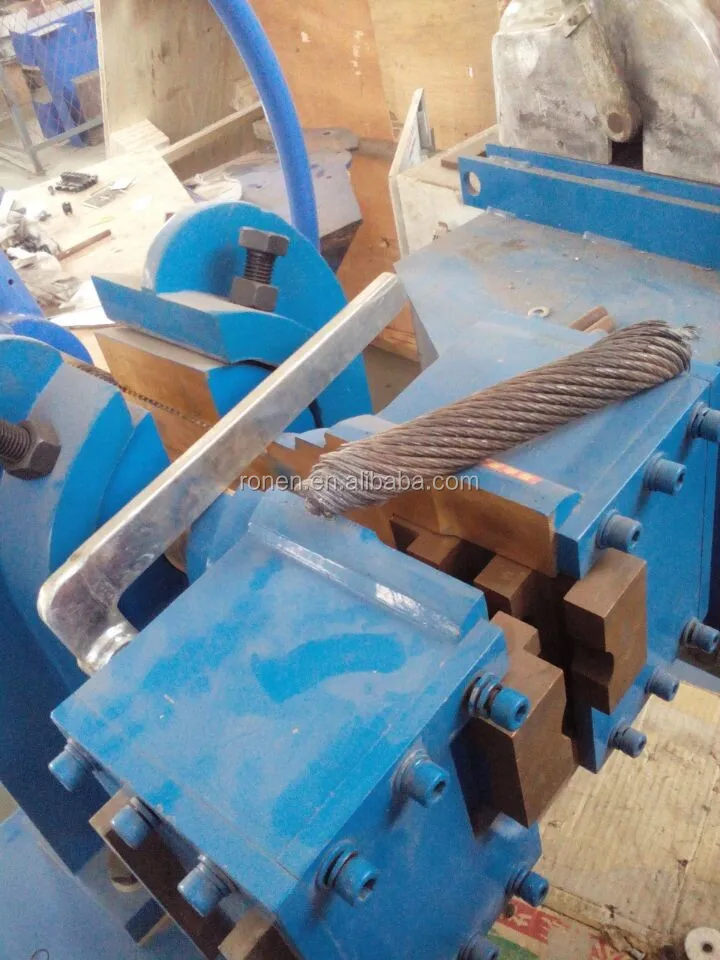

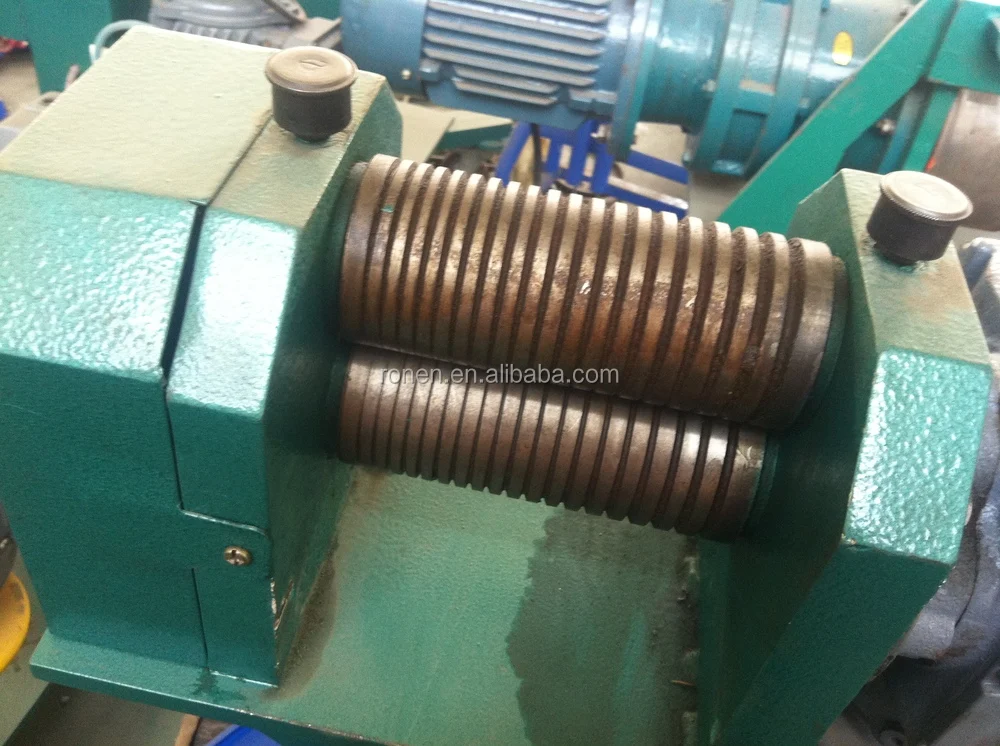

Products show:

Packaging & Shipping

Wooden case or pallet

Our Services

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
All the products of our company have already been widely used in metal products area.
