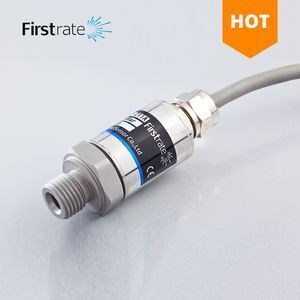

FST800-211A CE Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor
-
Supplier: Hunan Firstrate Sensor Co., Ltd. -
Region: Hunan, China -
Contact: Ms fiby shen -
Price: $22.00 /piece -
Min. Order: 1 piece
| Overload Pressure: | 300% FS; | Pressure Type: | gauge pressure absolute pressure sealed pressure; |
| Payment Terms: | T/T; | Compensated Temperature: | -20~+85°C; |
| Product name: | CE Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor; | Place of Origin: | Hunan China; |
| Supply Ability: | 300000 Piece/Pieces per Year; | Signal output: | 4~20mA 0.5~4.5VDC 0~5VDC 0~10VDC; |
| Port: | Changsha; | Pressure range: | 15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K psi; |
| Model Number: | FST800-211A; | Pressure Range(bar): | 5 10 16 25 40 60 100 160 200 250 300 400 500 600 bar; |
| Brand Name: | Firstrate; | Packaging Detail: | standard export packing , including instructions and certificate/ Carton Packing, Water Proof, Shock Resistance FST800-211A CE Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor; |
| Working Temperature: | -40~+85°C; | Accuracy: | ±0.5%FS ±1%FS; |
| Burst Pressure: | 500% FS; |
FST800-211A CE Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor
Why Choose Our Firstrate?
♦ Focus on sensor production for more than 50 years;
♦ Factory Outlet, Low price;
♦ 12 months free repaire warranty;
♦ Firstrate products have past CE,ROHS,ISO9001 etc certificate.
| Product Introduction | |
| The FST800-211A CE Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor is a silicon MEMS strain gauge sensor which is glass bonded to a stainless steel diaphragm.It avoids influences on product caused by temperature, humidity, mechanical fatigue and medium, thus to improve its longterm stability in the industrial environment. Its pressure chamber is made of imported 17-4PH stainless steel in an integrated way without welding seams or O-rings, free of leakage troubles. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are installed inside the transmitter and the transmitter is featured with the strong interference resistance, wide temperature compensation scope and flexible & various output forms, etc. The series products provide several optional pressure connectors and electric output forms for customers. |
| Product Features | |
| ♦ Advance Microfused Silicon Strain Gauge, whole-designed elastomer, free of leakage troubles ♦ Efficient lightning protection and strong anti RFI&EMI protection. ♦ Advanced digital temperature compensation and wide working temperature scope ♦ High sensibility, high accuracy, high frequency response and longterm stability | |
Standard Range | |
| Pressure Type: gauge pressure absolute pressure sealed pressure | |
| Pressure Range(bar):1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600 | |
| Pressure Range (psi): 15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K |
| Technical Index | |
| Signal output | 4~20mA 0.5~4.5VDC 0~5VDC 0~10VDC |
| Signal line specification | 2wire 3wire 3wire 3wire |
| Power supply | 9~30VDC 5VDC 9~30VDC 15~30VDC |
| Accuracy | ±0.5%FS ±1%FS |
| Longterm Stability (1 Year) | ±0.5%FS |
| Frequency Response (-3dB) | 3.2kHz |
| Compensated Temperature | -20~+85°C |
| Working Temperature | -40~+85°C |
| Storage Temperature | -40~+105°C |
| Overload Pressure | 300% FS |
| Burst Pressure | 500% FS |
| Mechanical Vibration | ±20g |
| Impact (11ms) | 100g |
| Environmental Protection | IP65 |
| Wetted Parts | 17-4PH |
| Electrical connection | Packard Hirschmann(Mini) Hirschmann(DIN43650) M12Waterproof cable (Direct lead) |
| Pressure connection | M20×1.5 M12×1.5 G1/4 NPT1/4 R1/4 7/16-20UNF |
| Electromagnetic compatibility(EMC) | EN61000-6 |
| Certificates | CE RoHS |
 |  |  |
MORE PRODUCTS »»» PLEASE CLICK HERE HERE
| Applicable Scope | |
| ♦ Industrial process testing and control ♦ Automatic testing system ♦ Hydraulic and pneumatic systems ♦ Pump station and water treatment system ♦ Industrial machinery manufacture |
Approach Firstrate Company
Hunan Firstrate Sensor Co.,ltd is a high-tech joint venture specialized in researching, manufacturing, and sales of sensors and transmitters. Our products include Pressure sensors and Transmitters, Temperature sensors and transmitters, Liquid-level sensors and Transmitters, Wind Speed & Direction sensor, and Intelligent Control Instruments. They are widely used in the field of aviation & aerospace, national defense & military project, engineering machinery, railway & urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control. ( FST800-211A CE Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor )
About Firstrate Company
Firstrate is committed to the research & development of international leading Microfused technology, adopts the Microfused Silicon Strain Gauge production technique ,CAN ( Controller Area Network) technology and wide temperature digital compensation data system. MEMS sensors have been recognized and highly praised by scientists and engineers from industrial automation. At present, our company has declared 12 national invention patents, 30 plus utility-model patents. And have got the certificates of CMC, CE, Safety & Flame-proof certification and ROHS. ( FST800-211A CE Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor )
Manufacturer 0 - 10V Output Industrial Piezoelectric gas Liquid water pressure sensor Ordering Process
In order to recommend you the most suitable sensor, please show us following necessary info according to your practical situation.
1. what is your pressure type: gauge pressure, absolute pressure, sealed pressure or other ... ?
2. working temperature: -40~+125 °C ?
3. tesing range:
4. output: 4-20mA , 0-5V or ....?
5. screw: G1/4, 1/4NPT, R1/4, M20*1.5.....?
6. electrical connection: DIN43650, Packard, Direct lead ..... ?
7. Whether need cable ?
8. quantity: ?
9. price items: CIF or Exw or FOB ?
10.What is your application?
