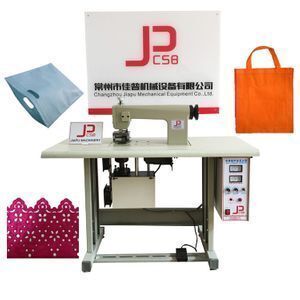

Ultrasonic sewing machine for PP woven bag

Supplier: Changzhou Jiapu Mechanical Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr Talisman Zhu
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power(W):	1500-2500W;	Place of Origin:	Jiangsu China;
Certification:	CE certificate;	After Warranty Service:	Video technical support,Online support;
Payment Terms:	L/C,T/T,Western Union;	Packaging Detail:	plastic film or wooden case;
Supply Ability:	1000 Set/Sets per Month Ultrasonic sewing machine for PP woven bag;	Voltage:	220V 50-60HZ;
After-sales Service Provided:	Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Engineers available to service machinery overseas;	Max Sewing Thickness:	20MM;
Package Preview:	;	Roller Size:	Wide:23MM-60MM Diameter:50MM;
Showroom Location:	Turkey;	Automatic Grade:	Automatic;
Ultrasonic sewing machine for woven bag:	Ultrasonic sewing machine for woven bag;	Condition:	New;
Local Service Location:	Turkey;	Output Frequency:	20KHZ;
Dimension(LWH):	12506501300MM;	Warranty:	1 YEAR;
Applicable Industries:	Home Use,Retail;	Brand Name:	JIAPU;
Weight:	100kg;	Port:	China Main Port;

Main Product

Non Woven Shoe Cover

Making Machine

C type Solid Butterfly

Face Mask Machine

Automatic Surgical Face

Mask Making Machine

Ultrasonic Quilting

Machine

Ultrasonic sewing machine for PP woven bag

Product Description

Function

This machine can make laces, non woven fabric bag and non woven surgical gown by changing the different rollers(molds), sewing non woven material together, cutting non woven fabric into pieces.

Feature

1. The operations of side scraping and trimming
The side scrap in one side and side melting can be carried out at the same time. It makes the side smooth, no roughness and no coarse side.
2. Make holes
The holes with different patterns can be cut and the treatment of side melting can be carried out too.
3. Transfer printing
Two layers or multi-layers can be melted together. It is not necessary to use thread and needle. This process can replace sewing. Moreover the melted strength is excellent.
4. Cut Material
This machine can cut material for single piece or many pieces at one time. Moreover it can carry out the treatment of side melting. There is no coarse side.
5. Forming
At one time the process of cutting, hole brearking and patter printing can be carried out.

Technical parameter

Power Source		220V 50-60HZ

Inout Power		1500-2500W

Output Frequency		20KHZ

Working Speed		0-20M/minute

Roller Size	JP-50B	Wide:23MM Diameter:50MM
	JP-60	Wide:23MM-60MM Diameter:50MM
	JP-100	Wide:50MM-100MM Diameter:50MM
	JP-200	Wide:100MM-190MM Diameter:50-80MM
Roller Size		Wide:23MM-60MM Diameter:50MM

Dimension		*12506501300MM*

Weight		100KG
