Supply Ability: | 1000 Set/Sets per Year; | Power(W): | 3-10KW; |
Warranty: | 1 Year; | After-sales Service Provided: | Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service,No after-sales service; |
Condition: | New; | Packaging Detail: | Wooden case; |
Place of Origin: | Jiangsu China; | Nonwoven Material: | 10-20 GSM; |
Productivity: | 150-200 Pcs/min; | Mask body size: | 175*(80-100)MM; |
Brand Name: | JIAPU; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Voltage: | 220 V; | Weight: | 1000-3000KG; |
Payment Terms: | L/C,T/T; | Dimension(L*W*H): | (3000-6000)*3000*1800MM; |
Certification: | CE Certificate; | Applicable Industries: | Manufacturing Plant; |
Automatic Grade: | Automatic; | Port: | China main ports; |
Related Product | |||
Surgical Doctor Cap Making Machine | Non Woven Shoe Cover Making Machine | Non Woven Bouffant Cap Making Machine | C Type Solid Butterfly Face Mask Machine |
Function

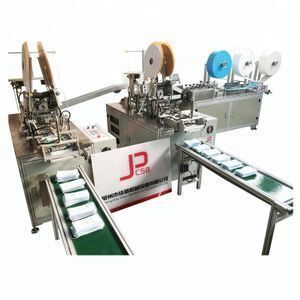

Automatic mask production line, also known as one to three mask production line, composed of a mask body machine and three ear band composed of welding machine. Every minute can output 120-150 piece of complete plane mask, mask specifications: 175*(80-100) mm three layers of non-woven planar filter type guaze mask. Compared with the single independent type mask making machine, joined the automatic conveyor belt and the connecting port, the unique design in addition to improve the production efficiency, reduce artificial cost, is in order to minimize the artificial participation, and reduce the risks of a mask is pollution in the production process.
Feature
1. Ultrasonic melting technique, single man operation.
2. Automatic working from feeding to nose-wire insert, sealing, cutting finished products.
3. Machine frame adopts aluminum. Anti-rust, durable, easy cleaning and neat.
Technical parameter
Power Source | 220V/380V 50-60HZ | |
Inout Power | 3-10KW | |
Output Frequency | 20KHZ | |
Working Speed | 120-150 Pcs/min | |
Mask Size | 175*(80-100)MM | |
Nonwoven Layers | 1-4 Layers | |
Nonwoven Material | 10-20 GSM | |
Dimension | (3000-6000)*3000*1800MM | |
Weight | 1000-3000KG | |
