Emission: | EURO II/III/IV/V; | Rear Axle: | 16000KG; |
Cabin: | Single sleeper with air conditioner; | Brand Name: | CNHTC--HOWO; |
Tire: | 12.00R20 10+1 SPARE; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Gross Vehicle Weight: | 31000; | Port: | qingdao/shanghai; |
Packaging Detail: | Nude OR Polish with wax before shipping or like your request; | Color: | Customers'requirements; |
Product name: | HOWO 10 wheels 371hp Concrete mixing trucks/ 10m3 cement mixer; | Front Axle: | 9000KG; |
Transmission: | 10 forwards and 2 reverse; | Supply Ability: | 1000 Set/Sets per Month; |
Volume: | 10m3; | Place of Origin: | Shandong China; |
Engine: | WD615; |

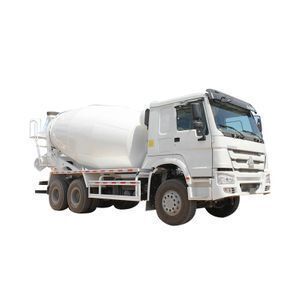

HOWO 10 wheels 371hp Concrete mixing trucks/ 10m3 cement mixer
NEW HOWO, HIGH QUALITY, LIGHT WEIGHT
VEHICLE SPECIFICATION | DESCRIPTION | ||
Truck Model | ZZ1257N3847 | ||
Type of Vehicle | 10m3 Concrete Mixer Truck | ||
Truck Brand | SINOTRUK—HOWO | ||
Driving Position | Left hand Driving | ||
Fuel tanker capacity(L) | 400 | ||
The Total Mass | 25,000kg | ||
Dead Weight | 12500 | ||
Max speed(km/h)(km/h) | 90 | ||
Color | Optional | ||
Manufacture | China National Heavy Duty Truck Group Co., Ltd. | ||
Chassis & Add Components | |||
Frame Details | parallel ladder with U-profiles and riveted cross members | ||
Dimension(Lx W xH)(unloaded)(mm) | 11000x2496x3940 | ||
Approaching angle/Departure angle(°) | 16/14 | ||
Overhang(front/rear) (mm) | 2041/1830 | ||
Wheel base (mm) | 3800+1350 | ||
Engine | |||
Model | WD615.47 | ||
Brand | SINOTRUK | ||
Power | 371HP | ||
Emission | EURO II | ||
Displacement(L) | 9.726 | ||
Type | water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | ||
Kind of Fuel | Diesel | ||
Fuel Consumption(L/100km) | 25-30L/100km | ||
Clutch & Gear Box System | |||
Clutch | SINOTRUKΦ430mm diaphragm spring clutch | ||
Gear Box | HW19710 10 forwards and 2 reverse. | ||
Brand | SINOTRUK | ||
Axles | |||
Front Axle Model | HF9 axle. Capacity: 9000kg | ||
Rear Axle | HC16 axle. Capacity:2X 16000kg | ||
Ratio of rear axle | 3.93/4.42/4.80/5.73 | ||
Electrical System | |||
Battery | 2X12V/165Ah | ||
Alternator | 28V-1500kw | ||
Starter | 7.5Kw/24V | ||
Brake System | |||
Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | ||
Auxiliary brake | Engine exhaust brake | ||
Steering system | |||
Model | 8098 | ||
Brand | German Brand | ||
Type | hydraulic steering with power assistance | ||
Wheels & Tyres | |||
Type | 12.00R20 | ||
Material | steel tires | ||
Quantity | 10+1 spare | ||
Cabin | |||
Type | HW76 | ||
(single sleeping, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |||
Body | |||
Agitating Capacity | 10m3 | ||
Geometric Volume | 16.73m3 | ||
Drum rotation speed | 0-18r/min | ||
Feeding Speed | >3.5m3/min | ||
Water Tank Volume | 400L | ||
Discharge Remain Ratio | <0.2% | ||
Water supply | Pressing type |

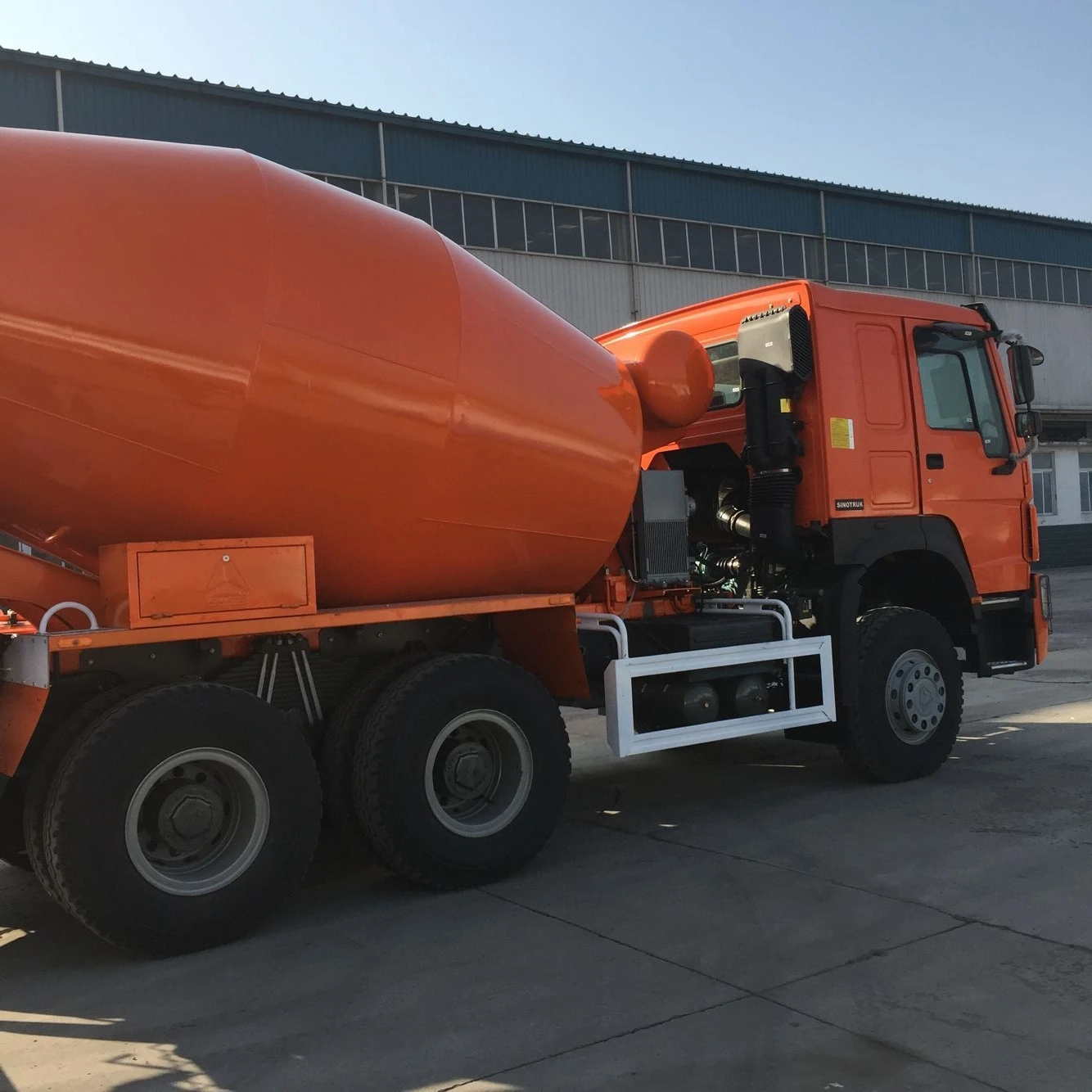

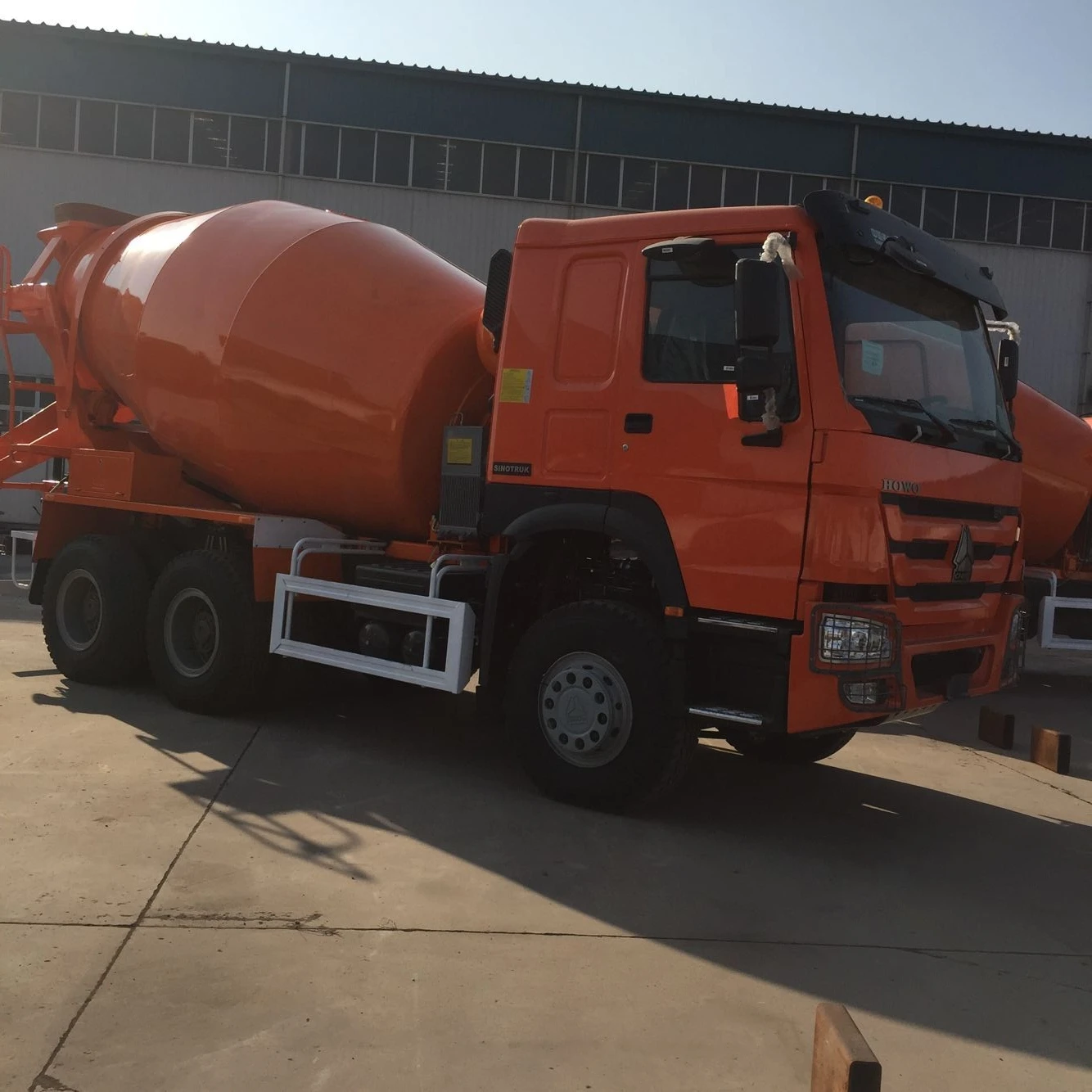

All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER, 40 HQ Container for the trailer and parts only, Please kindly check the pictures as below Thanks
We are Jinan Sino Truck Sales Co.,Ltd, Located in Jinan, Shandong, China, the first heavy duty truck-Yellow River birth in here on 1956, The trucks that we can supply are all series of SINOTRUK, The branch brand as below : HOWO (HOWO 7) Series, HOWO A7 Series, Golden Prince ,Steyr King Series and the New Yellow River (H7) Series,T7H Series, T5G series, HOWO light truck, which in terms of model, include dump trucks, tractor trucks, concrete mixers trucks, cargo trucks, water tank truck, oil tank truck, cement powder truck, suction truck, special trucks for army,different type semi trailer, flatbed semi trailer, skeleton semi trailer, tipper semi trailer, cargo type semi trailer, stake type van semi trailer, curtain semi trailer, low bed semi trailer, oil tank semi trailer and so on. Our company undertakes all kinds of CNHTC’s truck’s sales service both at home and abroad. welcome all customers to visit our website www.sino-truck.net /www.sino-truck.com.cn , And if you have any requirements and questions, please feel free to contact us.
