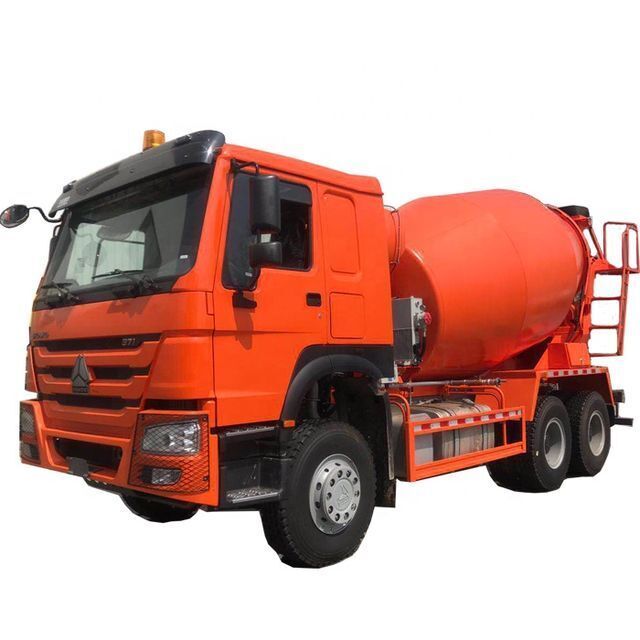

New 6x4 9m3 cement concrete mixing truck

Supplier: Jinan Sino Truck Sales Co., Ltd.
Region: Shandong, China
Contact: Ms Sunny Sun
Price: $42000.00 / 1 - 9 sets
$25000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Transmission:	HW19710;	Driving type:	LHD or RHD;
Packaging Detail:	The truck will be Polish with wax before shipping;	Package Preview:	;
ABS:	With;	Volume:	8-14m3;
Mixer Motor:	Italy brand;	Brand Name:	SINOTRUK;
Place of Origin:	Shandong, China;	Supply Ability:	1000 Sets per Month;
Port:	China Main Port;	Color:	Customers'requirements;
Tire:	12.00R20;	Cabin:	hw76 with one bunk and AC;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Gross Vehicle Weight:	31000;
Engine:	WD615;	Mixer hydraulic pump:	Germany brnad;

Product Description

Mix Truck Description

Mixer Truck, the full name of the concrete mixer truck, is used to transport the concrete prepared by the mixing station to the construction site. The concrete truck is a special purpose vehicle widely used in the construction industry, highways, railways, electric power and other infrastructure construction.

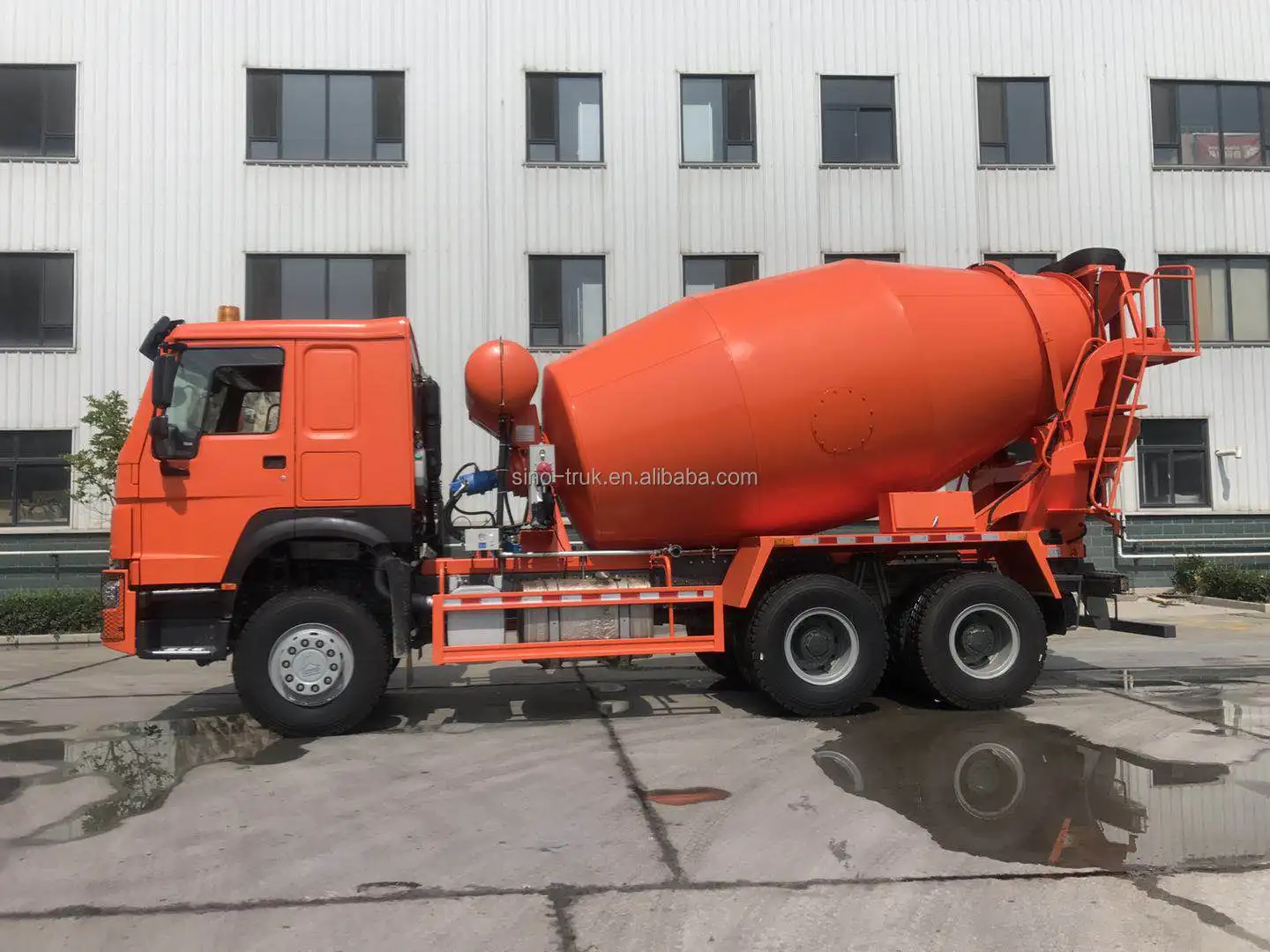

Details Images

Heavy Duty Type Chassis

Engine: WD615.69/WD615.47

Transmission: HW Series

Drum Capacity: 4--16m3

Thickness: 4mm-6mm

Water Tank Volume: 400L

With water indicator

Water Intake Pipe

Motor, Pump & Reducer

inlet and outlet hoper

Quick Quotation

VEHICLE SPECIFICATION			DESCRIPTION
Type of Vehicle			9m3 Concrete Mixer Truck
Truck Brand			SINOTRUK—HOWO
Driving Position			Left hand Driving
The Total Mass			25,000kg
Oil Tank Volume			400L
Manufacture			China National Heavy Duty Truck Group Co., Ltd.
Chassis & Add Components
Frame Details			parallel ladder with U-profiles and riveted cross members
Dimension(Lx W xH			10150x2496x3990
Wheel base (mm)		3400+1350
Engine
Model		WD615.47
Power		371HP
Type		water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
Clutch & Gear Box System
Clutch		SINOTRUKΦ430mm diaphragm spring clutch
Gear Box		HW19710 10 forwards and 2 reverse.
Axles
Front Axle Model		HF9 axle. Capacity: 2*9000kg
Rear Axle		HC16 axle. Capacity:2X 16000kg
Brake System
Service brake		Dual circuit compressed air brake
Parking brake		spring energy, compressed air operating on rear wheels
Auxiliary brake		Engine exhaust brake
Steering system
Model		8118
Wheels & Tyres
Type		12.00R20
Cabin
Type		HW76 standard cabin
Mixer Body
Agitating Capacity	8-12m3
Water supply	Pressing type

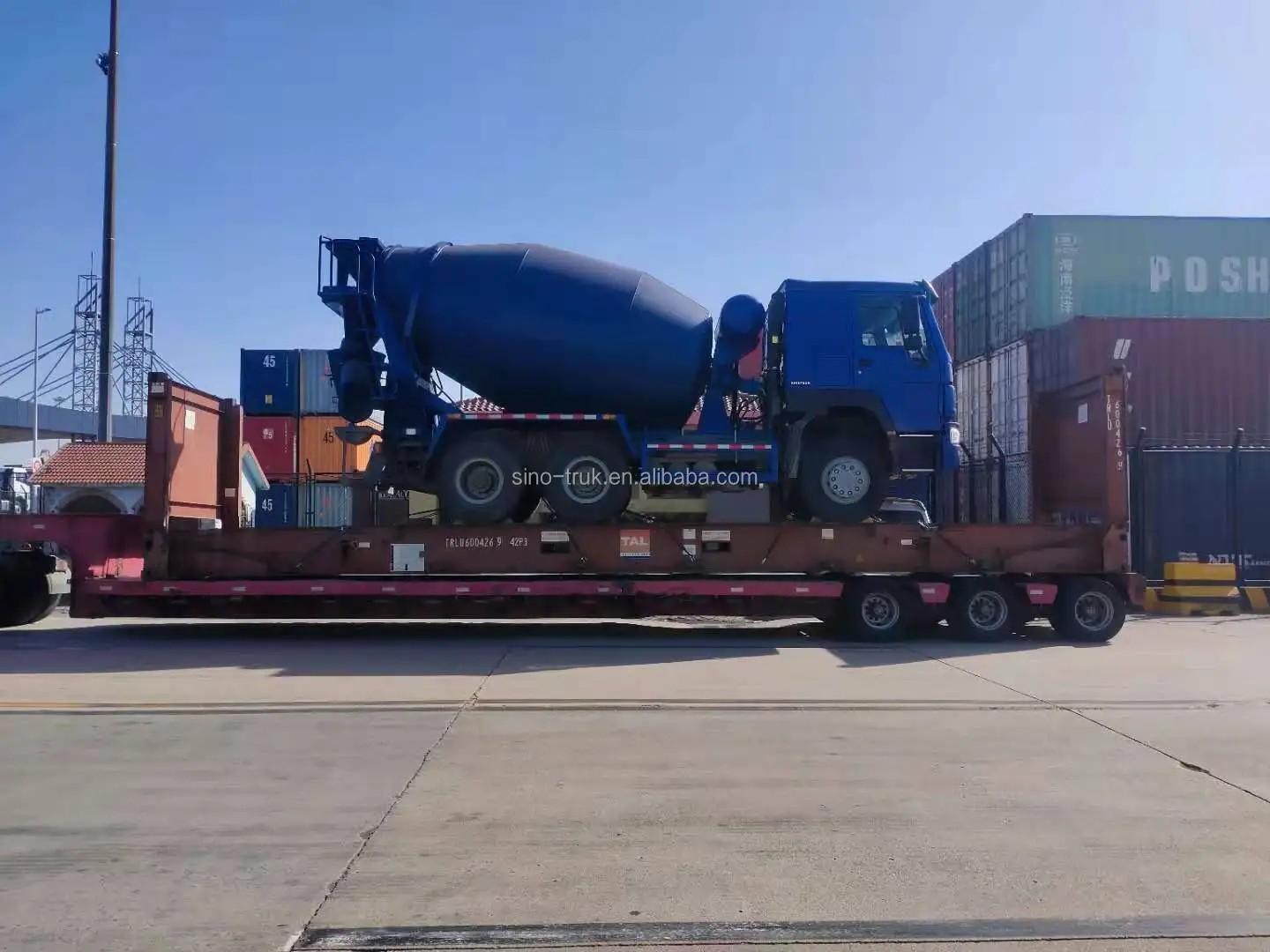

Shipping

SHIPPING WAY CAN BE CHOOSE

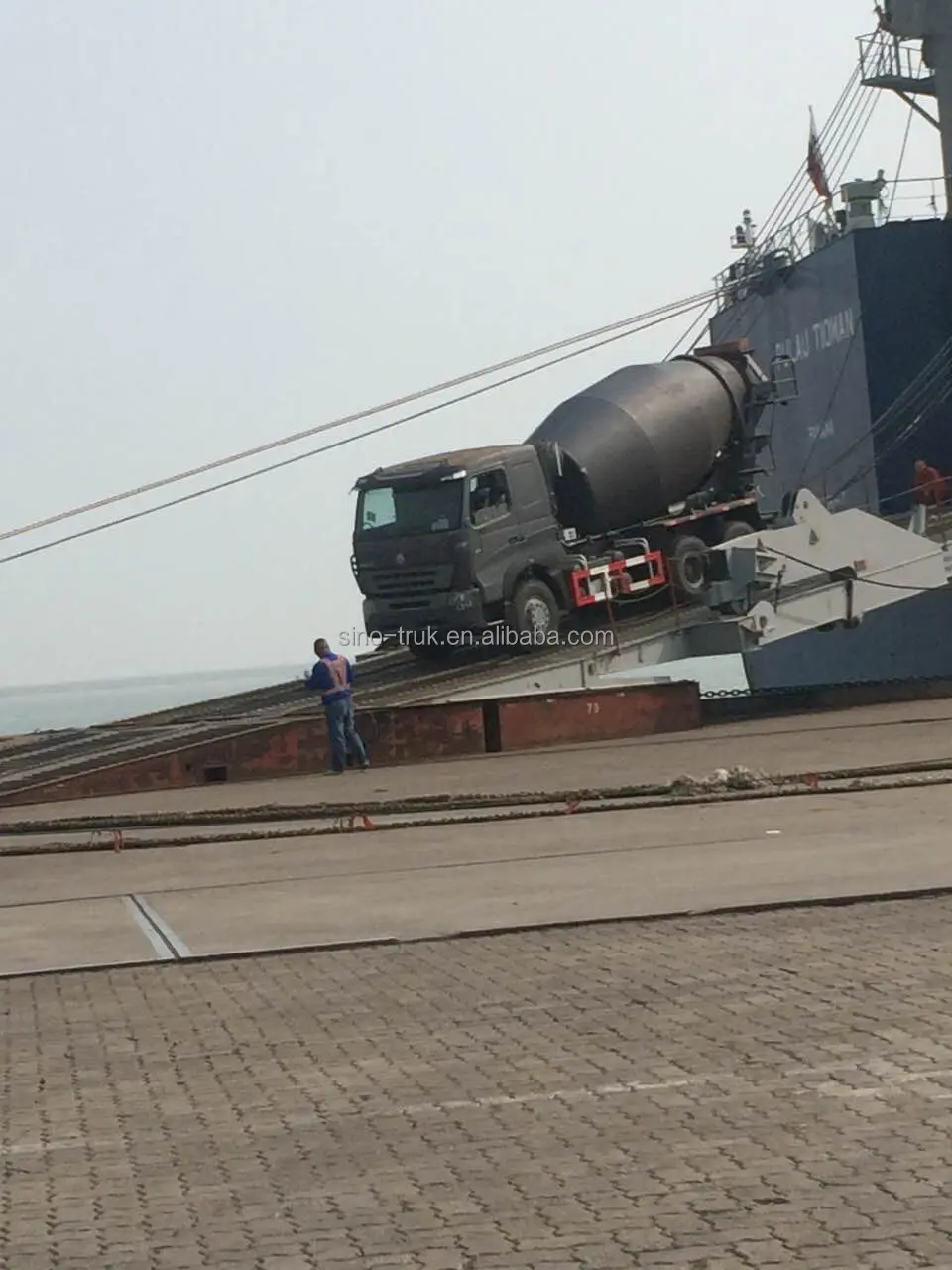

1. RORO, fast, safe and protect the truck

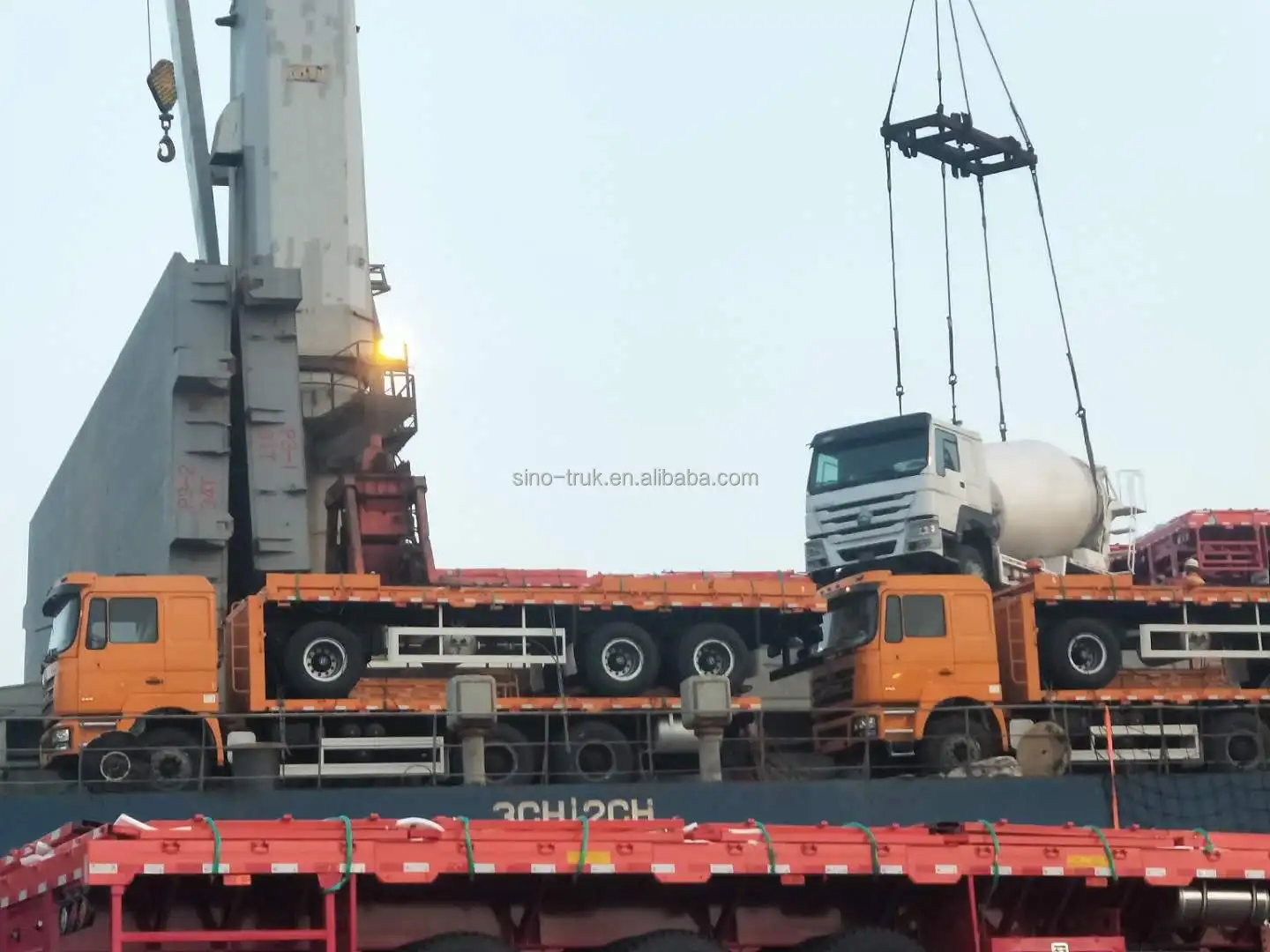

2. Bulk Cargo Vessel, Lower cost
3. Flat Rack container, every week shipment, competitive shipping cost, but high port charge.
