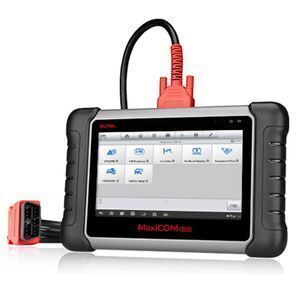

Basal full system Autel MaxiCOM MK808 automotive diagnostic scanner

Supplier: Shenzhen Topdon Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms DRS OBD
Price: $360.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	China;	Product Name:	Autel MaxiCOM MK808;
System:	Android System;	Item Weight:	10KG;
Warranty:	12;	Language:	Support Multi-language;
Brand Name:	Autel;	Technician support:	Free and in time;
Port:	SHENZHEN;	Feature 1:	IMMO/EPB/SAS/BMS/TPMS/DPF Service;
Type:	Autel MaxiCOM MK808;	Supply Ability:	500 Piece/Pieces per Month for Autel MaxiCOM MK808;
Item Type:	Multimeters & Analyzers;	Certification:	CE Certificate;
Feature 2:	Ambient light sensor for brightness auto changing;	Power:	9W;
Update:	1 Year Free Oline Update;	Applicable Models:	AU, Asia, Europe, US cars;
Payment Terms:	L/C,T/T,Western Union,PayPal;	Model Number:	Autel MaxiCOM MK808;
Voltage:	12-220V;	Panel PC:	High Configuration of hardware;
Packaging Detail:	Autel MaxiCOM MK808:1PCS with a carton;

Product Description

Basal full system Autel MaxiCOM MK808 automotive diagnostic scanner

Why choose Autel MaxiCom MK808?

1. The most affordable combination of ALL systems diagnostics and 19 advanced service functions in one Android based 7-inch touchscreen tablet tool.

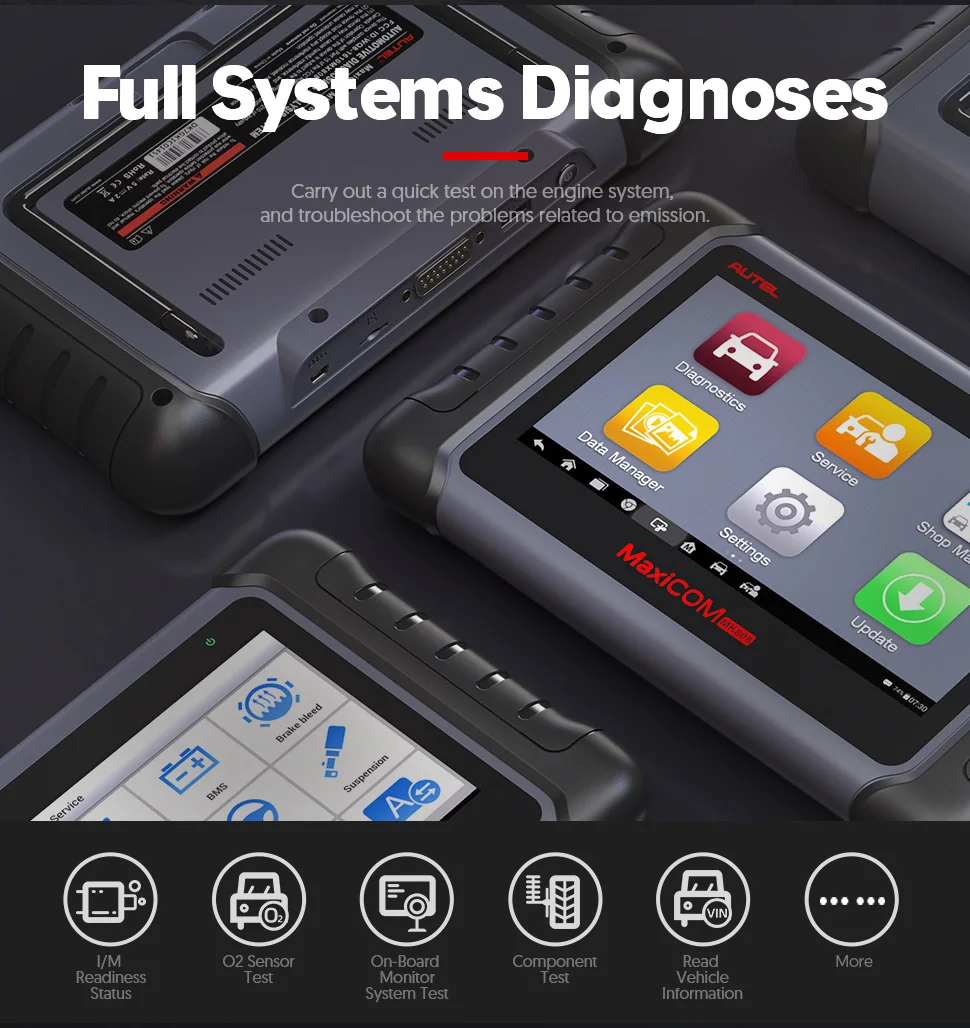

2. A full detection for ALL systems (ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.).

3. 19 advanced services covered: Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Trans Adaption.

4. AndroidTM 4.4.4 based tablet diagnostic tool with high-level hardware configurations:

- Processor: Cortex-A9 processor (1.5 GHz)

- Memory: 32GB

- Display: 7-inch LCD capacitive touchscreen with 1024x600 resolutions

5. Supports 10 Modes of OBDII operations: Read/Clear DTCs, Read Data Stream/Freeze Frame/ECU Information etc., in 4 display modes (Analog Gauge, Text, Waveform Graph, Digital Gauge).

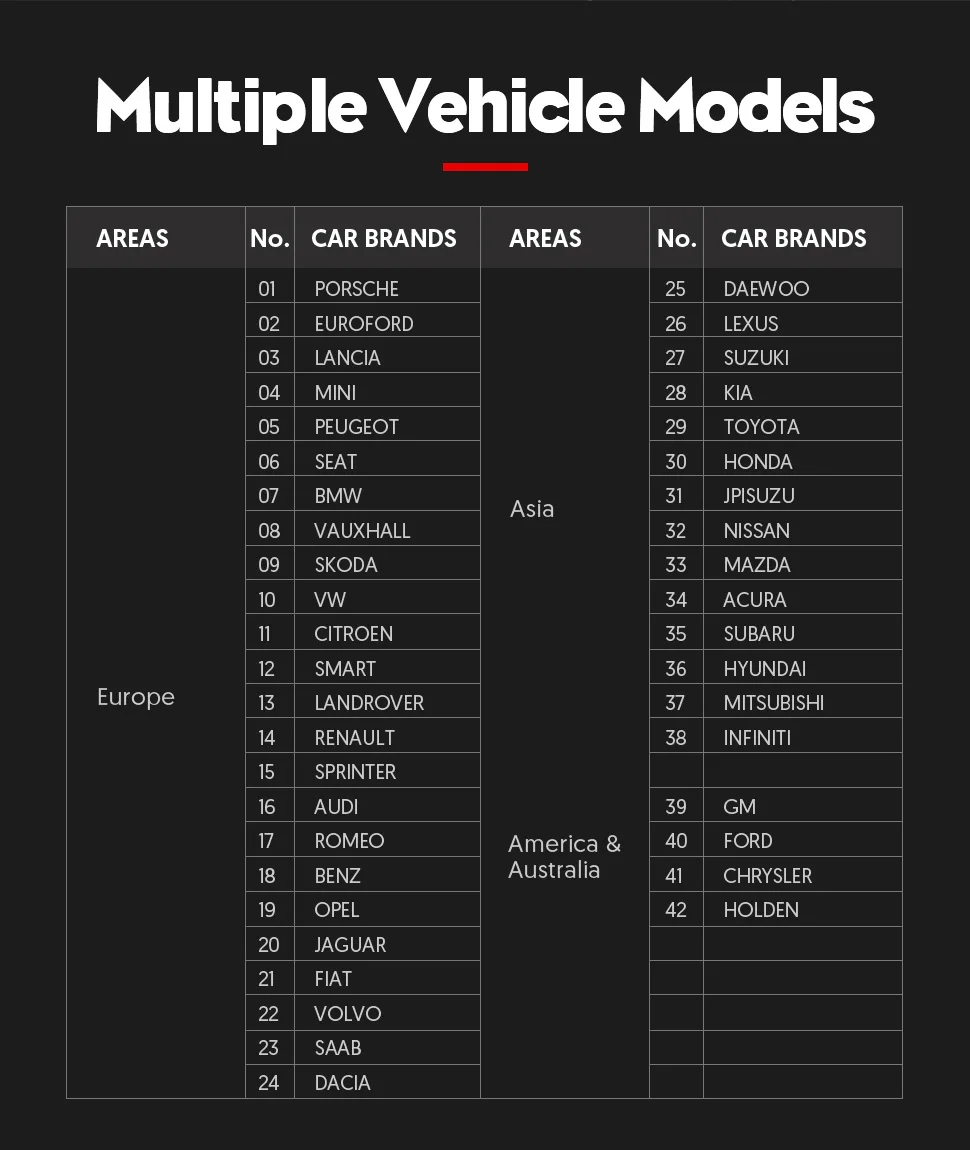

6. More than 55 vehicle coverage of American, European, and Asian makes and models.

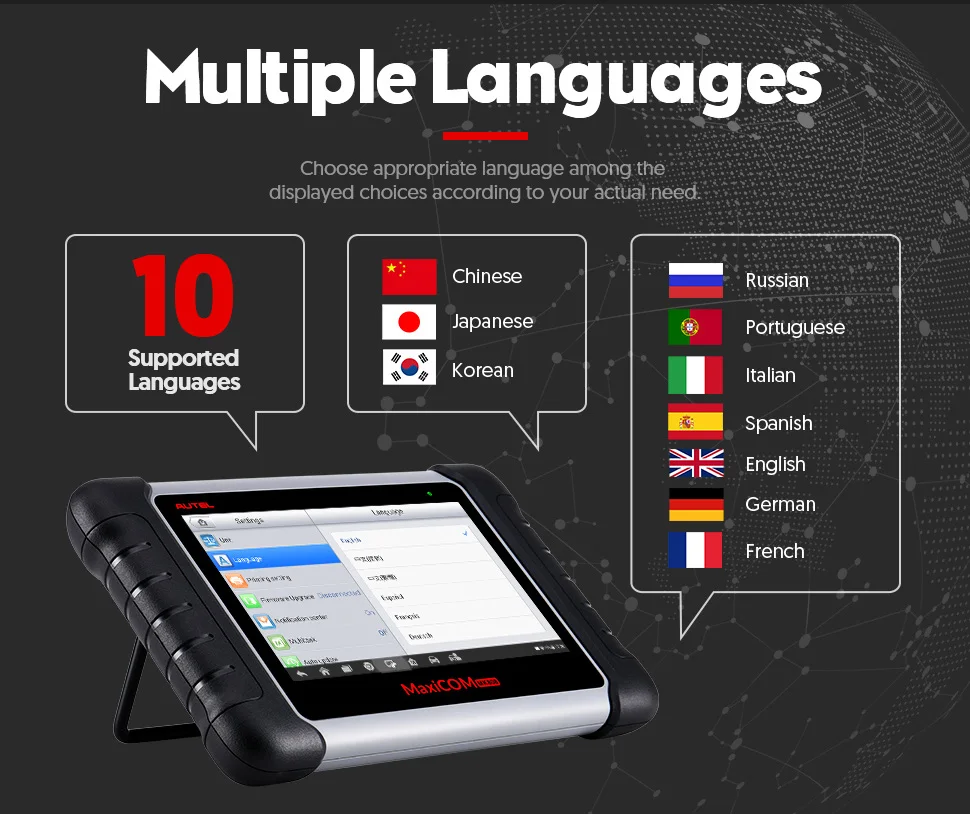

7. 13 Language Support: English, Traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian.

8. One Touch AutoVIN vehicle identification and AutoScan to quickly detect faults in any vehicle system.

9. Abundant other useful features:

- MaxiFix: to access cloud-based repair tips.

- Shop Manager: to organize all types of repair data.

- Data Logging: to record project errors.

- Remote Diagnostics: by using the Remote Support app for remote login access to your device.

- And more …

Specification:

Operating System	AndroidTM 4.4.4
Processor	Cortex-A9 processor (1.5 GHz)
Memory	32GB

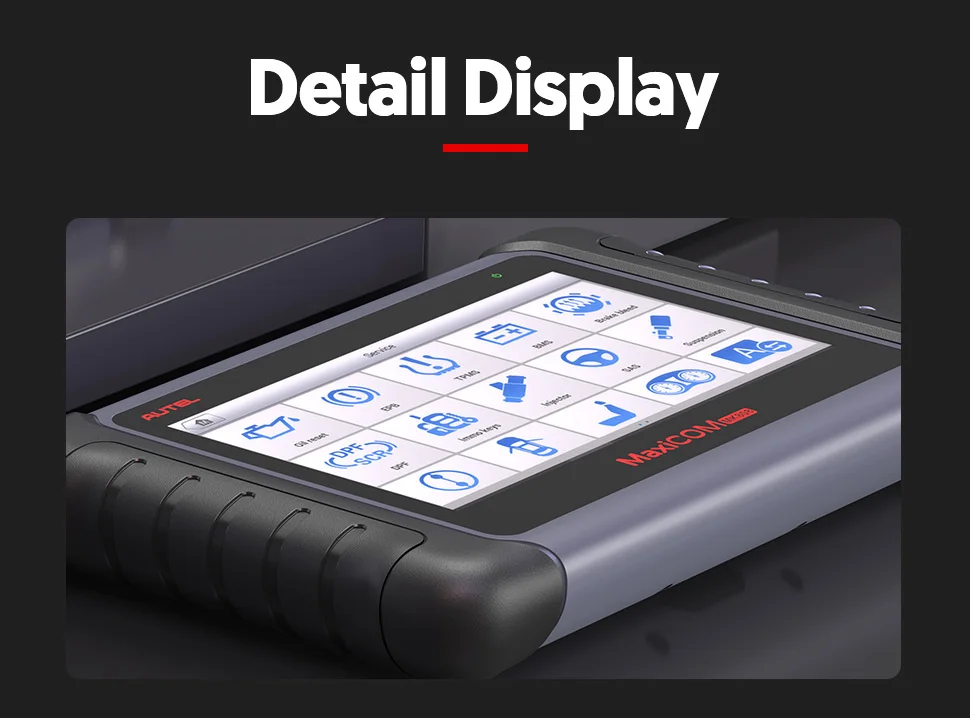

Display	7-inch LCD capacitive touchscreen with 1024x600 resolutions
Connectivity	Mini USB 2.0
	USB 2.0
	Wi-Fi
	Micro SD card (supports up to 32GB)
Sensors	Ambient light sensor for brightness auto adjust
Audio Input/output	Input: N/A
Audio Input/output	Output: Beep
Power and Battery	3.7 V/3200 mAh lithium-polymer battery
Power and Battery	Charges via 5 VDC power supply
Tested Battery Life	Around 4.5 hours of continuous use
Battery Charging Input	5 V/1.5 A
Power Consumption	500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.	0 to 55°C (14 to 131°F)
Storage Temp.	-20 to 60°C (-4 to 140°F)
Operating Humidity	5% - 95% non-condensing
Dimensions (W x H x D)	237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight	788 g (2.42 lb.)
