HDPE material Pir fresnel lens,infrared pir sensor for human body infrared detection model 011050
-
Supplier: Shenzhen Meiying Optics Co., Ltd. -
Region: Guangdong, China -
Contact: Mr huan li -
Price: $0.12 / >=100 pieces -
Min. Order: 100 pieces
Product details
| Size: | 11.8*9.73mm; | Structure: | Cap; |
| Material: | HDPE; | Place of Origin: | Guangdong China; |
| Package Preview: | ; | Selling Units: | Single item; |
| Shape: | Cap; | Product name: | PIR fresnel lens; |
| Induction distance: | 6M; | Model Number: | 011050; |
| Focal length: | 5mm; | Color: | White or Black; |
| Application: | For human detect system; | Single package size: | 1X1X1 cm; |
| Packaging Detail: | 1000 pcs in one PE bag,the outer packing is carton box,fill in PE foam in carton box.; | Single gross weight: | 0.005 KG; |
| Usage: | Infrared; | Induction angle: | 120°; |
| Brand Name: | Meiying Optics; | Model: | 011050; |
HDPE material Pir fresnel lens,infrared pir sensor for human body infrared detection model 011050
Product Description
HDPE material Pir fresnel lens,infrared pir sensor for human body infrared detection model 011050

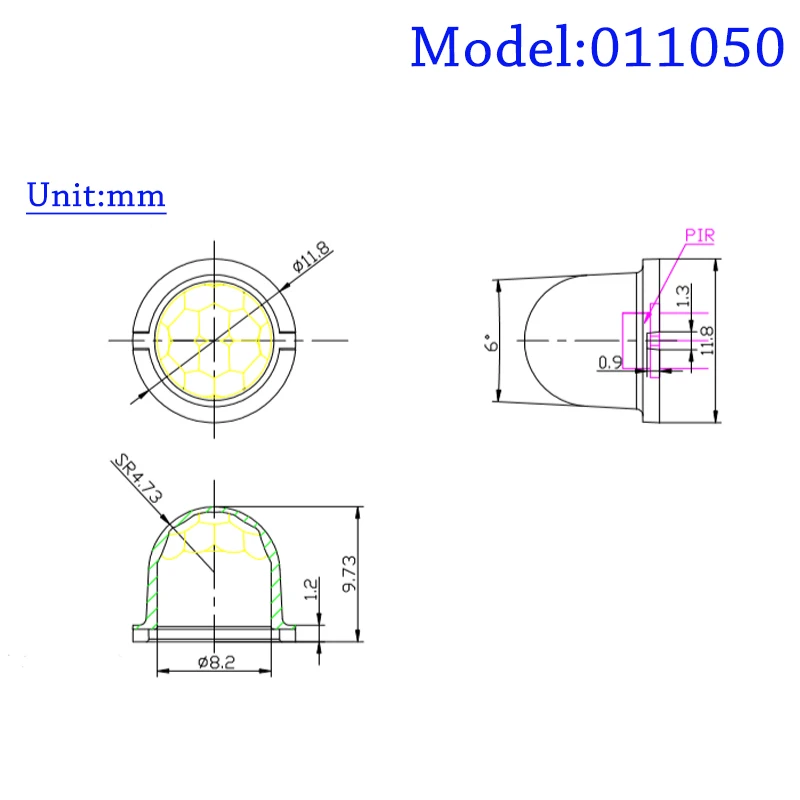

| Product name | PIR fresnel lens |
| Application | For human body infrared detection |
| Model | 011050 |
| Size | 11.8*9.73mm |
| Material | HDPE |
| Focal length | 5mm |
| Induction angle | 120° |
| Induction distance | 6M |
Click here for more information
Spec list
Pir lens application
Click here for more information
Molding die showing

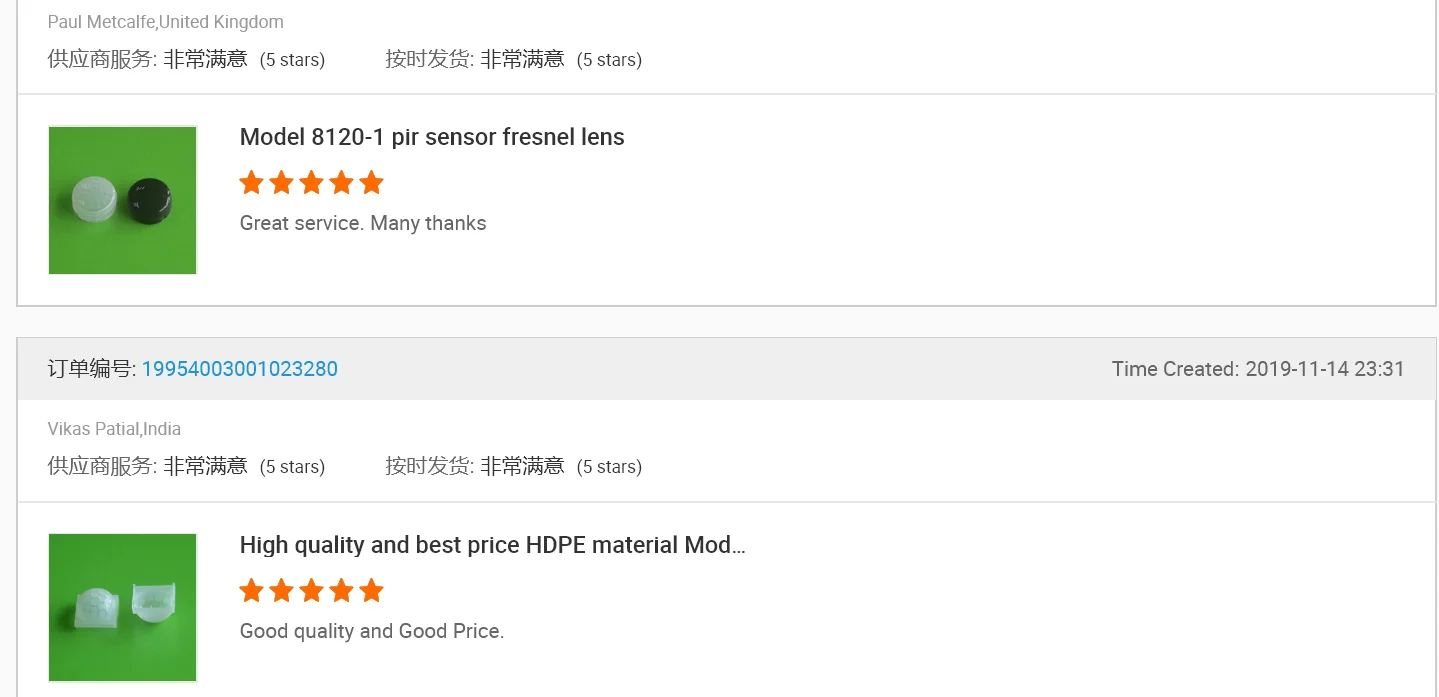

Buyer Feedback
