Customized optical achromatic doublet lenses with different diameters at ex-factory price

Supplier: Suzhou Season Photoelectric Co., Ltd.
Region: Jiangsu, China
Contact: Ms Caron Zhang
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

size:	According to customer requirements	Center Thickness Tolerance:	±0.01mm
Surface Quality:	40-20	usage:	Optical
Material:	Flint, quartz glass, can be customized	Diameter Tolerance:	+0/-0.02mm
Surface shape tolerance:	0.2~0.5mm	structure:	Achromatic
Center Deviation:	<1'	shape:	spherical
Origin:	Jiangsu, China	payment terms:	L/C, D/P, D/P, T/T
brand:	Suzhou Xixian	Clear Aperture:	>95% central area
model:	XX-MADE-010	Warranty:	/
coating:	Single layer MGF2, broadband anti-reflection coating, or as required	Customization support:	OEM production

Support diversified customization.

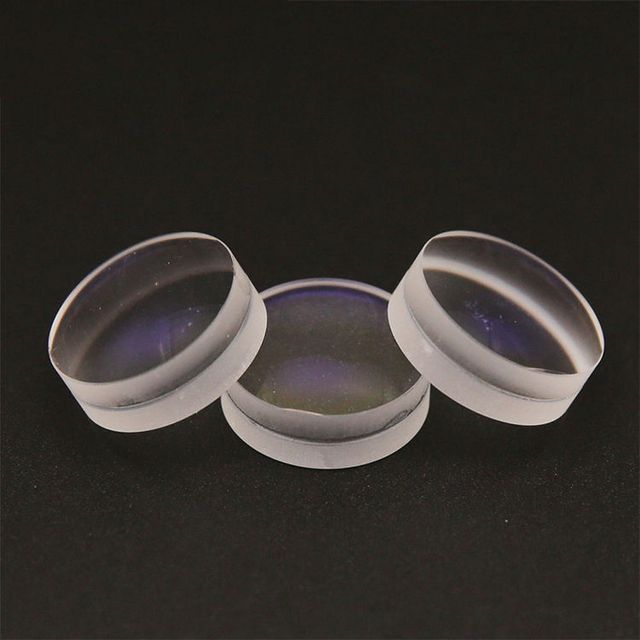

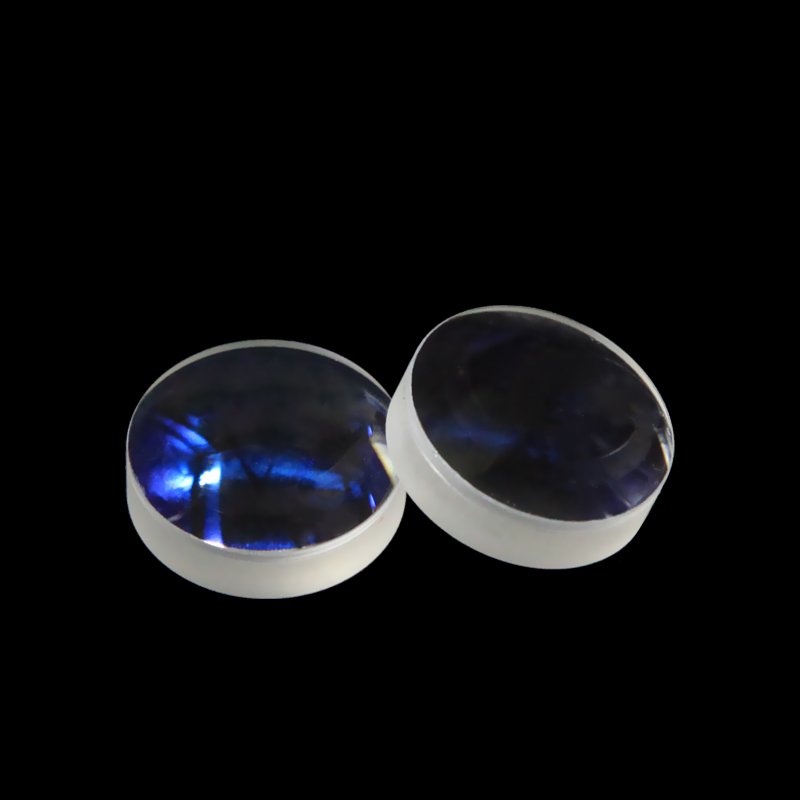

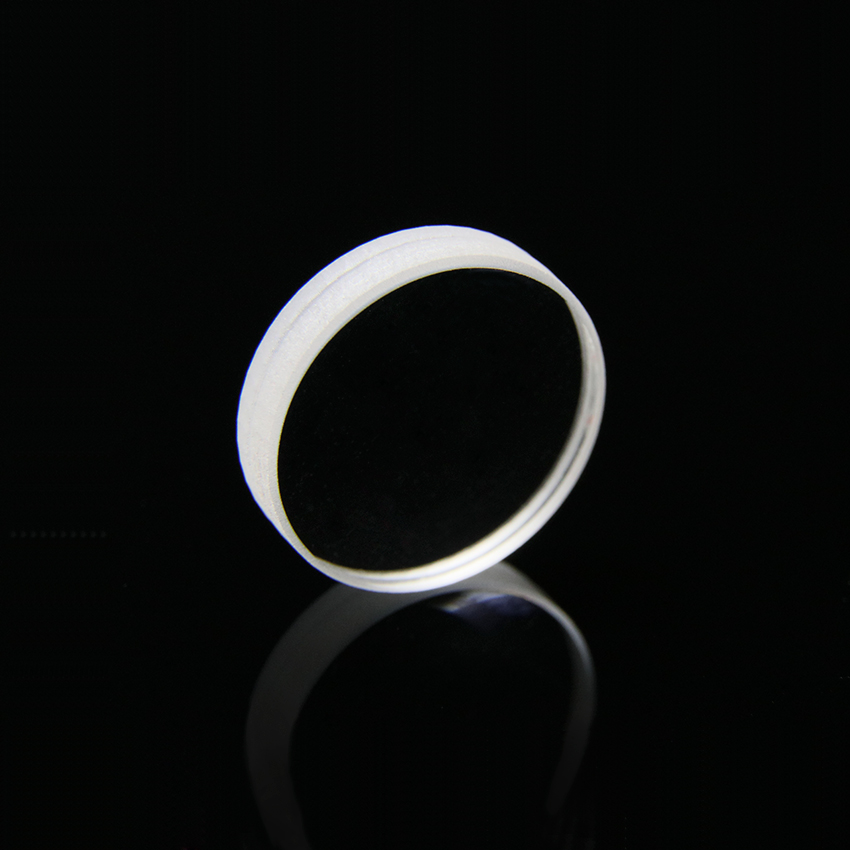

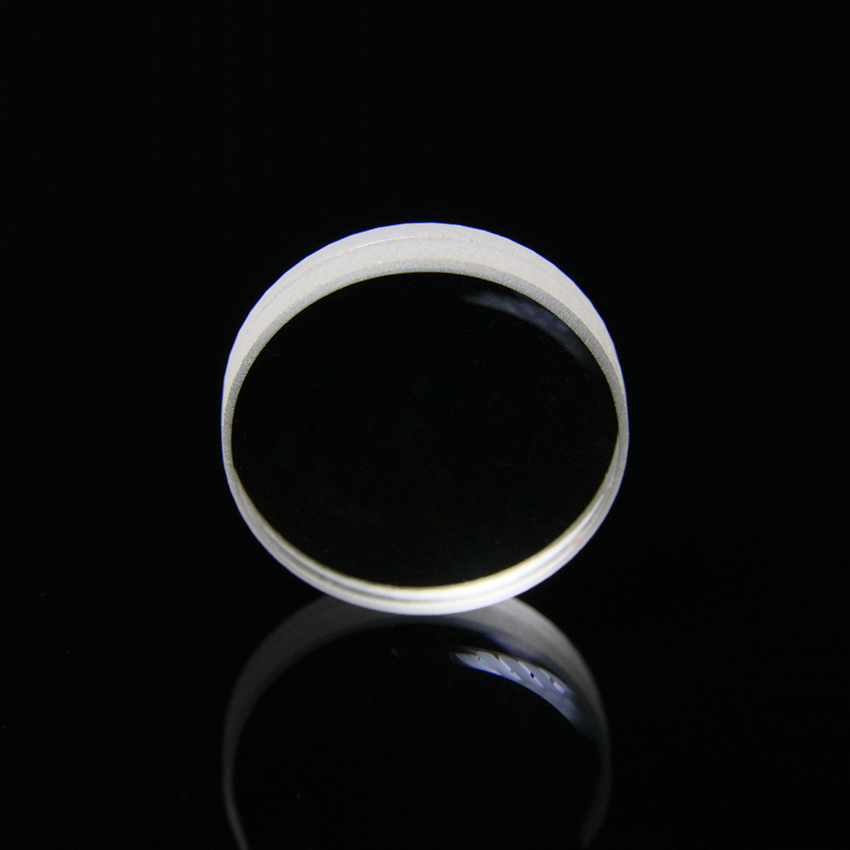

Achromatic doubletlens

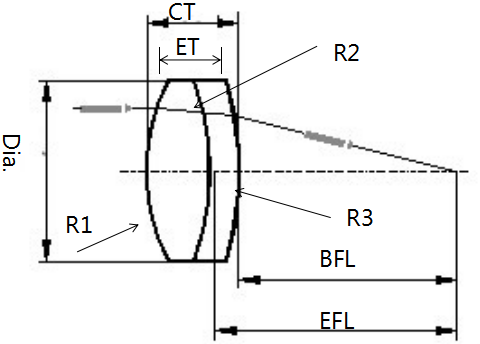

A doublet lens is a lens obtained by cementing two lenses together. This combination lens consisting of two lenses is an effective way to achieve short focal length, large magnification and better image quality.

Doublet lenses are commonly used in astronomical telescopes and cameras.

Conventional product specifications are shown in the table below, and we can also customize doublet lenses of various specifications for customers.

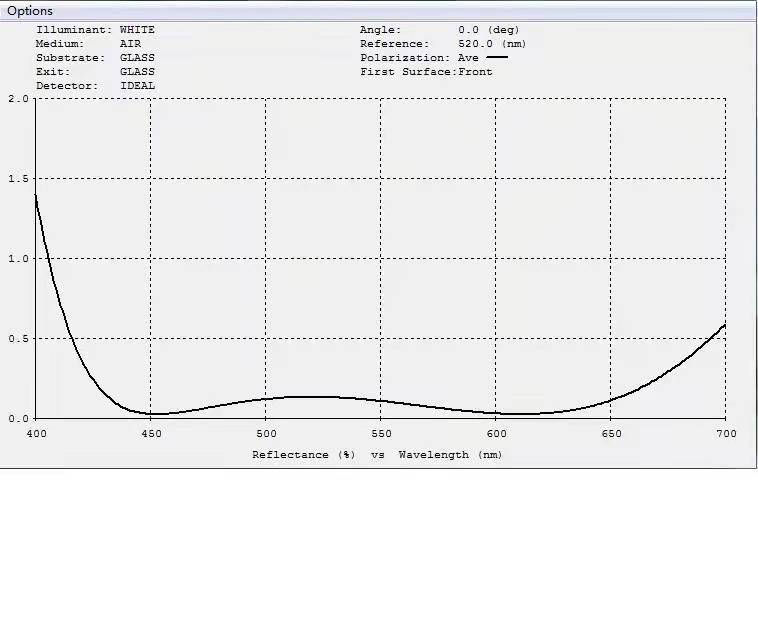

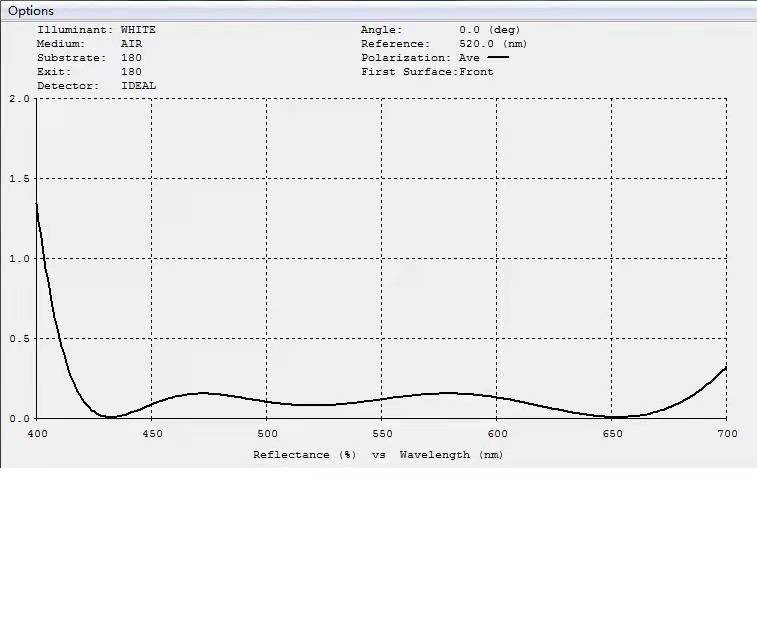

BBAR Broadband

AR Coating

-sing crest

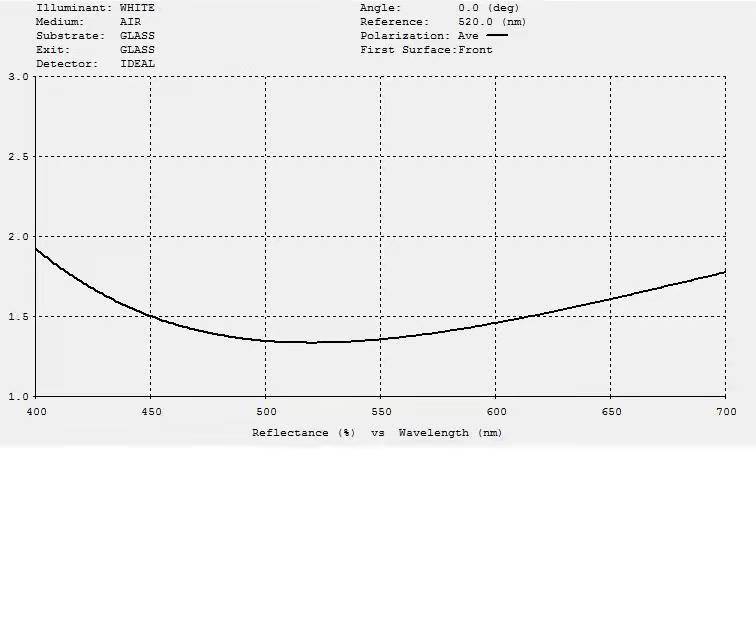

BBAR Broadband

AR Coating

- double crest

Monolayer film

Material	Flint, quartz glass, can be customized
size	According to customer requirements
Diameter Tolerance	+0/-0.02mm
Center Thickness Tolerance	±0.01mm
Surface shape tolerance	0.2~0.5mm
center deviation	<1
Surface Quality	40-20
Clear aperture	＞95% central area
coating	Single layer MGF2, broadband anti-reflection coating, or as required
