Optical Glass Prism or Polarizing Cube Prism Beamsplitter/Polarizing Beamsplitter

Click here to contact
Product details
Surface roughness:1/4 lambdaPackage preview:
Surface Quality:60-40,60/40Packaging Details:carton
Flatness:1/4 lambdapayment terms:L/C, D/P, D/P, T/T
Wavelength range (nm):400-700brand:season
Beam Offset (arcseconds):±30Angle Tolerance:3 arc minutes
Origin:Jiangsu, ChinaMaterial:H-K9L,H-K9L
coating:According to customer requirementsChamfer:Protective chamfers available as required
model:XX-MADE-018Dimensional Tolerance:±0.1
Customization support:OEM production
Support diversified customization.

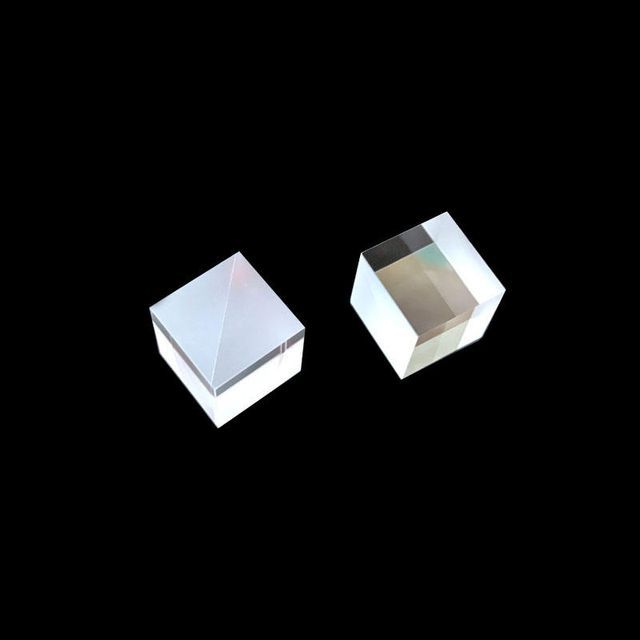

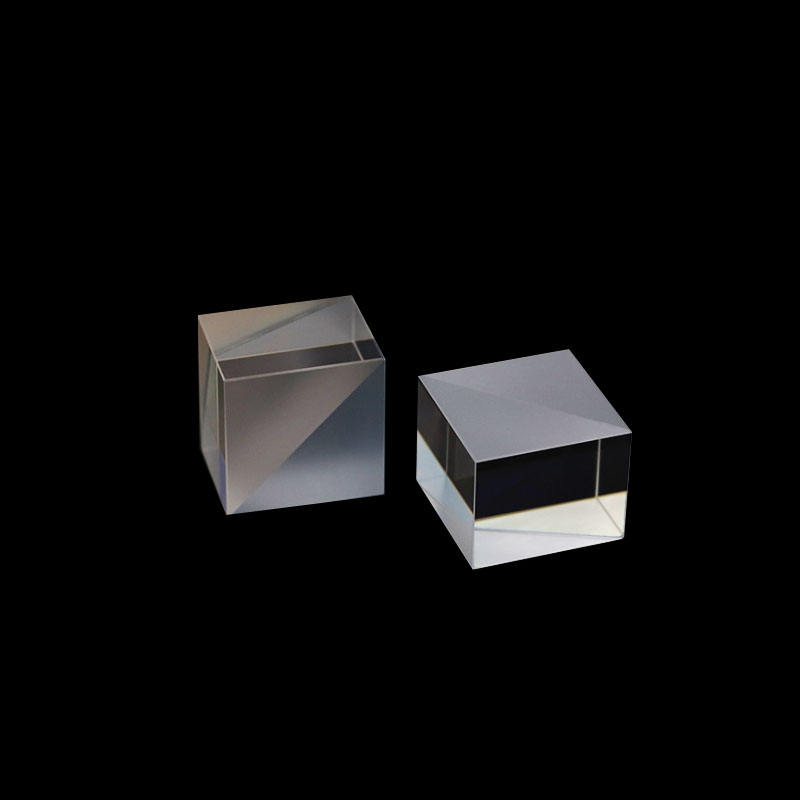

cube beam splitter

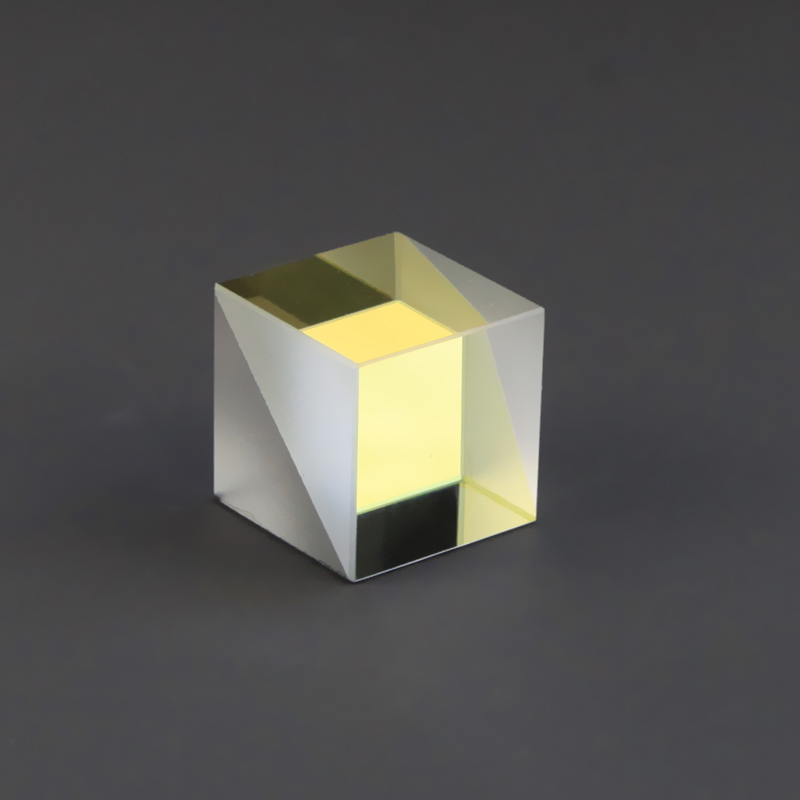

The beam splitting prism is bonded by a pair of high-precision rectangular prisms. The slope of one of the prisms is coated with a dielectric coating, and the outer surface is coated with an anti-reflection coating. Applications of spectroscopic prisms include cameras, projectors, optical instruments, fingerprint scanners, collimators, range finders, imagers, mechanical sights, solar converters, range finders, upright telescopes, laser equipment, laser measurement system etc. The general product specifications are shown in the table below, and we can also customize various beam-splitting prisms for customers.

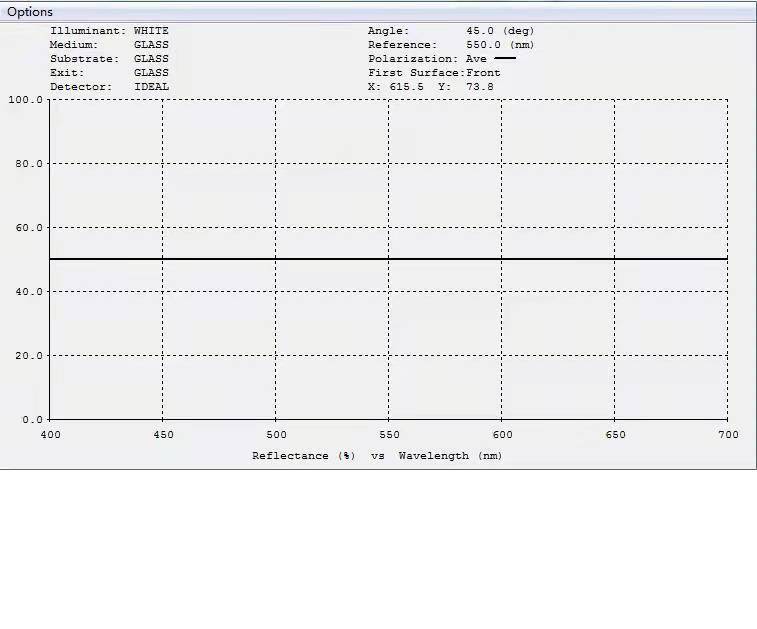

Neutral beam splitter
PBS spectroscopic film
Product Description
Material
H-K9L
Wavelength range (nm)
400-700
Beam Offset (arcseconds)
±30
Surface Quality
60-40
Surface roughness
λ/4
coating
According to customer requirements
Chamfer
Protective chamfers available as required
the code
Dimensions (mm)
Coating specification
C2285008-009
7*7*7
AOI 45°R>99%@635nm, T>98%@390-780nm
C2274019-020
8*8*8
BBAR T≥99%@400-700nm, R≥95%@685±20nm
C2161012-013
8*9*11
Multilayer dielectric, AOI 45°, R≥90%@635nm, T≥80%@500-550nm
C2001001-002
10*10*10
Reflection/transmittance ratio=50/50, R+T≥95%
C2343004-005
12*12*12
Reflection/transmittance ratio=50/50, R+T≥95%
C2000017-018
12.7*12.7*12.7
Reflection/transmittance ratio=50/50, R+T≥95%
C2048014-015
14*14*14
Reflection/transmittance ratio=50/50, R+T≥95%
C2000001-002
15*15*15
400-700nm, BBAR R<0.5%, R: T=50/50
C2048018-019
16*16*16
Reflection/transmittance ratio=50/50, R+T≥92%
C2000003-004
20*20*20
400-700nm, BBAR R<0.5%, R: T=50/50
C2000005-006
25*25*25
400-700nm, BBAR R<0.5%, R: T=50/50
C2000019-020
25.4*25.4*25.4
400-700nm, BBAR R<0.5%, R: T=50/50
C2000007-008
30*30*30
400-700nm, BBAR R<0.5%, R: T=50/50
C2000009-010
35*35*35
400-700nm, BBAR R<0.5%, R: T=50/50
C2000011-012
40*40*40
400-700nm, BBAR R<0.5%, R: T=50/50
C2000013-014
45*45*45
400-700nm, BBAR R<0.5%, R: T=50/50
C2000015-016
50*50*50
400-700nm, BBAR R<0.5%, R: T=50/50
