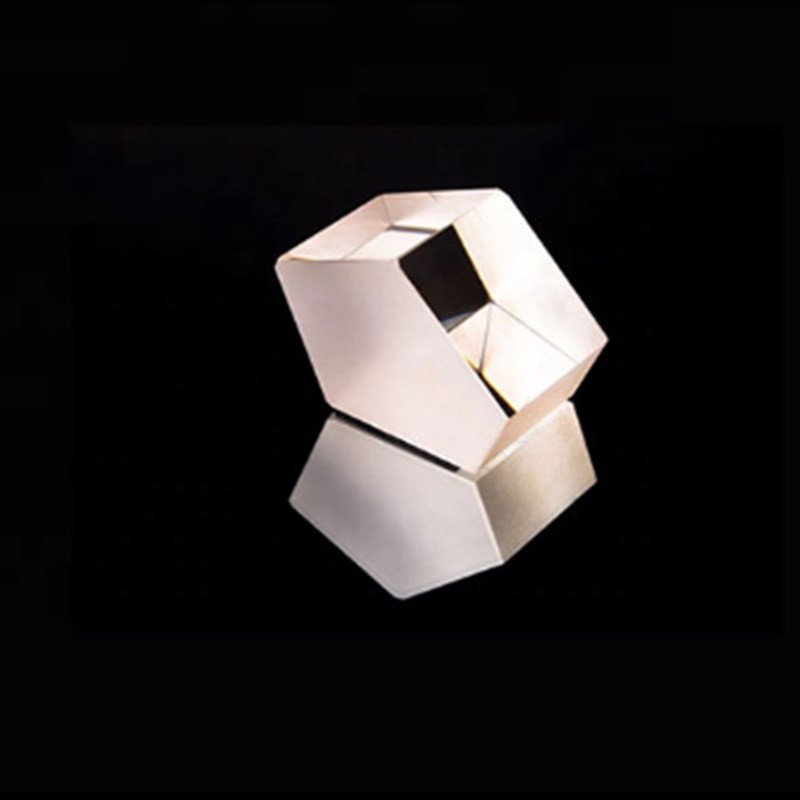

Manufacture custom optical glass BK7 dichroic pentagonal prism

Manufacturing Custom Optical Glass BK7 Beamsplitter Penta Prism Prism

Manufacture custom optical glass BK7 dichroic pentagonal prism

parameter

Production instructions

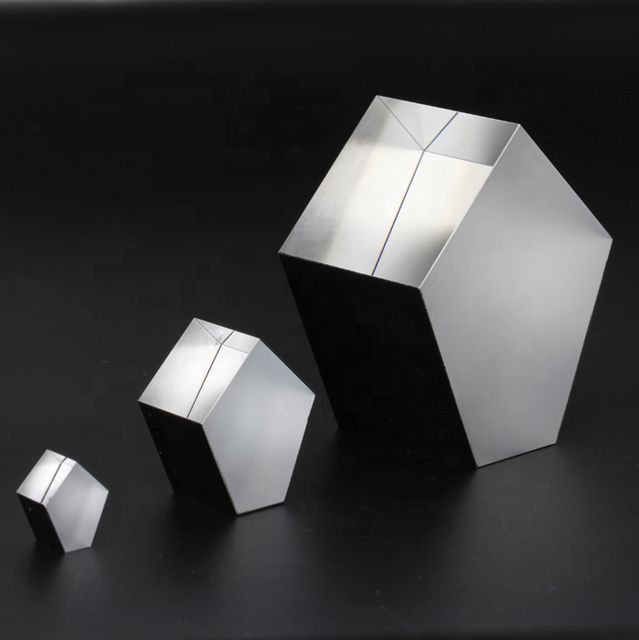

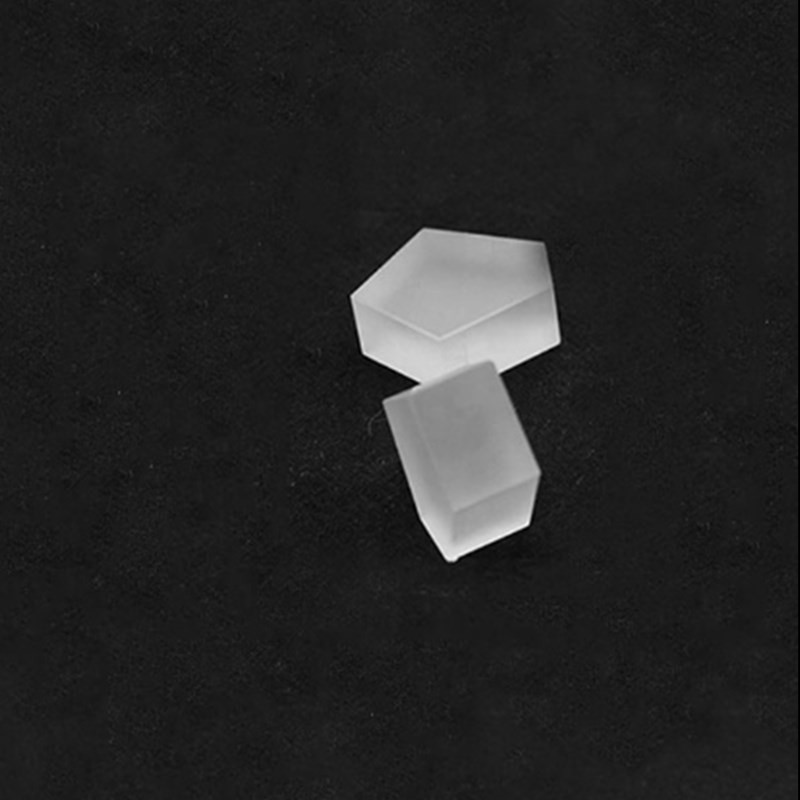

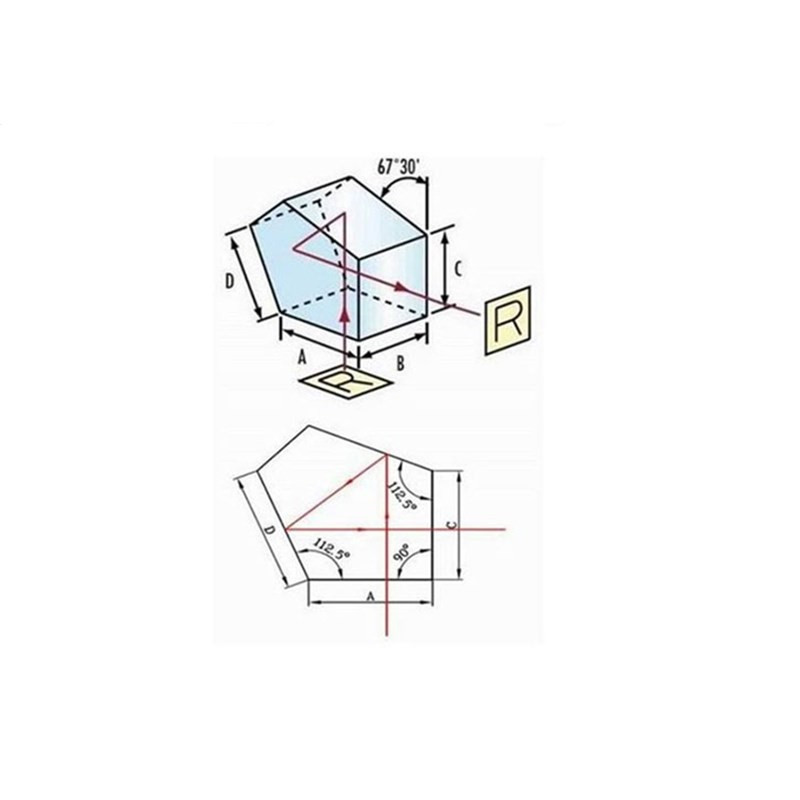

A pentaprism is a five-sided reflective prism used to deflect a beam at a constant 90°,

Even if the incident beam is not at 90° to the prism. The beam is reflected twice inside the prism,

Allows the image to be transmitted through a right angle without inverting the image (i.e. without changing the handedness of the image) as with ordinary rectangular prisms or mirrors.

The reflection inside the prism is not caused by total internal reflection because the beam is incident at an angle smaller than the critical angle (the minimum angle for total internal reflection). instead,

Both sides are coated to provide a mirror finish. The two opposing transmitting surfaces are usually anti-reflective coated to reduce stray reflections.

The fifth face of the prism is not used for optical purposes, but to truncate the awkward angle connecting the two mirror faces.

production details

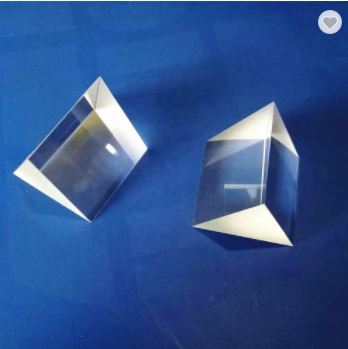

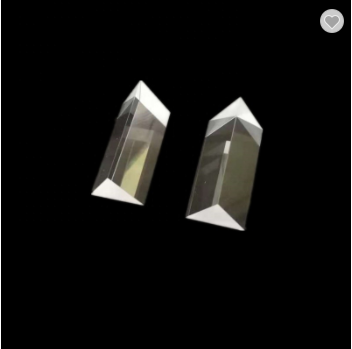

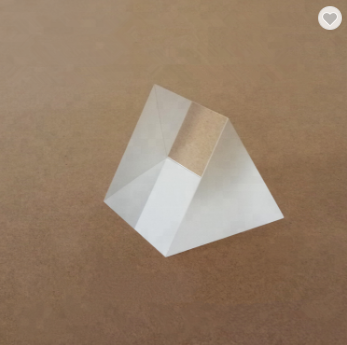

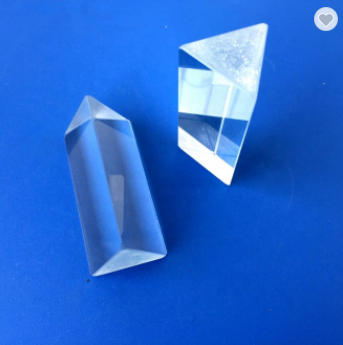

Related Products

Packaging and delivery.

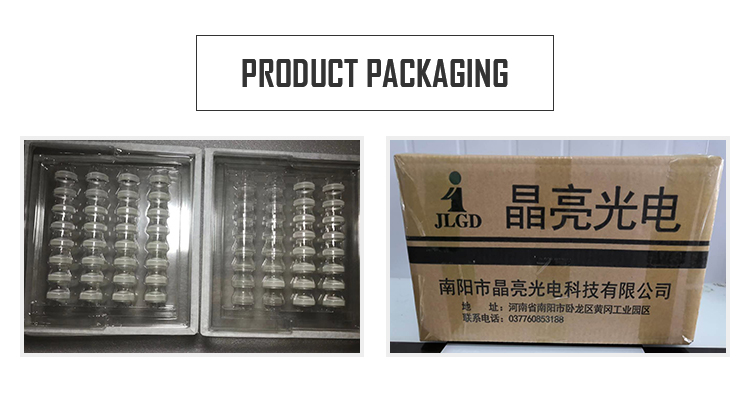

Packaging Details:
Inner packaging --- special protective packaging for optical products.
Outer packing ------ carton, shock-absorbing material and bubble film

delivery time
7-20 days
Shipping: Generally we use Fedex, DHL, UPS, TNT, SF Express, etc. Please note before shipping.

Shipping time depends on courier and destination. By the way, we will recheck all details before delivery.

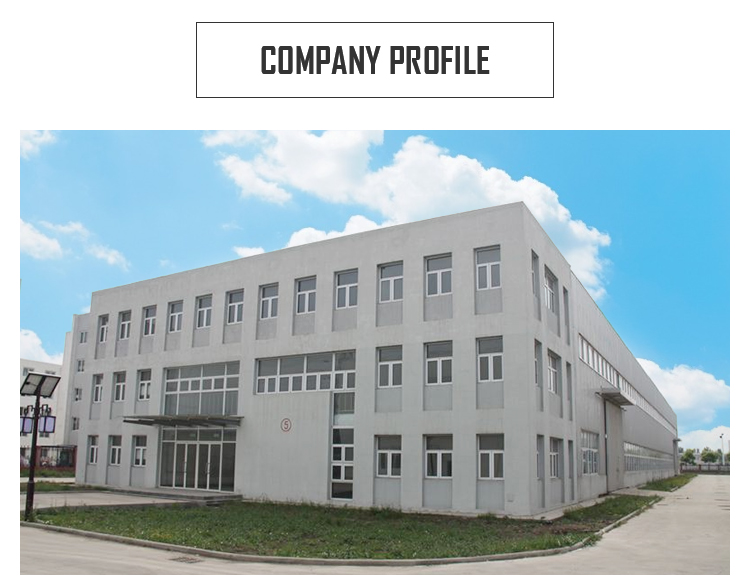

Nanyang Jingying Trading Co., Ltd. is located in Henan, a beautiful city in China, and has become one of the leading manufacturers of optical components, optical components, and lens components in China. Established in 1999, our strong and steady growth has brought us to where we are today with over 1300 employees comprising a highly skilled team of fabricators, mechanical engineers, process engineers, optical engineers and coating designers. Our manufacturing capabilities include all types of custom manufactured lenses such as plano-convex, bi-convex, plano-concave, bi-concave, achromatic, cylindrical, spherical and aspheric lenses. Beamsplitters such as beamsplitters, cube beamsplitters and Other beam splitters, prisms, such as rectangular prisms, pentaprisms, corner cube prisms, Dove prisms, reflective prisms, dispersion prisms, anamorphic prisms. , optical systems, products are widely used in non-contact detection, medical, automation, precision instruments, automobiles, microscopic measurement quality is the key to our success, we also have the most advanced measuring instruments, spherical lens measurement system, prism angle measurement system, With these advanced instruments, we have obtained ISO9001, CE international certificates. As a company, we are committed to growing and developing. Our cooperative relationship with local universities and research centers, universities, optical technology institutes has enhanced our engineering company with the concept of strict management, continuous innovation, continuous improvement, and customer satisfaction, and is committed to providing customers with quality products, on-time delivery Delivery, competitive price. We specialize in the production of high-precision optical components. Target Our company is your preferred supplier of optical components
