ZHYQ PT124B-214 pressure transmitter flush diaphragm type

Product details
Electrical connector:Bendix, Hischman DIN, Gland lead;Model Number:PT124B-214;
temperature compensation:0-75 Deg C;Operating temperature:-20~80 Deg C;
Place of Origin:Shanghai China;Supply Ability:500.0 Piece/Pieces per Month;
Port:Shanghai;Packaging Detail:1 pcs / inner box for flush diaphragm 4-20mA Pressure transmitter for high density liquid;
Output:4-20mA,0-5V, 0-10V,1-5V;Power supply:24V DC(12~36V);
Process connection:M20,G1/2 ,G1/4 optional;Pressure Range:0bar~16bar~1000bar;
Name:flush diaphragm 4-20mA Pressure transmitter for high density liquid;Brand Name:ZHYQ;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;Accuracy:0.5%;
Over load:150%FS;

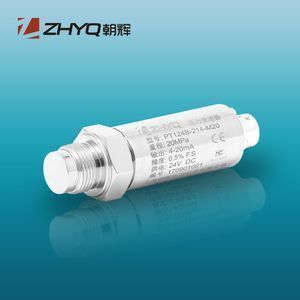

PT124B-214 Pressure Transmitter

-

Specification



Range

 0-10bar~800bar

Accuracy

 0.5%FS

Nonlinearity

 0.2%FS

Reliability

 0.2%FS

Output

 4-20mA,0-10V, 0-5V, 0.5-4.5V (PT124B-214) ;
 1.5mV/V , 2mV/V (PT124G-214) Optional

Input voltage

 24VDC  ( 4-20mA,0-10V, 0-5V output )
 5 V DC  ( 0.5-4.5V output )
 10V DC  ( 1.5mV/V , 2mV/V output ) Optional

Operate Temperature

 -20~80℃

Compensated Temperature

 0~75℃

Overload Pressure

 150%FS

Medium Material

 Stainless steel (SS304 or SS316)

Electric Connector

 Hirschman(DIN), M12(4pins) , 5pins , gland cable, direct cable optional

Process Connector

 G1/2, 1/2NPT, M22*1.5(Customer design)

Housing Shell Diameter

 Φ26mm, Φ38mm optional

Application



Production Process



Company Show

→ More about us

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.



Q: What detailed information do we need to provide if we want to place an order?

A: You need to know the following info:
- Medium information (such as Liquid or gas,etc)
- Measurement range (such as 0~5KPa)
- Work temperture (such as 30~ 60)
- Output signal (such as 4-20mA)
- Electric connection (such as DIN, terminals)
- Process connection (such as M20x1.5 male)



Q: What are your main products?

A: Our main products are including Pressure transmitters, Pressure transducers, pressure sensor, smart Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Electromagnetic flow meter and etc.





Q: How fast can you delivery goods?

A: Always 7-10 working days since order confirmed, if need goods urgently, we can arrange expedited production.



Q: What’s your MOQ?

A: We have no MOQ limits, 1 piece for test purpose at first is acceptable.



Q: Can you offer free samples?

A: Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.



Q: How long is your product warranty?

A: 7 days replacement and 12 months repair free of charge for quality problem.



Q: Can you accept OEM brand?

A: Yes, we can accept the OEM brand without extra charge.





Q: How long your quotation valid?

A: Our quotation valid for 6 months.



Q: How do you ensure good product quality?

A: We have a complete quality control system; all of our products are fully checked by IQC, OQC departments before ship to our clients.



Q: What trade terms, payment mode and payment terms can you accept?

A: Trade terms: Ex- Works, FOB, CNF

Payment mode: T/T, Western Union, PayPal, Money Gram

Payment terms: 100% payment before shipment



Q: What express ways you can offer, can we use our own courier?

A: We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepaid , also can use your own courier account to do the freight collect , just for your convenience.
