Automatic mini concrete batching mixer plant price for sale
-
Supplier: Zhengzhou Jinsheng Construction Machinery Co., Ltd. -
Region: Henan, China -
Contact: Mr Jin Sheng -
Price: $12687.00 /set -
Min. Order: 1 set
| Application: | Construction Projects; | Place of Origin: | Henan China; |
| Type: | Fixed Concrete Batching Plant; | Cement silo: | 50t/100t/150t.customized; |
| Brand Name: | JinSheng; | Weight: | 65t; |
| Single gross weight: | 12000.0 KG; | Certification: | CE ISO; |
| Packaging Detail: | 1. Standard parts packed in the wooden cases. 2. Big parts packed by plastic membrane. 3. The whole machine is loaded in the container.; | Selling Units: | Single item; |
| Applicable Industries: | Manufacturing Plant,Construction works ; | Control system: | PLC+PC; |
| Product name: | Concrete Batching Mixing Plant; | Color: | Customer Request; |
| Discharging Height: | 3.8m; | Dimension(L*W*H): | 42*18*19.4m; |
| Condition: | New; | After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support; |
| Warranty: | 12 Months; | Max. Productivity: | 25m3/h; |
| Power(W): | 155KW; | Single package size: | 1450X560X590 cm; |
| Keyword: | Concerete Batching Plant; | Power Type: | Electric; |
| Mixer type: | Double Shaft Concrete Mixer; |
Automatic mini concrete batching mixer plant price for sale
Product Attribute
Concrete Batching Plant Main Attribute
Product Details
Our products have the following six characteristics, which enable us to lead other
domestic and foreign manufacturers
Product Description

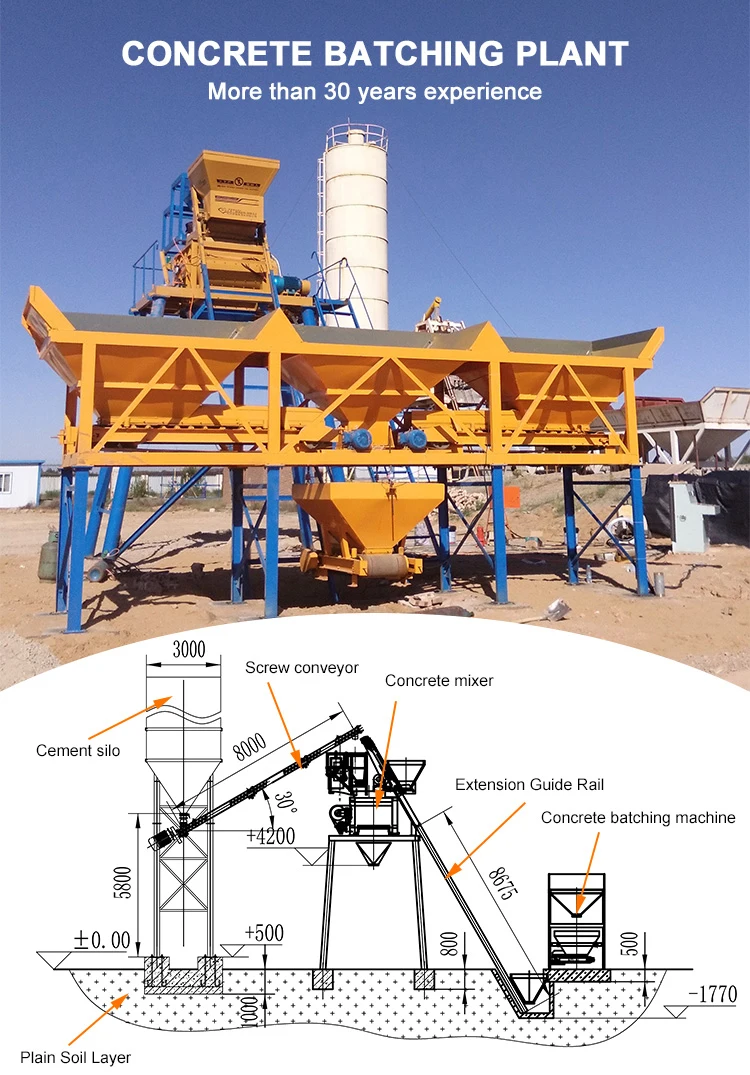

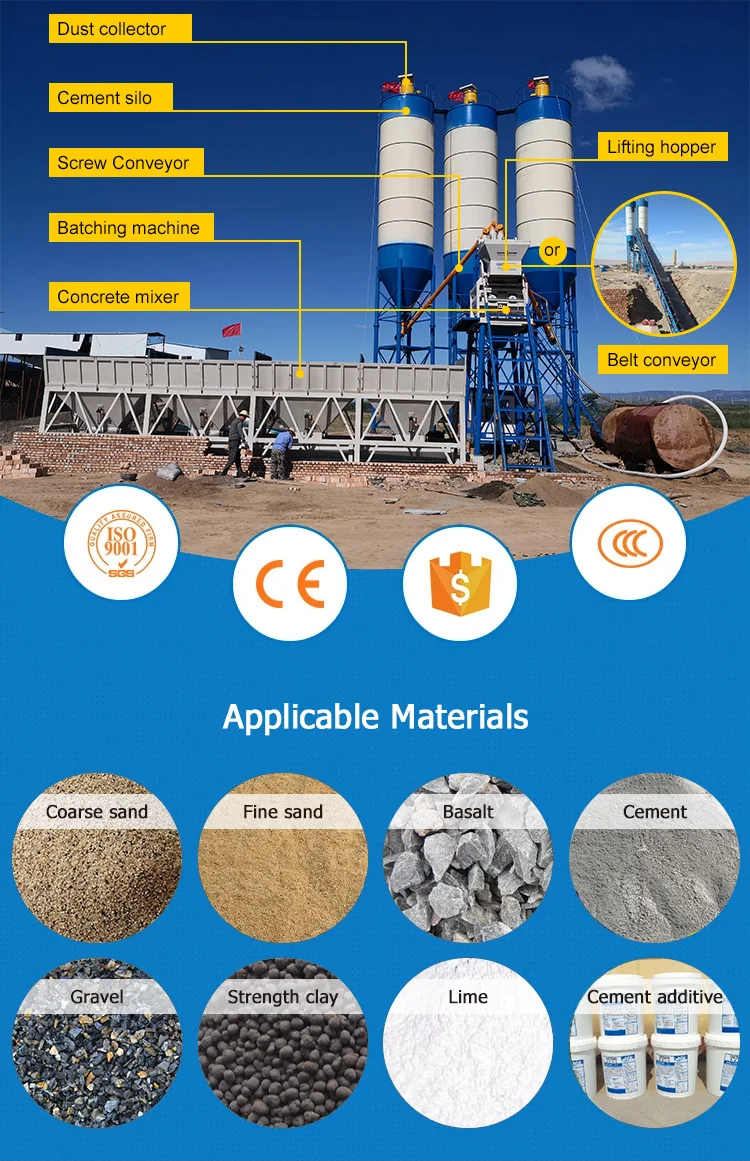

HZS concrete batching plant is also called concrete mixing plant, concrete mixing station. It includes horizontal twin-shaft compulsory concrete mixer, concrete batching machine, cement silo and screw conveyor, belt conveyor or skip hopper, and control room. It can produce a variety of concretes, such as plastic, dry hard concrete with high production efficiency, short mixing time, and easy operation. HZS concrete batching plant is widely used in large and medium-sized building construction, road and bridge, and precast plants. It is the ideal plant for the production of commercial concrete.

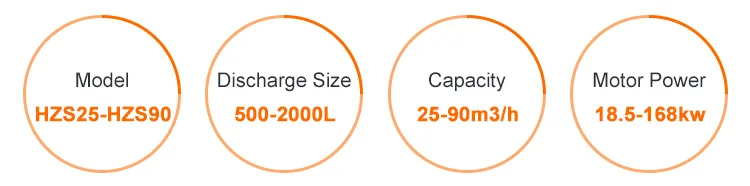

Product Parameters
The orange part of the current product parameters, click on the parameters and view the product description.

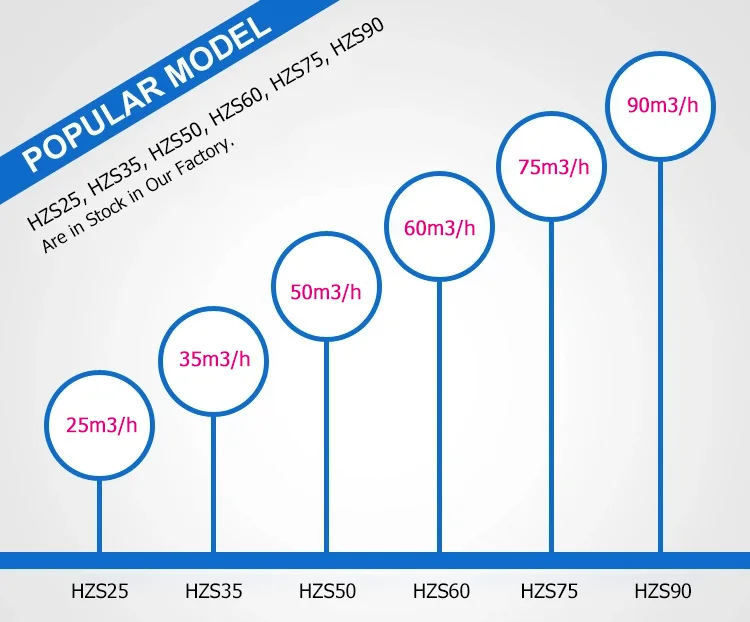

| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
|---|---|---|---|---|---|---|---|---|---|
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
| Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
| Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
| Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
| Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
| Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
| Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
| Total Installed Capacity(kw) | 60 | 78.5 | 111 | 145 | 110 | 198.06 | 210 | 230 | 288 |
Related Products

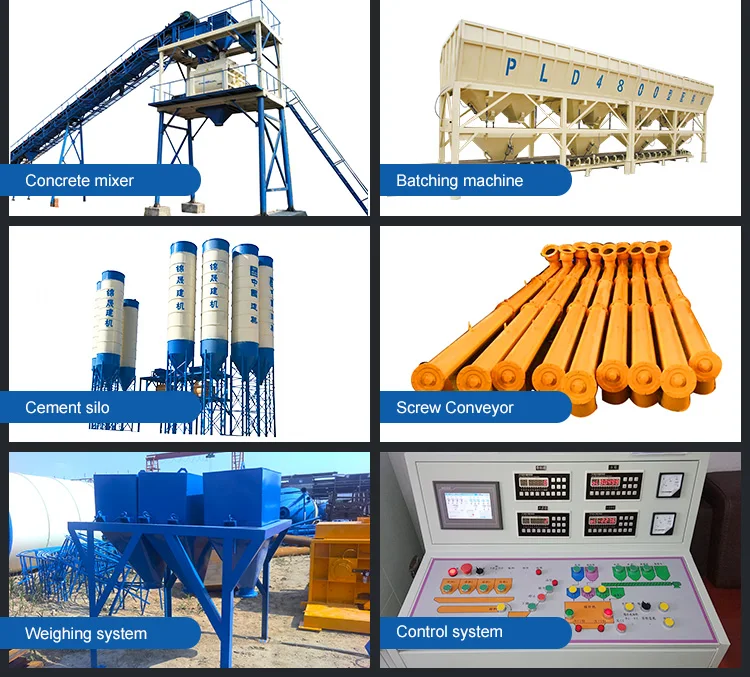

You can choose the following machine for a whole production line.

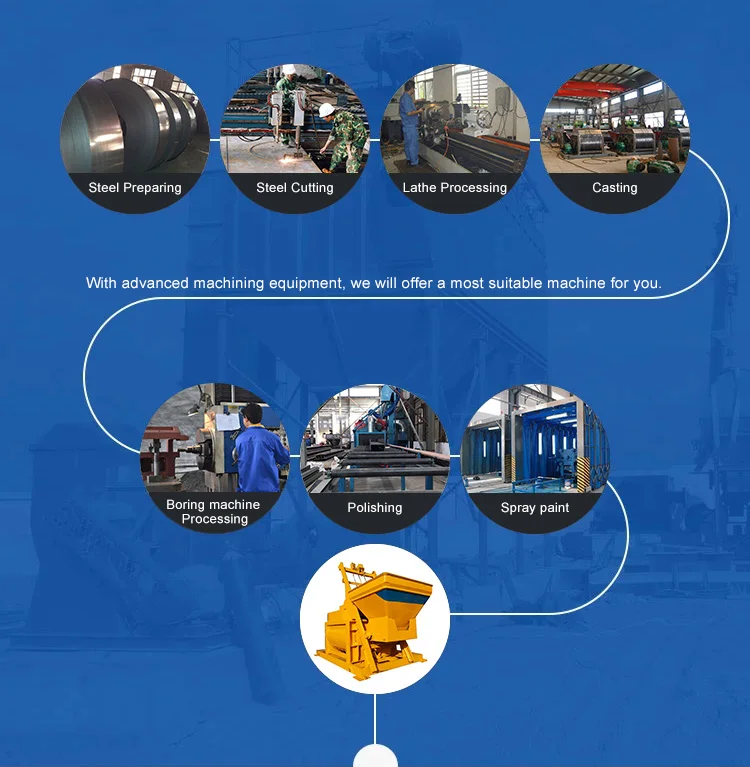

Manufacturer Procedure

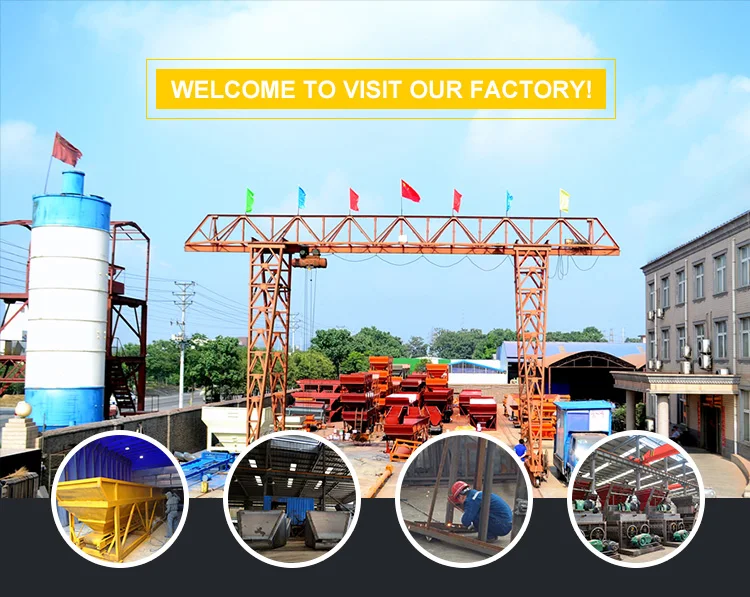

Production workshop display
Customer Training
We offer systematic comprehensive training for the customer.
For more information, please contact us
Contact Supplier
Zhengzhou Jinsheng Construction Machinery Co., Ltd.
We are a comprehensive enterprise which integrates researching, manufacturing, market developing and service for concrete batching plant equipmentand concrete mixer. Jinsheng employees are passionate spirit, we will provide first-class products to customers and strive for best services. View details
Q: For providing you the suitable quotation we need to know the following information?
A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers,we can provide you the best quotation immediately. Remarks: The price will depend on different models. Reply message you will get 5% discount price.A
Q: What about Warranty of the products?
A: Jinsheng Construction Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will replace or repair the defective parts freely at our discretion.A
Q: The reason you choose Jinsheng Construction Machinery?
A: 1. Professional manufacturer of supplying construction equipment including concrete batching plant, concrete mixer, cement silo, concrete truck and stabilized soil mixing plant.
2. Experienced and professional R&D team and manufacturing team;
3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.
4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.
5.Contact us for more details about price, packing, shipping and discount.
-
