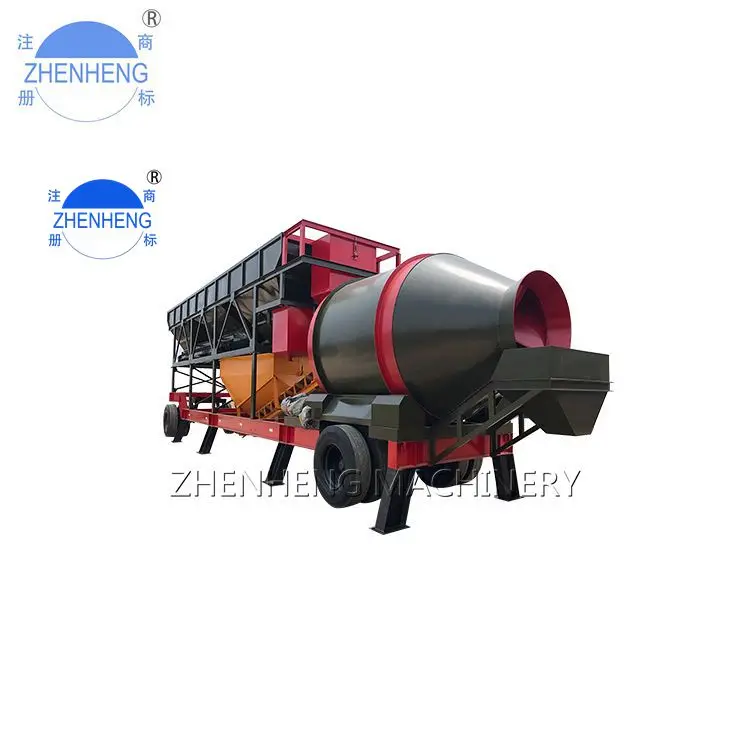

JZM500 Construction Equipment Capacity 25m3/h Drum Mobile Concrete Plant Batching Plant

Supplier: Zhengzhou Zhenheng Construction Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Sara Hou
Price: $11985.00 /set
Min. Order: 1 set

Click here to contact

Product details

Discharging volume:	500L;	Machine Type:	Mobile Concrete mixing plant;
Video outgoing-inspection:	Provided;	Model of Batcher:	PLD800-2;
Dimension(LWH):	8 X 2.2m X3.8m;	Core Components:	Engine,Gearbox,Motor;
Weight:	0;	Payment Terms:	L/C,Western Union,D/P,T/T;
Machinery Test Report:	Provided;	Cement weighing hopper:	500KG;
Total power:	44kw;	Applicable Industries:	Manufacturing Plant,Construction works ,final construction site;
Aggregate bin volume:	5m3*2;	Supply Ability:	30 Set/Sets per Week;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Place of Origin:	Henan China;
Max. Aggregate Dia:	60/80mm;	Brand Name:	Zhenheng;
Local Service Location:	Viet Nam,Philippines,Pakistan,Sri Lanka,Ukraine,Uzbekistan;	Discharging height:	1600mm;
Port:	Qingdao, Tianjin, Dalian, Shanghai Port for Ime Concrete Batching Plant Export;	Water weighing support:	220KG;
Showroom Location:	Viet Nam,Philippines,Pakistan,Sri Lanka,Ukraine;	Mixing motor:	2*5.5kw;
Condition:	New;	Power Type:	Electric;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Packaging Detail:	Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case;
Power:	44kw;	Warranty of core components:	1 Year;
Certification:	ISO CE BV;	Additive weighing support:	30KG;
Marketing Type:	New Product 2020;	Warranty:	1 Year;

Product Description

JZM500 Construction Equipment Capacity 25m3/h Drum Mobile Concrete Batching Plant

Features of YHZM Mobile Concrete Batching Plant

1. Aggregate batching and transferring is automatic and precise;

2. Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;

3. The whole plant chassis can be moved easily, don't need to be separated and assembled;

4. This plant is designed to work without foundation, even cooperate working with horizontal cement silo;

5. Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.

Advantages of YHZM mobile concrete batching plant

1.Quick disassembly:Except for the connecting equipment such as screw conveyor and cement silo. All the wiring of the mixing station need not be removed.

2. High degree of automation: The control room uses the microcomputer control system to automatically feed the material. The mixing station operator can set the ratio and complete the rated mixing times.

3. Stir well :With a compulsory twin shaft concrete mixer, uniform mixing can be achieved with the shortest mixing time.

Details Images

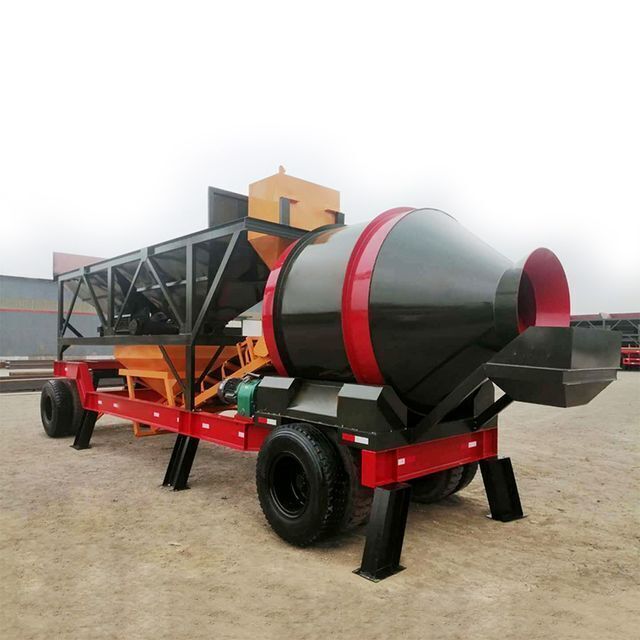

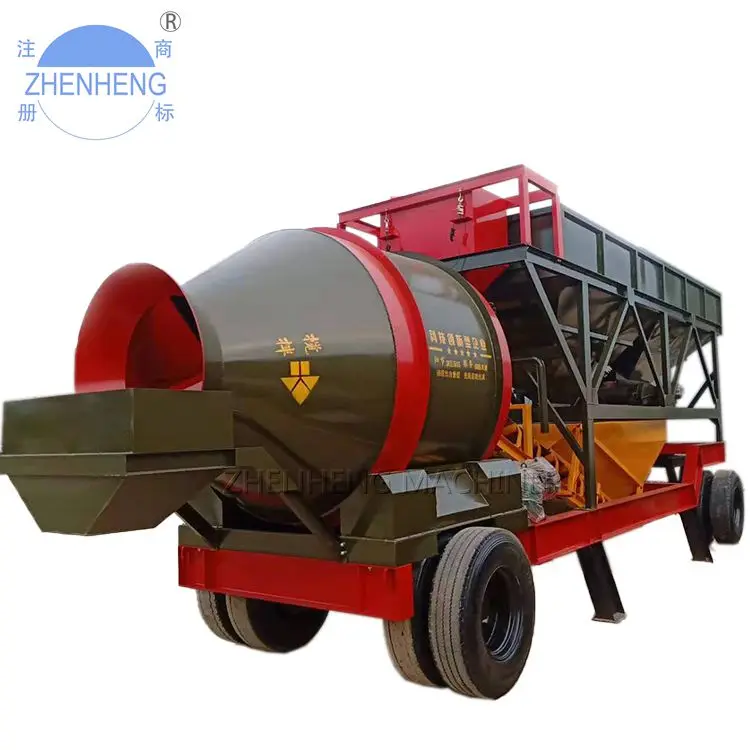

Drum Type of Mobile concrete batching plant:

Electric Power Mobile Concrete Batching Plant With Drum Type Concrete Mixer as one of the YHZG Series mobile concrete batching plant is a new type mixing plant adapt to the fast installation and movement. It is designed and manufactured by our factory based on the practical construction projects. The whole design is with convenient installation, stable and reliable operation convenient transportation. It has the advantages of flexible movement, quick and easy assembly and disassembly, and stable performance. It is the preferred choice for field construction projects such as railways, highways, ports, bridges, and hydropower projects.

The drum type mixing plant is introduced in detail:

a. Tires: Double tires, strong pressure bearing capacity, strong stability, non-slip.

b. Support leg: Quick disassemble and assembly, stabilize machine during work, protect tires, and extend service life.

c. Universal Steering wheel: can be dragged by a medium-sized forklift directly, ensure the direction changing stably.

d. Storage hopper base: moved from the middle to the front generating two advantages:

a).remaining space can be used for the generator, control cabinet, water tank, tool box, etc.;

b). shorten the length of the feeding belt and the feeding time, thereby shortening the single mixing cycle by 10s, and improving the working efficiency.

e. Support steel: Increase the bearing capacity of the chassis and extend the service life. Compact structure: Movable completely, work on the supporting legs, No foundation needed.

Specification

Model			JZM500-2	JZM750-2	JZM1000-2	JZM1000-3	JZM1500-2	JZM1500-3
Theory capacity			25m³/h	35m³/h	50m³/h	50m³/h	75m³/h	75m³/h
Discharging height			1600mm	1600mm	1600mm	1600mm	1600mm	1600mm
Total power			44kw	50kw	58.9kw	58.9kw	66.9kw	66.9kw
Dimension(L * W * H)			8 X 2.2m X3.8m	8m X 2.2m X3.8m	10m X 2.3m X4.2m	13.5m X 2.3m X 4.2m	12m X 2.3m X 4.2m	14.5m X 3.9m X 4.2m
Mixing System	Model of Mixer	JZM500	JZM750	JZM1000	JZM1000	JZM1500	JZM1500
		Mixing motor	2*5.5kw	2*7.5kw	2*11kw	2*11kw	2*15kw	2*15kw
		Discharging volume	500L	750L	1000L	1000L	1500L	1500L
Measurement System	Cement weighing hopper	500KG	500KG	560KG	560KG	900KG	900KG
		Water weighing support	220KG	220KG	220KG	220KG	330KG	330KG
		Additive weighing support	30KG	30KG	30KG	30KG	40KG	40KG
Trailer Speed			40-60Km/h	40-60Km/h	40-60Km/h	40-60Km/h	40-60Km/h	40-60Km/h
Optional cement silo			50/100T	50/100T	50/100T	50/100T	50/100T	50/100T

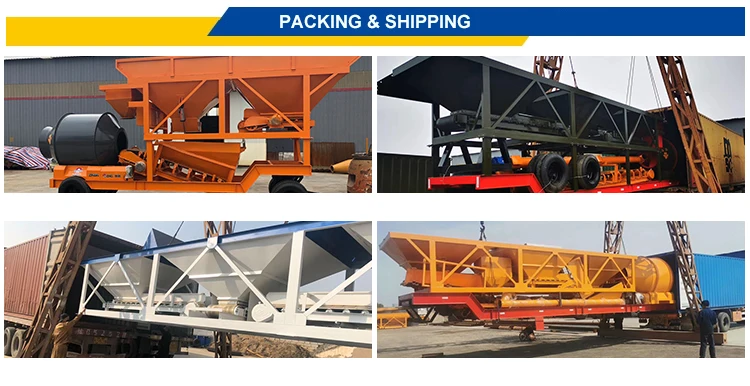

Packing & Delivery

Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight. (Automatic Concrete Batcher Plant)

Product Recommend

Company Profile

Zhenheng Machinery was established in 1 9 8 2, covers an area of 7 3, 3 7 0 square meters, has 3 production bases and more than 3 0 0 employees.After several years’ development,We have achieved great progress.We produce 3 series of concrete machinery, including concrete batching plant, concrete block production line, concrete pump, etc.The machinery produced by zhenheng has obtained I S O 9 0 0 1 certificate, C E certificate and more than 20 patents. The company has complete facilities and a strict quality control system. We have a variety of processing lathes and precision processing centers:advanced laser cutting machines,laser welding machines,robotic welding machines,CNC rolling machines, wire cutting machines and other equipment.

Leading technology,professional engineers and advanced manufacturing equipment make Zhenheng Machinery be far ahead in the construction machinery industry. The market covers more than 50 countries and regions including Poland, the Philippines,Sri Lanka, Pakistan, Thailand, Indonesia, Cambodia, Vietnam, Malaysia, Nepal, Egypt, South Africa,Ghana, Haiti, Brazil and Ecuador.

our team

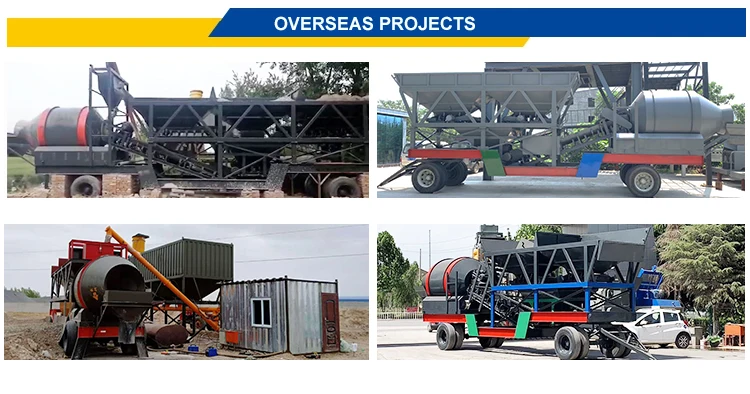

Exhibitions&Projects

FAQ

Q1. Why Choose Us?
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability
We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days
Q2. Which kind of concrete it can mix?
A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix more evenly.
Q3. What is the discharging mode of your concrete mixer?
A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type.However we supply as per customer's requirement.
Q4. What is the material do you use for milling blades and lining board?
A:High chromium alloy wear resistant plate and high manganese alloy lining board.
