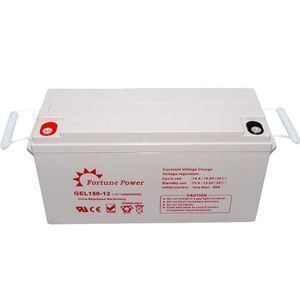

Active polymer gel battery solar inverter battery 150AH 12V for solar power system

Supplier: Guangzhou Fortune New Energy Co., Ltd.
Region: Guangdong, China
Contact: Ms Angelina Yao
Price: $100.00 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Weight:	42KG;	Maintenance Type:	Free;
Sealed Type:	Sealed;	Color:	Black/White;
Battery type:	Rechargeable GEL Battery;	Material:	High Pure Lead;
Packaging Detail:	1) Inner box -carton -pallet-container 2) Packaging also can be made by customers requirements;	Supply Ability:	800000 Piece/Pieces per Month;
Usage:	Storage/ Backup;	Payment Terms:	T/T,Western Union,MoneyGram,Cash;
Shipping:	By sea , By land;	Warranty:	3years;
Type:	GEL Lead Acid Battery;	Application:	Solar System;
Certificate:	CE / ISO9001 / ISO14001 / Rohs;	Port:	Guangzhou;
Design Life:	16 years;	Model Number:	FP150-12;
Brand Name:	Fortune Power;	Terminal:	Copper/Lead Terminal;
Place of Origin:	Guangdong China;

Product Description

Nominal Voltage	12V
Nominal Capacity(10HR)	150AH
Dimension	Length	485±3mm (19.09 inches)
	Width	170±2mm (6.69 inches)
	Container Height	240±2mm (9.45 inches)
	Total Height (with Terminal)	240±2mm (9.45 inches)
Approx Weight	Approx 40.6 Kg (89.51 Ibs)
Terminal	T11/Wire
Container Material	ABS
Rated Capacity	20hr ,1.80V/cell,25℃/77℉	160.8 AH/8.04A
	10hr,1.80V/cell,25℃/77℉	150.0 AH/15.0A
	5hr,1.75V/cell,25℃/77℉	131.6 A H/26.3A
	3hr,1.75V/cell,25℃/77℉	119.3 AH/39.8A
	1hr,1.60V/cell,25℃/77℉	96.9 AH/96.9A

Company Information

Fortune New Energy Co., Ltd. is a state-of-the-art company devoted to the research, develop and manufacture of lead acid batteries and Lithium Batteries. Through 18 years of development, Fortune Power constantly manufactures our products today to meet tomorrow's requirements. That's why Fortune Power has grown to a well-known and the most reliable storage battery brand at home and abroad.

With a 150,000 square meter manufacturing plant finely tuned for efficiency, we have strong innovation capability from our R&D team, ISO standard manufacturing processes, effective management and the awareness of being an industrial leader in the supply of VRLA batteries.That's why Fortune Power follows ISO standard and has been awarded with ISO9001, ISO14001 and CE Approvals. Fortune Power has been aggressively pursuing the research and development of a full range of batteries for global power supply markets and the standard requirements of international applications.

Packing

Our Material Advantage

1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic.
2) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing. 3) High quality AGM separator
4) Positive plates: PbCa grids minimize corrosion and prolong life.
5) Terminal post: Copper,lead material with maximum conductivity, enhance the high current rapidly. 6) Vent Valve: Allows the release of the excess gas automatically for safety.

Product Application

1.Solar power system(off-grid solar power system, solar street light system, solar garden light system)Wind Power System 2. UPS and computer backup power

3. telecommunication system 4. Power station System

5. Railway System 6. Emergency lighting system

7. Automatic control system 8. Alarm system for fire protection, security

Storage and installation

1.Fortune Power battery is not in use should remove the cable, pole jacket cover and wipe clean;

2.once every three months for Fortune Power battery to maintain charging, constant voltage charging method for limiting law, the initial charging current is 0.1CA, the charging voltage is 2.4V / single cell (25 ℃ when);
3.Fortune Power battery should be stored in dry and ventilated place, away from direct sunlight and away from heat sources;
4.when handling batteries even force, the force of the housing portion of the battery to avoid damage to the pole;
5.the installation should use insulated tools to prevent click.
