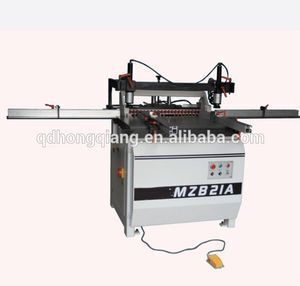

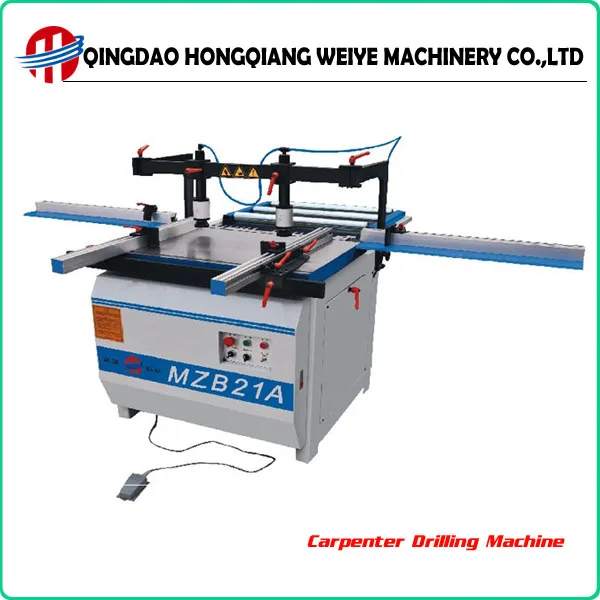

MZB21A cnc wood drilling machine
-
Supplier: Qingdao Hongqiang Weiye Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Ms Cindy zhang -
Price: $1850.00 /set -
Min. Order: 1 set
| cnc wood drilling machine spindles: | 21; | After-sales Service Provided: | Field maintenance and repair service,Engineers available to service machinery overseas; |
| Range of Spindle Speed(r.p.m): | 0 - 2480; | Warranty: | 1 YEAR; |
| CNC or Not: | CNC; | cnc wood drilling machine use: | MDD,particleboard,plywood,PVC boad,plexiglass,and solid wood plate; |
| Local Service Location: | None; | cnc wood drilling machine OEM: | optional; |
| cnc wood drilling machine dep.: | 0-60mm; | Supply Ability: | 500 Set/Sets per Month cnc wood drilling machine; |
| cnc wood drilling machine Type: | One randed; | After Warranty Service: | Field maintenance and repair service; |
| Payment Terms: | L/C,T/T,E-Credit; | Showroom Location: | None; |
| Voltage: | 380V; | Drilling Speed: | 2840r/min; |
| Max. Drilling Dia. (mm): | 35; | Dimension(L*W*H): | 1900*2600*1300mm; |
| Key Selling Points: | Competitive Price; | Certification: | BV&CE; |
| Weight (KG): | 340 KG; | Power(W): | 1.5; |
| cnc wood drilling machine Warranty: | 12 months; | Condition: | New; |
| cnc wood drilling machine pre.: | 0.5-0.8Mpa; | Packaging Detail: | Plywood case; |
| type: | Horiztional; | Brand Name: | HONGQIANG; |
| Place of Origin: | Shandong China; | Port: | QINGDAO PORT; |
| Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,woodworking machinery; | cnc wood drilling machine workpiece: | 2500*920*70mm; |
| Power (kW): | 1.5; | Model Number: | MZB21A; |
Production Description
cnc wood drilling machine
1.Suitable for all kinds of MDD,particleboard,plywood,PVC boad,plexiglass,and solid wood plate drilling;
2.The base of the whole cast iron structure of the fuselage.The key components of the vertical tank,horizontal seat,left and right panels,motor base all cast iron pieces;
3.Taiwan staf precision guide rail and slider,producton drilling license in H.K,omron appliances,LG brand PLC microcomputer control system,so that the equipment is more stable,easier to operate.
4.All models can be equipped with the Italian electronie digital;
5.P2 horizontal drilling flip structure,can be used for vertical drilling,horizontal drilling can also be.
Specifications
cnc wood drilling machine
| Model number | MZB21A |
| Maximum diameter of holes | 35mm |
| Depth of drilled holes | 0~60mm |
| The number of spindles | 21 |
| Centerdistance betwwenspindles | 32mm |
| Maximum dimensions of piece to be drilled | 2500*920*70mm |
| Speed of spindle | 2840r/min |
| Total motor power | 1.5kw |
| Suitable voltage | ~380v+Null line |
| Air pressure | 0.5~0.8Mpa |
| Gas consumption for drilling ten panels per minute approximately | 5L/min Approximately |
| Overall size | 1900*2600*1300mm |
| Weight of the whole machine | 480kg |
| Hight of working platform off ground | 900mm |
| packing size | 1100*1300*1400mm |
Services
cnc wood drilling machine
Pre-sale services
1> Provide the free consultation of the equipment
2> Provide the standard device and the flow chart
3> According to the clients’ special requirement, we offer the reasonable plan and free design helping to select the equipment.
4> Welcome to visit our factory
Services during the sales
1> Inspect the machine before leaving the factory.
2> Oversea install and debug the equipment.
3> Train the first-line operator.
After sale services
1> 24 hours online service
2> Provide the VIDEO with Install and debug the equipment
3> Provide technical exchanging
Pictures
cnc wood drilling machine
Overview
Whole body material: Cast iron body
Office & Fair Booth & Workshop
Packaging: Plywood case
cnc wood drilling machine
Annual Sales
cnc wood drilling machine
Cooperation Parteners
Company Introduction
cnc wood drilling machine
Qingdao Hongqiang Weiye Machinery Co., Ltd located in Qingdao City which is specialized in manufacturing woodworking machinery like Precision Panel Saw, Edge banding machine, drilling machine, curved edge banding machine, Door lock mortising machine, CNC Router, sanding machine, Cold press machine. Our products have good market for Asia, African, Middle of east, Australia, Russia south of America etc.
cnc wood drilling machine
