Package Preview: | ; | Voltage: | AC220V/50Hz 110V/60Hz; |
Warranty: | 1 YEAR; | After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Video technical support; |
suit for: | toys, wood crafts, pens, USB, plastic cups; | Brand Name: | LC; |
Showroom Location: | None; | Port: | ShenZhen port of China; |
Place of Origin: | Guangdong China; | Printing Colors: | 2 color; |
machine color: | blue; | Plate Type: | Gravure; |
Type: | Pad Printer; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Retail,Printing Shops,Energy & Mining,pad printing machine shop; |
Usage: | Paper Printer,Label Printer,Card Printer,Tube Printer,Bill Printer,Cloths Printer,pad printer; | Supply Ability: | 100.0 Set/Sets per Month; |
Max printing speed: | 1400PCS/H; | Packaging Detail: | the machine will be packaged in wooden case to ensure safty.; |
Local Service Location: | None; | Condition: | New; |
Dimensions(L*W*H): | 910*570*1470mm; | Max. Printing area: | 80*135mm; |
Weight: | 140kg; | Plate area: | 100*250 mm; |
Key Selling Points: | High-accuracy; | Certification: | CE; |
Air pressure: | 6 Bar; | Operation: | Pneumatic; |
Color & Page: | Two Colors; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Sealed ink cup diameter: | 90 mm; | After Warranty Service: | Video technical support,Online support; |
Automatic Grade: | Semi-Automatic; |

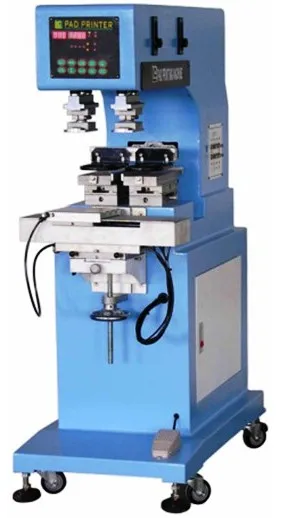

2 Color Tampografia Led Bulb Watch Dial Golf Ball Nail Polish Bottle Pad Printing Machine For Sunglasses
Model Number | LC-PM2-150T | Operation | Pneumatic |
Printing Colors | 2 colors | Max Printing area | 80*135mm |
Plate area | 100*250 mm2 | Sealed ink cup diameter | 90 mm |
Max printing speed | 90 mm | Max printing speed | 1400PCS/H |
Wattage | 220V/110V | Machine size | 910*570*1470mm |
2 Color Shutte Closed ink Cup tampondruck Printer LC-PM2-150T is fit for pad printing plastic products, like toys, gifts, pens, PVC, PE, PP, golf ball, package products, stationery, pens, ball, electron products, mobile phone, bottle. Metals products, furniture fittings and etc.
Specifications
1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying. 7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable
Free Fitting:
1. One PCS steel plate
2. Two PCS rubber pad
3. A suit tool
4. English operating instruction
Luen Cheong Printing Equipment Ltd. established in 1991,which is professional in develop, manufacture and sales the Screen printer, Pad printer, Hot stamping machine, Heat transfer machine, Peripheral Equipment &Accessory. With the long time experience in manufacture special printing equipment, we are focus on making the good quality printing equipment and whole solution service for domestic and aboard.
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.
Cooperative Partners:
We do business with companies and customers all over the world. Please feel free to contact us.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
