special service: | OEM service; | Warranty: | 1 Year; |
Brand Name: | Junuo; | chipset: | sunplus 1505B; |
feature: | Support BISS function(optional); | Port: | Shenzhen; |
Payment Terms: | T/T,Western Union,MoneyGram; | Supply Ability: | 300000 Piece/Pieces per Month; |
OSD: | Mutli-languages OSD; | function: | youtube; |
Tuner: | R848; | Packaging Detail: | One Color box include: 1* combo DVB-S2 t2 HD Receiver 1* Remote Control 1* AV Cable 1* User Manual; |
Model Number: | combo T2+S2 6938G; | resolution: | 720I/P,1080I,1080P; |
Type: | Digital; | FTA(Free To Air): | Yes; |
Package Preview: | ; | High Definition: | Yes; |

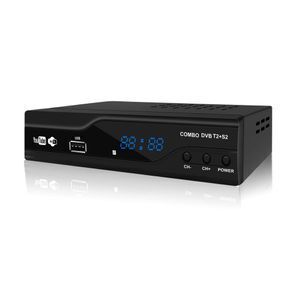

Product name: | combo dvb t2 s2 set top box; | support: | software upgrade; |
Place of Origin: | China; |
Ⅰ. Technical specification | ||||
Product Type Name | Produce Type Number | T2+S2 M15 | ||
Main Features | STB Type | DVB-S2+T2 Combo Receiver | ||
Main Chipset | Sunplus1506TV | |||

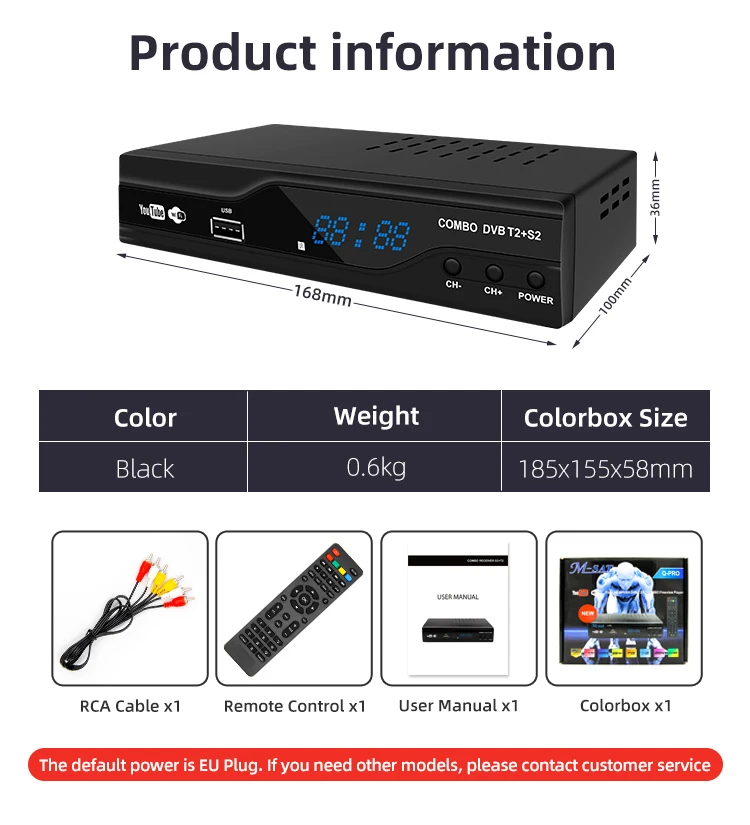

Mechanical | 168mm Metal case | |||
Function/Interface | CVBS,AR,AL,YPbPr,SPDIF,HDMI, 1*USB2.0,LED Display,LNB IN(DVB-S/S2),ANT(DVB-T/T2),7 Keys on Front Panel | |||
Special Features | Heat Sink | Yes | ||
Encrypt | ASIC Type | |||
TUNER Type | R848 | |||
Demodulator Type | AVL6862 | |||
SMPS Type | Separate SMPS | |||
Ⅱ. Hardware Features | ||||

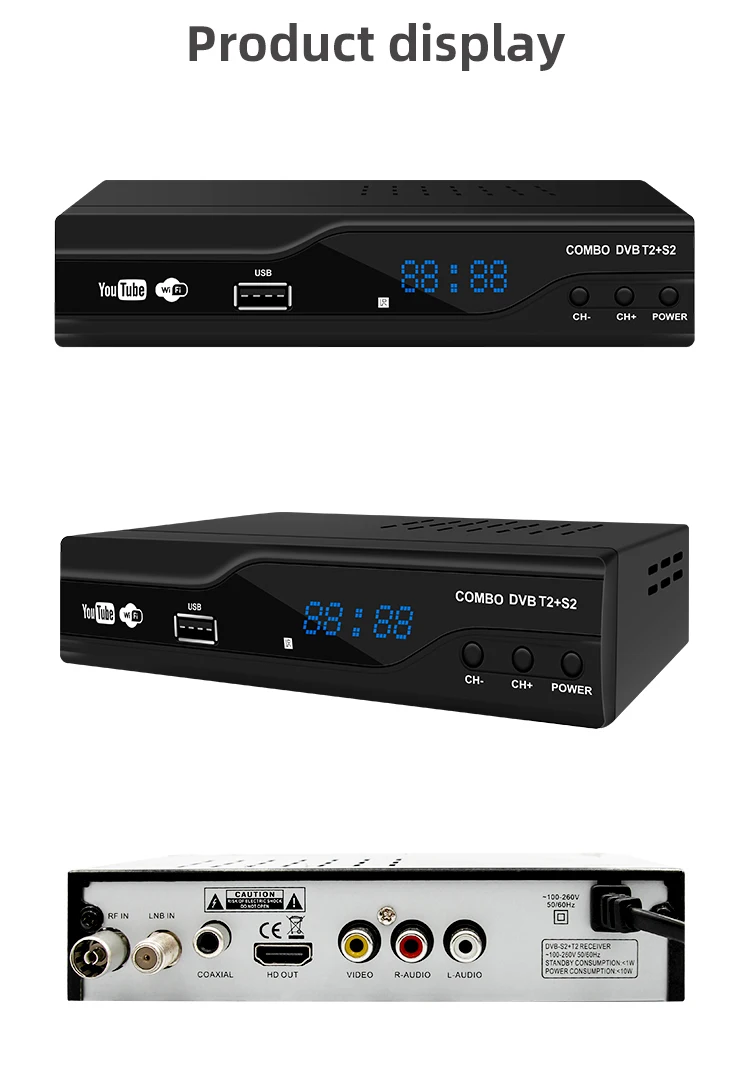

Rear panel | USB 2.0 | YES | ||

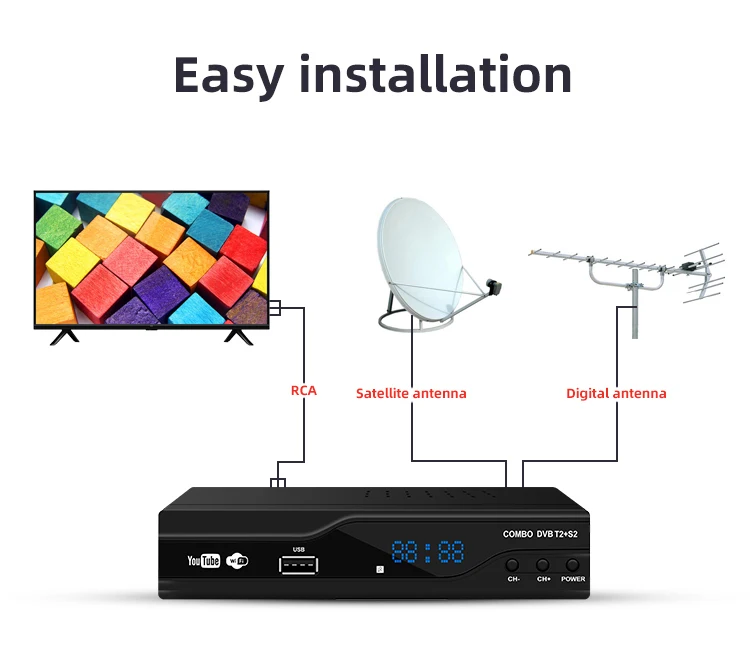

T2 ANT IN | For DVB-T/T2 signal input | |||
S2 LNB IN | For DVB-S/S2 signal input | |||
COAXIAL | For Coaxial output for other audio decoder device | |||
HDMI | 19 PIN Female HDMI 1.3 | |||
AC-IN | AC 100~250V,50Hz/60Hz | |||
RF OUT | NO | |||
CVBS+R/L Audio+YPbPr | 6 RCA for CVBS+L/R Audio+YPbPr | |||
Front panel | USB 2.0 | For USB PVR, Timeshift and Media Player, Wi-Fi | ||
Buttons | 7 or 3 Buttons | |||
Display | 4x7 LED channel display for optional | |||
Remoter | Remoter Type | RA0 | ||
Battery Type | 2 x 1.5V AAA | |||
Mechanical | Mechanical Type | AA plastic front panel and Small case | ||
Dimensions | W:220mm;D:100mm;H:38mm | |||
Net Weight | 1.0 kg | |||
Accessories | Battery | 2 x 1.5V AAA | ||
User manual | Color cover/black white Print Manual |
Packing | Shipping |
1 piece/gift | By air |
20/40 pieces one carton | By sea |
ctn size: 39*31*33 cm(20pcs) depends on giftbox size | By express |
Scart Version: G/W 10.52KG/CTN | ALL depend on your needs! |
AV Version: G/W:11.25KG/CTN |
