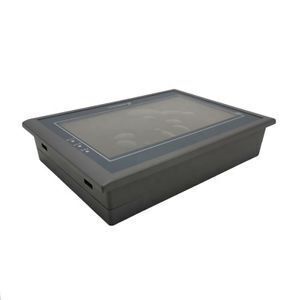

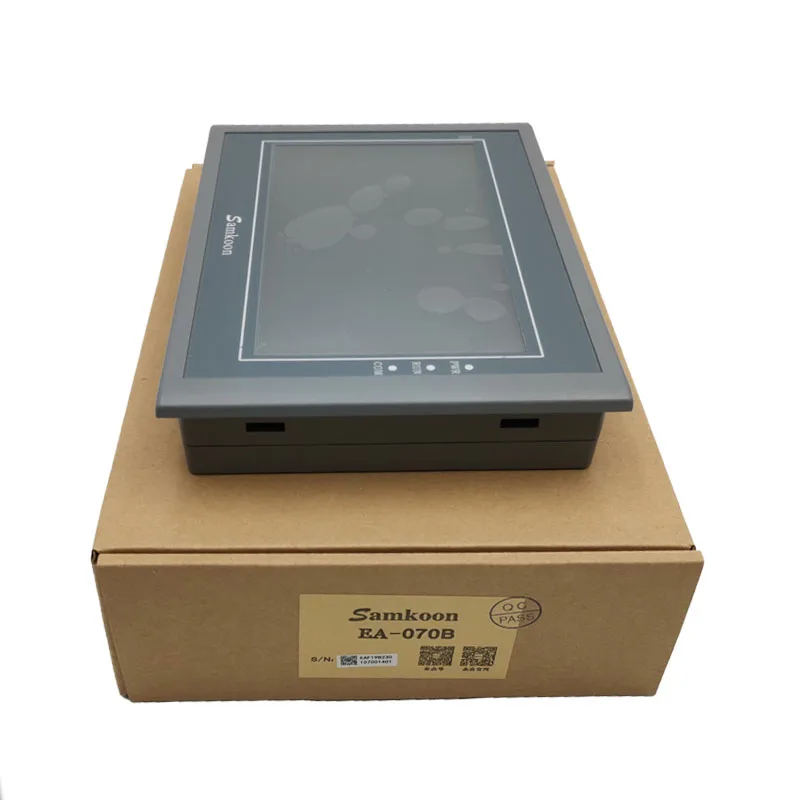

7 Inch EA-070B Touch Panel Interface Programming Software Display Samkoon Hmi
-
Supplier: Shenzhen Haiyue Machine And Electronic Equipment Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Phoenix Cheng -
Price: $67.50 / >=3 pieces -
Min. Order: 3 pieces
| Single gross weight: | 4.0 KG; | Factory Automation: | Guarantee; |
| Single package size: | 40X20X15 cm; | Warranty: | 1 Year; |
| Quality: | Reliable; | Place of Origin: | China; |
| Package Preview: | ; | Model Number: | EA-070B; |
| Shipping term: | TNT DHL FEDEX EMS UPS; | Brand Name: | Samkoon; |
| Wholesale: | Standard package; | Packaging Detail: | standard export package; |
| Application: | Electronic Equipment; | Condition: | Made in China; |
| Selling Units: | Single item; | Shipping time: | Delivery Time 2-3Days; |
7 Inch EA-070B Touch Panel Interface Programming Software Display Samkoon Hmi
High-speed Communication:
Built-in USB communication ports integrate communication modes of RS232/422/485;
Support free port communication;
Abundant PLC protocols.
High Performance:
Large FLASH capacity; USB disk storage;
Large capacity of data storage;
Data saving when power failure.
User-defined Boot Logo:
Boot Logo screen can be customized and be upgraded to HMI through software.
Collection of Recipe Data and Historical Data:
Support multiple sets of recipes with sub recipes;
Support collection of discrete data.
Animation Display:
Realize dynamic effects via functions of Picture Display or GIF display.
Parameter:
High definition resistance screen > >
| Hardware | Outline dimension | 203 × 145 × 38 |
| Cut-out Size | 192 × 138 | |
| Net Weight | 0.6Kg | |
| Display | Model | EA-070B |
| Display Size | 7″(16:9) | |
| Resolution(Px) | 800 × 480 | |
| Touch Screen | Four-wire screen | |
| Color | 262,114 | |
| Backlight | LED | |
| Contrast Ratio | 450:1 | |
| Luminance | 450cd/M2 | |
| Properties/Certification | Memory | 128M FLASH + 32M DDR2 |
| CPU | ARM9 200MHz | |
| Electric Strength Test | 500V DC, 1min | |
| ESD | Level2 ± 4kV | |
| FCC | FCC,Class A | |
| CE | EN55022 & EN55024 | |
| Protection Grade | IP65(Front panel) | |
| Housing Material | ABS + PC | |

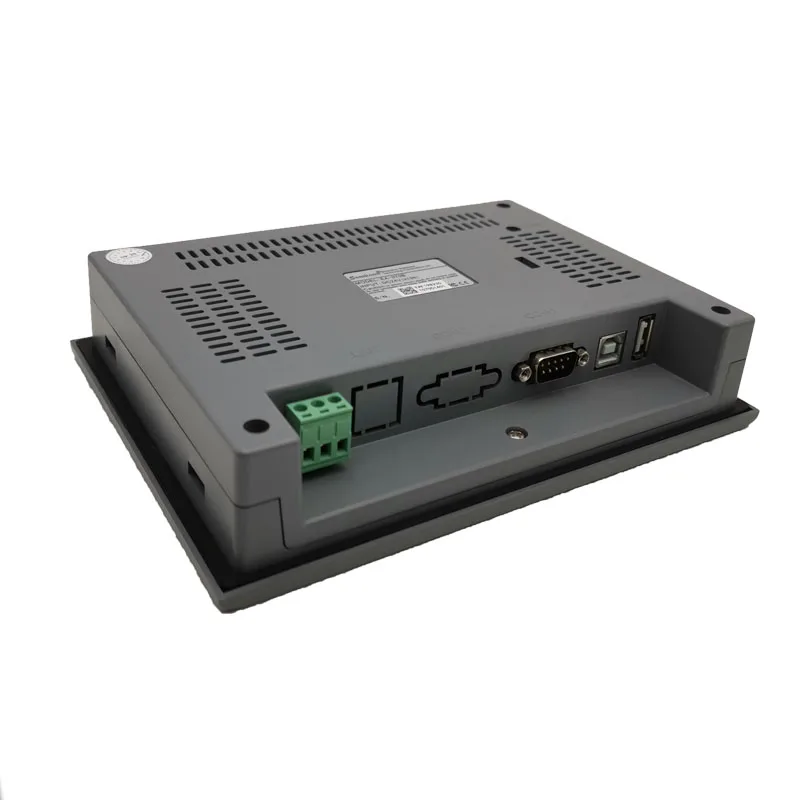

| Power/Port | Power Supply | DC24V(+/-15%) |
| Power Consumption | 4.5W | |
| Series Port | COM :RS232/422/485 | |
| USB-A | YES | |
| USB-B | YES | |
| Ethernet Port | NO | |
| Environment | Operation Temperature | -20 ~ 65℃ |
| Operation Humidity | 10 ~ 90%RH | |
| Shockproof | 10 ~ 25Hz(XYZ 2G/30min) | |
| Software | PC Software | SATOOL |

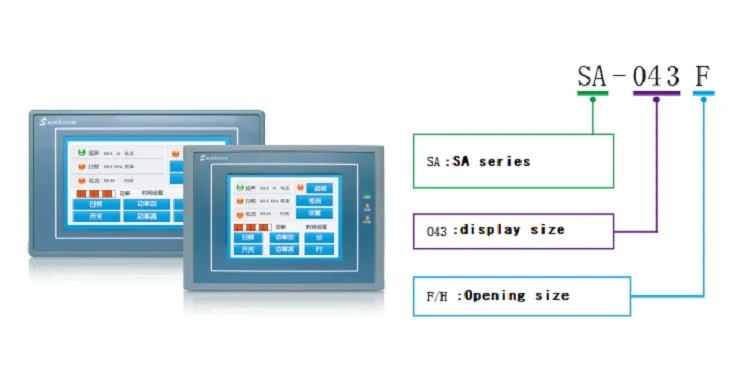

EA-HMI
| Model | Display Size | Outline dimension (mm) | Cut-out Size (mm) | Resolution (Px) | USB-B | PC software |
|---|---|---|---|---|---|---|
| EA-035A-T | 3.5''(4:3) | 86*86*40.5 | 69*69 | 320*240 | No | SATOOL |
| EA-043A | 4.3''(16:9) | 138*86*38 | 132*80 | 480*272 | No | |
| EA-070B | 7''(16:9) | 203*145*40 | 192*138 | 800*480 | Yes | |
| SA-035F | 3.5''(4:3) | 96*81*47 | 92*77 | 320*240 | No | |
| SA-043F | 4.3''(16:9) | 138*86*38 | 132*80 | 480*272 | No | |
| SA-050H | 5''(16:9) | 165*103*39 | 157*95 | 4800*80 | Yes | |
| SA-057F | 5.7''(16:9) | 177*140*40 | 163*133 | 640*480 | Yes | |
| SA-070F | 7''(16:9) | 227*153*40 | 210*144 | 800*480 | Yes | |
| SA-070H | 7''(16:9) | 203*145*40 | 192*138 | 800*480 | Yes | |
| SA-102H | 10.2''(16:9) | 275*211*44 | 259*201 | 1024*600 | Yes | |
| SA-104F | 10.4''(4:3) | 312*225*55 | 285*212 | 800*600 | Yes | |
| SA-121F | 12.1''(4:3) | 340*256*54 | 330*246 | 800*600 | Yes |
