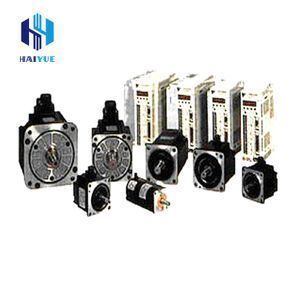

Yaskawa Servo motor

Supplier: Shenzhen Haiyue Machine And Electronic Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Phoenix Cheng
Price: $79.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Structure:	Synchronous Motor;	Function:	Control;
Delivery Detail:	2-3 days;	Port:	Shenzhen;
Brand Name:	Yaskawa;	Supply Ability:	10000 Piece/Pieces per Week;
Place of Origin:	Japan;	Packaging Detail:	International standard package;
Usage:	Industrial;	Protect Feature:	Enclosed;
Model Number:	SGMAH, SGMPH, SGMGH, SGMSH, SGMUH,SGDM, SGDH;	Power:	AC;
Shape:	Linear;	Payment Terms:	T/T,Western Union;
Speed:	High Speed;	Phase:	Three Phase;

Product Description

Our company has a good price for Yaskawa servo for SGMAH, SGMPH, SGMGH, SGMSH, SGMUH and SGDM, SGDH series.

SGMJV Sigma-5
Rated Output: 50W, 100W, 200W, 400W, 750W

The SGMJV small capacity brushless servomotor can be used in a variety of applications. Some characteristics of this motor line are as follows:

Medium inertia

Instantaneous peak torque (350% of rated torque)
Mounted high resolution serial encoder: 13 or 20-bit
Maximum speed: 6,000 rpm
Wide selection: 50 to 750W capacity, holding brake and gear options

Voltage 200V-100V -
Servo voltage models: SGMPH-01A 02A 04A 08A 15A 01B 02B
Rated power W 100 200 400 750 1500 100 200
Rated torque N m 0.318 0.637 1.27 2.39 4.77 0.318 0.637
The greatest moment torque N m 0.955 1.91 3.82 7.16 14.3 0.955 1.91
Rated speed min-1 3000
The maximum speed min-1 5000
Rotor inertia J kg m2 × 10-4 0.0491 0.193 0.331 2.1 4.02 0.0491 0.193
Allow load inertia motor inertia 25 times the motor inertia of 15 times the motor inertia 7 times the motor inertia five times the motor inertia of 25 times the motor inertia of 12 times the following
Rated power response rate kW / s 20.6 21.0 49.0 27.1 56.7 20.6 21.0
Applicable encoder
Incremental standards (13 bit: 2048P / R a)
Incremental options (16 bit: 16384P / R is) absolute (16 bit: 16384P / R a)
Basic indicators
Working hours connect
Grade B heat-resistant
Ambient temperature 0 ~ +40
Environmental humidity 20 to 80 percent (not condensing)
Vibration levels V15
Protection completely closed since the Cold IP55 (in addition to bearing output)
Anti-vibration performance vibration acceleration 49 m/s2

We have a large quantity in stock, all of our products are new and original. We can provide the product in time to customers. Your satisfaction is our external pursuit.
