Remark: | air-conditioner can be chosen; | Color: | Any color you want; |
Tank Volume: | < 5000L; | Engine Capacity: | < 4L; |
Engine Power: | 38KW; | Emission Standard: | Euro 4; |
Sprinkling Area (m): | > 16 m; | Certification: | ISO9001,ISO14001 and CCC; |
Others: | lists of spare parts for free; | Gross Vehicle Weight: | 4155; |
Supply Ability: | 100 Set/Sets per Month; | Packaging Detail: | Nud packing, Maxed,loading in the container,Roro Ship,Bulk ship; |
Place of Origin: | Hubei China; | Payment Terms: | L/C,T/T; |
Port: | Wuhan & Shanghai; | Local Service Location: | None; |
Fuel: | Diesel; | After Warranty Service: | Spare parts; |
condition: | 100% brand new; | Warranty: | 1 YEAR,one year since truce leave our factory; |
Showroom Location: | None; | Condition: | New; |
Brand Name: | Yandi; | Drive Wheel: | 4X2; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Dimensions (L x W x H) (mm): | 4155X1750X2200; |
Transmission Type: | Manual; | Engine type: | Anhui Quanchai Engine Motor Co.,Ltd; |
After-sales Service Provided: | Free spare parts,Overseas service center available; |
Forland Euro II Diesel 2800L to 3000L small water tank truck
we commit to kinds of water truck with different chassis, any inquiry please contact us.thank you.
Main specification | ||||||
Product model and name | SZD5042GSSB small water tank truck | |||||
Gross weight(Kg) | 4155 | Drive type | 4X2,LHD | |||
Curb weight(Kg) | 2525 | Overall dimension(mm) | 4800X1750X2200 | |||
Approach/departure angle(°) | 18/20 | Cab seats | 2 | |||
Axle No. | 2 | Front/rear hang(mm) | 1100/1600 | |||
Axle load(Kg) | 1580/2575 | Wheelbase(mm) | 2600 | |||
Max speed(Km/h) | 90 |
|
| |||
Chassis specification | ||||||
Chassis model | BJ1042V9JB4-X1 | Manufacturer | Foton Motor Co., Ltd | |||
Brand name | Foton | Dimension(mm) | 4820×1690×2080 | |||
Tire specification | 6.00-15 | Tire No. | 6+1(One spare tire) | |||
Steel spring number | 7/5+3 | Front track base(mm) | 1345 | |||
Fuel type | Diesel | Rear track base(mm) | 1240 | |||
Emission standard | Euro II | Transmission | 5 forward gear | |||
Cab | Singal row,2 person allowed,with power steering, with hotwind | |||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | |||
4A1-68C40 | Foton Engine Motor Co.,Ltd | 1809 | 50(68HP) | |||
Tank body | ||||||
Tank capacity(m³) | 3(3000L) | Tank material | QB235 Carbon steel | |||
Water pump model | 65QZ40/45(Weilong pump) | Water pump flow(m³/h) | 40 | |||
Watering width(M) | ≥14 | Water cannon range (M) | ≥28 | |||
Main feature | ||||||
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. |
Product Description
Advantages and features:
Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.

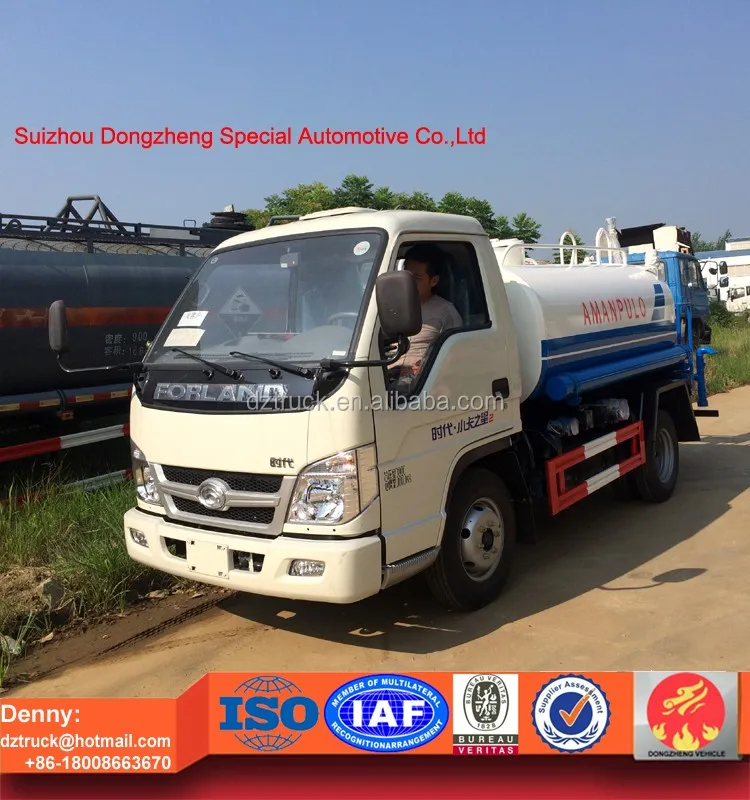

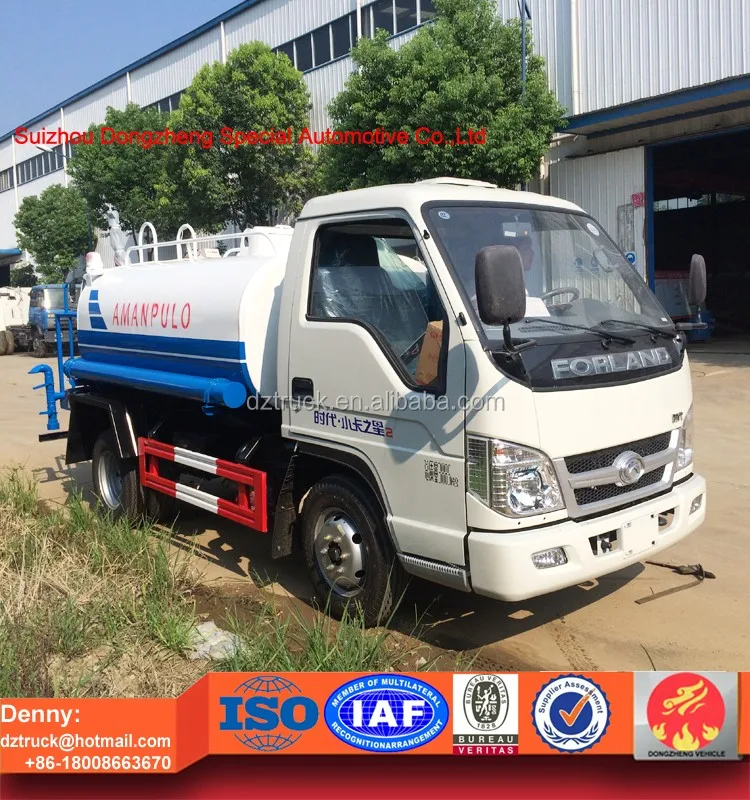

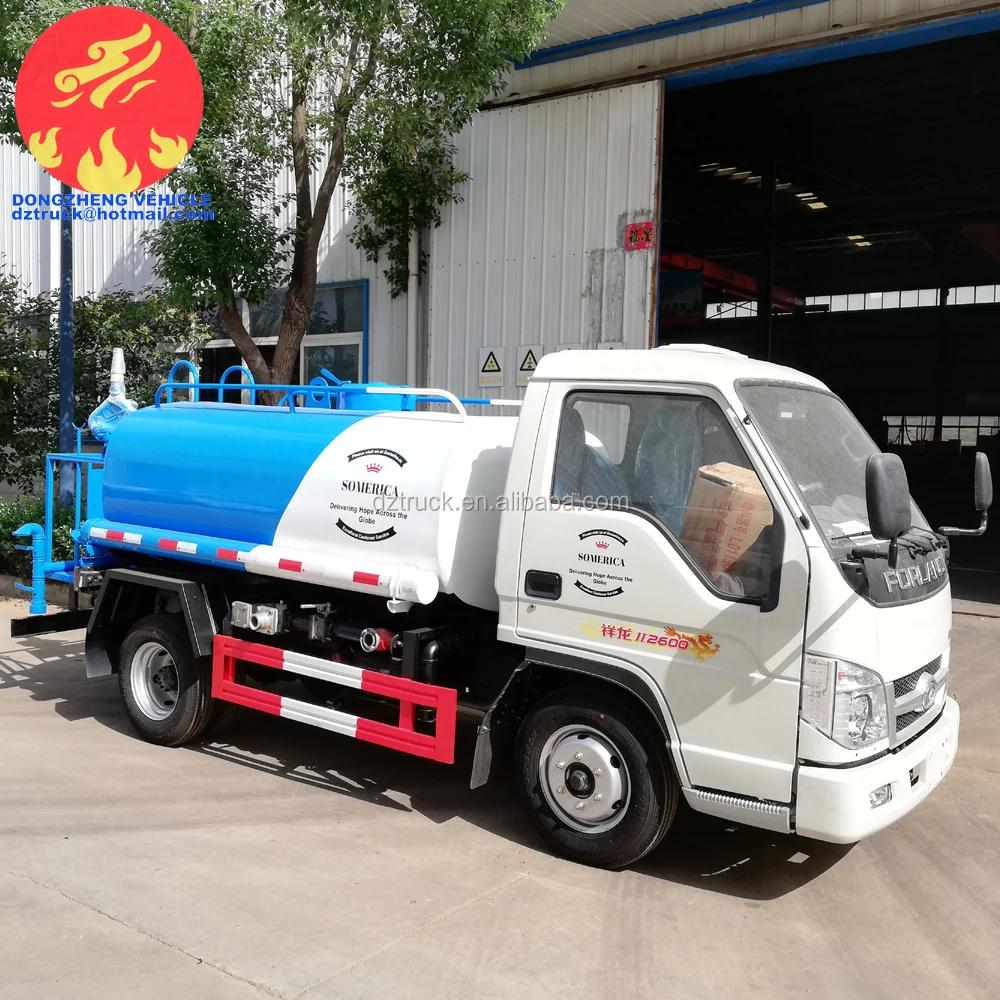

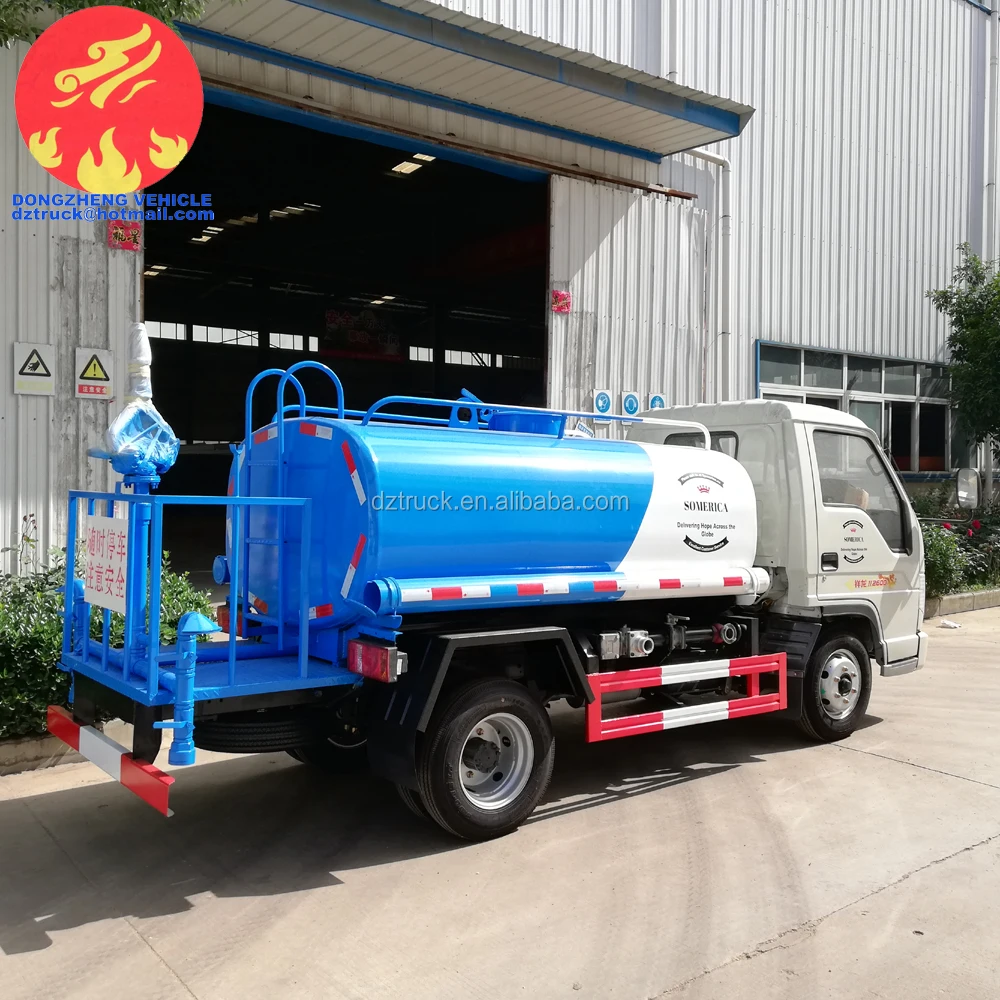

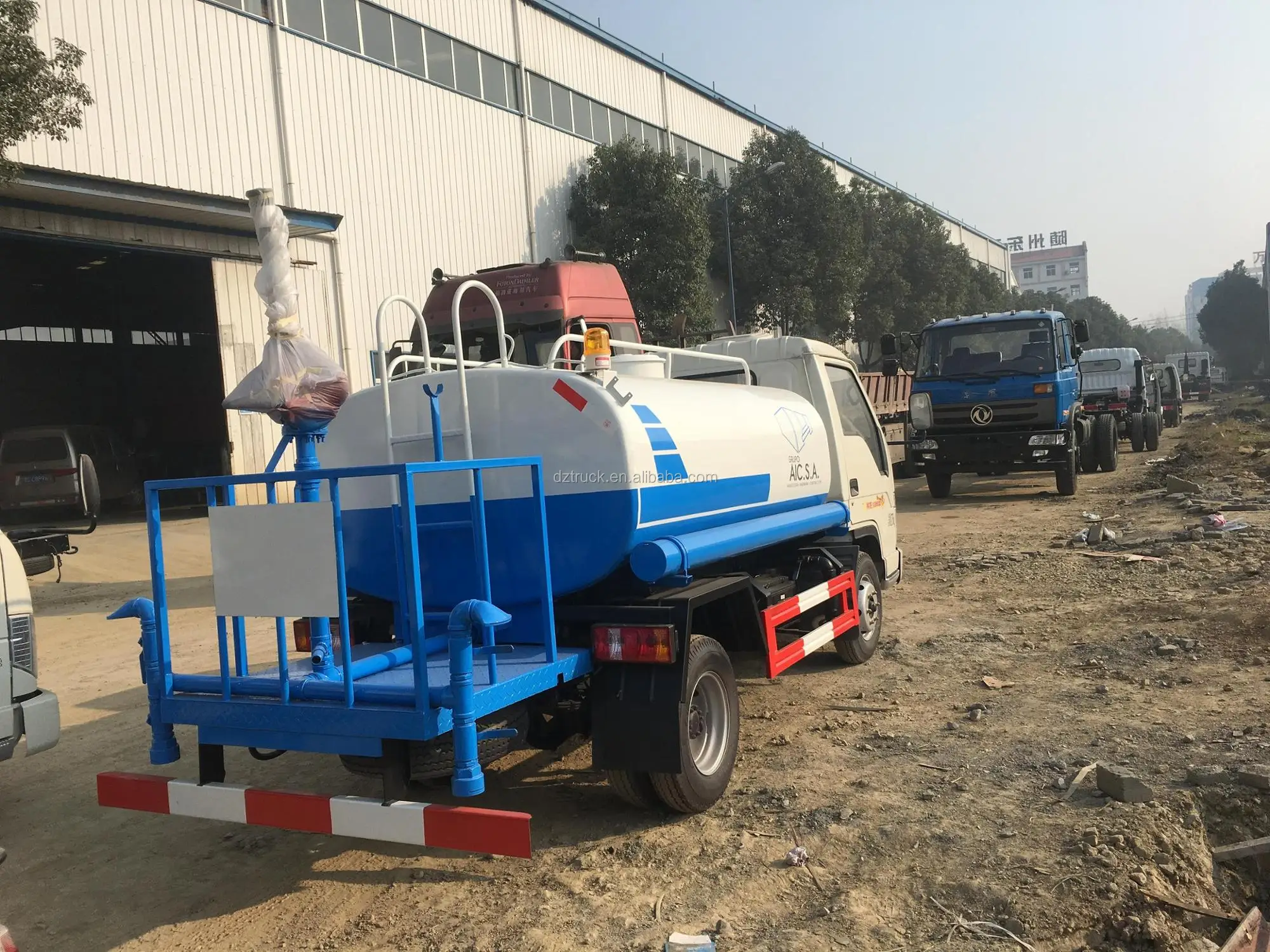

Pictures of Forland Euro II Diesel 2800L to 3000L small water tank truck
Our company specializes in producing Dongfeng series watering truck, JMC series sprinkler truck, JAC series water truck,Qingling series water truck, FAW series water truck,Foton series water truck etc. Welcome customers all over the world to visit our factory!
We can modify the truck on the chassis that customers brought. The garbage truck we produce has the advantages of simple structure, convenient operation, high efficiency, high degree of mechanization and manpower saving.
Kinds of shipping way to provide you best protection of trucks and shipping cost
Q&A
1)Delivery time
Depend on the type of truck and the QTY and the shipping date,usually the truck can be ok on 10-20 working days.
2) Terms of payment
30% T/T deposit of contract amount before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment.
3) After-sales warranty
We provide one year or 25000KM warranty period under your correct driving and using after customers' purchasing and we can supply spare parts of the trucks for the whole life.
If you have any interest and need more information,pls feel free to let me know or give me an inquiry. We will give you better service as soon as possible.
