HOWO light duty 5ton small howo water truck

Supplier: Suizhou Dongzheng Special Automotive Co., Ltd.
Region: Hubei, China
Contact: Mr Denny Wang
Price: $13500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Warranty:	1 Year;	width:	>=15m;
Drive Wheel:	4x2;	After-sales Service Provided:	Overseas service center available;
Supply Ability:	300 Unit/Units per Month;	Packaging Detail:	waxing before delivery,We can ship out trucks using bulk ship ,roro ship or container with high quality and low price .;
Brand Name:	Yandi;	Fuel:	Diesel;
Engine:	Sinotruck Engine Co.,Ltd;	Engine Capacity:	< 4L;
Condition:	New;	Place of Origin:	Hubei China (Mainland);
Emission Standard:	Euro 3;	After-sales Service Provided:	Free spare parts;
Certification:	CCC ISO BV;	Transmission Type:	Manual;
Color:	According to client's request or preference;	vaccum:	>=6m;
rear:	spray;	range:	>=28m;
Gross Vehicle Weight:	16000;	Payment Terms:	L/C,T/T;
Tank Volume:	< 5000L;	Dimensions (L x W x H) (mm):	5980X2080X2250;
Port:	any port in China;	Working platform:	water cannon;
Sprinkling Area (m):	12 - 16m;

HOWO light duty 5ton small howo water truck

we manufacture kinds type water tank truck with different chassises, any enquiry of water tank truck,please contact us.

Product Description

Main specification
Product model and name		SZD5140GPS3 HOWO water truck
Gross weight(Kg)		16000	Drive type			4X2,LHD
Curb weight(Kg)		45300	Overall dimension(mm)			5980X2050X2650
Approach/departure angle(°)		20/18	Cab seats			2
Axle No.		4	Front/rear hang(mm)			1450/1680
Axle load(Kg)		2500/4680	Wheelbase(mm)			3360
Max speed(Km/h)		102
Chassis specification
Chassis model		ZZ1147	Manufacturer			Sino truck Motor Co., Ltd
Brand name		Sino truck	Dimension(mm)			5625×2096×2130
Tire specification		7.00-16	Tire No.			6+1(One spare tire)
Steel spring number		4/4/-	Front track base(mm)			1350
Fuel type		Diesel	Rear track base(mm)			1650
Emission standard		Euro III	Transmission			6 forward gear
Cab		One and half row,2 person allowed with power steering and A/C
Engine model		Engine manufacturer			Displacement(ml)		Power(Kw)
CY4102BZLQ		DongFeng ChaoYang Engine			2568		88(120HP)
Tank body
Tank capacity(m³)	4-5			Tank material			QB235 Carbon steel
Water pump model	80QZF-60/90N (Weilong pump)			Water pump flow(m³/h)			60
Watering width(M)	≥14			Water cannon range (M)			≥28
Main feature
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. 6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.

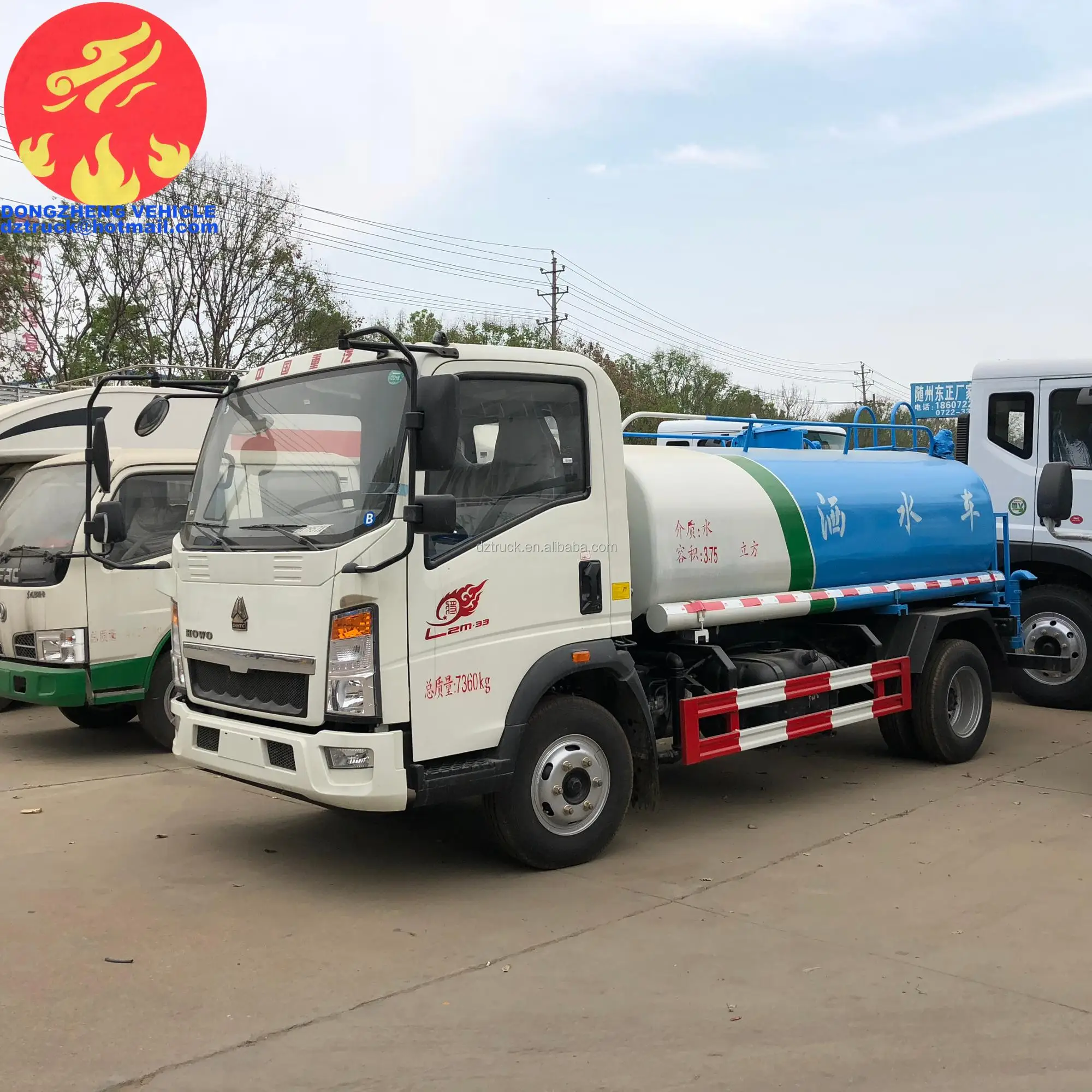

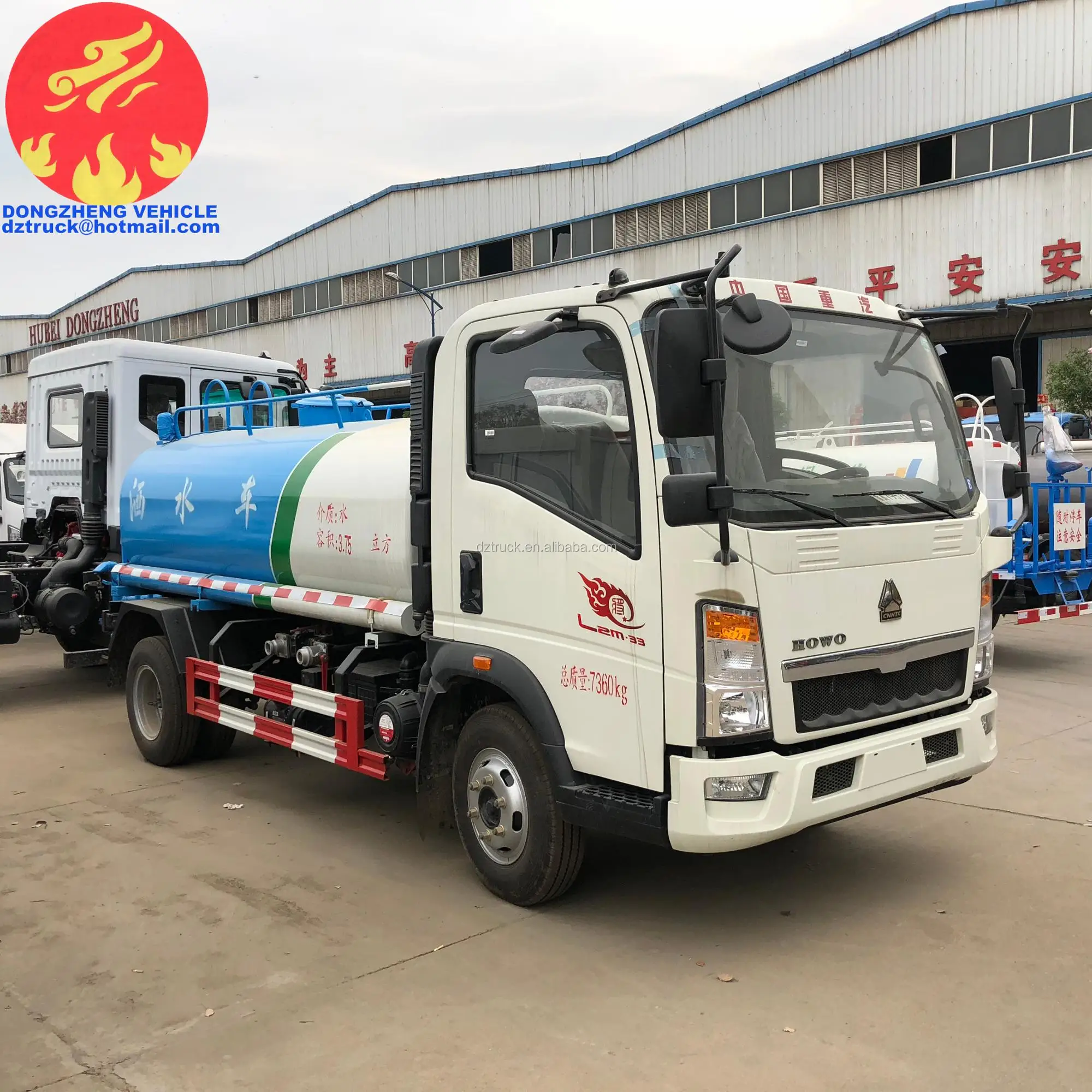

5ton small howo water truck Photos

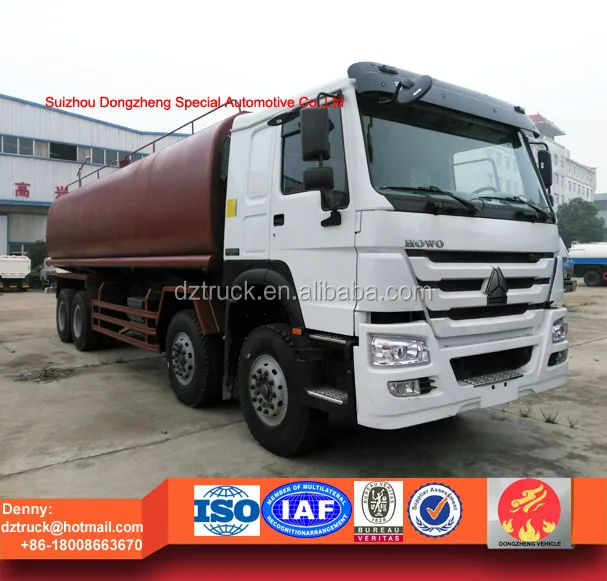

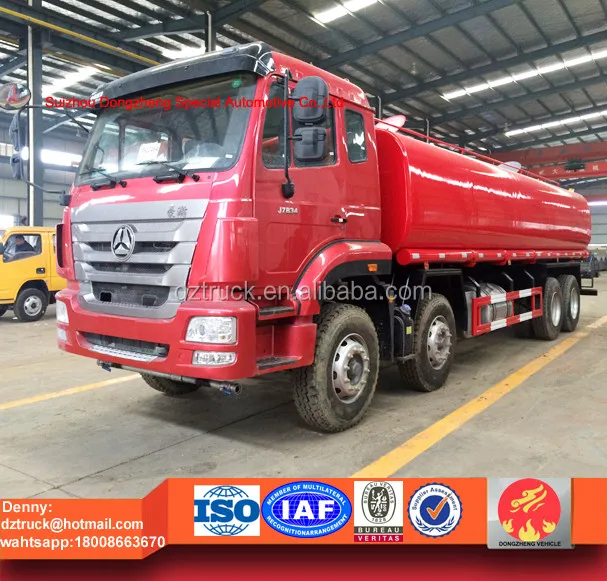

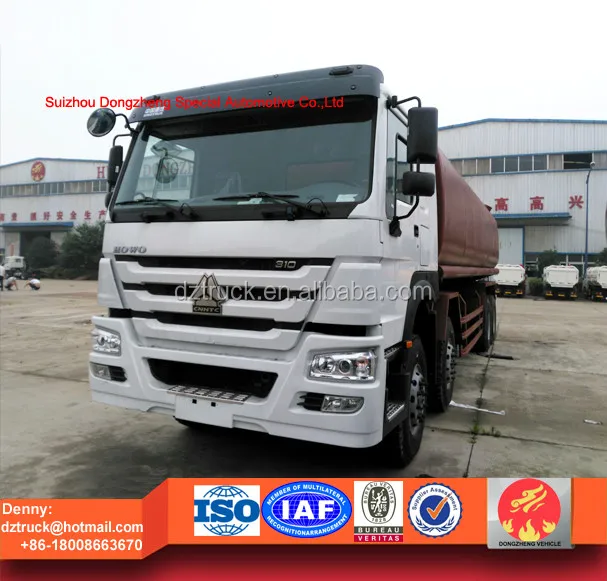

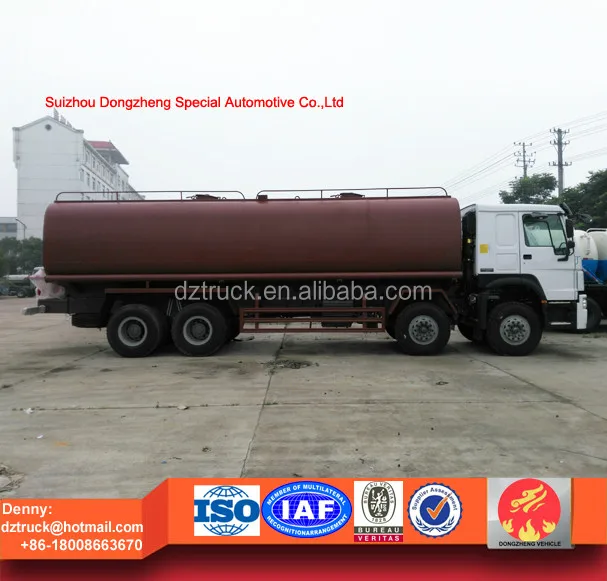

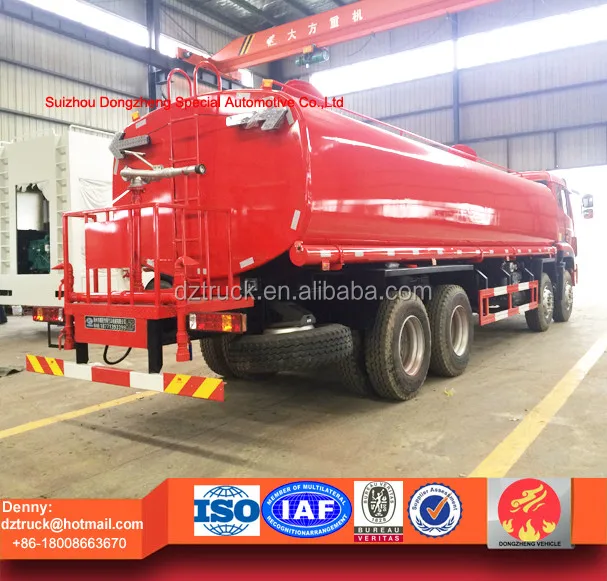

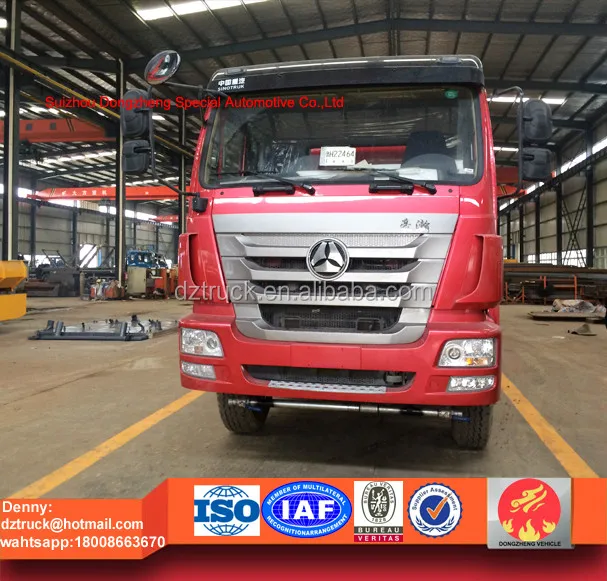

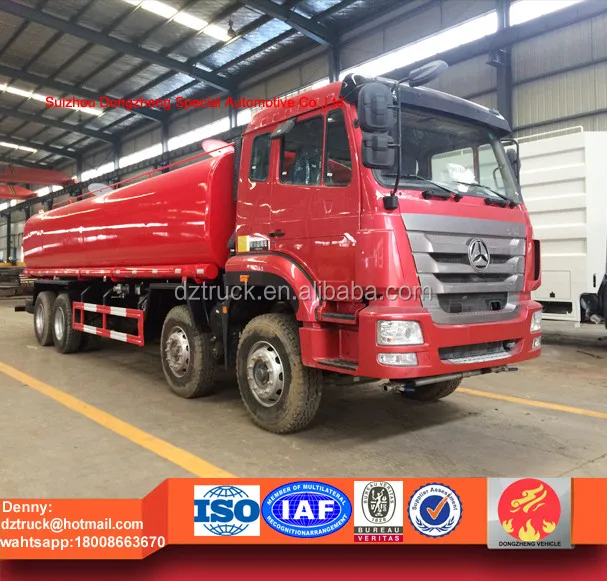

Other model of HOWO water truck

water tanker trucks products introduction:

Water tanker trucks have front washing and rear sprinking,spurte aside ,working platform after the tank .installing high pressure cannon which can be omni-directional revolved to watering in the platform ,the spurting water can be adjusted to concurrent shape ,heavy rain shape ,light rain shape ,fine rain shape.
This watering vehicle outfits the security guard rail ,provides Hangzhou weilong special-purpose sprinkle water pump which has been appraised " the first pump brand "in China.The pumpcan suck and drain water .Installed with mesh and outfit fire connection ,which can inlet water through hydrant.

Warm welcome to you:

Suizhou Dongzheng Special Vehicle Co.,LTD is located in Suizhou,a city well known as the hometown of Emperor Yan, the legandary god of farming in ancient China,and as well a city famous for automobile industry ,The company is appointed to be a national special vehicle refitting manufacturer.

Our main products are oil tank truck,water tanker trucks ,fecal sucking truck ,fire-fighting truck ,garbage truck ,truck with loading crane,bulk cement powder transport truck ,van transport truck ,dump truck,semi-trailer series,ect.The company is trying to meet domestic and foregn customers' requirements with innivative design , reliable product quality and high service.

Our advantages:

1.We always insist principles of "quality first;honesty first ;service first "to return customers and society.

2.Having obtained impeccable certificates and system to do import and export business ,such as"the record refistration form for foreign trade operator""CCC certificate""Consignor declaration registration certificate of import and export goods",etc.

3.Belong to direct manufacture sale and can control quality excellently .

4.Keeping high products quality with low price .

5.Emission standard :Europe 3/4

6.Can manufacturing all types of refitted vehicles according to customers' requirments.

Parts of our watering cart as following:

We can modify the truck on the chassis that customers brought. The water truck we produce has the advantages of simple structure, convenient operation, high efficiency, high degree of mechanization and manpower saving.

Q&A

1)Delivery time
Depend on the type of truck and the QTY and the shipping date,usually the truck can be ok on 10-20 working days.
2) Terms of payment
30% T/T deposit of contract amount before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment.
3) After-sales warranty

We provide one year or 25000KM warranty period under your correct driving and using after customers' purchasing and we can supply spare parts of the trucks for the whole life.

If you have any interest and need more information,pls feel free to let me know or give me an inquiry. We will give you better service as soon as possible.

Contact information:

Email:dztruck(@)hotmail.com

Cell:86-18008663670

Email:wangpeng868(@)hotmail.com

Cell:86-18008665092

Add:Xingguang Industrial Park,Zengdu District,Suizhou City,Hubei Province,China.

Welcome customers from all over the world to vist our factory.Thank you!
