DPF cleaner diesel particulate filter cleaning machine

Product details
Machine Type:Industrial Ultrasonic Cleaner;Warranty:1 YEAR;
Power:1200;After-sales Service Provided:Engineers available to service machinery overseas,Online support;
Brand Name:KER;Loading Trolley:Available;
Filtration System:Available;Machinery Test Report:Provided;
Drain Tap:YES;Condition:New;
Warranty of core components:1 YEAR;Data Printing Function:YES;
Cleaning Type:HIGH PRESSURE CLEANER;Special Fixture:Available;
Core Components:PLC;After Warranty Service:Online support;
Temprature Control:YES;Local Service Location:None;
Video outgoing-inspection:Provided;Place of Origin:China;
Package Preview:;Use:Container / Bottle Cleaning;
Cleaning Process:Hot Water Cleaning;Control System:PLC Control with Touch Screen;
Dimension(L*W*H):2100x1200x2100;Marketing Type:Ordinary Product;
Material:SUS304/SUS316,Glass / Ceramic;Applicable Industries:Machinery Repair Shops,Food & Beverage Shops;
Time Control:YES;Showroom Location:None;
Packaging Detail:Veneer Case;Fuel:Electric;
Certification:ce;

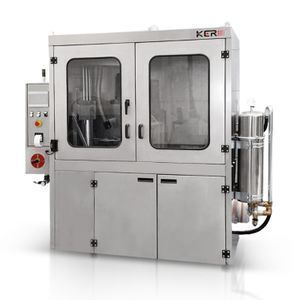

DPF cleaner diesel particulate filter cleaning machine

Product Description

 Flash-JET Particulate Filter Cleaning  Machine is a machine that cleans all kind of air filters of industrial vehicles (buses, trucks, construction equipment, air conditioners and dust collectors). Learning from advanced experience in the international and China market, it is the professional machine which uses the force of the water and air to solve in a definitive way all the filters cleaning problems.



External Dimensions 2270 x 1000 x 2200 MM
Inside Washing Capacity 1400 x 750 x 1150 MM
Floor Load Capacity KG 200
Tank Capacity 200L
Power Supply 380V, 50Hz, three-phase
Power Consumption 19.97 KW
Air Compressor (not supply) Pressure 0.4Mpa ~ 0.8Mpa
Consumption 0.5m3/min
Packaging Size L2320 x W1050 x H2280mm
Weight 540 KG
Gross Weight 880 KG
Configuration Standard:
Heating system, oil & mist cleaner, drying system, water recirculation system, water-air mixing device, liquid level sensor, illuminating system, intelligent fixture, PLC control system, printer.
Optional:
Loading & unloading auxiliary device, air compressor, cleaning agent.

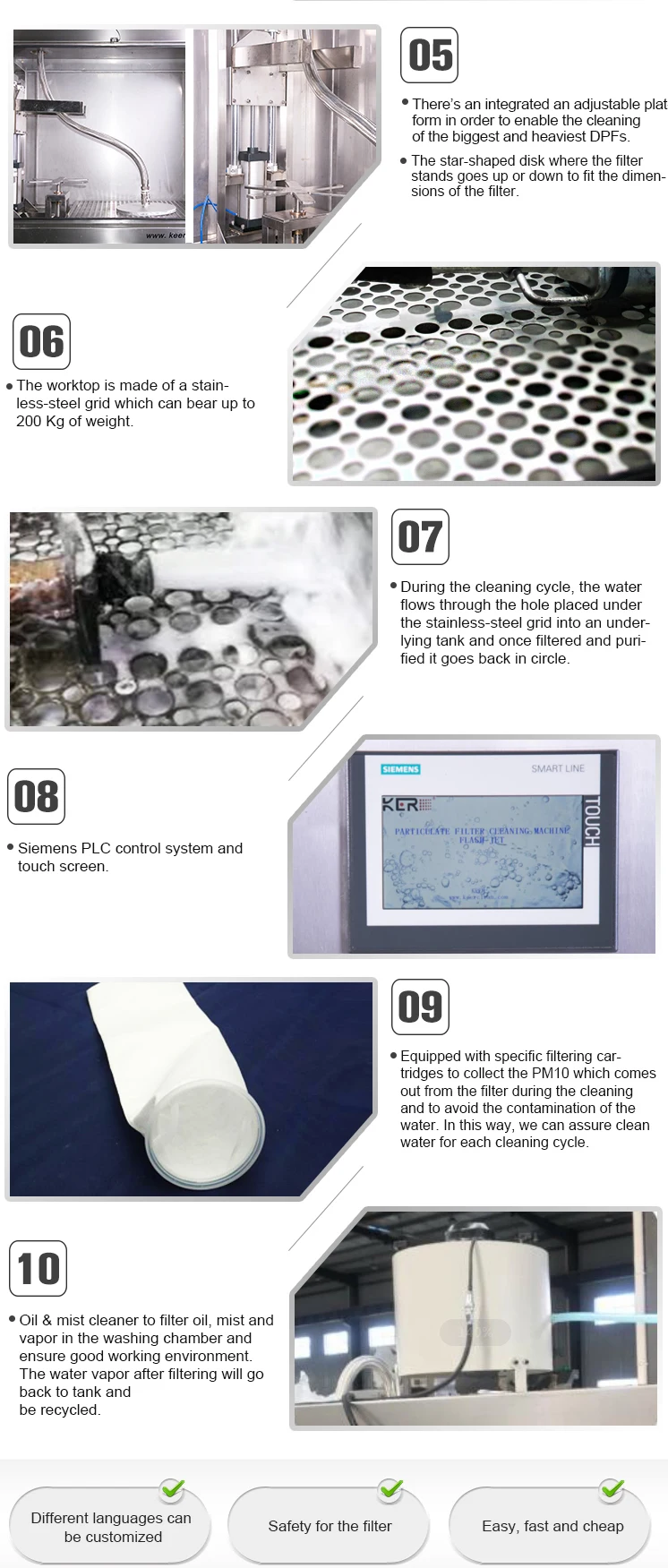

Features







Before & After

Product Application

It can be used for different sized DPF, SCR, FAP an air filters of different industrial vehicles (buses, trucks, construction equipment, air conditioners and dust collectors) to completely remove PM10, cerium and oil deposits without damaging the filter.

Related Products



Package & Warranty

Company Information



First established in 2009, Shandong KEER Group has developed into a group with diversified

industries after development for a decade, owning subsidiary companies like KEER Ultrasonic Equipment Co., Ltd., KEER Automatic Equipment Co., Ltd. and KEER International Co., Ltd.


Boasting the development mission of “making industrial cleaning smarter” since its establishment, KEER brand has been continuously and successfully overcoming numerous technological problems in industrial cleaning filed, successfully providing personalized, automatic, intelligent and

environment-friendly  industrial cleaning solutions for many domestic and international

well-known customers. Moreover, it has won the deep trust and support from many international

famous customers, including those from Germany, America, Australia, New Zealand, Poland, Czech Republic, Russia, South Africa, United Arab Emirates, Chile, Montenegro, Serbia, Kazakhstan and Uzbekistan, etc.

Will Flash-JET cleaner machine damage the DPF/SCR/FAP?
It won’t damage the performances of DPF/SCR/FAP. The cleaning technology has been authenticated in the market for many years. It has been proved by the facts that this cleaning method is totally safe for the filter and it doesn’t damage the noble metals of the DPF.

How long is the cleaning time?
From 30 minutes (car DPF-FAP) to 120 minutes (truck DPF)

Do I need cleaning agent to support?
Yes, we can provide professional cleaning agent to support cleaning, and totally environment-friendly type.
