Model: | ST-203R; | Place of Origin: | Shanghai China; |
Payment Terms: | T/T,Credit Card; | Brand Name: | Senova; |
Speed Range: | 50-300rpm; | Supply Ability: | 1000 Unit/Units per Year; |
Type: | Orbital shaking incubator; | Product: | Refrigerated Orbital Shaking Incubating Shaker Incubator; |
Certificate: | CE; | Applications: | Laboratory and pharmaceutical industry; |
Platform Size: | 456x450mm; | Power Supply: | AC 220V/110V 50Hz/60Hz; |
Packaging Detail: | Plywood case.; | Port: | Shanghai, China; |
Model Number: | ST-203R; | Package Preview: | ; |
Temperature: | 4℃-60℃; | Classification: | Laboratory Thermostatic Devices; |
Chamber Size: | 560x500x555mm; |
Eearly-Bird Discount Offered!
Browse product details below and try your luck to win the opportunity for early-bird price. Only 10 units released today!

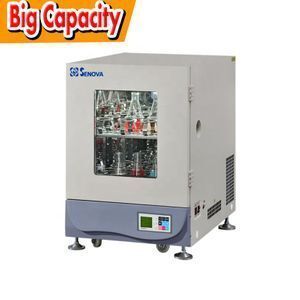

Stackable Refrigerated Laboratory Orbital Shaking Incubator
LCD Display, Linear-Orbital Dual Shaking Modes
Model: ST-203R
Applications
Refrigerated Heating Lab Thermostat Shaker Incubator ST-203R (heating and refrigeration) is widely used in germ culture, ferment, hybridization, and research of biochemical reaction, enzyme and cellular tissue and all those require high temperature and oscillation frequency. It has a wide and important range of application in research of medicine, biology, numerator, pharmacy, food and environmental protection.
Main Features
Refrigerated Heating Lab Thermostat Shaker Incubator
Powder-coated steel construction with LCD display of set and working parameters.
Stainless steel chamber with illumination. Large toughened glass window to view temperature, speed and time.
Constant temperature and refrigeration are optional
P.I.D environmental scanning micro-processing controller with acoustic & visual alarm
8-segment programs allows settings of different temperature/speed and time for each program
Single-shaft drive technology, quite and durable
Speed range extensible to 30-300rpm.
High-precision frequency control system with accuracy ±1rpm
CFC-free refrigeration system
Independent electricity leakage and over load protection without disrupting other equipments
High/low limit over temperature acoustic & visual alarm, high/low limit over speed alarm, stop-running protection for door opening, electric current leakage and over load protection. Motor over-heat protection.
Automatic power cut-off in case of temperature out of control or abnormal over-temperature
Repeat, increment (step) and 8-segment curve programming setting
Speed saving, power-failure recovery, parameter memory, temperature/speed calibration, time display, and room/working temperature display.
Slow-start circuit to prevent sudden start and liquid splash so as to ensure reagent safety
120W AC inductive long-life brushless motor, with wide speed regulation, constant torque, constant speed of rotation, and maintenance-free
Safety protection of automatic stop of shaking when door is opened
Standard accessory:
Fluorescent lamp UV lamp, shaking tray (1PC), wire shelf (1PC) flask clamp (refer to Configuration)
Specifications
Product | Stackable Refrigerated Heating Lab Thermostat Shaker Incubator |
Model | ST-203R |
Control | P.I.D.(Environmental Scanning Microprocessor) |
Display | LCD |
Oscillation | Revolution/Reciprocal(Switchable) |
Working Conditions | Temperature25℃, RH20%-90% |
Temperature Range | 4℃-60℃ |
Temp. Accuracy | ±0.1℃ |
Temp. Uniformity | ±1℃ |
Speed | 50-300±1 rpm |
Shaking Ranage | ∅25 |
Refrigerant | R134a |
Cooler Power | 200W |
Heat Power | 800W |
Timing Range | 0-999.59hr/Continuous |
Shelf Size(mm) | 456x450 |
Flask Capacity | 5000mlx4,2000mlx5,1000mlx9, 500mlx16,or,250mlx20 |
Shelf Qty | 2PCS(Flask tray:1PC,Wire Shelf:1PC) |
Weight | 150Kg |
Chamber Size | 560x500x555(WxDxH,mm) |
Dimensions (WxDxH,mm) | 650x820x1620 (90mm feet not included) |
Power | 830W |
Power Supply | AC 200-240V/50-60Hz. Optional: AC110V/60Hz |
Chamber Material | Polished stainless steel |
Housing Material | Steel |
Click Here to Win a Shking Incubator at Eearly-Bird Discount.
Only 10 units released today!
With R&D and production base in Shanghai as well as over 15 years of experience in international market for constant temperature laboratory equipment (thermal chamber), Senova is the international sales center to serve our global distributors with both reliable products complying with international standard and after-sales service.
1. Are you a factory or trading company ?
A : We are a factory with an international sales company specialized in support for global distributors. Please find our third-party factory audit (verfification) report shown above.
2 .Where is your company location ? How can we visit there ?
A :Our factory is in Shanghai, the most booming city in China , 20Km away from Shanghai Pudong International Airport. Welcome to visit us !
3. What certification do you have?
A : ISO 9001 and CE certificate.
After-sales service
• Technical support for any enquiry for troubleshooting
• Quick supply of spare parts ensured
• Service training provided if necessary
Warranty and support
• 14-month standard warranty
• Prompt technical support and fast supply of spare parts from stock
• Maintaining stock for fast delivery of the goods for regular orders
• Opportunities for exclusive distributorship
• Enquiry forwarding
• New model and product launch
• Website download service of updated product information on brochures, price, etc.
• Special price support for big project
• Exclusive tender authorization offered upon request
• Provision of promotion material like product images and minimum brochures
• Demo units at special price
• Award discount policy
• Sales and service training
• Training material
• Electronic user & service manual
• Exhibitions cooperation
