Certification: | CCC, CE, RoHS, UL; | Place of Origin: | Zhejiang China; |
Packaging Detail: | Cnt; | Payment Terms: | T/T; |
Protect Feature: | IP40; | Port: | NINGBO/SHANGHAI; |
Supply Ability: | 30,000pcs/month; | Speed: | 1800-2800rpm; |
Power: | DC,AC; | Function: | Control; |
Phase: | Single-phase,3-phase; | Structure: | Asynchronous Motor; |
Usage: | sweeper,cleaning machine; | Brand Name: | ZDMOTOR; |

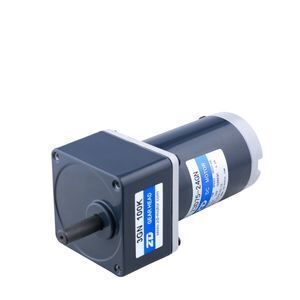

swivel sweeper 12v geared motor from china
MOTOR PERFORMANCE PARAMETERS
Mode | Voltage
V | Power
W | No-load Parameters | Load Parameters | Motor Weight Kg | |||
Speed r/min | Current A | Speed r/min | Torque mN.m | Current A | ||||
ZDSJ12150-21S | 12 | 150 | 2200 | Max3.0 | 2100 | 0.68 | 16.0 | 4.5 |
ZDSJ12150-25S | 12 | 150 | 2800 | Max3.0 | 2500 | 0.57 | 16.0 | 4.5 |
ZDSJ12250-25S | 12 | 250 | 2800 | Max3.0 | 2500 | 0.96 | 26.0 | 4.5 |
ZDSJ24300-21S | 24 | 300 | 2400 | Max2.5 | 2100 | 1.36 | 16.0 | 4.5 |
ZDSJ24380-20S | 24 | 380 | 2400 | Max2.5 | 2000 | 1.81 | 20.0 | 4.5 |
ZDSJ24400-20S | 24 | 400 | 2400 | Max2.5 | 2000 | 1.91 | 21.0 | 4.5 |
ZDSJ24500-15S | 24 | 450 | 2000 | Max2.5 | 1500 | 3.58 | 23.5 | 6.0 |
ZDSJ24450-20S | 24 | 550 | 2400 | Max2.5 | 2000 | 2.63 | 29.0 | 6.0 |
ZDSJ36350-18S | 36 | 350 | 2200 | Max2.0 | 1800 | 1.87 | 12.5 | 5.0 |
ZDSJ36500-20S | 36 | 500 | 2400 | Max2.0 | 2000 | 2.39 | 17.5 | 5.0 |
MAIN DATA
No-load noise of motor:<65dB,L=100cm
Voltage enduration:AC660V,1S
Leaking current:<10mA
Insulation resistance:>500MΩ 500V
Life:1000H
Gear ratio:7&10
Features:
The material of rotor is 40Cr,quench to HRC50-55 after rough rolling,two times hard cutting,the gear precision can arrive ISO class6-7.
The material of shaft gear is 20CrMnTi,quench to HRC58-61 after rough rolling ,two times hard cutting,the gear precision can arrive ISO class6-7.
The material of plate gear is 40Cr,quench to HRC48-51 after rough rolling,grind,the precision can arrive ISO class6-7.
