boom lift for sale aerial work platform articulating boom lift

Supplier: Evangel Industrial (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Daisy Zhu
Price: $58000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions (L x W x H) (mm):	1036024902780MM;	Packaging Detail:	nude package;
Selling Units:	Single item;	Transmission Type:	Automatic;
Fuel Type:	Diesel;	Brand Name:	ZOOMLION;
Place of Origin:	Hunan China;	Condition:	New;
Single gross weight:	12.0 KG;	Single package size:	10X2X3 cm;
Product name:	Aerial Work Platform;

ZT20J

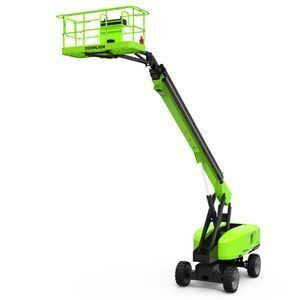

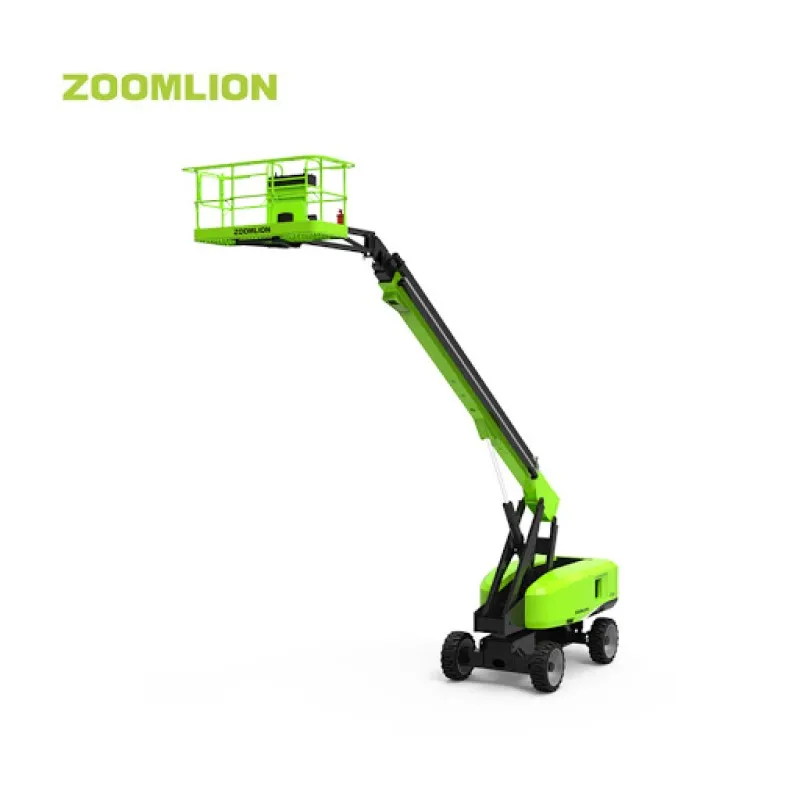

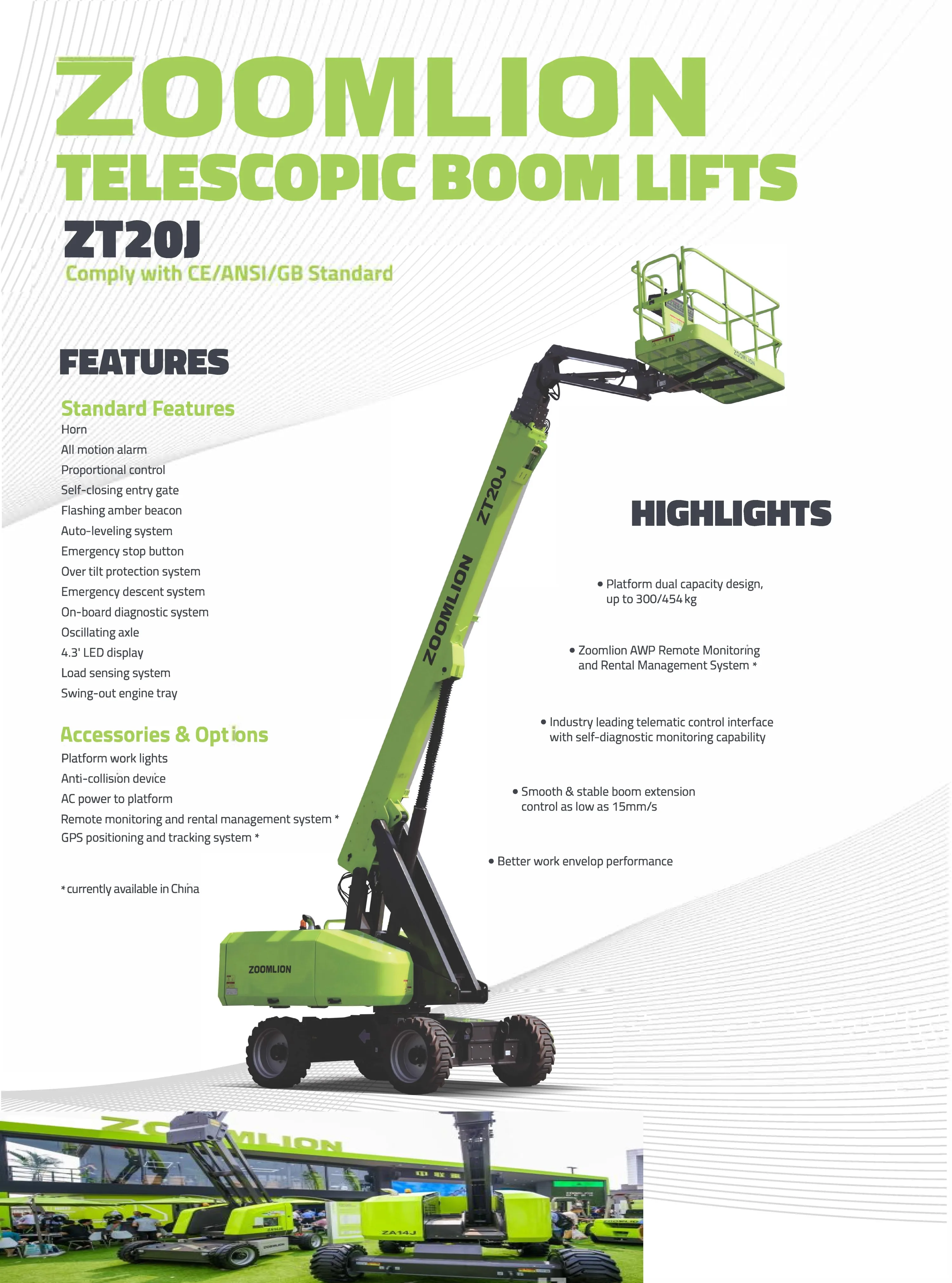

Zoomlion Telescopic Boom Lift 22m Aerial Work Platform Truck ZT20J

Zoomlion telescopic boom lifts are engineered to enhance working efficiency and offer greater horizontal outreach than any other type of aerial work platform. These units feature stable extension and great gradeability in rough terrain, offering a dual lift capacity of 300 kg unrestricted and 454 kg restricted. It is ideal for outdoor construction and industrial applications.

ZT20J features modularized design, light weight, commonalization and intelligence and provides a large lift capacity and high reliability. Fourwheel drive and oscillating axle system greatly improves offroad performance. With a gradeability of 45%, these machines are perfect for work in construction and industrial applications with limited access. Lubricationfree boom system minimizes equipment holding costs. Swingout engine tray makes regular maintenance more convenient. Remote Monitoring and Rental Management System realizes onboard diagnosis, POST (power on self test), and maintenance alert for efficient fleet management.

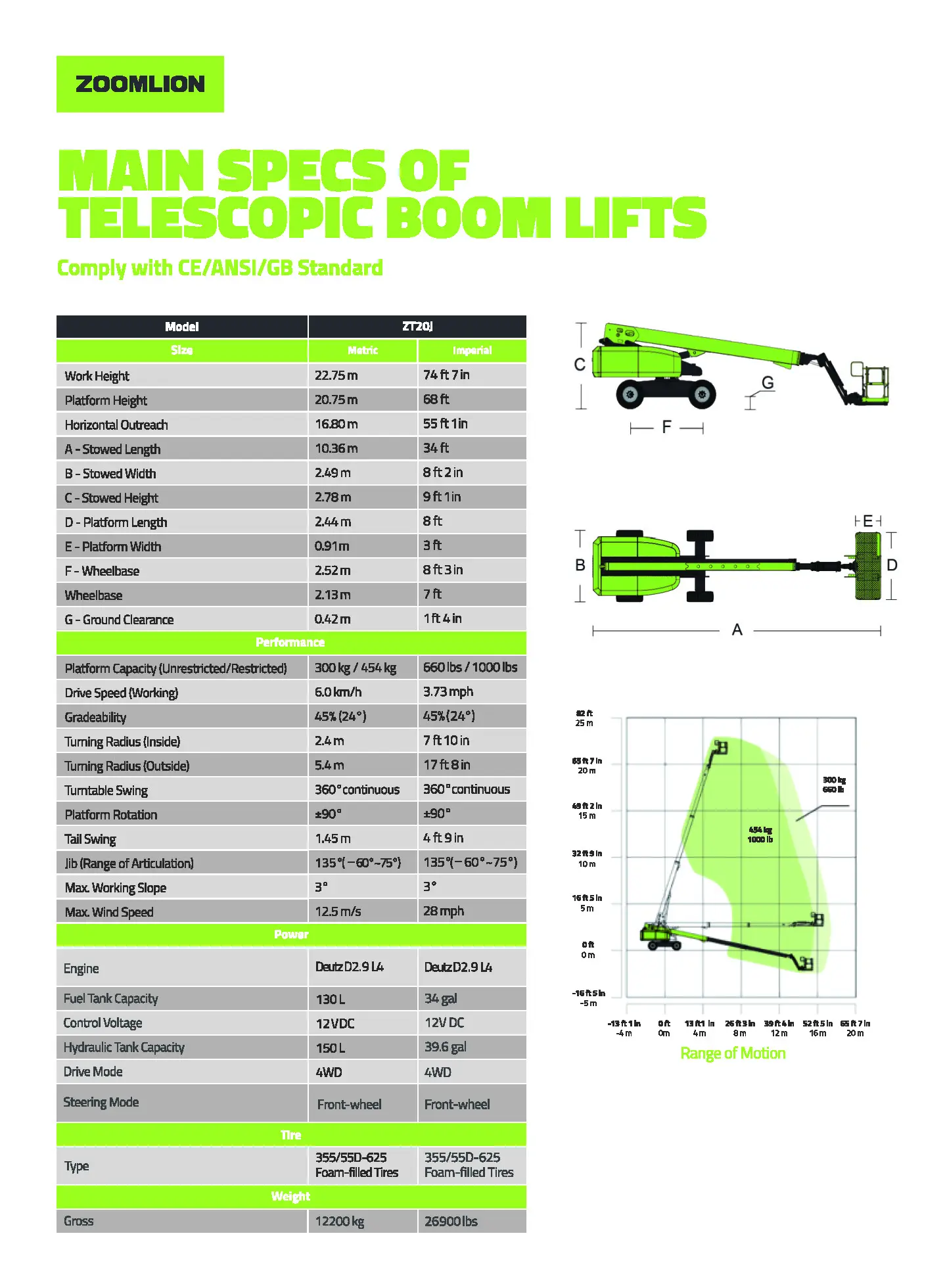

Main Specs of Telescopic Boom Lifts
Comply with CE/ANSI/g b Standard
Model	ZT34J	ZT26J	ZT20J
Size
Work Height	36m	28.20m	22.75m
Platform Height	34m	26.20m	20.75m
Horizontal Outreach	23.50m	22.71m	16.80m
A Stowed Length	13.50m	12.5m	10.36m
B Stowed Width	2.49m	2.49m	2.49m
C Stowed Height	3m	2.80m	2.78m
D Platform Length	2.44m	2.44m	2.44m
E Platform Width	0.91m	0.91m	0.91m
F Wheelbase	3.80m	3.05m	2.52m
Wheelbase	2.05/3.41m	2.11m	2.13m
G Ground Clearance	0.41m	0.40m	0.42m
Performance
Platform Capacity (Unrestricted/Restricted)	300/454kg	300kg/454kg	300kg/454kg
Drive Speed (Working)	5.5km/h	5.5km/h	6.0km/h
Gradeability	45% (24°)	45% (24°)	45% (24°)
Turning Radius (Inside)	2.80m	3.66m	2.4m
Turning Radius (Outside)	5.70m	6.86m	5.4m
Turntable Swing	360°continuous	360°continuous	360°continuous
Platform Rotation	±90°	±90°	±90°
Tail Swing	1.88m	1.60m	1.45m
Jib (Range of Articulation)	130°(55°~75°)	130°(55°~75°)	135°(60°~75°)
Max. Working Slope	3°	3°	3°
Max. Wind Speed	12.5m/s	12.5m/s	12.5m/s
Power
Engine	Kohler KDI2504TCR	Deutz TD2.9 L4/cum-mins QSF2.8	Deutz D447 L4/Perkins 404D22T
Fuel Tank Capacity	200L	150L	130L
Control Voltage	12V d c	12V d c	12V d c
Hydraulic Tank Capacity	250L	150L	150L
Drive Mode	4WD	4WD	4WD
Steering Mode	Frontwheel/Rearwheel/Crab	Frontwheel	Frontwheel
Tire
Type	IN445/50D710	15625 Foamfilled Tires	355/55D625 Foamfilled Tires
Type	Foamfilled Tires	15625 Foamfilled Tires	355/55D625 Foamfilled Tires
Weight
Gross	19200kg	18900kg	12200kg
Highlights
Better work envelop performance, 10% larger than competitor
Zoomlion AWM Remote Monitoring and Rental Management System
Smart telematic control interface with selfdiagnostic monitoring capability
Platform dual capacity design, up to 300/454 kg
Smooth & stable boom extension technique controls the minimum stable extending speed at 0.015 m/s
Features
Standard Features
All motion alarm		Horn
Selfclosing entry gate		Proportional control
GPS positioning and tracking system		Flashing amber beacon
Autoleveling system		Remote monitoring and rental management system
