Condition: | New; | Emission Standard: | Euro 4; |
Type: | Telescopic arm hydraulic lift; | Dimensions (L x W x H) (mm): | 7360x2610x3850(mm); |
Payment Terms: | L/C,T/T; | Working Raduim: | 14.5 meters; |
Supply Ability: | 100 Unit/Units per Month; | Others: | Air brake, power window, central lock, A/C, etc; |
Outrigger: | 4 pcs, hydraulic control; | Engine: | 190HP Euro 4 engine; |
Brand Name: | CLW brand, Qingling chassis; | Place of Origin: | Hubei China; |
Transmission Type: | manual; | Port: | Any port in China; |
Max working height: | 20 meters; | Platform load: | 200kg; |
Material of boom: | High strength steel; | Tire Model: | 6+1, 9.00-20; |
Fuel Type: | Diesel; | Control: | Electronic control, wireless control box; |
Packaging Detail: | Packaging: nude packaged Transport type: Land transport, train transport, ship transport according to detail situation. Ship type: ro/ro ship, bulk ship, container ship(20GP/40GP/40HQ/40OT,etc) Marine shipping time: 15 days~45 days according to different shiping rounte/route. *Remark: for details about packaging and shipping, please confirm before placing an order.; |

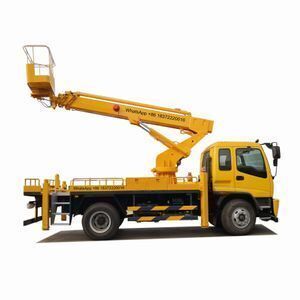

Japan I.SU.ZU FTR 20m Aerial Work Platform Truck
—— I.S.U.Z.U FTR chassis,190HP Euro 4 engine,20m telescopic arm
Aerial bucket truck, also called high altitude operation truck, is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
Parameters of Japan Aerial Work Platform Trcuk:
Product name | Aerial work platform truck | Options |
Producer | ChengLi Special Automobile Co.,Ltd | |
Brand | CLW | |
Max Working Height | 20 meters | |
Overall dimention | 7400x2610x3850(mm) | |
Boom Type | Telescopic boom | |
Section of Boom | 5-section | 12~32m |
Working Raduim | 14.5 meters | |
Platform bucket load | max 200kg, 1000x680x1200mm | |
Chassis Brand | I.SU.ZU FTR | Dongfeng, Forland,Sinotruk,etc |
Drive cab | Single cab, LHD, with a sleeper | |
Engine | 190hp Euro 4 diesel engine | |
Brake | Air brake | |
Steering | Power steering | |
Transmission | MT, 6 forward gears and 1 rear gear | |
Others | Power window, central lock, A/C | |
Wheelbase | 3900mm | |
Tire | 9.00-20 radial tire, 6+1 | |
Max speed | 90km/h | |
Main Safety System |
Emergency pump | Included, When the engine and main pump fail, workers can be sent back to the ground |
Engine on/off on basket | Included |
Automatic interlock device | Basket and gound control lock, the two can’t operation at same time |
Level detection function | Real-time detection of whether the vehicle is horizontal |
Emergency stop device | For emergency stop operation |
Night safety warning device | There are engineering strobes and lights on the vehicle |
Vehicle level status tester | Can detect the horizontal and vertical tilt of the vehicle |

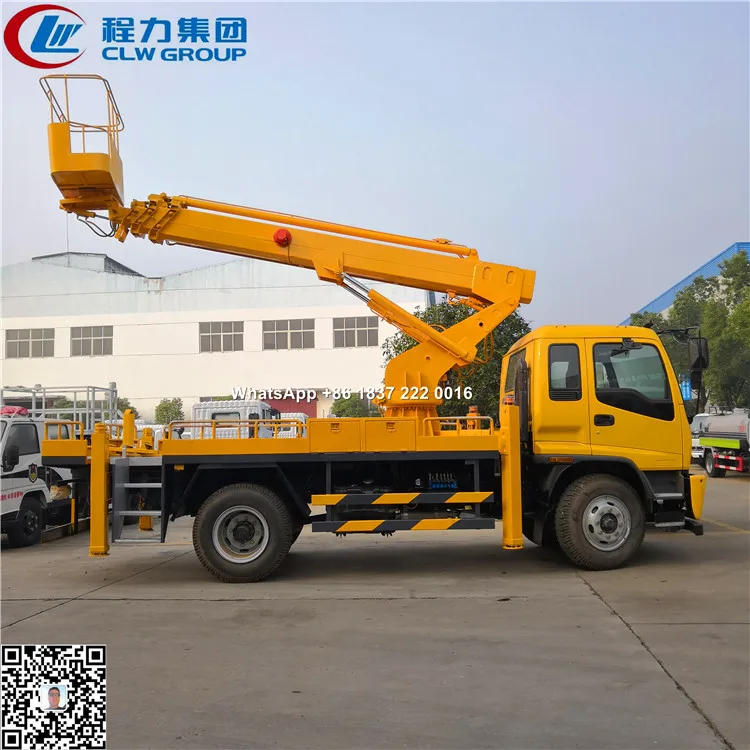

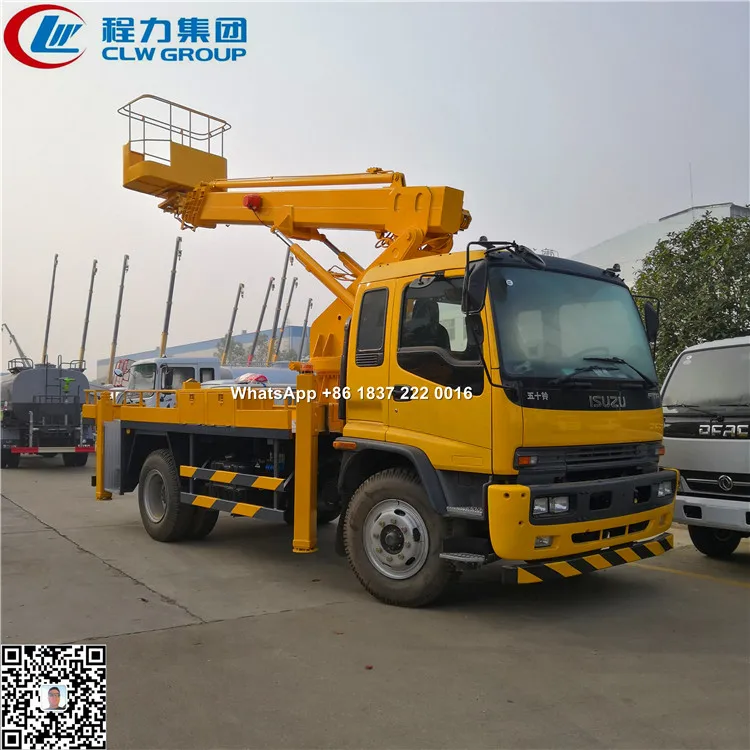

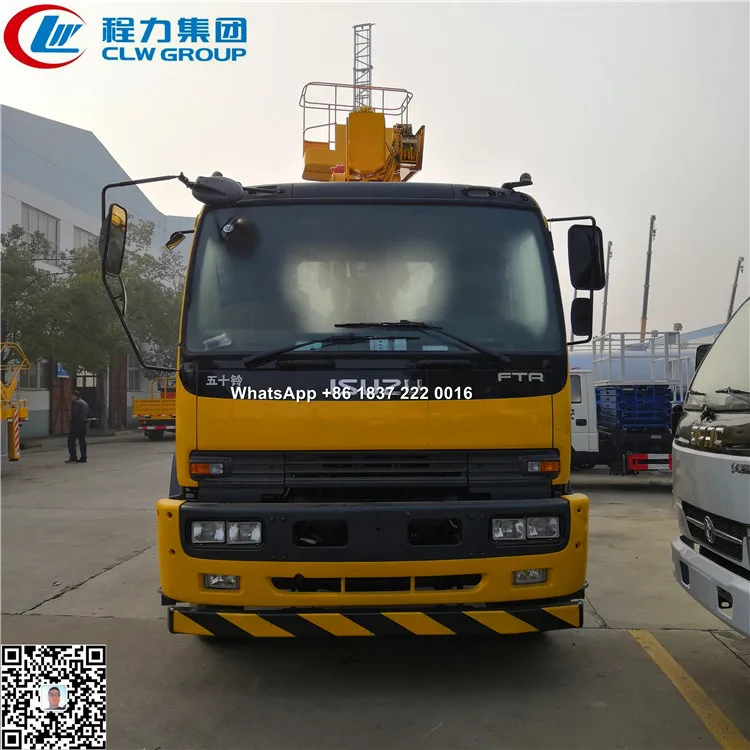

Detail Images of Japan Aerial Work Platform Truck:
al platform truck, usages of aerial platform truck is widely, 28m 26m 16m 12m 14m high altitude operation truck, 12 14 16 18 20 22 meters aerial working platform truck with 200kg capacity.
Chengli Special Automobile Co.,Ltd
ChengLi Group, located in the Southern Suburb of Zengdu District, Suizhou City, is a diversified group company integrating automobile technology research and development, automobile manufacturing, automobile modification, auto parts, finance, education and home investment.
CLW Group "CHENGLIWEI" brand special trucks are the best sells in whole nation, and exported to South America, the Middle East, Central Asia, Southeast Asia, Africa, more than 30 countries and regions.
CLW Group "CHENGLIWEI" brand products occupy an important share in the domestic and international market. The leading products include: all kinds of water trucks, garbage trucks, suction sewage trucks, road sweeper trucks, fuel tank trucks, chemical trucks, wrecker trucks, aerial work trucks, fire trucks, truck mounted crane, refrigerated trucks, van trucks,LPG(pressure vessel), highway maintenance trucks, flatbed transport trucks, bulk grain trucks, stage trucks, LED advertising trucks, mobile sales truck, heavy duty truck mounted crane, concrete pump trucks, drug transport trucks, new energy trucks, and other series of more than 800 varieties.
Factory Images:
We have passed certifications of ISO9001-2008 Quality Management, ISO 14001 Environmental Management, OHSAS18001 Occupational Health And Safety Management System Certification, 3C Mandatory Certification, GJB9001B-2009 National Military Standard Certification and Confidentiality Certification (national level 3), the Bational Weapons and Equipment Production License, Energy-saving Environmental Certification, Automotive Exemption Certification, the US Mechanical Rngineer Asme (ASME) Certification, the EU Agreement ADR Certification. We have obtained production license qualification for special trucks including : A2, C2, C3 pressure vessels, truck mounted crane, crane trucks, fire trucks, buses, new energy vehicles production and other qualifications.
Certificates:
Packaging: nude packaged, waxed
Transport type: Land transport, train transport, ship transport according to detail situation.
Ship type: ro/ro ship, bulk ship, container ship(20GP/40GP/40HQ/40OT,etc)
Marine shipping time: 7 days~45 days according to distance.
*Remark: for details about packaging and shipping, please confirm before placing an order.
1. Excellent services during your whole purchasing process.
2. 24 hours on line for your urgent demand.
3. Positive response to your need and solutions to your problems.
4. Engineers available to service machinery overseas.
1. What is the term of delivery?
Answer: EXW, FOB, CIF, DPA.
2. What is the payment term?
Answer: FOB,CIF,DPA; T/T,30% in advance and 70% balance before shipping.
3. How about the delivery time?
Answer: Commonly, it takes 15~25 days of production after the receipt of your advance down payment and 7 days for delivering after full payment.
4. What is the warranty time?
Answer: 12 month from the date of supply.
5. What is the packaging?
Answer: bulk ship, ro-ro ship, container ship.
Professional, economic and safe methods and measures to package trucks or equipments.
6. Can we supply samples if customers need sample in advance?
Answer: If we just right have the sample in stock, we can supply it for you. But the customer need pay for the cost.
7. How to establish a long term cooperation?
Answer: We try our best to guarantee great quality and good price policy for our old customers to ensure the benefits of our customers.
Moreover, we respect every customer and sincerely do business, making friends with them, no matter who they are, wherer they are from.
*For instant communication or discussing about details, please add me or directly message me through WhatsApp or WeChat @ +86 18372220016. I will be there 7-24 for any of your need
