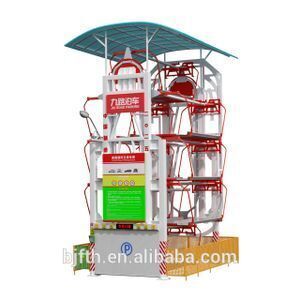

Jiu Road Brand Rotating Smart Tower vertical car parking system

Product details
Dimension(L*W*H):5300*2100/2000;Brand Name:Beijing jiuhong;
Core Components:PLC,Bearing,MOTOR,GEAR;Max Lifting Height:21;
Warranty:1 YEAR;Product Name:smart car parking systems rotary lift price;
Package Preview:;Operation Mode:Put Button+IC Card;
Rated Loading Capacity(kg):2000;After Warranty Service:Video technical support,NO SERVICE,Online support,Spare parts;
Showroom Location:none;Selling Units:Single item;
Single gross weight:450.0 KG;Machinery Test Report:Provided;
Car Quantity:8P/10P/12P/14P/16P;UNIQUE SELLING POINT:High operating efficiency;
After-sales Service Provided:Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;Warranty of core components:2 years;
Place of Origin:Beijing China;Motor Power:7.5kw/9.2kw/18.5kw;
Motor Brand:Germany Nord Motor;Applicable Industries:Hotels,Building Material Shops,Machinery Repair Shops,farms,restaurant,Retail,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Hoisting Speed:0-6.7m/min;Condition:New;
Drive Mode:Motor+Gearbox+Chain(double row small chain;Control Mode:PLC Control(Schneider Brand);
Marketing Type:New Product 2020;Single package size:220X120X100 cm;
Loder Weight:2500kg;Local Service Location:none;
Lift Mode:Fork+Lift Chain;Video outgoing-inspection:Provided;
foundation size:7500*5500mm;Lift System Safety Factor:≥7;
Packaging Detail:smart car parking systems rotary lift price 1.Full Container Load 2.Export standard Package 3.Jiu Road Brand,Carousel car parking system;

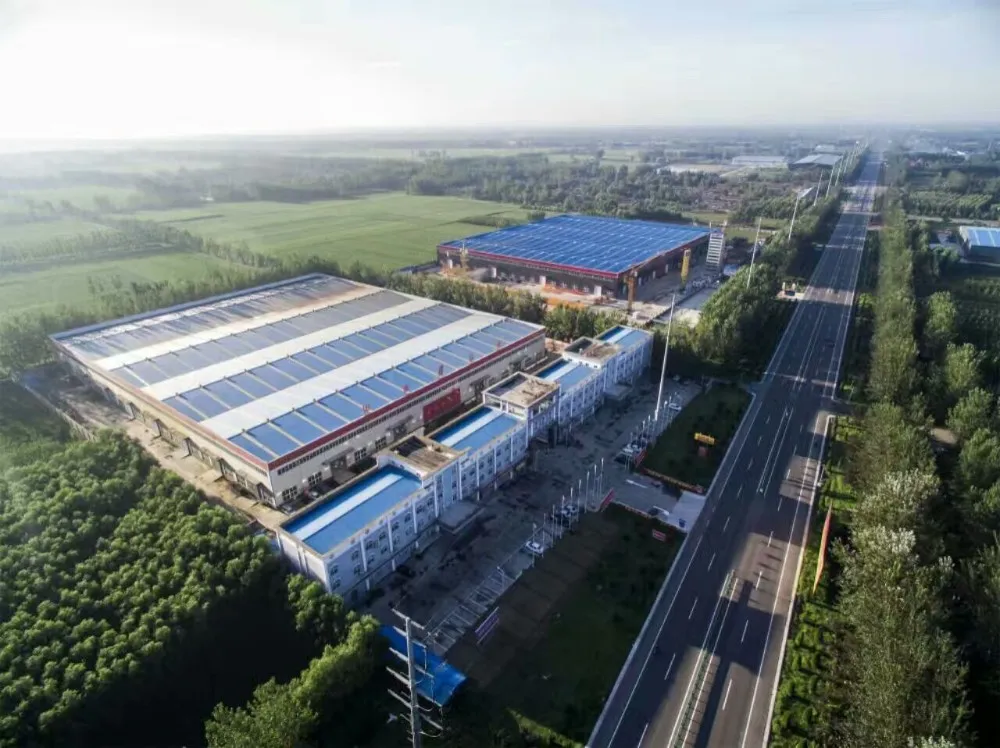

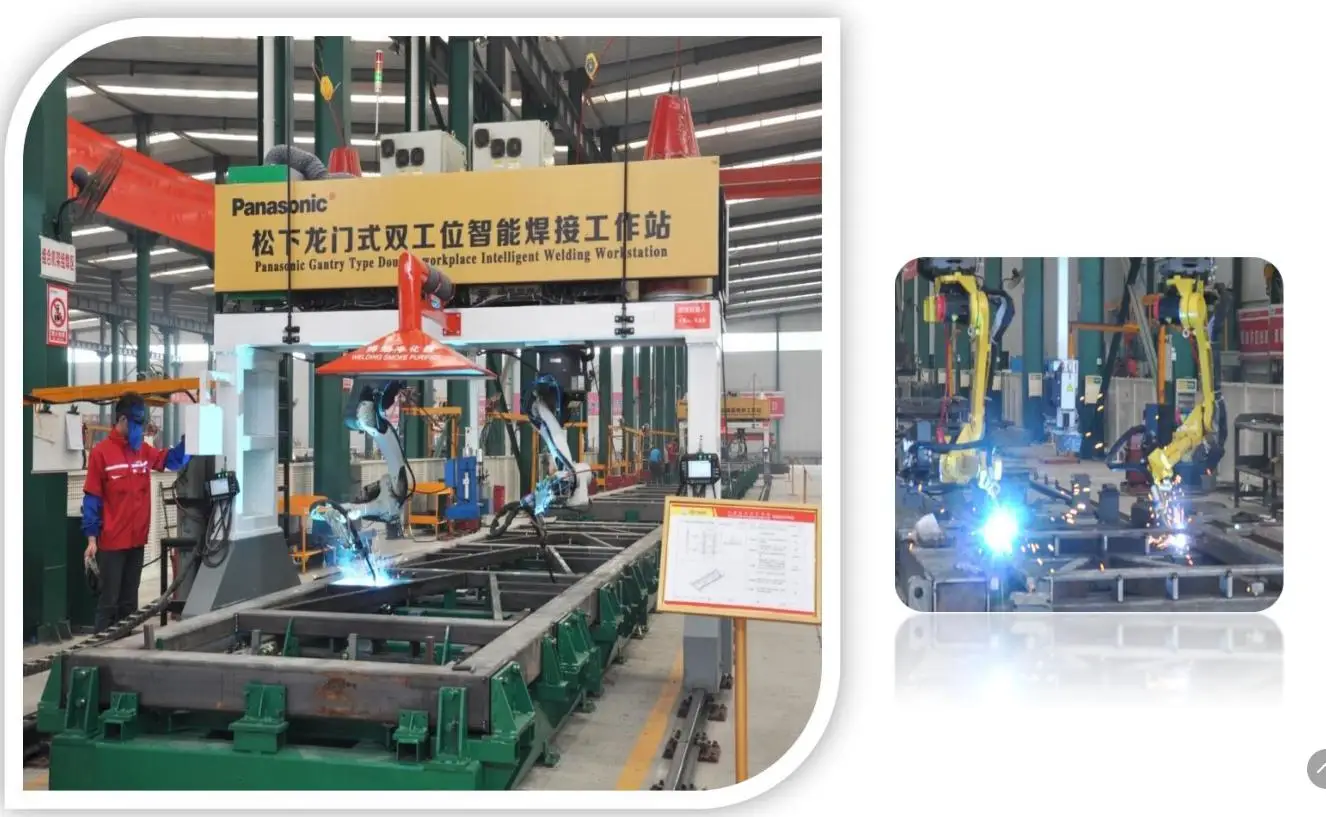

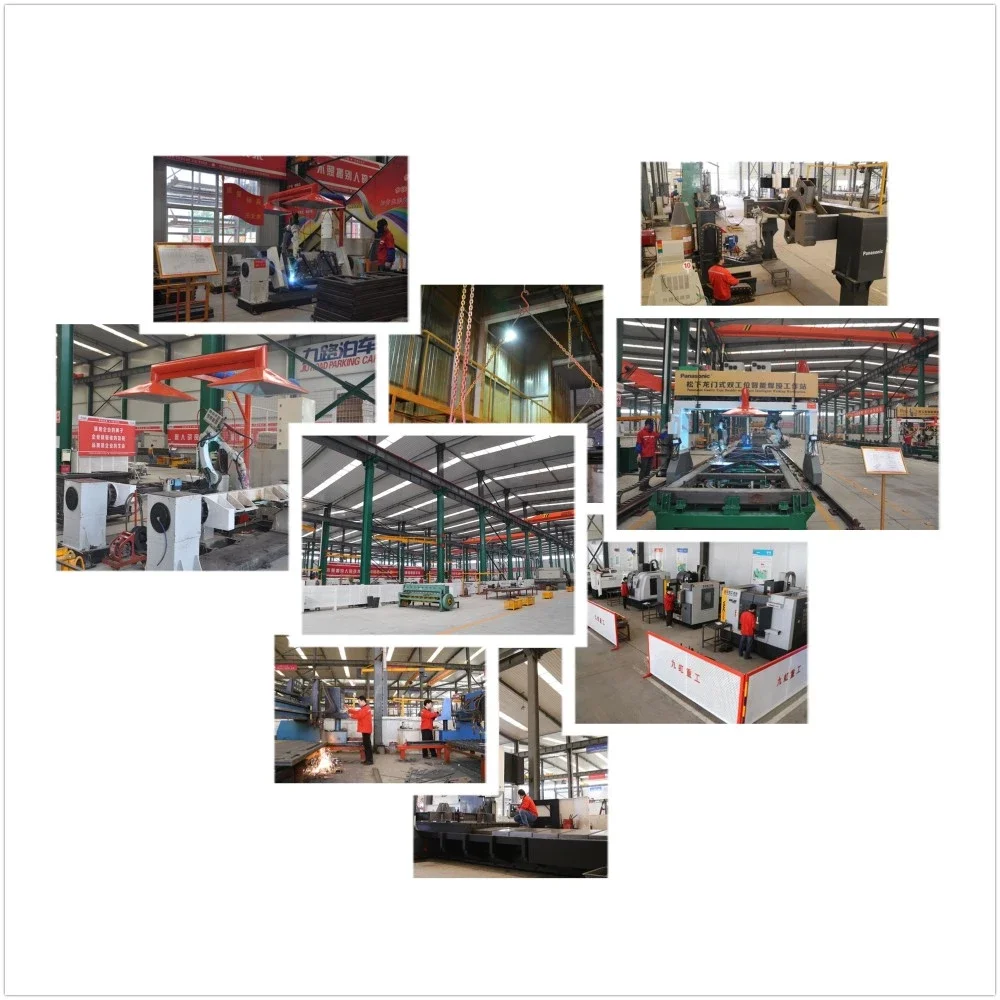

Our Factory
Our Factory

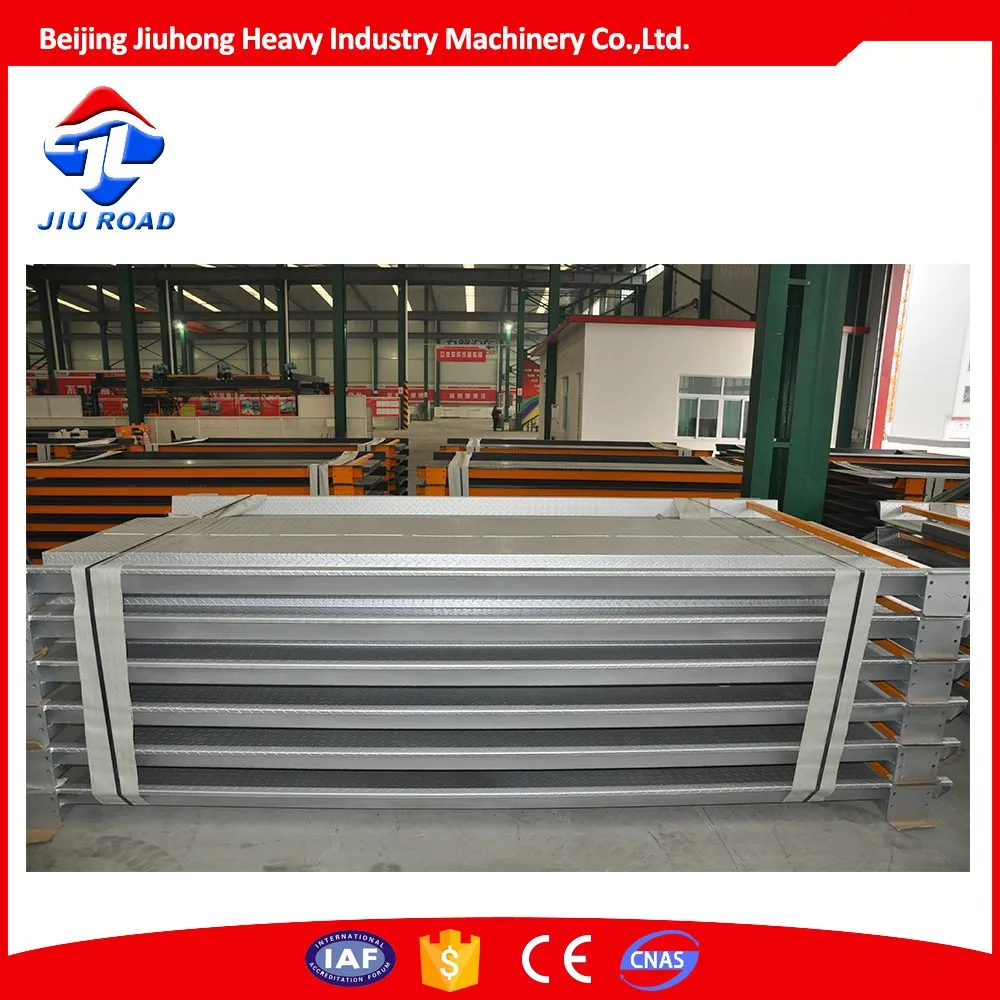

Our Warehouse
Our Warehouse

Product Description
Product Description

Product Application

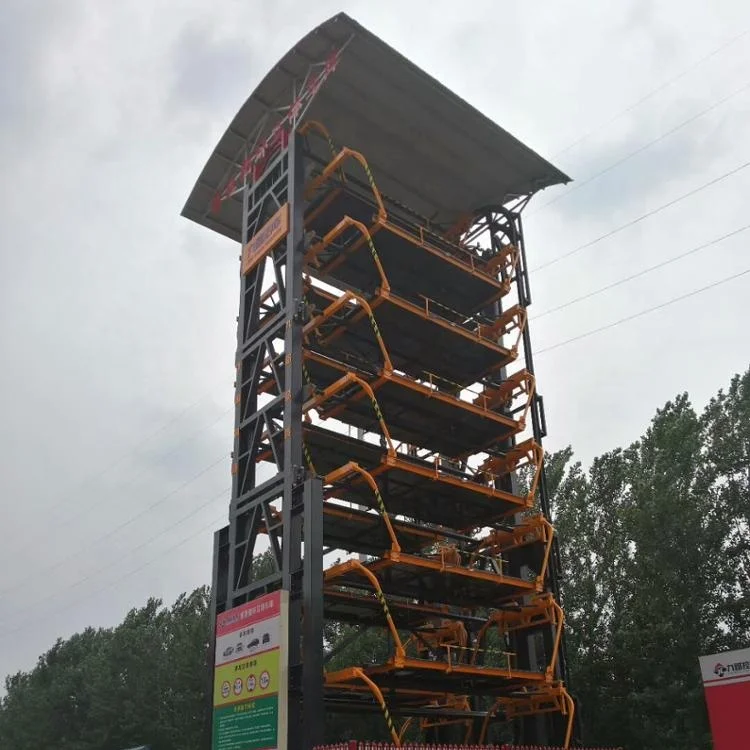

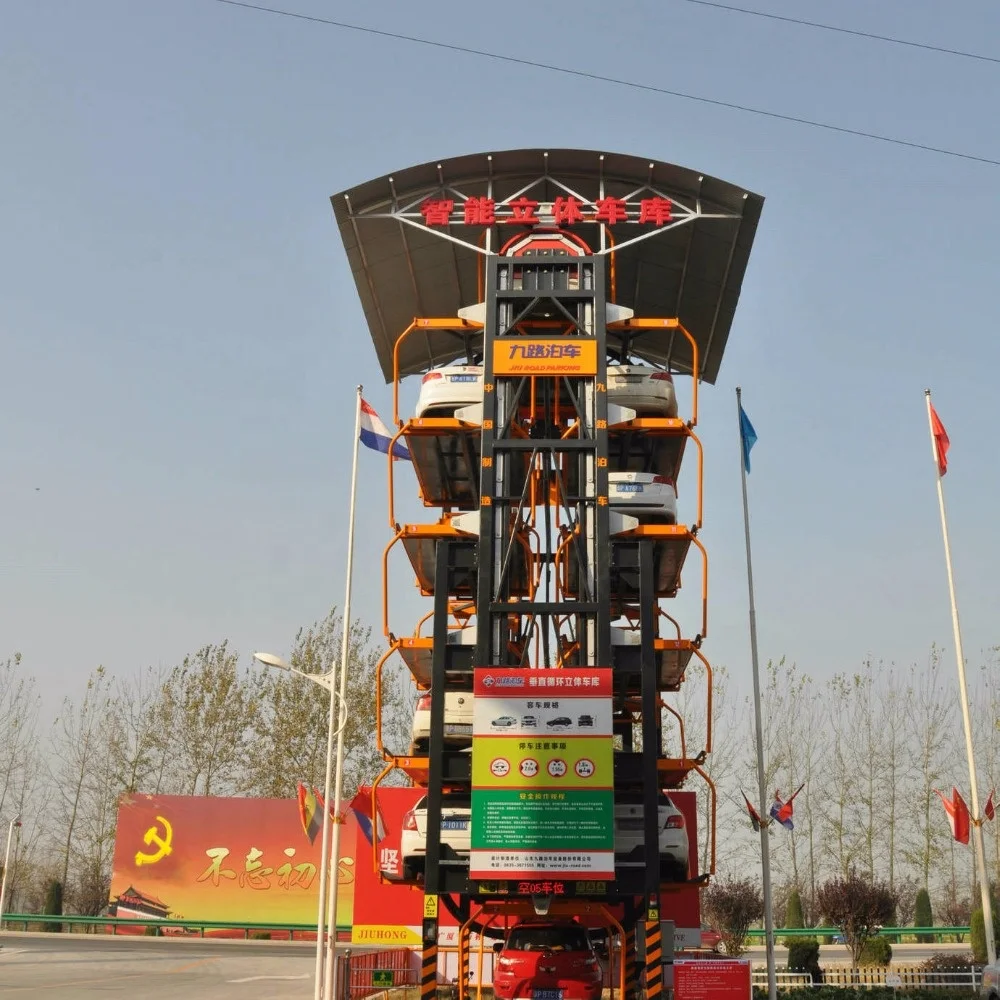

Carousel Parking system ,Less space ,More Parking.
Smart car parking systems rotary lift price

Model
Name
5 Layer 8DH Cars Vertical Rotary Parking Equipment
Model
PCX8DH

Car Dimension and Weight
Car Dimension
5300mm×2100mm ×2000mm
Car Weight
≤2100kg
Occupy Space
6.5M×5.5M
Total height
12.1m
Self weight
16 ton
Car Quantity
8 Cars(Mechanical Car Space)
Motor Power
7.5KW (Germany Nord Motor)
Cycle Speed
≤4.4m/min
Max Take Car Time
≤148S
Enter Method
Forward Entry, Backward Exit
Operation Interface
Put Button+IC Card
Control Mode
PLC Control(Schneider Brand)
Operation Control Mode
Normal or Frequency Invert
Drive Mode
Motor+Gearbox+Chain(double row small chain)
Lift Mode
Fork+Lift Chain: Big Chain section distance is 460mm,Chain board dimension90*14,Material 40cr
Safety Factor
Lift System
≥7
Steel Structure
≥3
Service life
Whole unit machine can use over 30 years, after Strengthen anti-corrosion treatment service lift can reach 45 years.
Power
3 Phase 5 wire; AC 380V 50Hz
(we suggest double power supply and prepare generator)
Frame Structure
Column square tube200*200*8;Combination frame square tube 200*200*8mm,Combination main frame square tube:150*100*6mm;Car Carry Plate hanging beam Φ63*6mm,Car Carry Plate thickness 3mm
Wire Installation
Mainly to bridge or metal trough wire connection, plastic trunking connection as a supplement


Main Features

1) Less maintenance cost and long life.

2) Can be moved and relocated EASILY according to your requirements.

3) 3days quick installation process.

4) High quality,Space utilization,More Scurity,More Safety,Lower cost

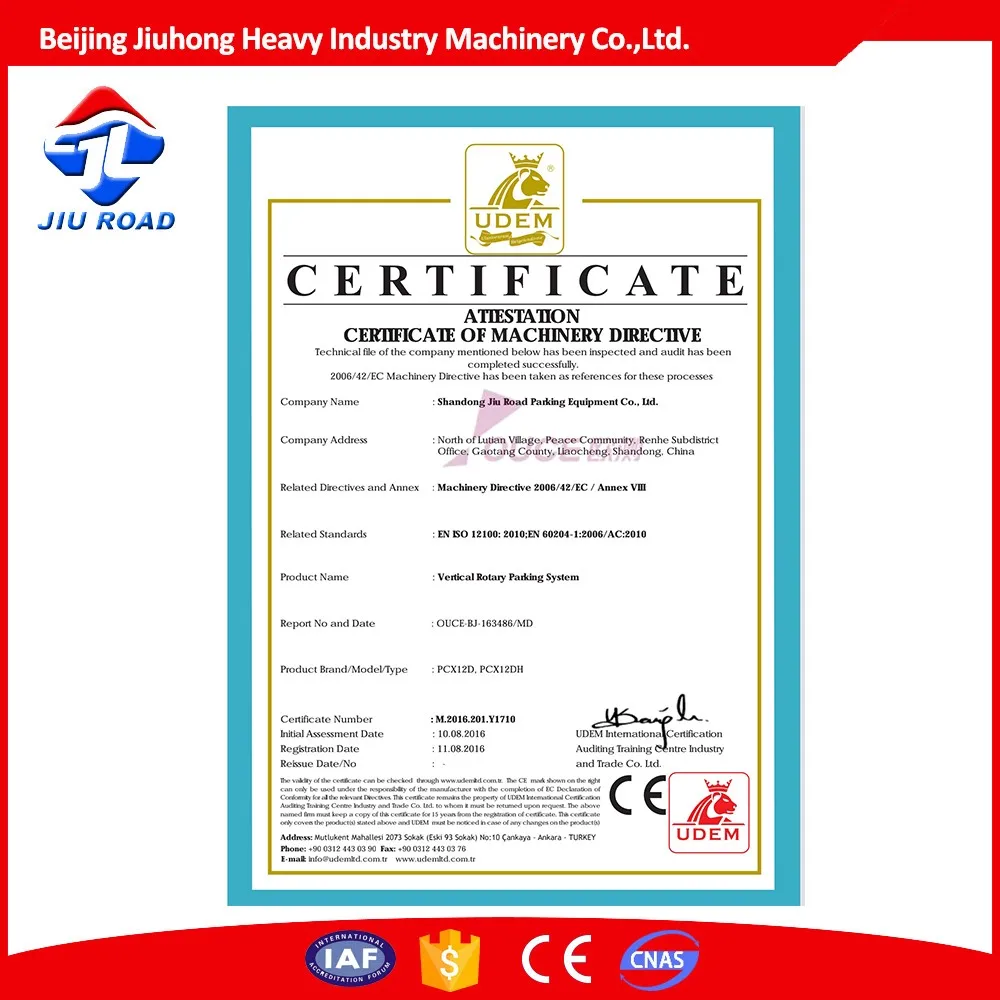

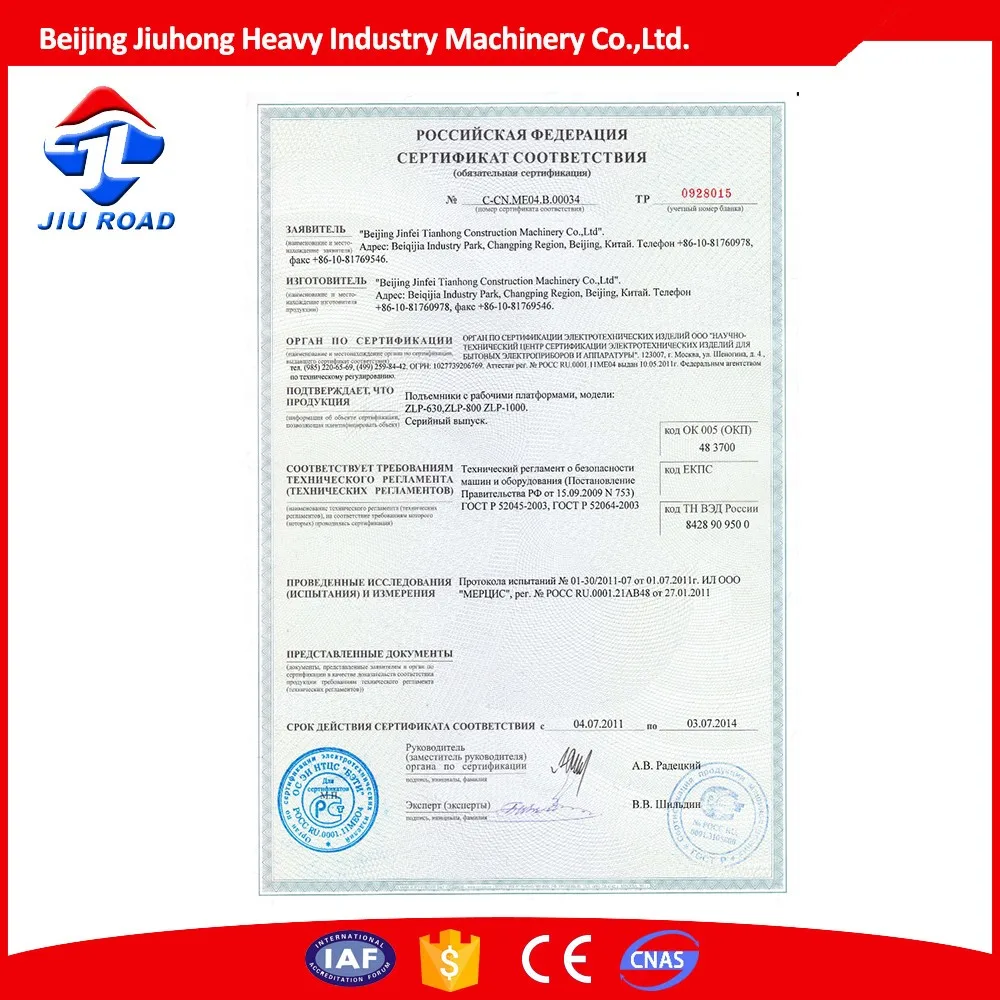

Certifications
Certifications

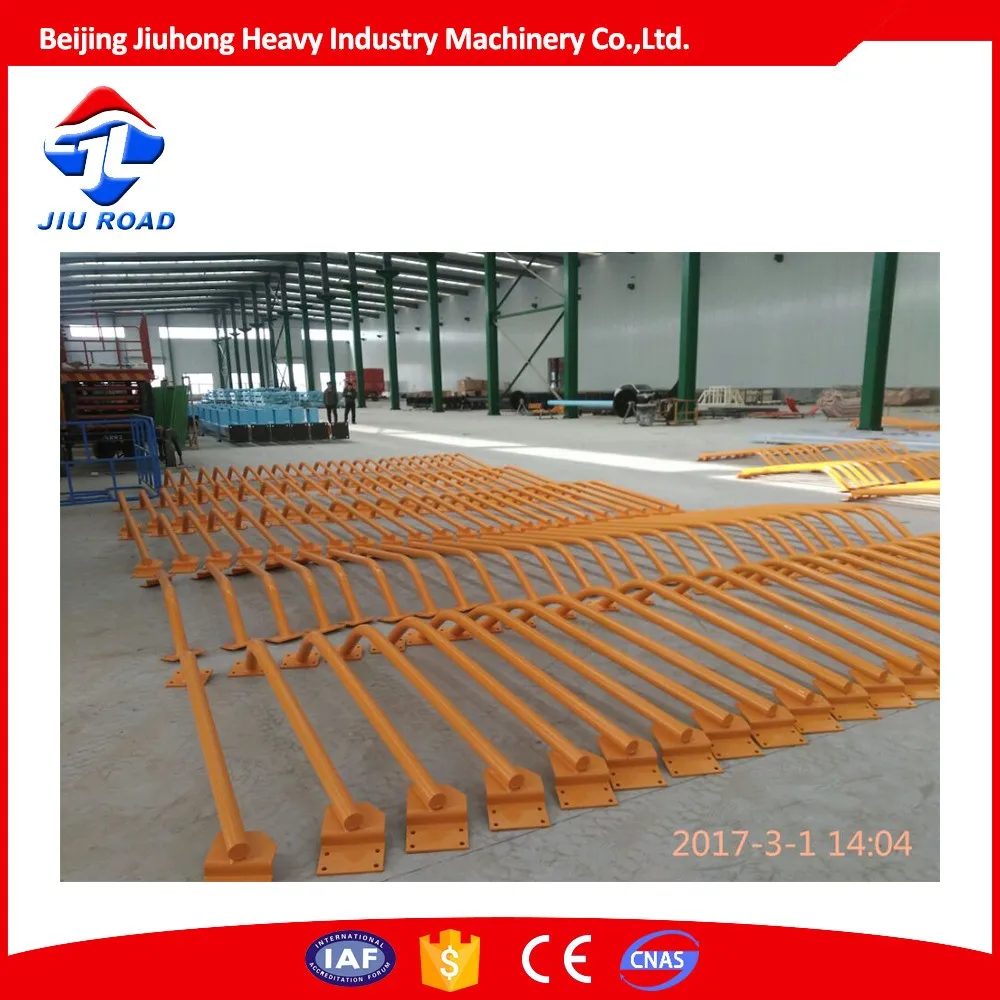

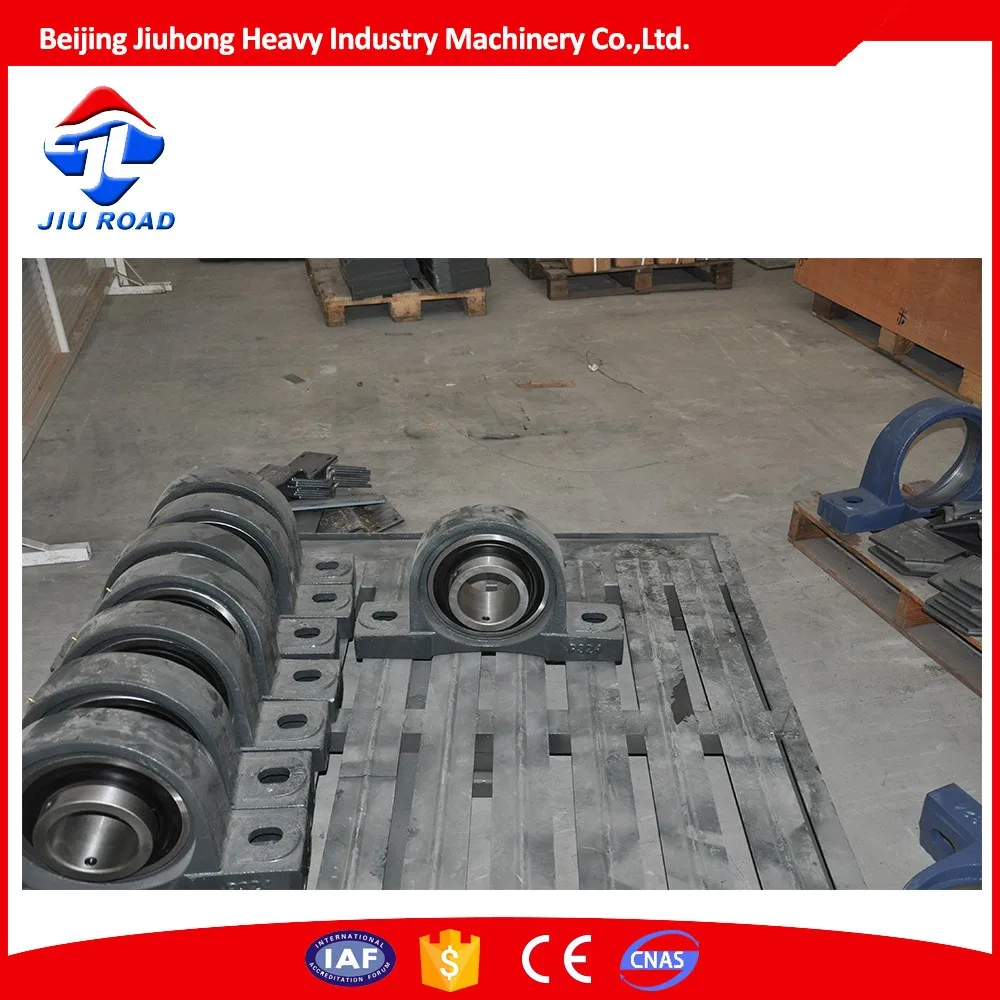

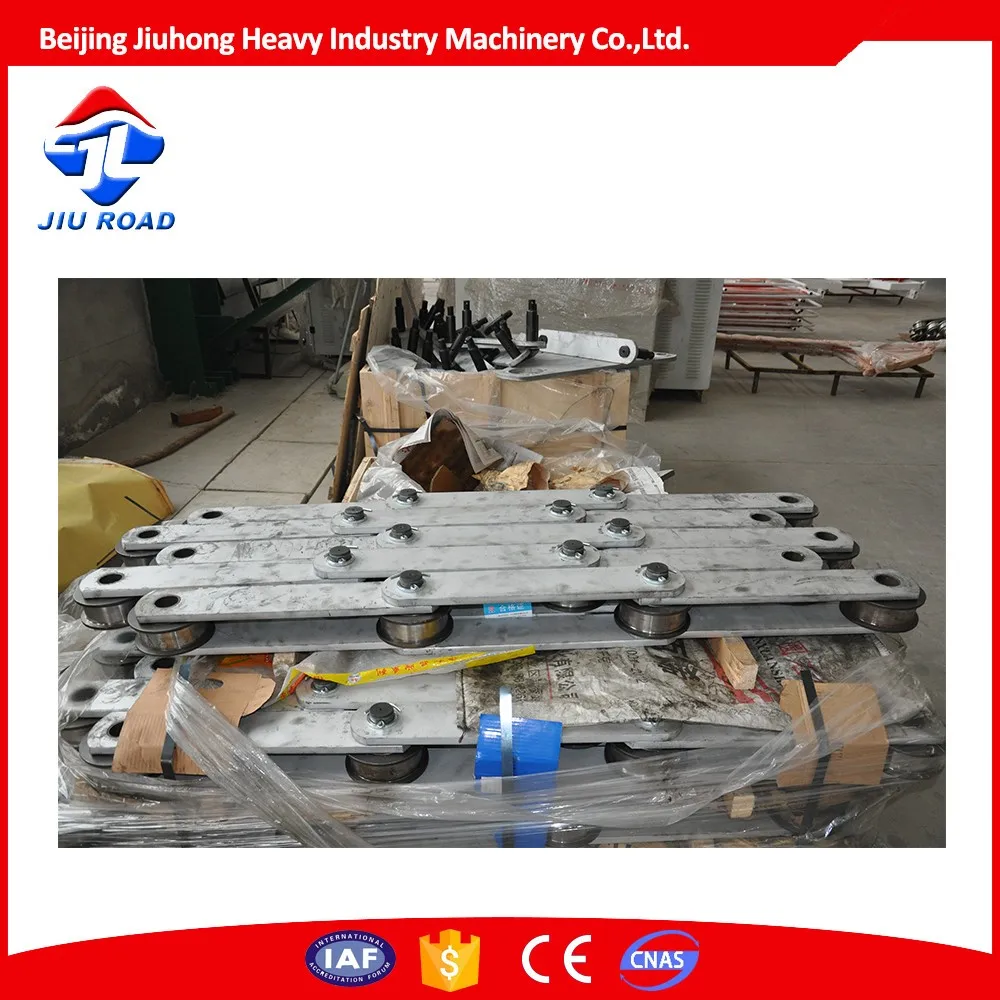

Spare Parts Details
Spare Parts Details


Our Service
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
