Flexible Shaft Couplings (Star Couplings) - Engimech Products

Product details
Payment Terms:L/C,D/P,T/T,Western Union,Pay Pal;Place of Origin:Gujarat India;
Supply Ability:10000.0 Piece/Pieces per Month;Standard or Nonstandard:Standard;
Structure:Jaw / Spider;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Printing Shops;
Brand Name:Engimech;Packaging Detail:Standard Sea worthy - Corrugated carton boxes on wooden pallets;
Package Preview:;Flexible or Rigid:Flexible;
Port:Mumbai;Material:Aluminium;

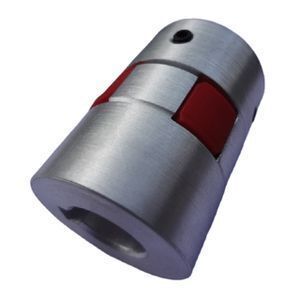

Product name:Flexible Jaw Coupling;
Product Description

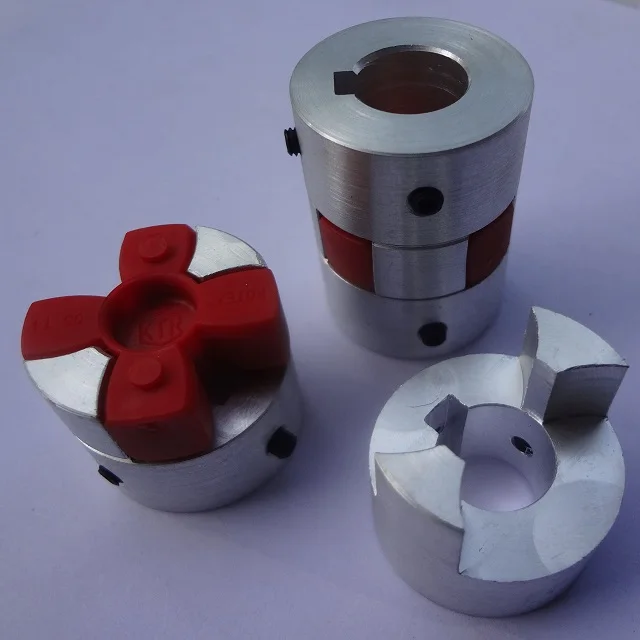

Hub Details :

Engimech  Hubs are available in Aluminum and Steel material

 ·  Sizes 9 to 38 are made from Aluminum material

 ·  Sizes 42 to 65 are made from steel

 * Engimech hubs are manufactured with high precision machining

 * The Jaws are machined with concave shape and entry chamfer for easy assembly

 * The concave shape in jaws of hubs and the convex shape on the polyurethane spider allows  for better  angular, parallel and axial misalignment.



These Hubs are available in unbored, pilot bored, finish bore and keyways and with different styles  of clamping arrangements as per custom requirements



Spider Details :

Engimech Spiders are manufactured from high grade polyurethane and available in 3 different hardness as 80 shore A,  92 shore A and  98 shore A. These different hardness are made available to suit different applications as follows :



Spider Type

Colors

Material

Temperature Range Degree C

Available Sizes

Applications

Shore Hardness

Normal Working

Maximum

80 Shore A



Blue

Poly-eurathane



From -50 to +80



From -60 to +120



5 to 24



Low Torque, More Mis-alignment



92 Shore A



Yellow

From -40 to +90



From -50 to +120



5 to 55



Medium Torque, Medium Mis-alignment



98 Shore A



Red

From -30 to +90



From -40 to +120



5 to 55



More Toruqe, Less Mis-alignment





Shaft Encoders

Servo Motors

Stepper Motors

Tacho Generators

CNC Slides

CNC Machines

Robots

Textile Machines

Ball Screws

X-Y Slides

Medical Equipments

Precise Spindles

Special Purpose Machines and much more where precise backless free motion & Power Transmission applications required



Flexible



No Maintenance



Uniform & Positive motion and Power Transmission



Backless Free



No Lubrications



Electrical & Frequency Isolation
