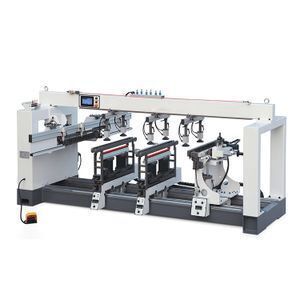

Woodworking Four Rows Multi Spindle Wood Drilling Machine

Product details
Name:Wood Drilling Machine;Applicable Industries:Furniture Factory;
Motor Type:Servo Motor;Port:QINGDAO PORT;
Max.Thickness Of Workpiece:78mm;After-sales Service Provided:Field installation, commissioning and training;
Packing Dimension:3900*1500*1800;Model:HB406i;
Weight:1300kg;Supply Ability:300 Set/Sets per Year Wood Drilling Machine;
Power(W):1.5kw;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Dimension Of Machine:3750*3100*1760;Dimension(L*W*H):3750*2500*1760mm;
Color:Customers' Demand;Brand:Hicas;
Working Pressure:0.6-0.8mpa;Voltage:220v/380v/440V;
Condition:New;Brand Name:HICAS;
Application:Furniture Making Machine;Packaging Detail:Woodworking Four Rows Multi Spindle Wood Drilling Machine: 1.Stretch film and plastic film for humidity. 2.Standard marine export plywood case. 3.Pallet packing.;
Warranty:One Year;Type:Four-row Drilling Machine;
Certification:CE ISO;Place of Origin:Shandong China;

 Woodworking Four Rows Multi Spindle Wood Drilling Machine

Product Description

Wood Drilling Machine is used to drill holes on solid wood panel, chipboard, ABS board, PVC board and other boards which have the similar structure and hardness. It's a necessary tool for furniture production and decoration industry.

Technical parameter for boring machine HB406i
Max. width of panels2450mm
Max. distance of two horizontal boring position640mm
Min. distance of vertical drilling group128mm
Max. thickness of panels78mm
Max. depth of horizontal boring head40mm
Max. depth of vertical boring head70mm
Rotating speed of boring spindles2800rpm (50HZ)
Vertical boring power1.1kw
Horizontal boring power1.5kw
Woorking pressure0.6-0.8MPa
Dimension of machine3700*2500*1760mm
Packing dimension3900*1500*1800mm
Detailed Images

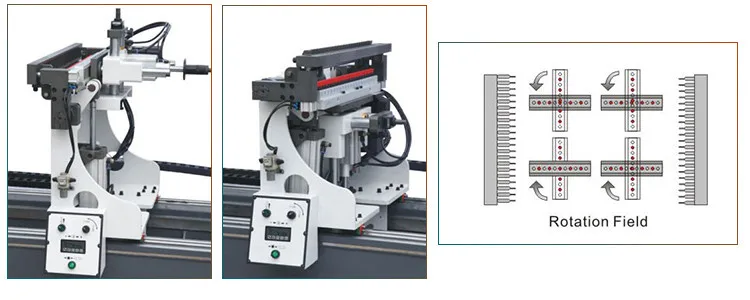

1.vertical boring of right-row rotation

2.horizontal boring of right-row ratation.

Precise:

Drilling strike is accurately displayed on imported digital LED display.

Application:  Wood Door Lock Making Wood Drilling Machine  has been widely used at home and aboard.

Thanks to its high hardness, reliable precision and long life use, it has ganied good reputation from customers.

How to Maintain

Clean up the table after using the machine

Clean up wood rails to prevent debris interference, causing the machine card machine in the work process.

Regular cleaning of the screw to prevent sticking a foreign body on the screw, screw is the most important equipment, which affects the accuracy of the machine, and screw plays an important role in the transmission process.

Regular cleaning of industrial containers, dust is the biggest killer platoon drill.

To row drilling weekly slide rail dusted oiling work

Factory Picture:

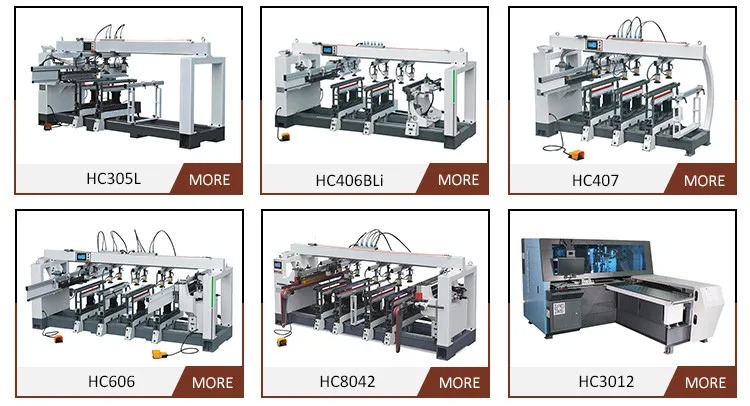

Related Products
