Package Preview: | ; | Packaging Detail: | 1Industrial packaging: Plastic tube (10pcs in one tube)+ carton + plywood pallets; plastic bag + kraft paper + carton + plywood pallets 2.As your requirement; |
Brand Name: | TFN /OEM/SEMRI; | Seals Type: | Open; |
Supply Ability: | 9999.0 Piece/Pieces per Month; | Bore Size: | 8 - 8.001 mm; |
Number of Row: | single row; | Type: | Needle,Needle; |
Bore diameter: | 8 mm; | Port: | Any China port; |
Precision Rating: | P0,P6,P5,P4,P2,; | Width: | 12 mm; |
Certificate: | ISO9001:2000; | Delivery Time: | 2-3 Days; |
Outside diameter: | 14 mm; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,farms,Construction works ,Energy & Mining,mop bearing; |
Place of Origin: | Shandong,Shandong China; | Free Samples: | Available; |
Product name: | 8x14x12mm Mop Bearing HF081412 One Way Needle Roller Bearings; | Service: | OEM Service; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | Model Number: | HF081412; |

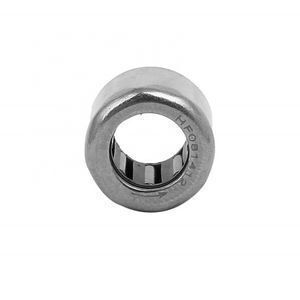

8x14x12mm Mop Bearing HF081412 One Way Needle Roller Bearings
Product Name |
8x14x12mm Mop Bearing HF081412 One Way Needle Roller Bearings |
Brand |
TFN / SEMRI / OEM |
Model Number |
HF081412 |
Dimension |
8x14x12mm |
Ring Material |
Gcr15/ Carbon Steel/ Stainless Steel |
Cage Material |
Steel |
Precision |
P0, P6, P5, P4,P2 or as requested |
Vibration |
ZV1, ZV2, ZV3, or as requested |
Clearance |
C0,C2,C3, or as requested |
Application |
Widely used in various mechanical equipment such as machine tools, metallurgical machinery, textile machinery and printing machinery etc. |
Features |
Long life, high temperature resistance, corrosion resistance, ultra high speed. |
Quality standard |
ISO9001:2000/ SGS |
Quality Control Process |
1.Assembly |
2.Windage test |
|
3.Cleaning |
|
4.Rotary test |
|
5.Greasing and gland |
|
6.Noise inspection |
|
7.Appearance inspection |
|
8.Rust prevention |
|
9.Product packaging |
|
Needle bearing |
Needle roller bearings are roller bearings with cylindrical rollers that are thin and long relative to their diameter. This type of roller is called a needle roller. Despite the small cross-section, the bearing still has a high load bearing capacity, and the needle bearing is equipped with a thin and long roller (roller diameter D≤5mm, L/D≥2.5, L is the roller length), so The radial structure is compact, its inner diameter size and load capacity are the same as other types of bearings, the outer diameter is the smallest, and it is especially suitable for support structures with limited radial mounting dimensions. |
Other Needle roller bearing models :
Bearing Number | Boundary dimensions(mm) | Moment(Nm) | Basic load ratings(N) | Mass(g) | |||
Fw | D | C | Md | Cr | Cor | (Approx.) | |
HF3530 | 35 | 42 | 30 | 121 | 3900 | 3900 | 58 |
HF2520 | 25 | 32 | 20 | 66 | 5500 | 5500 | 30.9 |
HF3020 | 30 | 37 | 20 | 90 | 4500 | 4500 | 36 |
HF3520 | 35 | 42 | 20 | 121 | 3900 | 3900 | 40 |
HF1616 | 16 | 22 | 16 | 20.5 | 8500 | 7500 | 14 |
HF1816 | 18 | 24 | 16 | 24.1 | 7500 | 7500 | 15.5 |
HF2016 | 20 | 26 | 16 | 28.5 | 7000 | 6500 | 17 |
HF1012 | 10 | 14 | 12 | 5.3 | 14000 | 11000 | 4 |
HF1216 | 12 | 18 | 16 | 12.2 | 10000 | 7000 | 10.5 |
HF1416 | 14 | 20 | 16 | 17.3 | 9500 | 8000 | 13 |
HF0409 | 4 | 8 | 6 | 0.34 | 34000 | 14000 | 1 |
HF0612 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | 3 |
Bearing Number | Boundary dimensions(mm) | Basic load ratings(N) | Limiting speeds(rpm) | Mass(g) | |||
Fw | Ew | Bc | Cr | Cor | Oil | (Approx.) | |
K5X8X10TN | 5 | 8 | 10 | 2800 | 2450 | 37000 | 0.9 |
K5X8X8TN | 5 | 8 | 8 | 2300 | 1880 | 37000 | 0.7 |
K6X10X13TN | 6 | 10 | 13 | 3500 | 2800 | 33000 | 1.3 |
K6X9X10TN | 6 | 9 | 10 | 3300 | 3100 | 35000 | 1 |
K6X9X8TN | 6 | 9 | 8 | 25600 | 2240 | 35000 | 0.8 |
K7X10X10TN | 7 | 10 | 10 | 3350 | 3400 | 32000 | 1.1 |
K7X10X8TN | 7 | 10 | 8 | 2750 | 2550 | 32000 | 0.9 |
K8X11X10TN | 8 | 11 | 10 | 3830 | 3950 | 30000 | 1.7 |
K8X11X13TN | 8 | 11 | 13 | 5000 | 5700 | 30000 | 1.8 |
K8X11X8TN | 8 | 11 | 8 | 3000 | 2900 | 30000 | 1.1 |
K8X12X10TN | 8 | 12 | 10 | 4900 | 4600 | 30000 | 1.3 |
K9X12X10TN | 9 | 12 | 10 | 4200 | 4700 | 30000 | 1.5 |
K9X12X13TN | 9 | 12 | 13 | 5500 | 6700 | 30000 | 1.9 |
K10X13X10TN | 10 | 13 | 10 | 4500 | 5250 | 27000 | 1.6 |
Bearing Number | Boundary dimensions(mm) | Basic load ratings(N) | Limiting speeds(rpm) | Mass(g) | |||
Fw | D | C | Cr | Cor | Oil | (Approx.) | |
NK5/10TN | 5 | 10 | 10 | 2100 | 1400 | 36780 | 2.9 |
NK8/12TN | 8 | 15 | 12 | 3050 | 3650 | 29112 | 8.3 |
NK10/12TN | 10 | 17 | 12 | 4750 | 5350 | 23500 | 10 |
NK12/12 | 12 | 19 | 12 | 6050 | 6400 | 21640 | 11.8 |
NK12/16 | 12 | 19 | 16 | 8200 | 9800 | 21640 | 16.8 |
NK14/16 | 14 | 22 | 16 | 8260 | 9600 | 18322 | 20.8 |
NK15/12 | 15 | 23 | 12 | 8600 | 10070 | 21004 | 18.5 |
NK16/20 | 16 | 24 | 20 | 10400 | 16800 | 15522 | 23.9 |
NK16/16 | 16 | 24 | 16 | 9030 | 11900 | 15522 | 20.8 |
NK17/16 | 17 | 25 | 16 | 9000 | 13500 | 14163 | 21.5 |
NK18/20 | 18 | 26 | 20 | 10500 | 13800 | 13628 | 30.5 |
NK202620 | 20 | 26 | 20 | 10500 | 11900 | 9125 | 17.2 |
NK203312SX | 20 | 33 | 12 | 13000 | 17500 | 11124 | 29.1 |
NK20/16 | 20 | 28 | 16 | 11500 | 13400 | 12716 | 25.7 |
NK20/20 | 20 | 28 | 20 | 12400 | 21800 | 12716 | 29.3 |
Bearing Number | Boundary dimensions(mm) | Basic load ratings(N) | Limiting speeds(rpm) | Mass(g) | |||
Fw | D | C | Cr | Cor | Oil | (Approx.) | |
RNAV4002 | 21.87 | 32 | 17 | 10800 | 29800 | 4500 | 45 |
RNAV4003 | 24.3 | 35 | 18 | 17900 | 37900 | 4300 | 62 |
RNAV4004 | 28.7 | 42 | 22 | 28150 | 60900 | 3900 | 114 |
RNAV4005 | 33.5 | 47 | 22 | 33800 | 70800 | 3700 | 129 |
RNAV4006 | 40.1 | 55 | 25 | 49900 | 96500 | 3500 | 193 |
RNAV4007 | 45.9 | 62 | 27 | 47600 | 122800 | 3100 | 259 |
RNAV4008 | 51.6 | 68 | 28 | 49900 | 137900 | 2700 | 304 |
RNAV4009 | 57.4 | 75 | 30 | 52500 | 153500 | 2600 | 390 |
RNAV4010 | 62.1 | 80 | 30 | 55700 | 166000 | 2500 | 426 |
RNAV4011 | 69.8 | 90 | 35 | 68500 | 225800 | 2300 | 645 |
RNAV4012 | 74.6 | 95 | 35 | 75400 | 239000 | 2100 | 677 |
RNAV4013 | 80.3 | 100 | 35 | 79500 | 256900 | 1900 | 692 |
RNAV4014 | 88 | 110 | 40 | 98800 | 354900 | 1700 | 950 |
RNAV4015 | 92.7 | 115 | 45 | 101800 | 372900 | 1600 | 1000 |
RNAV4016 | 100.3 | 125 | 45 | 102900 | 373500 | 1500 | 1400 |
RNAV4017 | 104.8 | 130 | 45 | 103800 | 374800 | 1400 | 1540 |
Bearing Number | Boundary dimensions(mm) | Basic load ratings(N) | Limiting speeds(rpm) | Mass(g) | |||
Dc1 | Dc | Dw | Cr | Cor | Oil | (Approx.) | |
AXK0414TN | 4 | 14 | 2 | 4380 | 7500 | 18000 | 0.7 |
AXK0515TN | 5 | 15 | 2 | 4680 | 9100 | 17000 | 0.8 |
AXK0821TN | 8 | 21 | 2 | 7750 | 19000 | 15000 | 2 |
AXK1024 | 10 | 24 | 2 | 9150 | 24500 | 14000 | 3 |
AXK1226 | 12 | 26 | 2 | 9860 | 28600 | 13000 | 3 |
AXK1528 | 15 | 28 | 2 | 11200 | 35500 | 11000 | 4 |
AXK1730 | 17 | 30 | 2 | 11800 | 38600 | 10000 | 4 |
AXK2035 | 20 | 35 | 2 | 12900 | 45600 | 8500 | 5 |
AXK2542 | 25 | 42 | 2 | 13800 | 57800 | 7000 | 7 |
AXK3047 | 30 | 47 | 2 | 15600 | 69500 | 6000 | 8 |
AXK3552 | 35 | 52 | 2 | 16900 | 80100 | 5500 | 10 |
AXK4060 | 40 | 60 | 3 | 27500 | 113500 | 4700 | 16 |
AXK4565 | 45 | 65 | 3 | 29050 | 127600 | 4200 | 18 |
Q:Why choose SEMRI?
A:1. We are professional,have factory in shandong for many years.
2. We are experienced for 10 years.
3. We can offer a various kind of bearing with high quality:Z1V1,Z2V2,Z3V3 and best price
Q:How is the quality of your products?
A:The same quality, we have lower price.The same price,we have better quality.
Q:Except Needle roller bearing,what other main bearing do you have?
A:Cylindrical roller bearing,Taper Roller Bearing,Spherical roller bearing,Deep groove ball bearing,Angular contact ball bearing etc.
Q:Can I get free HF081412 Neddle roller bearing samples?
A:We will charge a little sample fee for our regular designs or customized ones, These charges will be refunded to you when your mass production order is
confirmed.
Q:Can you make the products as our requirement?
A:We have more than 10years' OEM experience. We supply products fo more than 300 automobile parts factories.
