Water Supply Mode: | /; | Discharge Way: | Automatic; |
Packaging Detail: | nude package; | Total mass: | 31000kg; |
Outline Dimension: | 10900x2500x39950mm; | Condition: | New; |
Payment Terms: | L/C,D/A,D/P,T/T; | Displacement: | 10520mL; |
Reclaiming capacity: | /; | Supply Ability: | 100 Unit/Units per Month; |
Speed of Mixing Drum: | /; | Maximum horsepower: | 350 HP; |
Working Cycle Period: | /; | After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support,Engineers available to service machinery overseas; |
Charging Capacity: | /; | Brand Name: | CANMAX; |
Maximum power: | 254Kw; | Motor Power: | 254Kw; |
Applicable Industries: | Construction works ; | Port: | any port in China; |
Place of Origin: | Shanghai China; | UNIQUE SELLING POINT: | High operating efficiency; |
Warranty: | 1 YEAR; | Fuel type: | Diesel; |
Mixing Power: | /; |

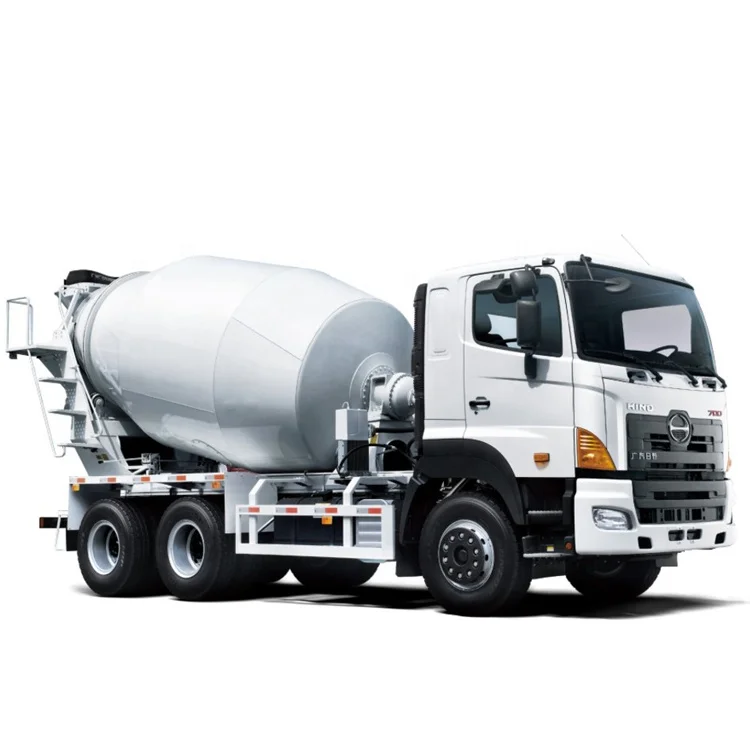

HINO chassis 12m3 truck-mounted concrete mixer
The overall designing of the vehicles is pleasing to the eyes. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the same level, and can satisfy the requirements of European ECER29 Security Regulations. The vehicle frame is molded by stamping and this guarantees the strength of the crossbeams. The axle technique unique to Benz vehicles boasts of features such as high reliability, fuel economy, high attendance rate, large mixing volume of tanks , all making it suitable for use in all kinds of construction sites.
HINO chassis 12m³ concrete truck mixer | |
Quality rating | 14500kg |
Kerb mass | 16370kg |
Total mass | 31000kg |
Vehicle length | 10900mm |
Vehicle width | 2500mm |
Vehicle height | 3995mm |
Front track | 2060/2060mm |
Rear track | 1855/1855mm |
Front overhang | 1410mm |
Rear overhang | 2830mm |
Approach angle | 23° |
Departure angle | 20° |
Wheelbase | 1850+3400+1410mm |
Engine | |
Engine typ | Shanghai HINO P11C-UJ |
Maximum power | 254Kw |
Max speed | 2100rpm |
Maximum torque | 1460N.m |
Maximum torque speed | 1100rpm |
Maximum horsepower | 350 HP |
Displacement | 10520mL |
Fuel type | Diesel |
Emission standard | Three |
Gearbox | |
Gearbox type | Fast 12JSD160TA |
Shift | Manual |
Forward bits | 12 |
Reverse gear | 2 |
Chassis | |
Chassis model | YC1310GJBFY2PU |
Leaf spring | 2011-11-13 |
Front axle Description | 6500KG |
Description of the rear axl | 18000KG |
Tyre | |
Tire size | 12 |
Tire size | 11.00R20 |
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Our factories have passed the certification of relevant organizations.
For example, ISO, CNAS, IAF and so on.
Products have also passed CE, GHOST certification and so on.
Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.
We have received more than 1000 clients and training engineers from more than 100 countries around the world.
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Iran, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, Iran, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
What spare parts can you supply?
All kinds of spare parts of XCMG, SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SANY, SDLG, LONKING, XGMA, CUMMINS ENGINE, ZF GEAR BOX, etc.
Send Message or Chat Now for Best price!!!
CANMAX, as a professional one-stop machinery equipment supplier, we always keep the service philosophy " Running On Faith, Keep Promise, Focus On Customer Concerns, Walk To Success With Customer ", devote ourselves to what customer needs, and provide products and service with high performance and good price.
Please let us know the main use, brand, power and other requirements of the purchased products.
We will recommend the related products to you.
↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
