good price N customized n-eupex H eupex coupling

Supplier: Hangzhou Chinabase Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Leo Dai
Price: $10.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Keyword:	coupling;	Packaging Detail:	Packed in wooden cases,according to clients'requirements;
Flexible or Rigid:	Flexible;	Shaft Hole:	11-110mm;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Energy & Mining;	Structure:	H coupling,Flexible;
Brand Name:	chinabase;	Name:	H coupling;
Port:	Shang Hai/Ning Bo;	Standard or Nonstandard:	Standard;
Size:	Customized Size,standard;	Flange Material:	cast iron;
MOQ:	5 SETS;	Material:	cast iron;
Payment Terms:	L/C,D/P,T/T;	Bore Diameter:	11-110mm;
Product name:	coupling;	Application:	Equivalent to N-EUPEX B type;
Supply Ability:	10000 Set/Sets per Month;	Place of Origin:	Zhejiang China;

good price N customized h-eupex H eupex coupling

standard coupling

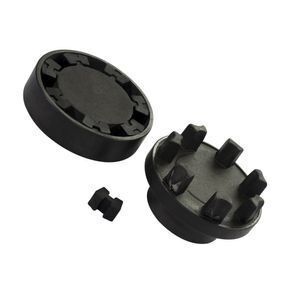

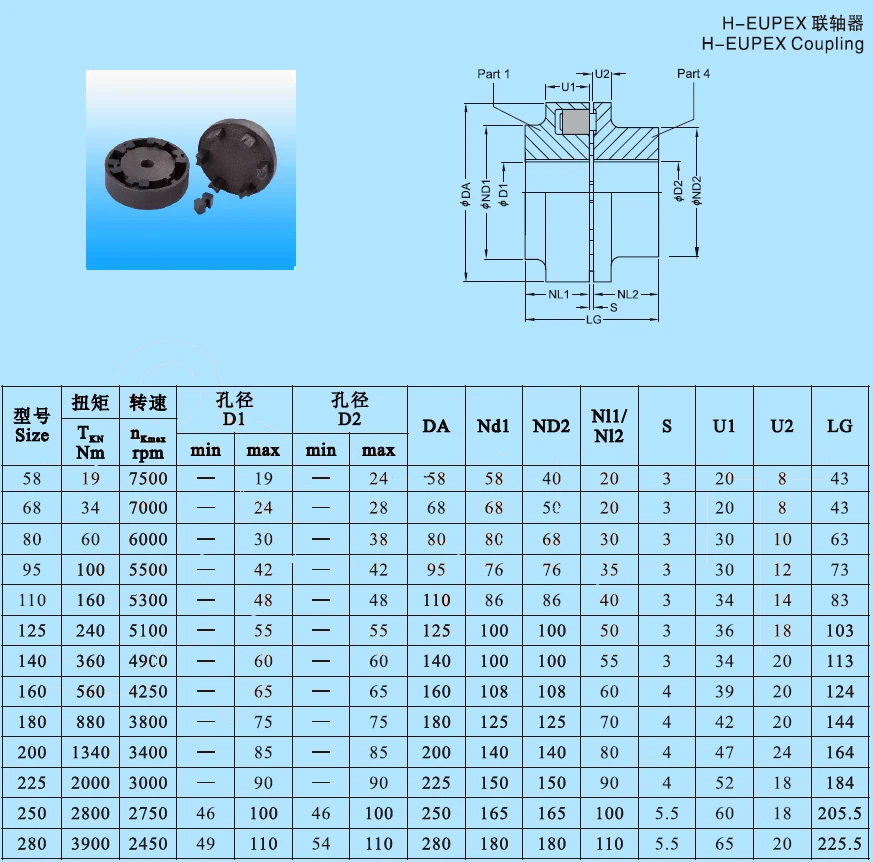

H Typre Coupling (Equivalent to N-EUPEX B type)

The metal parts of the H type coupling are made of high quality cast iron GG-25, and its elastomer is made of synthetic rubber, which has a stable transmission of torque and a small embrittlement effect. The H type coupling is widely used in mechanical equipment, such as pump drive system and drive system.

Features of H type jaw coupling:

1.Simple structure, compact dimensions,east to manufacture, low cost, convenient mounting and dismounting

2.Rubber elastomer, high elasticity,long service life

3.Absorb parallel,axial and angular misalignments

steel, cast iron, nylon
KC, L, FL,FLS,EL.ELS,GL, EP,
EE,GF,GE,GEM,GEL,HTKL,
GRL,GSL, RM,GWL coupling

Hangzhou Chinabase Machinery Co., Ltd is a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
