Color: | Red bule yellow green, etc; | Working duty: | A3 A4 A5 A6; |
Rated Lifting Moment: | Designed; | Max. Lifting Load: | 20 ton; |
Main electrical parts: | Schneider Brand, as request; | Package Preview: | ; |
Packaging Detail: | Electric parts and electric hoist are packed by strong plywood crate, others packaged in plastic woven cloth; | Brand Name: | Yuantai Crane; |
Power supply: | 380V 50Hz 3Phase on request; | Operation method: | Pendent control, wireless remote control, etc; |
Supply Ability: | 5000 Set/Sets per Year; | Showroom Location: | philippines,SAUDI ARABIA,algeria,Australia; |
Applicable Industries: | Manufacturing Plant,Construction works ,Energy & Mining; | Span: | 3m- 31.5m; |
Material: | Carbon Steel Q235B; | After-sales Service Provided: | Field installation, commissioning and training; |
Price: | Negotiable; | Lifting mechanism: | Electric hoist; |
Warranty: | 1 YEAR,12 months; | Place of Origin: | Henan, China; |
Max. Lifting Height: | 31.5 m; | Local Service Location: | philippines,SAUDI ARABIA,Australia,algeria; |
Port: | shanghai qingdao tianjin; | Product Name: | 10 ton Single girder overhead crane price; |
Feature: | Bridge Crane; | Payment Terms: | L/C,T/T,Western Union; |
After Warranty Service: | Field maintenance and repair service; | Certification: | CE ISO; |
Condition: | New; |

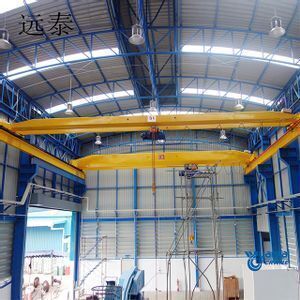

Single girder overhead crane is a light and small material handling equipment. The whole set single girder overhead crane is used with CD and MD type electric hoist, electric chain hoist, etc.
Single Girder Overhead Crane Technical Data
Type | Single girder overhead crane |
Lifting capacity | 0.5 ton – 20 ton |
Lifting height | 5m – 31.5m |
Span | 5m-31.5m |
Power supply | 380V 50Hz 3Phase or on request |
Working class | A3-A6 |
Speed | 0.8m/min 8m/min or request |
Electric devices | Voltage lower protection function Phase sequence protection function,etc |

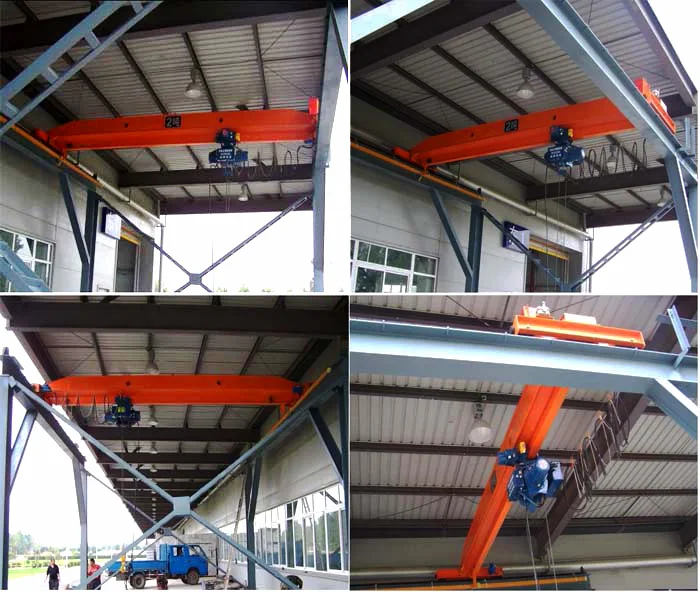

Single girder overhead crane main components

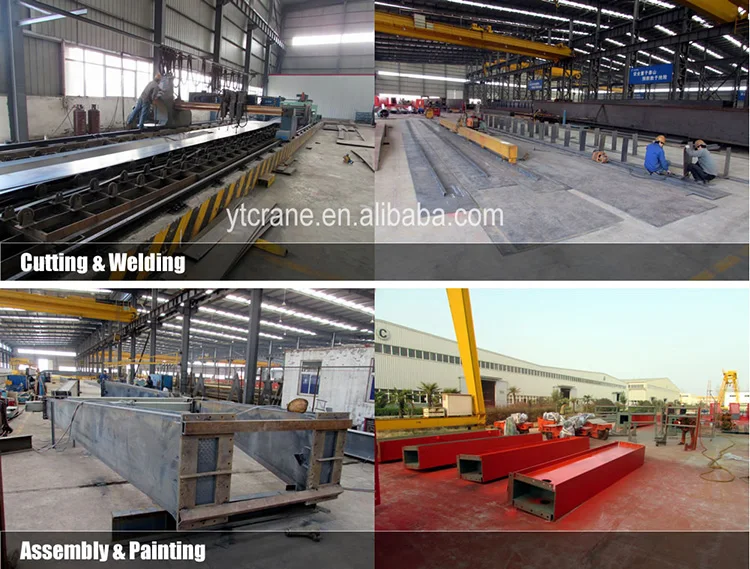

Single Girder Overhead Crane Production
Single girder overhead crane consists of main girder, end truck, crane wheels, hoist or hoist trolley, electric devices, etc.
Related Single Girder Overhead Crane

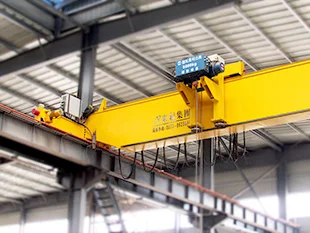

Single girder overhead crane has different types, such as LD type single girder electric hoist crane, LDA type single girder overhead travelling crane, LDP type low headroom single girder overhead crane. LX type suspension single girder overhead crane, and son on. We can design overhead crane for you as your plant environment and your requests.
LD type single girder overhead crane price Lifting capacity: 0.5ton - 20 ton Span: 5m – 31.5m Lifting height: 5m – 31.5m Working temperature: -25°C~+40°C More >>> Send an inquiry | |
HD low headroom single girder overhead crane Lifting capacity: 0.5ton - 20 ton Span: 5m – 31.5m Lifting height: 5m – 31.5m Working temperature: -25°C~+40°C More >>> Send an inquiry | |
LDA model electric hoist single girder overhead crane price Lifting capacity: 0.5ton - 20 ton Span: 5m – 31.5m Lifting height: 5m – 31.5m Working temperature: -25°C~+40°C More >>> Send an inquiry | |
LX type suspension / underslung mobile hoist single girder overhead crane price Lifting capacity: 0.5ton - 20 ton Span: 5m – 31.5m Lifting height: 5m – 31.5m Working temperature: -25°C~+40°C More >>> Send an inquiry | |
LDP low headroom electric hoist single girder overhead crane Lifting capacity: 0.5ton - 20 ton Span: 5m – 31.5m Lifting height: 5m – 31.5m Working temperature: -25°C~+40°C More >>> Send an inquiry |
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Company Introduction
Henan Dongqi Machinery Co., Ltd., with an area of 240,000m2, gross investment of RMB 240 million yuan and registered capital of RMB 108 million yuan, has more than 3,600 employees, of which the number of managerual and technical personnel is 500, and of senior engineer is more than 70. It has more than 2,000sets of production and detection equipment and boasts an annual comprehensive production capacity of cranes up to 10,000-odd sets, with the output value reaching RMB 1.5 billion yuan. Having technical cooperation with many European-style famous machinery manufacturers like Britain SZW, German NORD, German SIMENS and French Schneider Electric, the company is committed itself to the innovation and development of European-style crane technology and strive to make Dongqi Group a domestic and international famous brand.
We have past CE, ISO, and so on.
Up to now, a lot of clients have come to visit us and taken orders. The clients are from all over the world, such as Pakistan, Russian, Bangldesh, Philippines, America, UK, Egypet, UAE, and so on. Single girder overhead crane, double girder overhead crane and gantry crane are their favorite products.
We've attended on many Canton Fairs and other crane exhibitions such as Russian, Pakistan, etc.

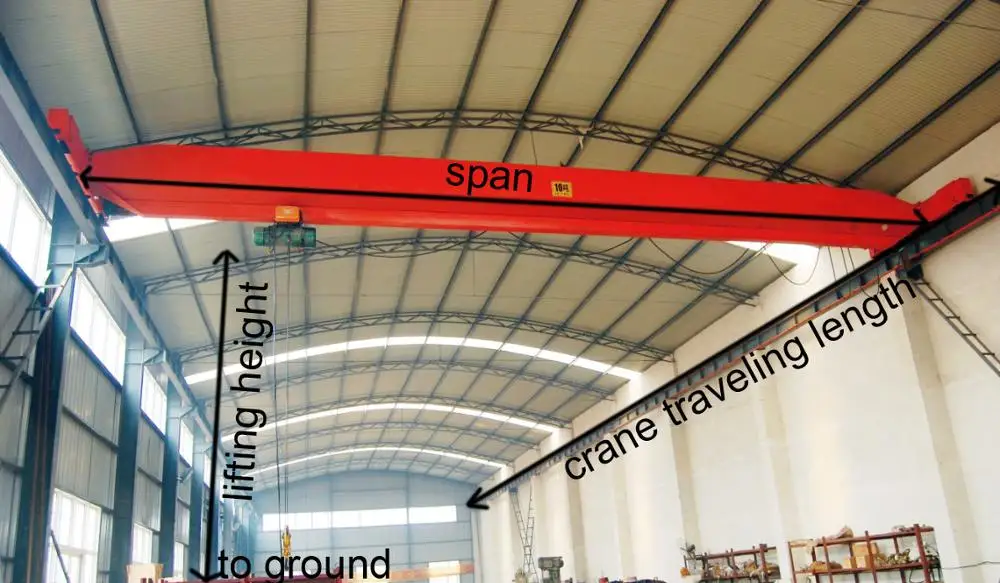

Please inform us the following details while you send the inquiry: 1.What is the lifting capacity? 2.What is the arm length? 3.What is the lifting height?(Lifting height=Distance from hook to ground) 4.What is the lifting speed?(Single speed or double speed) 5.What control mode do you need?(Pendant control or remote control or cabin) 6.What is the power supply in your country?(Our standard power supply is 380V,3Ph,50Hz) 7.Is there any other special requirements?(Like need us to supply rails?how long? etc) |
