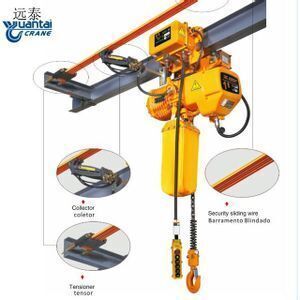

remote control bag stage mode pull lift manual lifting 11.5 2 3 5 ton electric chain block hoist with electric trolley with hook

Supplier: Henan Yuantai Crane Machinery Import & Export Co., Ltd.
Region: Henan, China
Price: $300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Hook:	Single Hook or customized;	Usage:	Construction Hoist;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alibaba Trade Assurance;	Place of Origin:	Henan China;
Hoist Type:	Trolley type/ Fixed type Chain Hoist;	Power supply:	as your request;
Packaging Detail:	remote control bag stage mode pull lift manual lifting 11.5 2 3 5 ton electric chain block hoist with electric trolley with hook: Fumigation wooden box;	Chain falls:	according to the capacity;
Condition:	New;	After Warranty Service:	Field maintenance and repair service;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,farms,restaurant,HOME USE,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Protection class:	IP 54;
Sling Type:	Chain;	Working class:	M3 25%ED;
Certification:	CE SGS ISO;	Working temperature:	-20℃~+40℃;
Port:	Qingdao/Tianjin/Shanghai or as your request;	Control Method:	Pendant control/remote control;
Local Service Location:	philippines,SAUDI ARABIA,Mexico,malaysia,Australia,algeria;	After-sales Service Provided:	Field maintenance and repair service;
Package Preview:	;	Supply Ability:	3000 Set/Sets per Month chain hoist;
Power Source:	Electric;	Showroom Location:	none;
Warranty:	1 YEAR;	Lift Speed:	6.8 m/min 5.4 m/min 2.7 m/min;
Chain Material:	G80 Oil Black;	Brand Name:	Yuantai;

Product Description

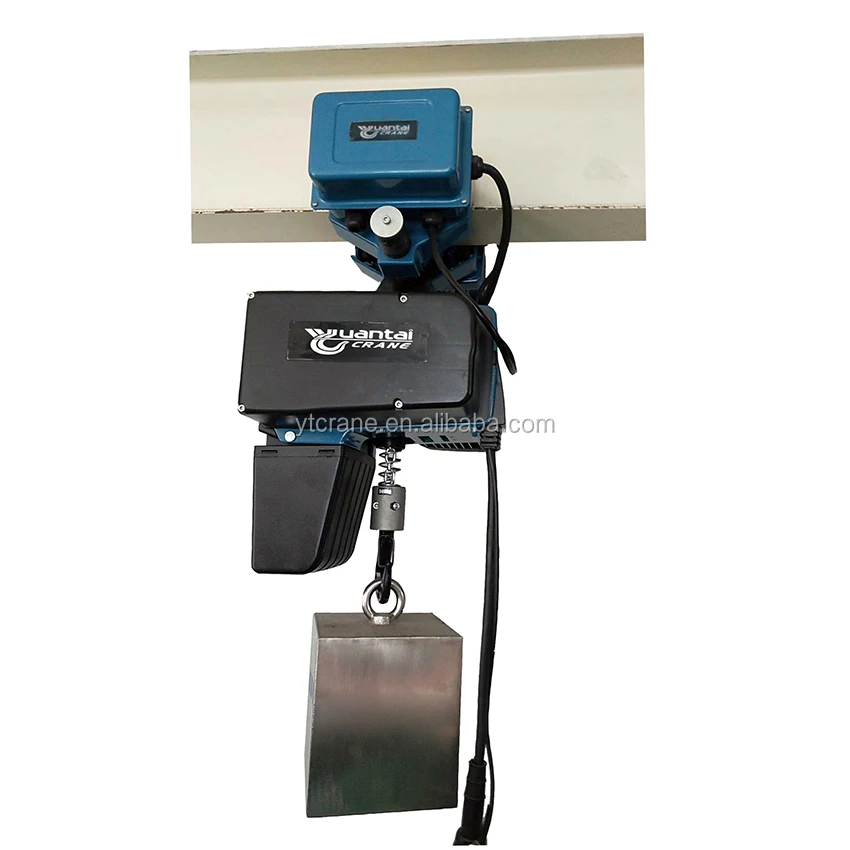

General Introduction of electric chain hoist

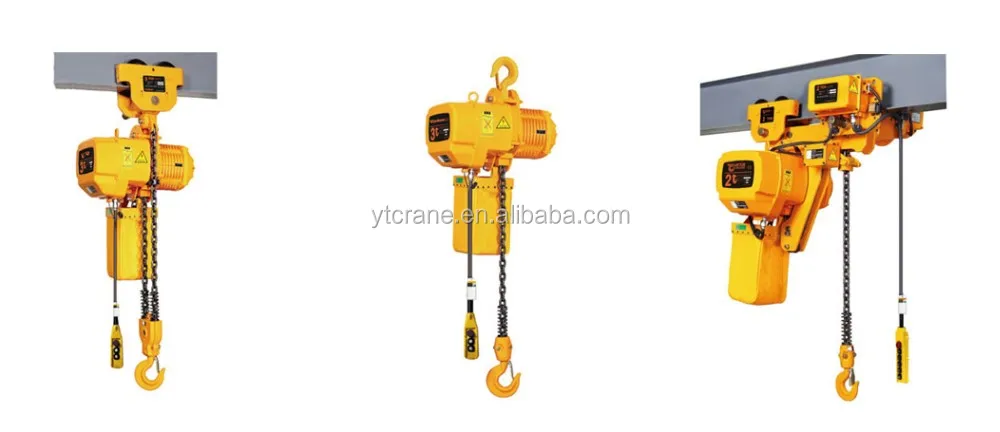

Electric chain hoist is a light duty crane lifting equipment. The lifting capacity of electric chain hoist can be from 0.5 ton to 50 ton. There are total three types of electric chain hoists for you. Manual trolley electric chain hoist, fixed type electric chain hoist, electric trolley electric chain hoist. Please choose as your working environment and specific requirements.

Electric chain hoist description (as customized)

lift capacity(T)	1	1.5	2	3	5	10	20
Testing loading(T)	1.25Gn	1.25Gn	1.25Gn	1.25Gn	1.25Gn	1.25Gn	1.25Gn
Motor power(kw)	1.5	3.0	3.0	3.0	3.0	3.0*2	3.0*2
Lift speed(m/min)	6.6	8.8	6.6	5.4	2.7	2.7	1.4
Lift chain quantity	1	1	1	1	2	4	8
Chain diameter(mm)	7.1	10.0	10.0	11.2	11.2	11.2	11.2
Net weight(kg)	61	108	115	122	151	300	480
lift 1 more meter increase weight(kg)	1.1	2.3	2.3	2.8	5.6	8.4	22
Min. Distance between hooks H(mm)	650	800	800	845	1030	1400	1470

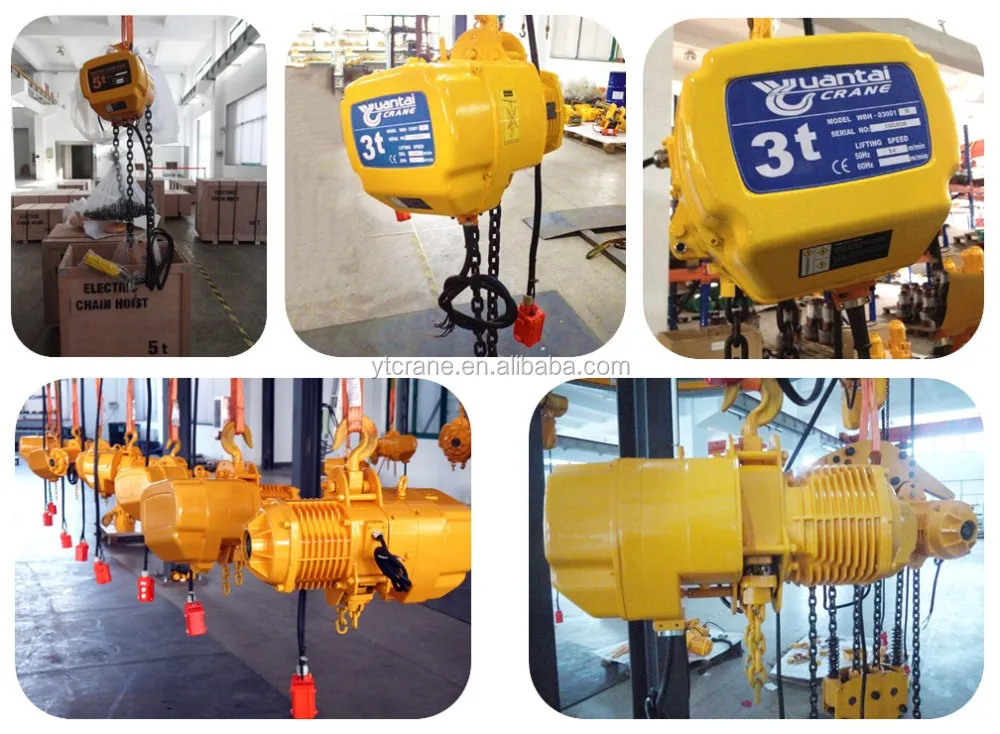

Detailed image

Detailed technology

Electric chain hoist shell

It is made of light aluminum alloy shell, light but hard. The cooling fin is especially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to places like chemical plant and electroplate factory.

Electric chain hoist chain

The chain shall adopt the imported FEC G80 ultra heat-treatable aluminum alloy chain. It can be safety used in power environments such as rain, sea water and chemicals

Electric chain hoist hook

It is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety flap

Electric chain hoist electrics

Chint brand, China famous brand,

Schneider brand,orignal from France

Inverse phase sequence protecting device

Electric chain hoist limit switch

The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety

Electric chain hoist pendant with cable

Yueqing Brand the best in china
Master Controller with waterproof Push Button for UP, DOWN, Forward, Reverse, start& Emergency Stop. It is light and durable.

Electric chain hoist remote control

Telecrane Brand the best in china
Master Controller with waterproof Push Button for UP, DOWN, Forward, Reverse, start& Emergency Stop. It is light and durable.

Packing & Delivery

Electric chain hoist packing

:packaged by plywood crate

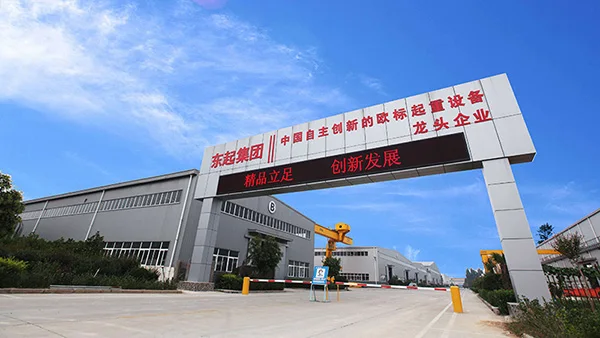

Yuantai Crane Machinery

Yuantai Crane Machinery is a professional materials handling exporter with a long trading history and rich technical experience over 20 years. We are located in Changyuan, which is the Chinese crane hometown, and we have passed the ISO, CE certification and etc. Our products are recommended by WTO. We always adhere to the faith of customers first and lasting contract, and hold a positive attitude to satisfy all customers' demand.

Yuantai Crane Certifications

Sticking on national standards, Yuantai has passed ISO9001 international quality system certification, ISO14004 environment management system certification, OHSA18001 which comprehensively promotes overall management level and makes DQCRANES known and welcomed by international customers.

Yuantai Crane Partners

Being committed to technological innovation and development and making superior quality products, Yuantai always cooperates with famous European machinery manufacturers, such as Britain SZW, German NORD and SIEMENS and French Schneider, etc. We believes only those components which are designed and manufactured strictly according to European Standards can makes the performance of our cranes reaches and even exceeds the international advanced level at present.

Exhibition and Visit

1.Lifting Capacity ? (the max lifting weight of the electric chain hoist you need,eg: 5 ton chain hoist)

2. Lifting height ? (the max distance from the hook of the chain hoist to the ground)

3.Chain hoist type? (Manual trolley, Fixed type, or Electric trolley)

4. power supply? (eg: 380V/50Hz/3phase ,how about in your factory ?)

5. Any other requirements? It's will be more conviently for our enigneer to quote you .
