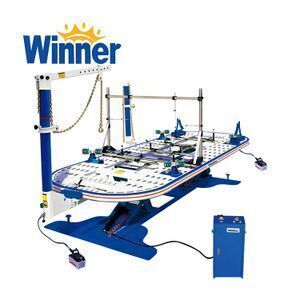

M30 WINNER Car Repair Frame Machine Auto Chassis Straightening Bench

Click here to contact

Product details

Weight:	2800Kg;	Tower working range:	360°;
Optional tower configurations:	2,3 or 4 towers;	Supply Ability:	30 Set/Sets per Month;
Pneumatic pressure:	0.8Mpa;	Using range:	Chassis Collision Work;
Optional deck length:	6100mm or 6700mm;	Brand Name:	WINNER;
Deck Structure:	Box structure with complete steel plate;	Payment Terms:	L/C,T/T,Western Union;
Optional lifting capacity:	4500Kg, 5500Kg or 6000kg;	Name:	car repair frame machine;
Standard tower quantity:	2;	Worktable Width:	2200mm/7'2.6'';
Worktable Length:	5800mm/19';	Warranty:	18;
Color:	Blue, white, red, grey or yellow, etc;	Model Number:	M-30;
Bench Height:	300mm-1050mm;	Port:	Qingdao/Guangzhou/Ningbo/Tianjin;
Max. Lifting Capacity:	3500 Kg;	Place of Origin:	Shandong China;
Packaging Detail:	Standard exporting packing, hard paperboard + plywood for platform packing, steel pallet for other accessories. Around 7cbm/set. M30 WINNER Car Repair Frame Machine Auto Chassis Straightening Bench;

Product Description

Model	M-30
Type	Double Tilt
Deck Structure	Box structure with complete steel plate 10mm+10mm

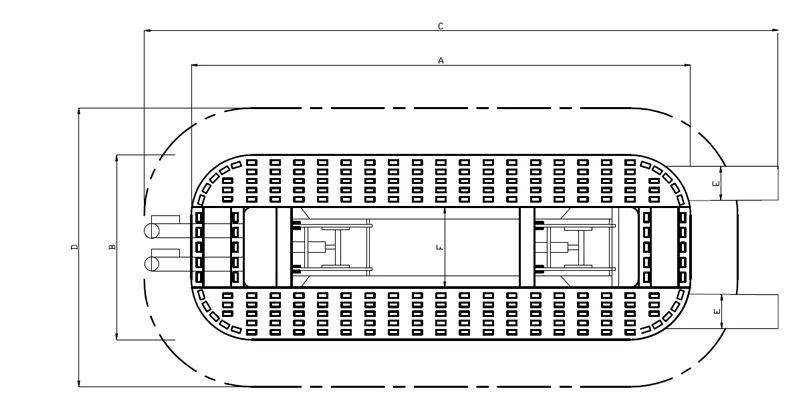

A: Deck Length	5800mm/19
B: Deck Width	2200mm/7'2.6''
Deck Working Height	30mm/11.8''-1050mm/3'5.3'
C:Maximum Length	8075mm/26'5.9''
D:Maximum Width	2675mm/8'9.3''
E:Width of Tradeway	625mm/2'0.6''
F:Width between Tradeways	950mm/3'0.4''
Standard Tower Quantity	2
Weight	2800kg/3307lbs
Life Capacity	3500kg/6614 lbs
Hydraulic Tower per Tower	10ton
Tower Working Range	360°
Hydraulic Pressure	70Mpa(10000psi)
Pneumatic Pressure	0.8Mpa
Optional Towers Configurations	2,3 or 4 towers
Optional Deck Length	6100mm/20' or 6700mm/22'
Optional Lifting Capacity	4500kg/10000 lbs, 5500kg/12000 lbs or 6000kg/13500 lbs
