200V 20Ohm Portable Battery Voltage and Resistance Tester

Supplier: Xiamen Tob New Energy Technology Co., Ltd.
Region: Fujian, China
Contact: Ms Ailsa Zheng
Price: $200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	XiaMen;	Operating Temperature:	-10-40℃;
Brand Name:	TOB;	Weight:	200g;
Related Industry:	Lithium Ion Battery;	Product Name:	Portable Battery Tester;
Voltage Resolution Ratio:	1mV, 10mV, 100mV;	Supply Ability:	10000 Set/Sets per Month Portable Battery Tester;
Voltage Testing Range:	0-1.999V, 2-19.99V, 20-199.9V;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Resistance Testing Range:	0-199.9mΩ, 200-1999mΩ, 2000-20000mΩ;	Dimension:	1307230mm;
Model Number:	TOB-SM8124;	Accuracy:	0.1mΩ, 1mΩ, 10mΩ;
Packaging Detail:	Standard Export Packing;	Place of Origin:	Fujian China;

TOB New Energy

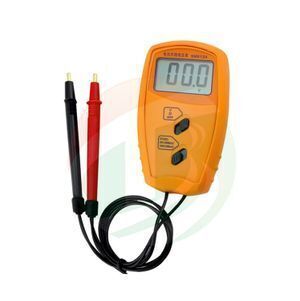

200V 20Ohm Portable Battery Voltage and Resistance Tester

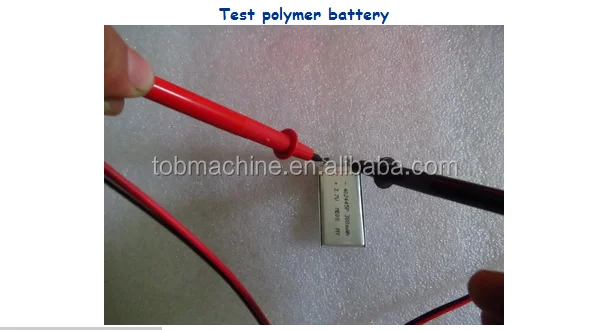

TOB-SM8124 Resistance and Voltage Tester is a portable battery tester used for battery voltage and internal resistance test, it is suitable for lithium-ion battery, nickel-metal hydride, lithium manganese, lead-acid battery and other single battery or battery pack with voltage 200V.

Model	TOB-SM8124
Voltage testing range	0-1.999V, 2-19.99V, 20-199.9V
Voltage resolution ratio	1mV, 10mV, 100mV
Inner resistance testing range	0-199.9mΩ, 200-1999mΩ, 2000-20000mΩ
Accuracy	0.1mΩ, 1mΩ, 10mΩ
Operating temperature	-10-40℃
Suitable battery	Lithium battery, Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on.

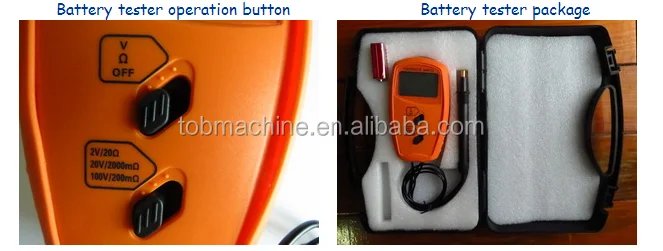

Structure	LCD display testing results Simple operation with Button press
Notice	This machine can not test battery with voltage more than 200V, Please don’t test battery more than 200V. It will damage the machine. Guarantee that the battery positive and negative connection is right.
*Dimension(LWH)*	1307230mm
Weight	200g
