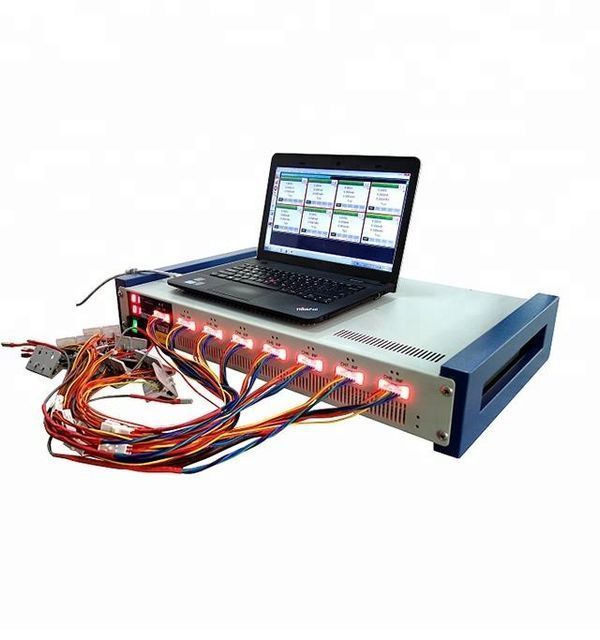

CE Certificate 8 Channels Digital Battery Tester Car Battery Tester Analyzer

electricity demand

110V AC 60Hz / 220V AC 50/60Hz, please choose in the option column

energy consumption

1.5W max per channel (<20W total)

current

• Range: 0.1mA – 300mA Programmable
• Accuracy: ±(0.1% RD + 0.1% FS)
• Resolution: 0.1mA

Voltage

• Range: 0.5 - 5V Programmable
• Accuracy: ±(0.1% RD + 0.1% FS)
• Resolution: 1mV

data sampling

maximum. Measurement cycle

9999 cycles

maximum. program steps

9999 steps

Product Size

Channels and Test Patterns

• Eight independently programmable channels. Each channel can have different working modes and functions independently
• Working modes include:
• Charging: constant current charging (CC), constant voltage charging (CV), constant current and constant voltage charging (CCCV)
• Discharge: constant current discharge (CD), constant power discharge (CP), constant resistance discharge (CR)
• rest and cycle

Programs and Software

• Included software sets various operating modes to evaluate battery capacity and life cycle of all types of rechargeable batteries
• Restricted threshold conditions include voltage, current, time, capacity, negative voltage slope, etc.
• Real-time monitoring window and integrated graph/data window can observe the test process more directly and efficiently
• During the test, the software provides help instructions and warnings
• 30-day free trial of MS Excel 2013 is pre-installed, which is convenient for you to output Excel data files.

Test reports and curves for analysis

• The software can create various curves according to user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, cycle number-charge-discharge capacity curve, cycle number-charge-discharge efficiency curve, etc.)
• Data reports are created by the software (export to Excel or .txt). Users can easily compare the performance of batteries tested in the channel visually and statistically

Protection and Auto-Recovery

If a power failure occurs during the test, the system will shut down all working channels. After the power is restored, the system will automatically restore those stopped channels to ensure the normal test without any data loss.

battery clip

• New Laptop with MS Window 8, MS Excel 2013 30 Days Free Trialalready includedand the latest version of the test software isInstalland calibrated for immediate use
• One PC can control up to 20 analyzers at the same time

obey

Warranty

• If you want to run multiple battery analyzers on one laptop, you can buy a laptop with multiple analyzers. If an analyzer is purchased without the base laptop, $300 will be deducted from the sale price.
• Up to 20 battery analyzers can be controlled by one computer and software.
• You can order an internal resistance tester to measure DC resistivity (click the image on the left for more information)
