small electric tube vacuum quartz glass tube furnace/High temperature furnace

Product details
Port:Zhengzhou,China;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,ESCROW;
Model Number:CY-T1700-80IT;Over-current alarm:YES;
Packaging Detail:wooden case;Heating rate:0-20C/min;
Brand Name:CYKY;Gas mixer:One way with Float Flow Controller;
Classification:Laboratory Heating Equipments;Type:Tube Furnace;
Supply Ability:1000 Set/Sets per Month;Place of Origin:China;
Name:Laboratory 1700C High Temperature Vacuum Tube Furnace CY-T1700-80IT;Corundum tube diameter:OD80*1000mm;
Working temperature:1650;Max temperature:1700;
Over-temperature alarm:YES;Heating element:MoSi2 Heating Elements;
Product Description

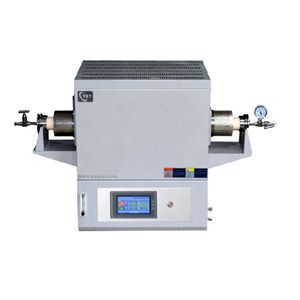

Laboratory 1700C High Temperature Vacuum Tube Furnace with O.D80*1000mm Heating zone

CY-T1700-80IT

CY-T1700-80IT is a compact tube furnace with High Purity MoSi2 heating rods and high purtiy corundum tube which can reach 1700℃.The tube furnace is controlled by a 30 segment programmable with high precision SCR (Silicon Controlled Rectifier) digital controller with7” touch panel. It is widely used in material & chemical labs to sinter all types of new material samples under vacuum or other gas conditions









Model No.

CY-T1700-80IT

Display

7” LCD Touch Panel

Limiting temperature

1650C

Working temperature

≤1600C

Heating rate

0-20℃/min

Heating Zone length

300mm, constant temperature zone150mm

Corundum tube diameter

OD80*1000mm

Temperature accuracy

± 1C

Heating element

High Purity MoSi2 Rod

Thermal couple

B TYPE

Cooling method

Double layer structure with fan cooling

Temperature control

30 steps programmable PID control

Chamber material

Alumina fiber

Over-temperature alarm

Yes

Over-current alarm

Yes

Sealing flange

S.S vacuum flange

Cooling method

air forced cooling

Gas mixer

One way with Float Flow Controller

Main Power

4.5Kw

Working voltage

AC220V,50Hz
