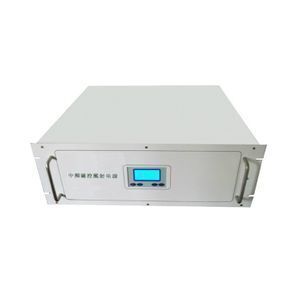

High Quality DBD Power Supply for Plasma Cleaning machine

Click here to contact
Product details
Dimensions:480*135*380(mm);Brand Name:CYKY;
Output Voltage:10KV;Port:zhengzhou,beijing,qingdao,etc;
Output Frequency:20~40Khz;Supply Ability:2000 Piece/Pieces per Month;
Payment Terms:D/P,T/T,Western Union;Cooling mode:Air-cooling;
Model Number:CY-40KV;Application:Plasma treatment equipment;
Packaging Detail:1 psc power supply in 1 carton package;Name:Plasma cleaning power supply;
Certification:CE Approved;Output Current:1A;
Place of Origin:china;Temperature:0~35℃;
Output Power:3kw;Input Voltage:AC220±10%V;

High Quality Switching DBD Power Supply for Plasma

Product Description
Description:
Model: DBD Series for DBD plasma cleaning equipment
Alias: Dielectric barrier discharge power supply
DBD power supplys with DB9 pin, it is controlled by analog signal or lcd screen in the front panel.
Factory default analog interface.

Feature:
1)Small volume, light weight, high efficiency, simple structure, easy to operation, powerful, stable and reliable.
2)The circuit adapt modular design, convenient debugging and maintenance.
3)Unique perfect protection make the power supply can work in all kinds of complicated environment, prompt function in both Chinese and English make the problem clear and accurate.

Main technical paramters:

Product Name

DBD power supply

Items No.

CY-5KV

Input Voltage

Single Phase 200-220VAC

Output

Power

5KW

Current

0.1A

Voltage

50KV

Frequency

20~50khz

Waveform

Quasi-sine-wave

Output Mode

Constant power, constant current, or constant voltage is for customized

Regulation Precision

≤1%

Efficiency

≥90%

Power Factor

cosΦ≥0.9

Power Switch

DB9 pin

Control Mode

1)Analog signal control: TTL potential

2)Digital interface control can be custoimized: RS-485 /RS-232

Insulation Class

B

Protect Grade

IP20

Protection Response Time

1uS

Insulation Resistance

Input – Output: ≥20MΩ

Input – Enclosure: ≥20MΩ

Insulating Strength

Input – Output: 2000VAC, 1minute

Input – Enclosure: 3500VAC, 1minute

Ambient Conditions

Temperature: (-20~50)℃

Display Mode

Chinese-English LCD display

Display Content

Working state, output voltage, output current, set value

Output Protection

Overvoltage, overcurrent and offset

Input Protection

Overvoltage, undervoltage, overcurrent, open phase

Insulation Class

B

Protect Grade

IP20

Protection Response Time

1uS

Input Shell Resistance

≥20MΩ

Output Shell Resistance

≥20MΩ

Input Withstand Voltage

2000V/1min

Output Withstand Voltage

3500V/1min

Temperature

0~35℃

Humidity

≤80%

Cooling mode

Air-cooling

Dimensions

480*135*380(mm)

Application:
Ozone generation, power supply for cnc plasma, plasma cleaning and plasma formation.etc.

Company Introduction

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.



We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Package

FAQ



Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.



Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.



Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.



Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.



Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.



Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.



More questions, please contact customer service
