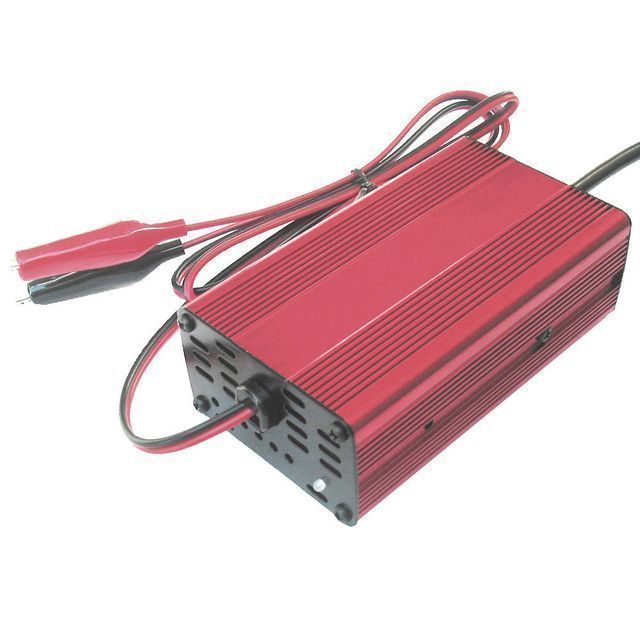

Custom Made 72V 1A 24S 88W 72 Volt Lithium Battery Pack Lifepo4 Charger

Supplier: YESA COMPANY (HONG KONG)
Region: Hong Kong S.A.R., China
Contact: Mr Robert Luo
Price: $30.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Output frequency:	Low Ripple DC	overload:	Yes, current limiting
efficiency:	>85% (at full load)	Input voltage:	AC100~240V
model:	LFP24S010A	Weight (kg):	0.5

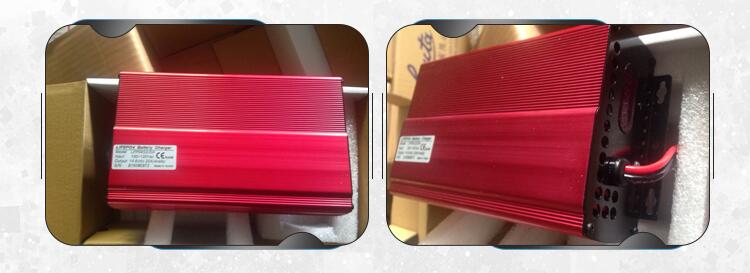

Battery reverse connection:	yes via fuse	Packaging Details:	Each in a box, 1 box in a carton
Precharge 2 (<2.9V/battery) Timer 1:	0.5A+/-5%	Output current:	0-1A
Precharge 1 (<2.5V/battery) Timer 1:	0.25A+/-5%	payment terms:	T/T, Western Union
Dimensions (mm):	8650160	Output Power:	88W
Supply capacity:	50000 pieces per month	port:	Taiwan
brand:	Yes	The output voltage:	87.6V+/-0.5V
short circuit:	Yes, automatic shutdown	Origin:	Taiwan, China
Recharge (<3.1V/battery):	74.4V+/-0.2V	cool down:	not applicable

feature

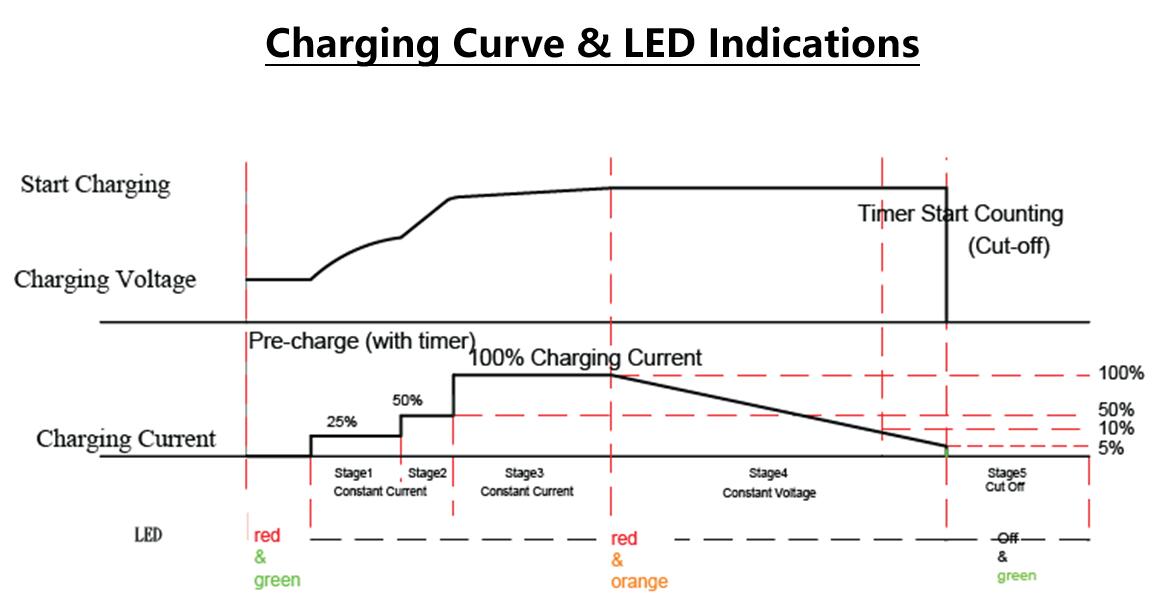

1. 3-stage charging: 1st-25% of rated current; 2-50% of rated current; 3-100% of rated current (equalizer).
2. Automatic recharging battery: If the voltage of the battery is <@3.1V/cell after the battery is fully charged, the charger will automatically recharge the battery.
3. Short-circuit protection: The charger O/P is automatically cut off when short-circuited.
4. Overload protection: Automatically limit current O/P when the charger is overloaded.
5. Unique digital meter display: Indicates charging voltage, current, battery capacity (percentage and AH) and charger status (timer, pre-charge,...)
3 LED display: red (power), green (full charge) and orange (equalizer charge)

Model		LFP24S010A
enter	Voltage	AC100~240V
enter	frequency	47-63 Hz
output	Voltage	DC87.6V +/-0.3V
	rated current	1.0A+/-5%
	Precharge 1 (<2.5V/battery) Timer 1	0.25A+/-5%
	Precharge 2 (<2.9V/battery) Timer 2	0.5A+/-5%
	<10% of rated current Timer3	0.1A+/-5%
	<5% of rated current cut-off	0.05A+/-5%
	Recharge (<3.1V/Cell)	74.4V+/-0.2V
	Watts	88W
	efficiency	>85% (at full load)
Protect	Battery reversed	yes via fuse
	short circuit	Yes, automatic shutdown
	overload	Yes, Current Limited
	cooling fan	not applicable
Mechanical	Dimensions (mm)	8650160mm
Mechanical	Weight (kg)	0.5

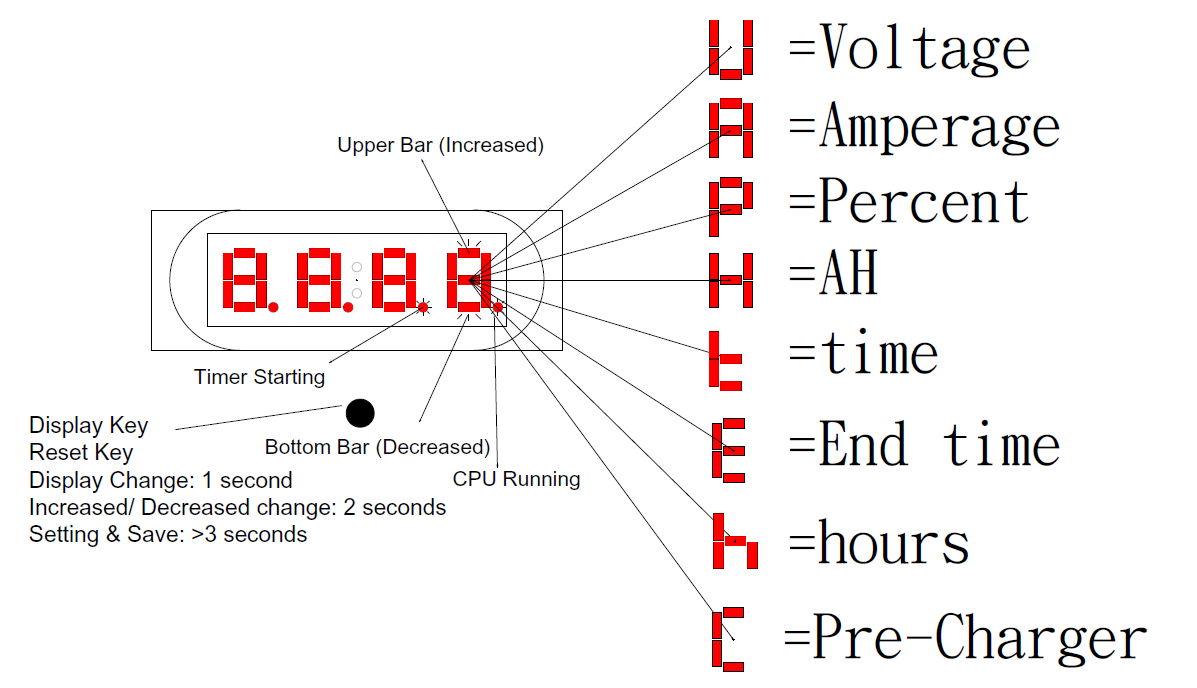

Digital instrument indication:

operate:
1. Connect the charger system securely to a wall outlet. The battery charger should only be plugged into a grounded outlet.
2. Connect the alligator clips to the battery terminals (red clip positive terminal; black clip negative terminal)
3. Turn on the power switch located on the rear panel, then the red LED will light up, and the dual-color LED will confirm the status of the charger. The LCD (or digital meter) will confirm the charge level of the charger and the battery level (or O/P voltage)

picture	12V (4 grids)	16V (5 grids)	24V (8 grids)	36V (12 grids)	48V (16 grids)	72V (24 grids)
	LFP04S060A 6A 88W	LFP05S045A 4.5A 88W	LFP08S030A 3A 88W	LFP12S020A 2A 88W	LFP16S015A 1.5A 88W	LFP24S010A 1A 88W
	LFP04S100A 10A 200W	LFP05S080A 8A 150W	LFP08S070A 7A 200W	LFP12S045A 4.5A 200W	LFP16S035A 3.5A 200W	LFP24S020A 2A 200W
	LFP04S200A 20A 300W	LFP05S150A 15A 270W	LFP08S120A 12A 300W	LFP12S070A 7A 300W	LFP16S050A 5A 300W	LFP24S035A 3.5A 300W
	LFP04S250A 25A 400W	LFP05S200A 20A 370W	LFP08S140A 14A 400W	LFP12S090A 9A 400W	LFP16S070A 7A 400W	LFP24S045A 4.5A 400W
	LFP04S300A 30A 500W	LFP05S250A 25A 460W	LFP08S170A 17A 500W	LFP12S110A 11A 500W	LFP16S085A 8.5A 500W	LFP24S055A 5.5A 500W
	LFP04S450A 45A 650W	LFP05S350A 35A 640W	LFP08S230A 23A 650W	LFP12S150A 15A 650W	LFP16S110A 11A 650W	LFP24S075A 7.5A 650W
	LFP04S500A 50A 800W	LFP05S400A 40A 730W	LFP08S250A 25A 800W	LFP12S170A 17A 800W	LFP16S130A 13A 800W	LFP24S085A 8.5A 800W
	LFP04S660A 66A 970W	LFP05S500A 50A 912W	LFP08S330A 33A 970W	LFP12S220A 22A 970W	LFP16S170A 17A 970W	LFP24S110A 11A 970W
	LFP04S900A 90A 1300W	LFP05S700A 70A 1280W	LFP08S450A 45A1300W	LFP12S300A 30A1300W	LFP16S230A 23A1300W	LFP24S150A 15A1300W
	LFP04S1000A 100A 1470W	LFP05S800A 80A 1460W	LFP08S500A 50A 1470W	LFP12S330A 33A 1470W	LFP16S250A 25A 1470W	LFP24S170A 17A 1470W
	LFP04S1320A 132A 1940W	LFP05S1000A 100A 1825W	LFP08S660A 66A 1940W	LFP12S440A 44A 1940W	LFP16S330A 33A 1940W	LFP24S220A 22A 1940W

1.3, 5, 6, 7, 9, 10, 11 and other batteries can be provided upon request.
2. The above specifications are subject to change without prior notice.

Accessories reference

DC output cable index
No.	cable (black red)	suitable for project code	standard Accessories
1	16AWG	LFP04S060A(12V 6A) LFP04S100A(12V 10A) LFP05S045A(16V 4.5A) LFP05S080A(16V 8A) LFP08S030A(24V 3A) LFP08S070A(24V 7A) LFP12S020A(36V 2A) LFP12S045A(36V 4.5A) LFP16S015A(48V 1.5A) LFP16S035A(48V 3.5A) LFP24S010A(72V 1A) LFP24S020A(72V 2A)	yes
2	14AWG	LFP08S120A(24V 12A) LFP08S140A(24V 14A) LFP12S070A(36V 7A) LFP12S090A(36V 9A) LFP12S110A(36V 11A) LFP16S050A(48V 5A) LFP16S070A(48V 7A) LFP16S085A(48V 8.5A) LFP24S035A(72V 3.5A) LFP24S045A(72V 4.5A) LFP24S055A (72V 5.5A)	yes
3	12AWG (option)	LFP05S150A(16V 15A) LFP05S200A(16V 20A) LFP08S170A(24V 17A) LFP12S150A(36V 15A) LFP12S170A(36V 17A) LFP12S220A(36V 22A) LFP16S110A(48V 11A) LFP16S130A(48V 13A) LFP16S170A(48V 17A) LFP24S075A(72V 7.5A) LFP24S085A(72V 8.5A) LFP24S110A(72V 11A)	no
4	12AWG	LFP04S200A(12V 20A) LFP04S250A(12V 25A)	yes
5	10AWG (option)	LFP05S250A(16V 25A) LFP08S230A(24V 23A) LFP08S250A(24V 25A) LFP12S300A(36V 30A) LFP16S230A(48V 23A) LFP24S150A(72V 15A)	no
6	10AWG	LFP04S300A (12V 30A)	yes
7	8AWG (option)	LFP04S450A(12V 45A) LFP04S500A(12V 50A) LFP05S350A(16V 35A) LFP05S400A(16V 40A) LFP05S500A(16V 50A) LFP08S330A(24V 33A) LFP12S330A(36V 33A) LFP16S250A(48V 25A) LFP24S170A (72V 17A)	no
8	6AWG (option)	LFP04S660A(12V 66A) LFP05S700A(16V 70A) LFP08S450A(24V 45A) LFP08S500A(24V 50A) LFP12S440A(36V 44A) LFP16S330A(48V 33A) LFP24S220A (72V 22A)	no
9	4AWG (option)	LFP04S900A(12V 90A) LFP04S1000A(12V 100A) LFP05S800A(16V 80A) LFP05S1000A(16V 100A) LFP08S660A (24V 66A)	no
10	3AWG (option)	LFP04S1320A (12V 132A)	no
