The output voltage: | 24 VDC ±1 % | port: | Ningbo/Shenzhen/Guangzhou |
Nominal power consumption: | 145 VA | Frequency Range DC: | 0 Hz |
place of origin; place of origin: | Germany | Supply capacity: | 1000 pieces per month |
brand: | Phoenix Contact | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Credit Card |
Maximum switching voltage: | 30 VAC/24 VAC | Nominal output current (IN): | 5 |
AC Frequency Range: | 45 Hz... 65 Hz | Input voltage: | 100 VAC ~ 240 VAC |
Output current: | 5 A (-25 °C ... 60 °C, UOUT = 24 V DC) | Nominal input voltage range: | 100 VAC... 240 VAC |
model: | QUINT-PS/1AC/24DC/5 | Package preview: | |
Output Power: | 120 watts | Supply voltage Voltage type: | AC/DC |

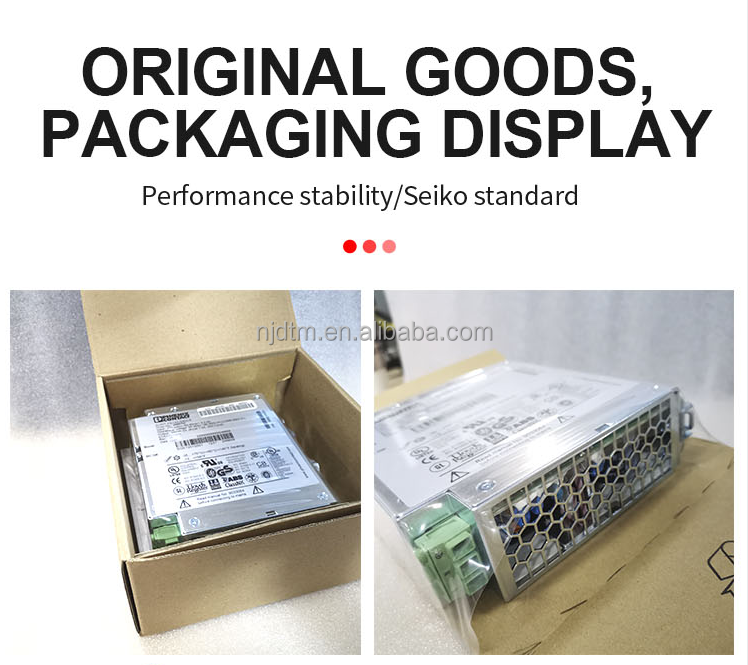

Nominal output voltage: | 24 VDC ±1 % | Packaging Details: | Original carton Packing unit: 1 piece Weight per piece (including packaging): 1,022 grams |

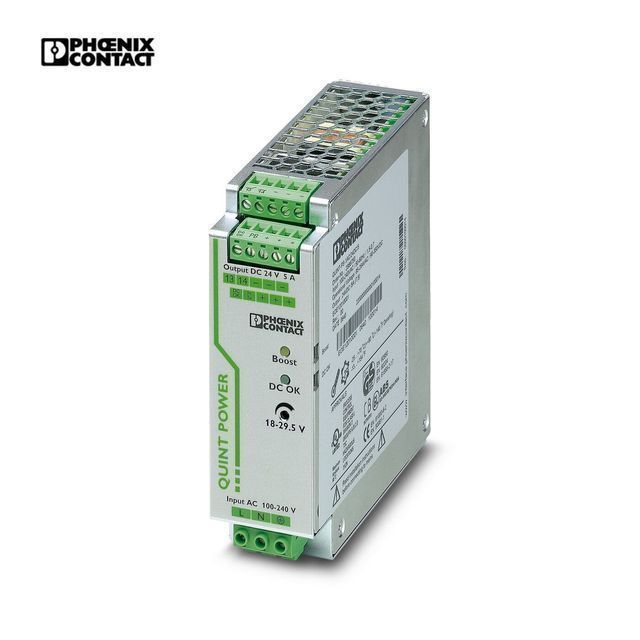

PHOENIX CONTACT Power supply unit - QUINT-PS/1AC/24DC/ 5Order number: 2866750QUINT POWER power supply with maximum functionality. QUINT POWER circuit breakers are magnetic so they can trip quickly at six times the rated current for selective and cost-effective system protection. The high level of availability of the system is additionally guaranteed thanks to preventive function monitoring, since it reports critical operating states before errors occur.
Reliable starting of heavy loads with static power reserve POWER BOOST. Thanks to the adjustable voltage, the entire range between 5 V DC ... 56 V DC is covered.
Card | Phoenix Contact |
order number | 2866750 |
connection method | Pluggable screw connection |
Product Category | power supply |
input fuse | 5 A (slow blow, internal) |
Nominal input voltage range | 100 VAC... 240 VAC |
AC frequency range | 45 Hz... 65 Hz |
Nominal output voltage | 24 VDC ±1 % |
Output Power | 120 watts |
| Width: 40mmHeight: 130mm Depth: 125mm |
signal type | to leadActive switch output
relay contacts |
Q1: Are you a trading company or a manufacturer?A1: We are a professional manufacturer with our own independent export right. And we are also senior distributors of Phoenix Contact and Weidmüller!Q2: How about the after-sales service?A1: Our professional online sales will solve all your questions within 24 hours. Of course, if you have any questions after receiving the goods, we will also provide you with suggestions!Q3: How long is your delivery time?A3: We have many products in stock. We can send products in stock within 3 working days. If there is no stock, or insufficient stock, we will check the delivery time with you. Don't worry about everything, here we will do it for you!Q4: What is your shipping method?A4: Usually ship by express -- UPS, DHL, Fedex...or the way you want (by sea or by air)! Don't worry, we'll find the cheapest way for you! If you have a Chinese freight forwarder, we can serve you too!Q5: What kind of payment do you accept? Can I pay in RMB?A5: We accept T/T, Ali payment and Paypal. Please make sure we can receive an invoice for the same amount. And you can pay in RMB, no problem.
