KYEC 4P Crane Safety power strips bus conveyor belt

Supplier: KUNYEE INDUSTRIAL LTD.
Region: Taiwan, China
Contact: Mr Oscar Tan
Price: $3.50 / >=100 meters
Min. Order: 100 meters

Click here to contact

Product details

Output frequency:	50~60Hz	Output current:	~200A
Model 200A:	KY-AN4020	brand:	KYEC
Voltage:	<600V	Packaging Details:	wooden roll
The output voltage:	<600V	origin:	Taiwan
Model 100A:	KY-AN4010	200A copper size:	3.8*11mm
Supply capacity:	30000m power rail per month	Poles:	4P
Output Power:	75 amps	Origin:	Taiwan, China
Copper Purity:	>99.9%	payment terms:	L/C, T/T
Model 75A:	KY-AN4007	model:	KY-AN0220
100A copper size:	2.8*10mm	Input voltage:	<600V
port:	Keelung	75A copper size:	2*10mm

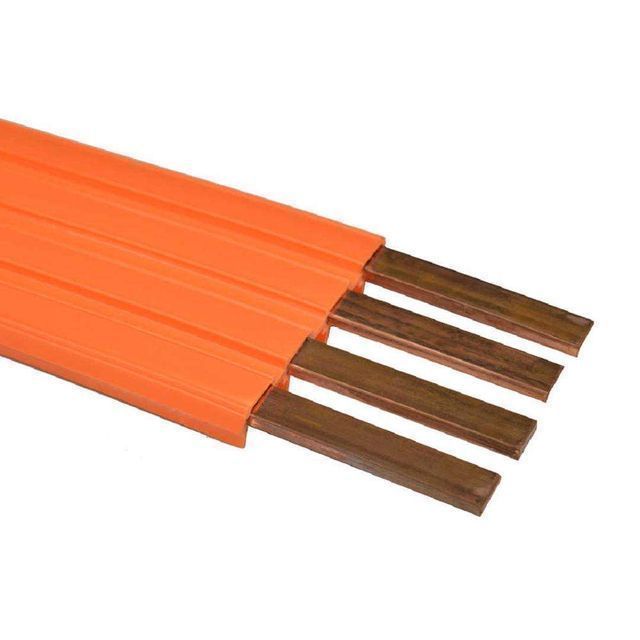

KYEC 4P Crane Safety Power Rail Conductor Busbar

Left click on this photo to see more products....or check out our website:http://www.kyec-mit.com.tw/index.php/zh/

Product Description

KYEC Overhead Crane Electric Hoist 3P Safety Power Rail

Features of Safe Power Rails

Safe, stable, no interface (except power supply point).
Small size, easy installation and economical.
Vinyl chloride + impact-resistant insulator, small size, easy installation, economical, special formula, physical resistance.

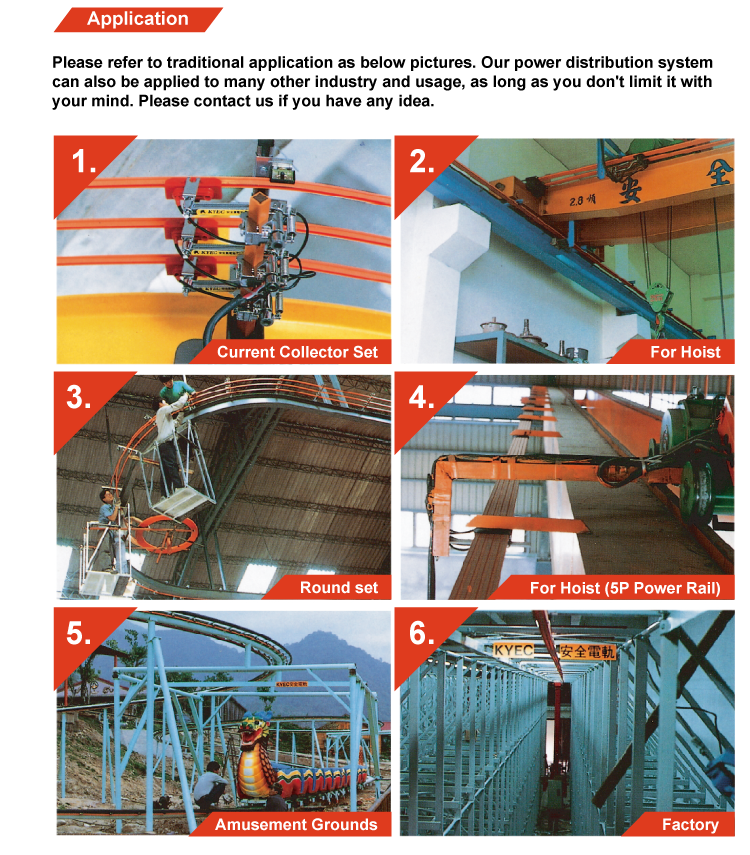

It is suitable for all kinds of curved electric hoists.

detail

Rating: 3P, 600V, 50~200A.
Conductor Material: Copper.
Insulation sleeve material: UPVC (heat resistance: /90°C).

attention! Copper thickness and width are critical to power rail selection! ! Some companies reduce the copper to lower the price of power rails of the same ampere rating.

In effect, it sacrifices your security and privileges. Less copper will cause your device to use more power and sometimes overheat and cause a fire! !

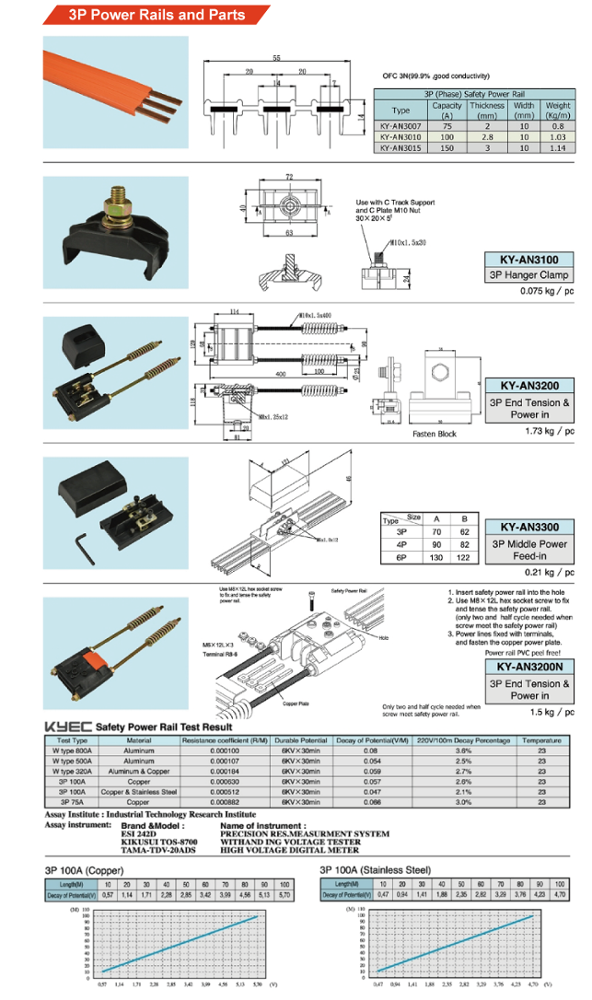

KYEC Secure Power Rail
type	Part Number	capacity (A)	copper thickness (mm)	copper width (mm)	weight (kg/cubic meter)
Three in one 75A	KY-AN3007	75	2	10	0.8
Three in one 100A	KY-AN3010	100	2.8	10	1.03
Three in one 150A	KY-AN3015	150	3	10	1.14
Three in one 200A	KY-AN3020	200	3.8	11	1.42
4 in 1 75A	KY-AN4007	75	2	10	1.1
Four in one 100A	KY-AN4010	100	2.8	10	1.4
Four in one 200A	KY-AN4020	200	3.8	11	1.9
Five in one 100A	KY-AN5009	100	2.8	10	1.7
Six in one 75A	KY-AN6007	75	2	10	1.64
Six in one 100A	KY-AN6010	100	2.8	10	2.06
