Laboratory Spray Dryer with Built-in Air Compressor, Peristaltic Pump and Glass Chambers

Product details
Brand Name:CYKY;Voltage:220V;
Type:Spray Drying Equipment;After-sales Service Provided:Engineers available to service machinery overseas;
Weight:1985KG;Max pressure:686Pa;
Evaporation Capability:1500mL/H ~ 2000ml/h;Packaging Detail:Plastic paper inside,polyfoam filled,wooden box outside;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,alibaba trade assurance order;Drying Time:1~1.5S;
Name:laboratory spray dryer;Outlet air:30 ℃ ~140℃;
Certification:CE/TUV;Item:Laboratory Spray Atomizer;
Place of Origin:Henan China;Condition:New;
Warranty:One Year;Inlet air:30 ℃ ~300℃;
Power(W):3000W;Dimension(L*W*H):650x500xx1300mm;
Supply Ability:120 Set/Sets per Month laboratory spray dryer;Port:Zhengzhou,etc.;

Laboratory Spray Atomizer with Build-in Air Compressor, Peristaltic Pump and Glass Chambers- MSK-USP-6000

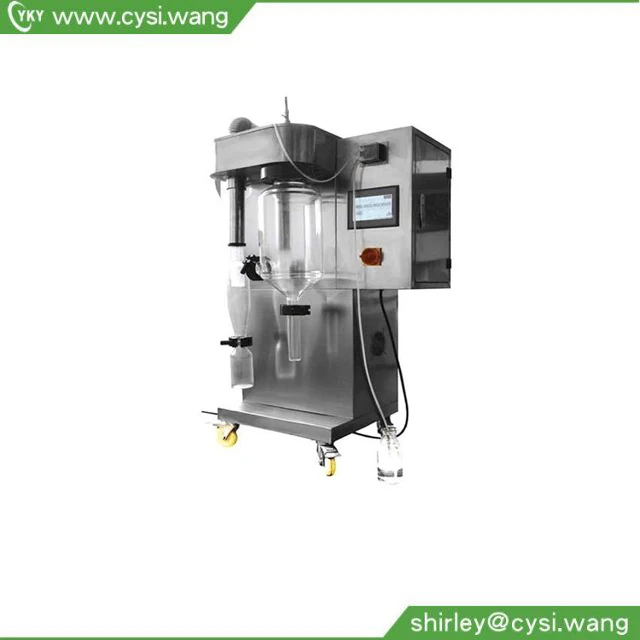

MSK-USP-6000 is laboratory spray dryer that generates fine particles by evaporating the atomized liquid

spray and been collected through the cyclone separating process. It is suitable for synthesizing heat sensitive

materials for a board range of applications such as Pharmaceuticals, Nanotechnology, Catalysts, Fuel cells, and Batteries.





System Features

Dual channel spray nozzle with anti-clogging function prevents the nozzle from being clogged during the spray process

Transparent receiving tank, drying chamber and cyclone separator for easy process monitoring

Borosilicate glass chamber resists strong acid/alkali and high temperature

The use of quick clamps allows easy components removal and cleaning

The built-in air compressor is quiet (50dB) and clean (oil-mist free).

Built-in PID temperature controller for accurate Inlet/outlet air temperature control

User-friendly touch screen enables easy adjustment of temperature, air flow & pressure, pumping speed and anti-clogging interval

Solvent feeding via peristaltic pump, rate is adjustable

Input Voltage & Power

208~220VAC, 3000W

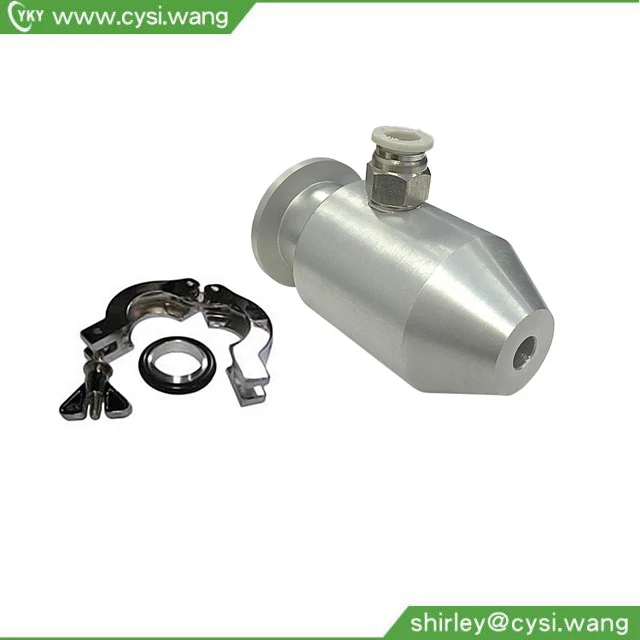

Spray Nozzle (Atomizer)

Compress gas assist spray nozzle disperses spray liquid into fine droplets which are subsequently dried in the chamber

Dual channel design allows you mix and spray two kinds of solution at the same time

Anti-clogging nozzle, auto anti-clogging interval adjustable

Co-current downward spray

Temperature Control

Inlet air: 30 ℃ ~300℃

Outlet air: 30 ℃ ~140℃

PID temperature controller with ±1℃ accuracy

Drying Time

1~1.5S

Drying Air

0-330m^3 /h,

Max pressure: 686Pa

Peristaltic Pump

Solvent is fed by peristaltic pump

Feeding rate adjustable: 30~2200ml/h

Evaporation Capability

1500mL/H ~ 2000ml/h

Certification

CE Certified

Net Weight

130Kg

Dimensions

650 Lx 500 Wx 1300mm H

Shipping Weight

430 lbs

Warranty

One-year limited manufacturer warranty with lifetime support



Our Services



1. Factory prices with the best quality.

2. One year free-of-charge maintenance for all the dental equipment

3. Customized service for special demand

4. Fast and flexible delivery, by sea, by air, by express

5. Quick response within 24 hours

How to order

1. If you are interested in our products, please tell us the model number and quantity.

2. We will make a proforma invoice for your order.

3. We will deliver the product ASAP on receipt of the payment

Guarantee

1. Guarantee for one year after shipment.

Payment

1. Western Union

2. PayPal

3. Secure Payment through Alibaba

4. Telegraphic transfer

5. L/C



Company Information

Founded in 2013 by a group of professional engineers.CY is a high and new technology enterprise registered in Zhengzhou,Henan province. CY Scientific Instrument mainly provide regular furnace for lab. Also do customized

furnace and some other related accessories and equpments in high quality and low cost precision machines for

material research and R&D lab.
