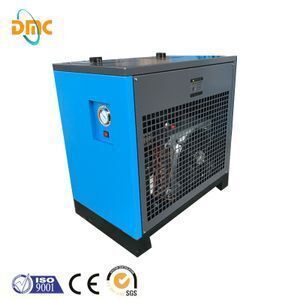

Air compressed dryer 3.6m3 R407C R134A eco-friendly refrigerant air dryer for compressor

Product details
Capacity:3.6m3/min;Place of Origin:China;
Warranty:12 Months;Refrigerant:R22A R407C R134A;
Single package size:100X55X80 cm;Single gross weight:120.0 KG;
Weight:76;Brand Name:DMC;
Delivery Detail:5 days after payment;Model Number:SE-30A;
Condition:New;Power(W):585;
Dimension(L*W*H):800*500*650mm;Packaging Detail:Carton;
Type:Freeze Drying Equipment;Package Preview:;
Voltage:220V 50HZ or 110V 60HZ;After-sales Service Provided:Engineers available to service machinery overseas;
Selling Units:Single item;Certification:CE ISO SGS;

Refrigerated dryer



Product features:

  • Top structure design,pressure less than 0.02Mpa.
  • Low pressure dew point 2-3℃,working pressure 0.3-1.0Mpa.
  • Famous brand refrigerate compressor,more higher effiency and reliability.
  • Electricity power 220v/1ph(SE10-80) 380v/3ph(SE100-100),also 110v or 220v 60hz type.
  • Environment protected refrigerant R134A R407C R410A can be chosen.

Main tech parameters:

  • Model:SE-30A
  • Air capacity: 3.6 m3/min
  • Operating pressure:0.7-1.0Mpa
  • Inlet temperature: less than 45℃
  • Ambient temperature: less than 40℃
  • Power supply: 220v/50hz or 110v/60hz
  • Refrigerant type: R134A,R410A,R407C can be customized
  • Power consumption: 0.9KW
