Supply Ability: | 5000 Piece/Pieces per Day H11 V-bank hepa filter; | Place of Origin: | Shanghai China; |
Medium: | fiber glass for H10 hepa filter; | Warranty for second filter: | 6 months; |
Brand Name: | H11 V-bank hepa filter; | Delivery Detail: | 5-15 days H11 V-bank hepa filter; |
Contrstruction: | frame,pocket; | Product range: | hepa filter; |
Usage: | H11 V-bank hepa filter; | Model Number: | H11 V-bank hepa filter; |
item: | V-Bank Carbon Activated Filter; | Standard: | EN779-2012; |
Application: | automobile,cleanroom; | Working temperature: | 80 degrees c for v bank hepa filter; |
Packaging Detail: | carton box for filters, and poly bag for H11 V-bank hepa filter; | Maximum temperature: | 100 degrees c for fiberglass; |
Port: | Shanghai H11 V-bank hepa filter; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal H11 V-bank hepa filter; |

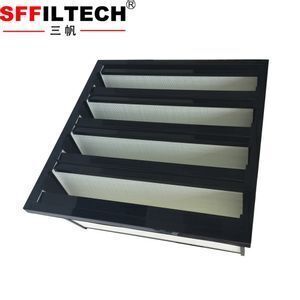

Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter
Features:
1.Frame:ABS Plastic
2.Media: Multi-layer super fine carbon activated synthetic
3.Application:industry of pharmaceutical,semiconductor Product,genetic engineering
4.Remove VOC ,Ozone,Acidic and Alkaline Gases and so on
5. Excellent adsorption capacity,V shape construction has Large Media area and Long service life
6.Efficiency: G4
Wide size are available.
Structure Description:
V-Bank Carbon Activated filters consist of filters elements in High Impact Polystyrene (HIPS) cell sides for assembly in front or rear access standardized universal holding frames or side access track systems to fit standard dimension filter sections in air handling units. V-Bank Carbon Activated filter comes factory-ready for installation. No special tools are needed to install or replace the filter element. The individual V-Bank Carbon Activated filters seals and holds in the frame with the latching system or in the track with its header and the track-specific gasket system. Side seals gaskets are supplied upon request.
- Specially designed for city VOC gases
- Rigid construction, easy installation
- Corrosion resistance, non-metal design
- For Fresh Air AHU and Recirculation Units
Type:V-bank filter No of banks: 4V Surface:24m² Size:585X585X292mm Efficiency:99.995% Characteristic:big air flow with comparative low prefilter drop,long enough use life. The air filter are not limited to the below table, but can be produced according to the customers' design and specifications
Part NO. | Dimensions (mm) | Dimensions (inch) | Type | No. of Banks | Remark | |
1 | 277*585*292 | 11*23*11.5" | V-Bank | 4V |
1,Be from low efficiency(prefilter) to high efficiency (HEPA, ULPA)
2,Be big air flow with comparative low pressure drop, long enough use life
3,The air filters not limited to the table, but can be produced according to the customers’ design and specifications.
4,The HVAC air filter can be produced according to the customers’ design and requirements | |
2 | 305*305*70 | 12*12*2.8" | Panel | – | ||
3 | 305*305*124 | 12*12*4.9" | V-Bank | 4V | ||
4 | 305*305*149 | 12*12*5.9" | V-Bank | 4V | ||
5 | 305*610*292 | 12*24*11.5" | V-Bank | 5V | ||
6 | 380*380*203 | 15*15*8" | V-Bank | 6V | ||
7 | 380*380*292 | 15*15*11.5" | V-Bank | 6V | ||
8 | 457*457*292 | 18*18*11.5" | V-Bank | 6V | ||
9 | 508*508*203 | 20*20*8" | V-Bank | 4V | ||
10 | 585*585*292 | 23*23*11.5" | V-Bank | 4V | ||
11 | 610*450*150 | 24*17.8*6" | V-Bank | 5V | ||
12 | 610*610*292 | 24*24*11.5" | V-Bank | 6V | ||
13 | 610*610*292 | 24*24*11.5" | V-Bank | 4V | ||
14 | 610*610*292 | 24*24*11.5" | V-Bank | 5V | ||
15 | 910*610*292 | 36*24*11.5" | V-Bank | 5V | ||
16 | 595*900*292 | 23.5*35*11.5" | V-Bank | 7V | ||
17 | 592*287*295 | 23.3*11.3*11.6" | V-Bank | 2V | ||
18 | 490*287*295 | 19.3*11.3*11.6" | V-Bank | 2V | ||
19 | 287*287*295 | 11.3*11.3*11.6" | V-Bank | 2V | ||
20 | 610*287*295 | 24*11.3*11.6" | V-Bank | 2V | ||
21 | 490*592*292 | 19.3*23.3*11.5" | V-Bank | 3V | ||
22 | 490*490*292 | 19.3*19.3*11.5" | V-Bank | 3V | ||
23 | 490*287*292 | 19.3*11.3*11.5" | V-Bank | 3V | ||
24 | 592*592*295 | 23.3*23.3*11.6" | V-Bank | 3V | ||
25 | 592*490*295 | 23.3*19.3*11.6" | V-Bank | 3V | ||
26 | 592*287*295 | 23.3*11.3*11.6" | V-Bank | 3V | ||
27 | 592*592*292 | 23.3*23.3*11.5" | V-Bank | 3V | ||
28 | 592*490*292 | 23.3*19.3*11.5" | V-Bank | 3V | ||
29 | 592*287*292 | 23.3*11.3*11.5" | V-Bank | 3V | ||
30 | 592*592*295 | 23.3*23.3*11.6" | V-Bank | 4V | ||
31 | 592*490*292 | 23.3*19.3*11.5" | V-Bank | 4V | ||
32 | 592*287*295 | 23.3*11.3*11.6" | V-Bank | 4V | ||
33 | 592*592*295 | 23.3*23.3*11.6" | V-Bank | 4V | ||
34 | 592*490*295 | 23.3*19.3*11.6" | V-Bank | 4V | ||
35 | 592*287*295 | 23.3*11.3*11.6" | V-Bank | 4V | ||
36 | 610*610*292 | 24*24*11.5" | V-Bank | 4V | ||
37 | 305*610*295 | 12*24*11.6" | V-Bank | 5V | ||
38 | 610*610*295 | 24*24*11.6" | V-Bank | 5V | ||
39 | 305*305*292 | 12*12*11.5" | V-Back | 4V | ||
40 | 600*300*292 | 23.6*11.8*11.5" | V-Back | 5V | ||
41 | 460*600*150 | 18*23.6*5.9" | V-Back | 4V | ||
42 | 425*425*292 | 16.8*16.8*11.5" | V-Back | 4V | ||
43 | 484*484*220 | 19*19*8.7" | V-Back | 4V |
| |
44 | 320*320*220 | 12.6*12.6*8.7" | V-Back | 6V |
| |
45 | 1220*610*150 | 48*24*6" | V-Back | 4V |
| |
46 | 1220*610*292 | 48*24*11.5" | V-Back | 5V |
