Place of Origin: | China; | Soap's pattern: | according to your requirement; |
Brand Name: | LIGHT; | Applicable Industries: | Hotels,HOME USE,Food & Beverage Shops; |
Local Service Location: | none; | Showroom Location: | none; |
Soap's shape: | according to your requirement; | Payment Terms: | L/C,D/P,T/T,Negotiable; |
Supply Ability: | 10 Set/Sets per Month; | After-sales Service Provided: | Field installation, commissioning and training; |
Port: | Qingdao port, China; | Warranty: | 1 YEAR; |
Product Type: | soap; | After Warranty Service: | Video technical support,Online support,Spare parts; |
Capacity: | 300-500 kg/h; | Packaging Detail: | 20'GP or 40'HQ; |
Key Selling Points: | Easy to operate; | Condition: | New; |
Small scale soap production line
Breif introduction
This soap line is used to produce laundry soap bar with fatty acid content (active content) from 40% to 80%. Material is soap noodle. Capacity is 300 to 500 kg/hr. The dimension and pattern of the soap can be made by customer’s requirements.

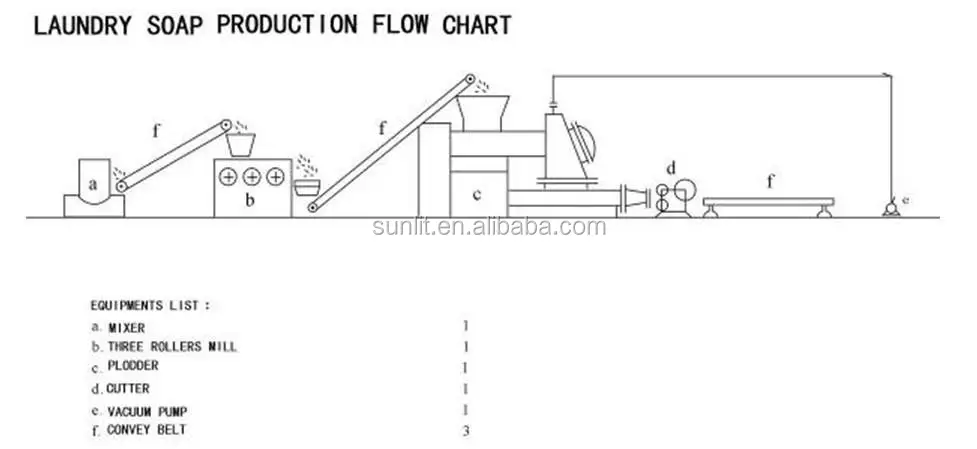

Flow chart
Mixing Materials --->Grinding --->Extruding Soap Bar---> Cutting Soaps
Main Machines:
Machine: Mixer
Power: 5.5 kw,
Capaity:100 kg/batch
Agitator speed: 32r/min
Dimension:1000*600*800 mm

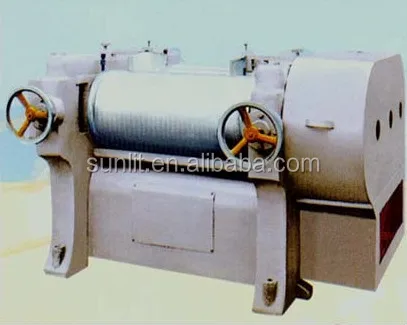

Machine: Three-roller mill
Roller diameter: 250 mm
Roller length: 580 mm
Motor power: 7.5kw
Roller speed ratio:1:3:9

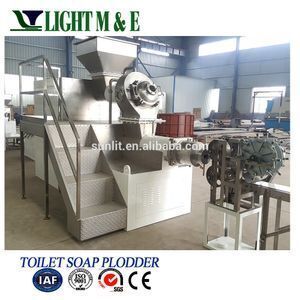

Machine: Single-screw soap plodder
Motor power: 5.5kw+7.5kw
Capacity: 500 kg/h

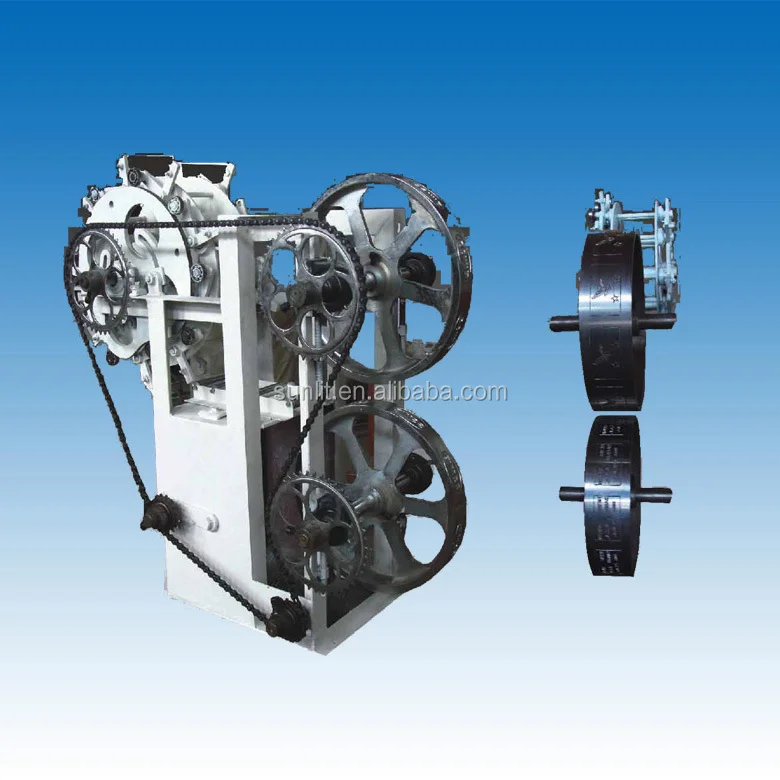

Machine: Soap cutting machine
Capacity: 50-300 pc/min
Dimension:800*400*800 mm
Weight: 50kg
Come with one set mould
Soap weight & dimension: according to customer’s need
